TR4 Metal Roofing Panel Roll Forming Machine for sale

TR4 Metal Roofing Panel is one most popular for Peru, Roof Curving machine available.




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

TR4 TR5 TR6 Metal Roofing Panel Roll Forming Machine is used to produce trapezoidal roof panels , with 4 to 6 ribs . TR4 Roof panel is used regularly for industrial buildings, since it also allows to make curve on same panel . We offer package solution for TR4 roofing panel forming machine and Hydraulic curve machine .

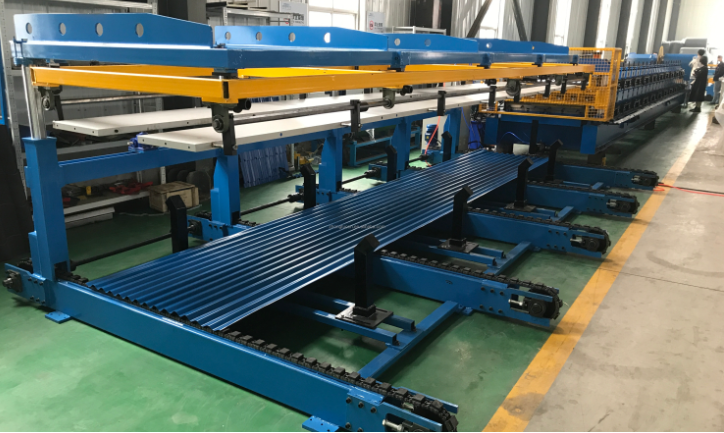

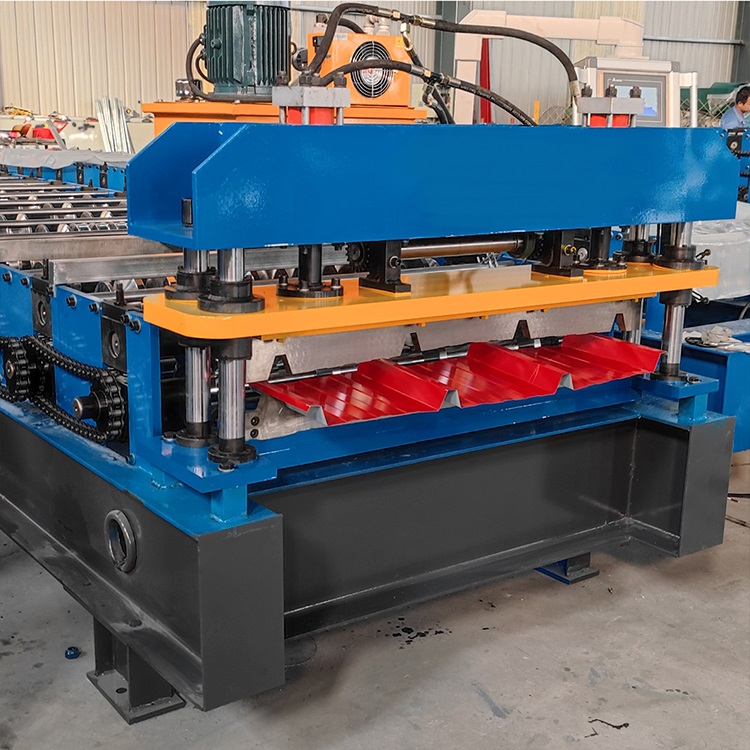

In the below photos, you can clearly see the machine whole look and Tr4 roof panel that produced by our machine .

Profile drawing for reference:

Peru TR4 standard profile drawing like below picture, have 4 waves, wave height is 40 mm. If you need different sizes, we can also customized machine according to it.



Technical Farameters

Working Process

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material

Coil Type

PPGI,PPGL,GI

Width

1200/1220mm

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

5.5kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

20 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

8.8m×1.5m×1.2m

Total weight (Approx)

5.6T

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

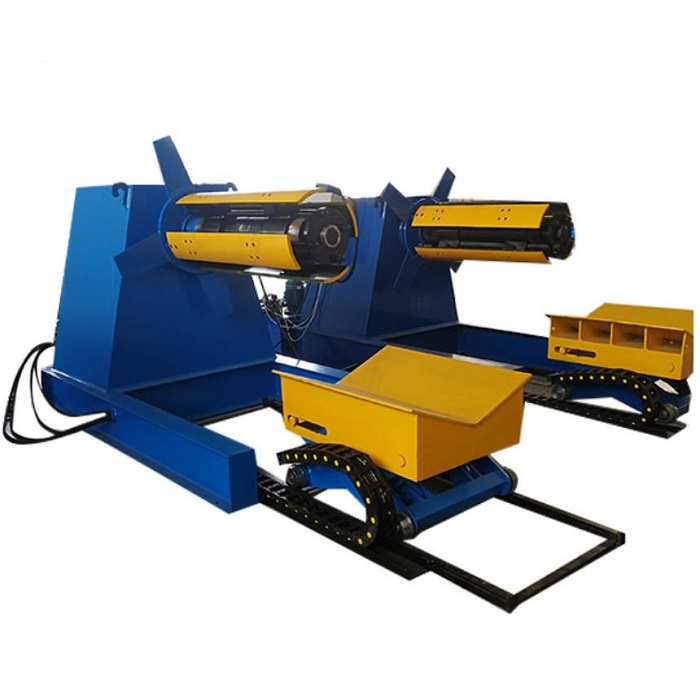

  • Hydraulic decoiler

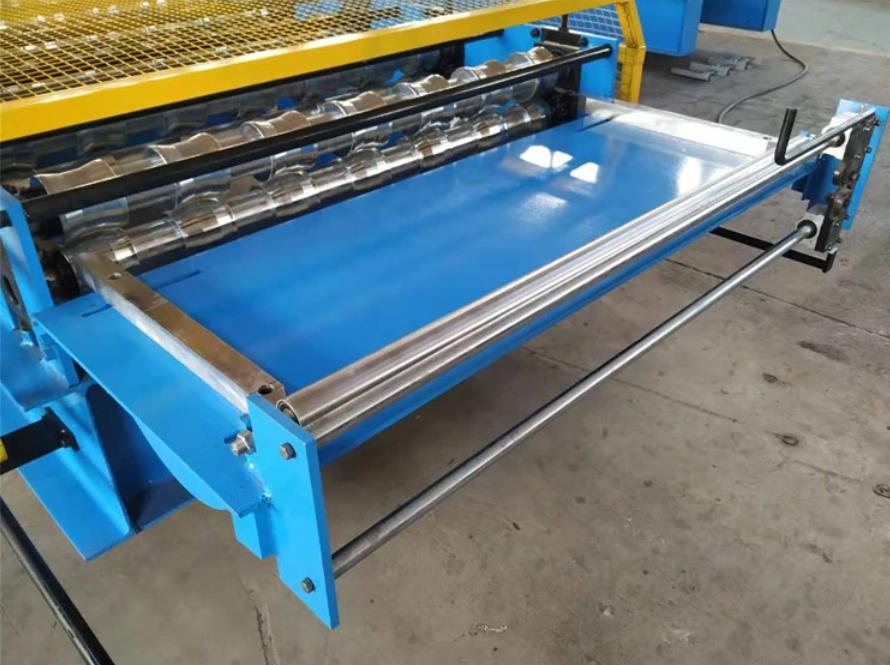

  • roll forming machine feeding

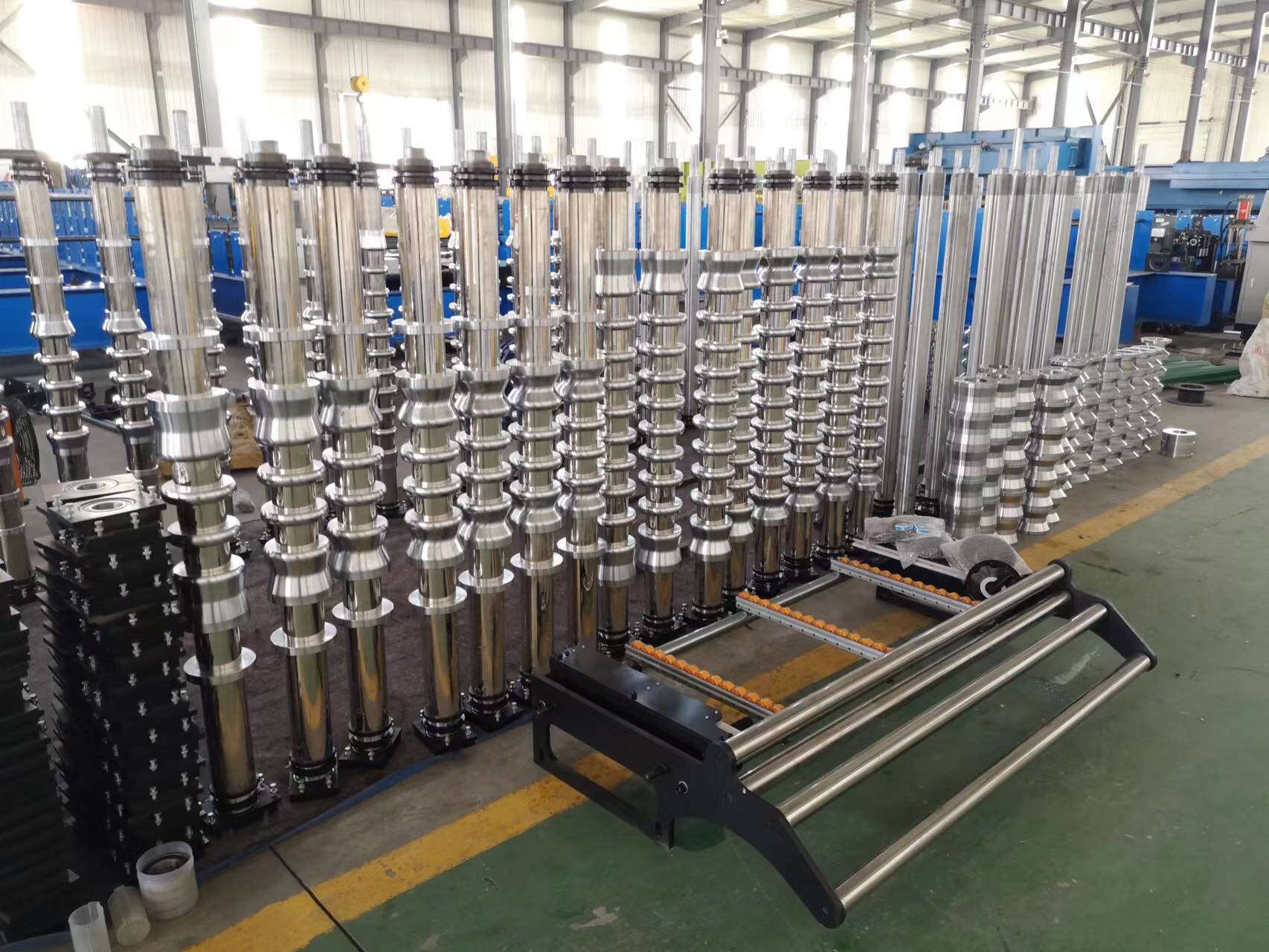

  • rollers

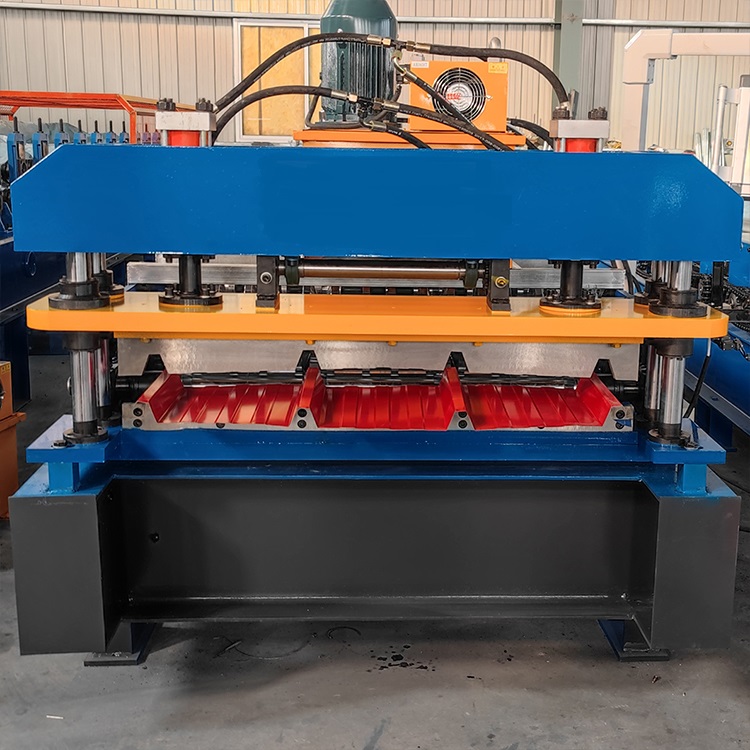

  • metal roofing machine cost
  • metal roofing machine manufacturers
  • TR4 Metal Roofing Panel Roll Forming Machine for sale

Applications

  • cut to length machine
  • cut to length machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

The advantage of Tr4 metal sheets includes beautiful, classica, appearance and grace taste. t is widely used in village, hotel,exhibition, vacation village, family construction and outdoor decorating.
