Steel deck floor roll forming machine

Design Idea:

Logo press: add the logo press for customer, the logo will be pressed when the share part do the shearing job.

Good shearing: shearing system adopt double oil cylinder 7.5kw motor, more stable than single oil cylinder and can guarantee the cutter can cut 1.2mm thickness material easily.
Stable-transmission: 2 inches double chain with chain tensors.
floor deck roll forming machine

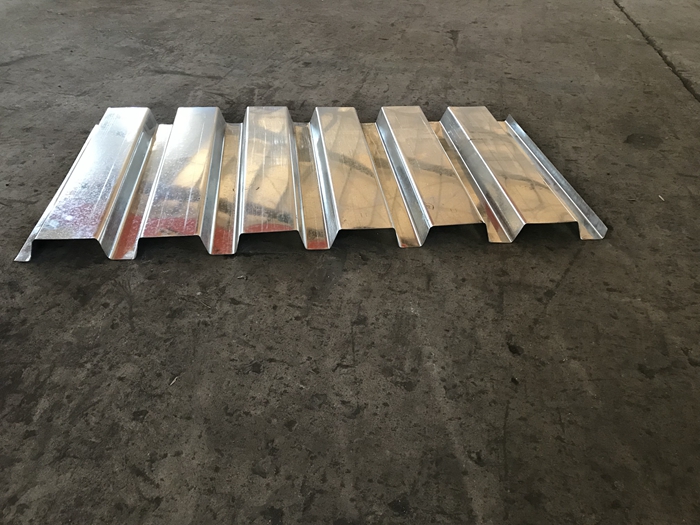

Profile drawing for reference:

The floor decking machine America use are almost same and standard,B type is one they normally used. and the material thickness they used are Gauges 16 18 20 22 as so on. Most of the metal floor decking panel are 36” effective width and 48” input material width.
floor deck roll forming machine

Technical Farameters

Processing Flow

Decoiler-feeding material-roll forming-cutting-receiving the product
floor deck roll forming machine
Steel deck floor roll forming machine

Raw material
Galvanized coils yield strength till 550 Mpa
Material thickness:16-22gauge( 0.8-1.5 mm)
Machine frame
400 H beam steel welded
Roller fixer
Middle plate (thickness 20mm)
Material of rollers
Gcr15 quenching treat HRC58-60
Forming stations
28 roller stations
Diameter of shafts
φ 95 mm
Material of shafts
45# steel precision-machined
Forming speed
0-15 m per minute
Voltage
380 v 60 hz 3 phase or as request
Transmission way
Gear and 2 inches double chain with chain tensors
Drive motor
Power:18.5 kw x 2 sets
installation: inside the machine
Cutting blade material
Cr12Mov quenched treatment to improve hardness
Cutting type
Hydraulic cutting
Dimension of the machine
11000 х 1850 х 1500 mm
Weight
about 12 t

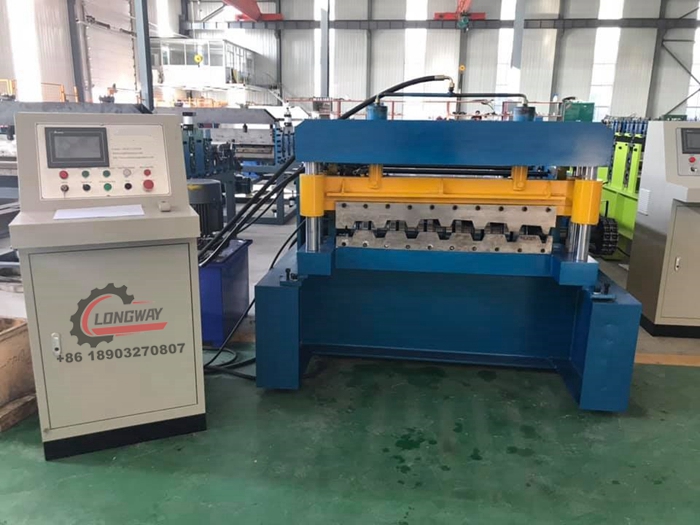

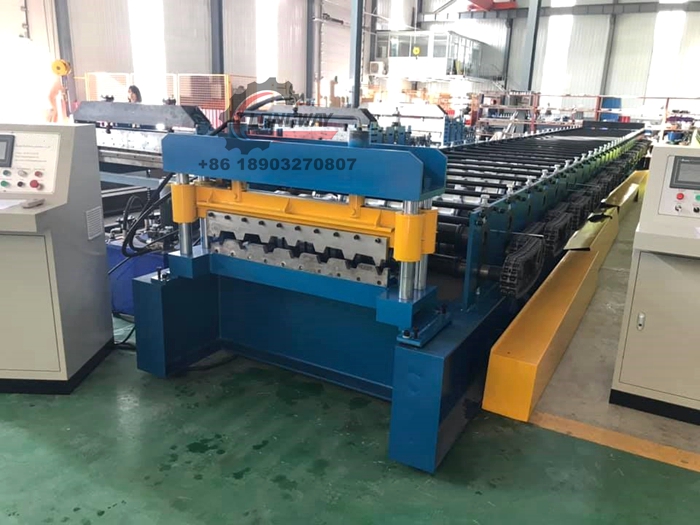

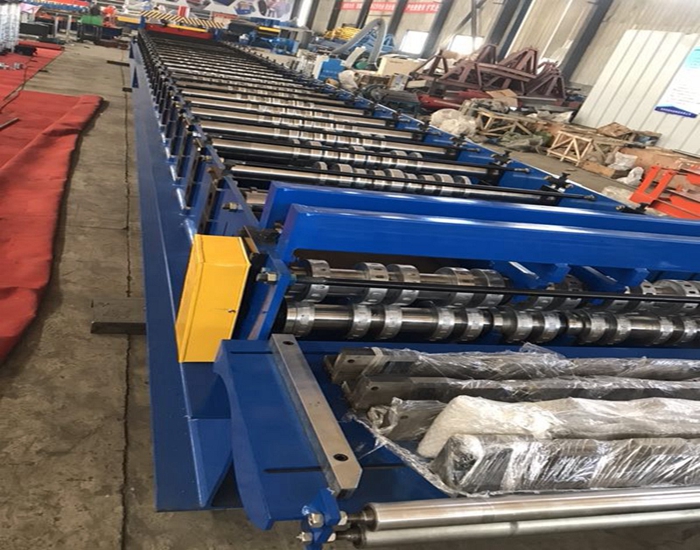

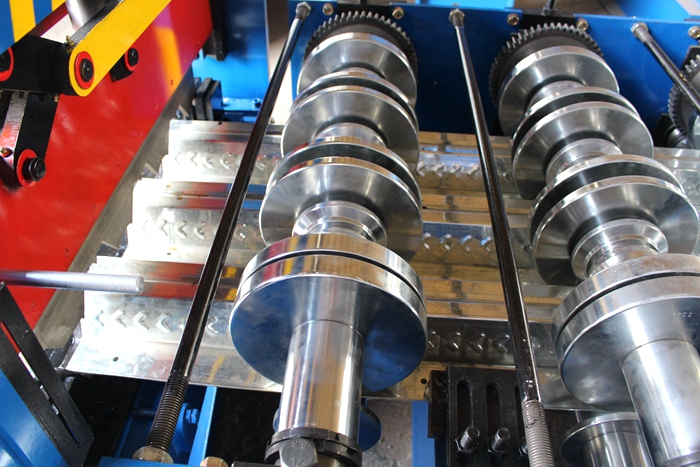

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

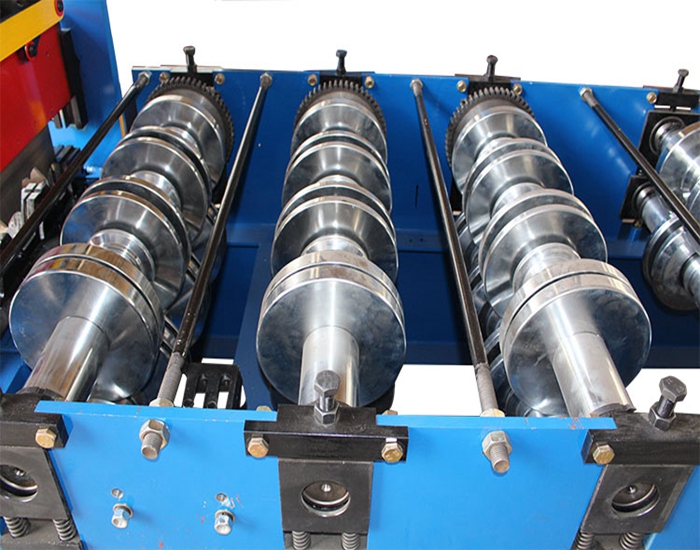

  • floor deck machine

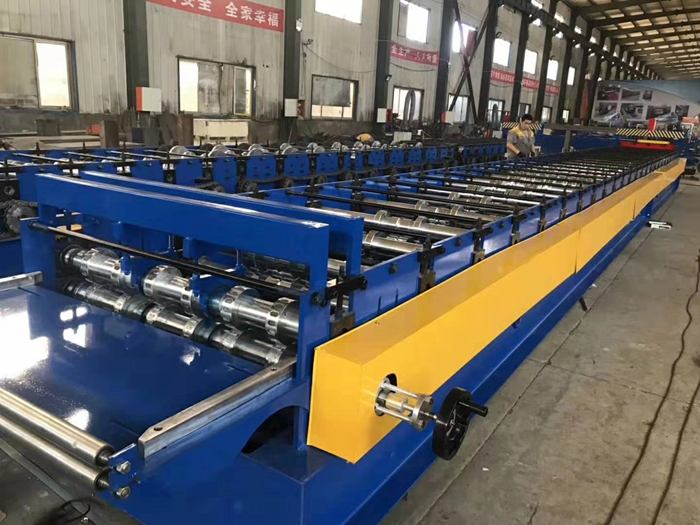

  • Steel deck floor roll forming machine

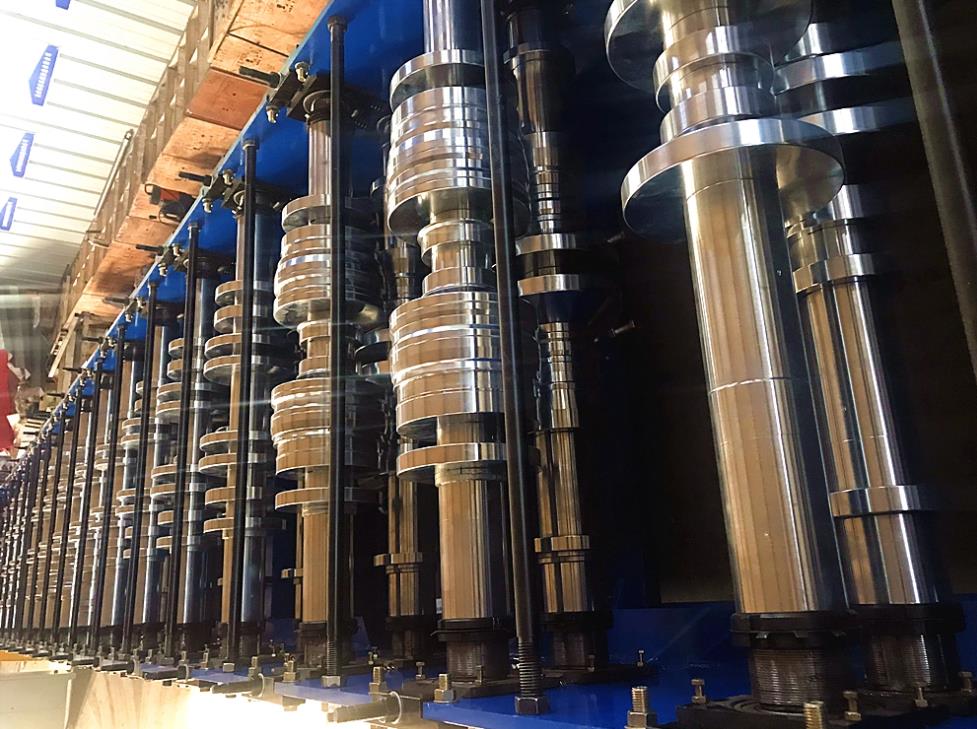

  • floor deck forming machine02

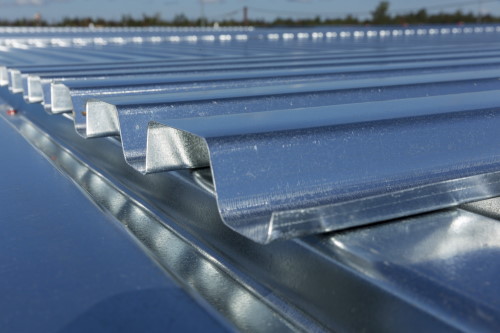

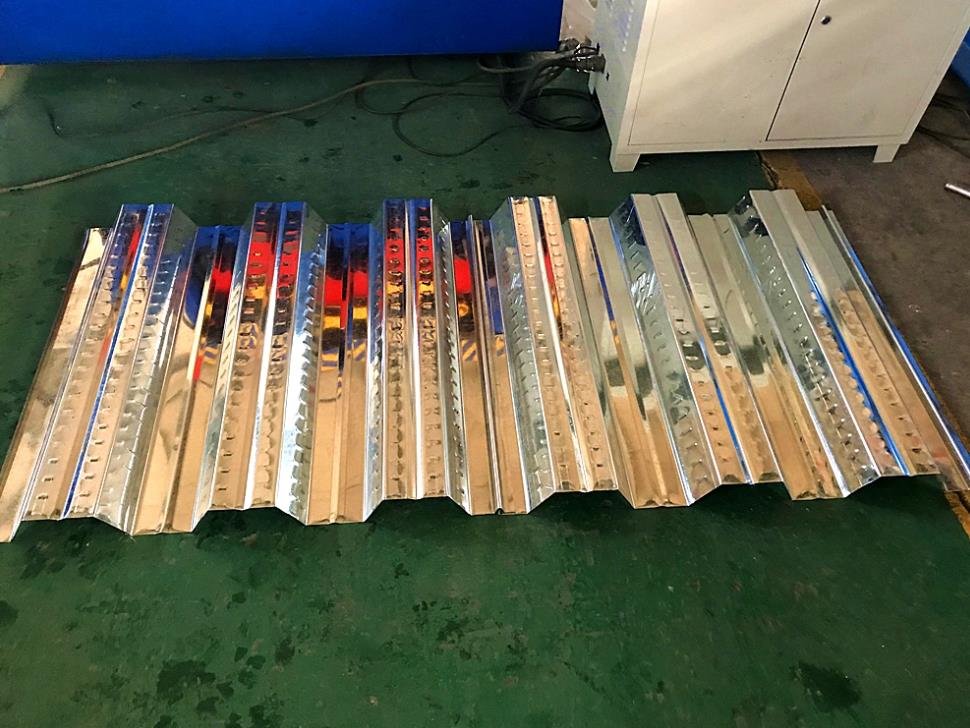

  • floor deck panel
  • Steel deck floor roll forming machine
  • floor deck forming machine factory

Applications

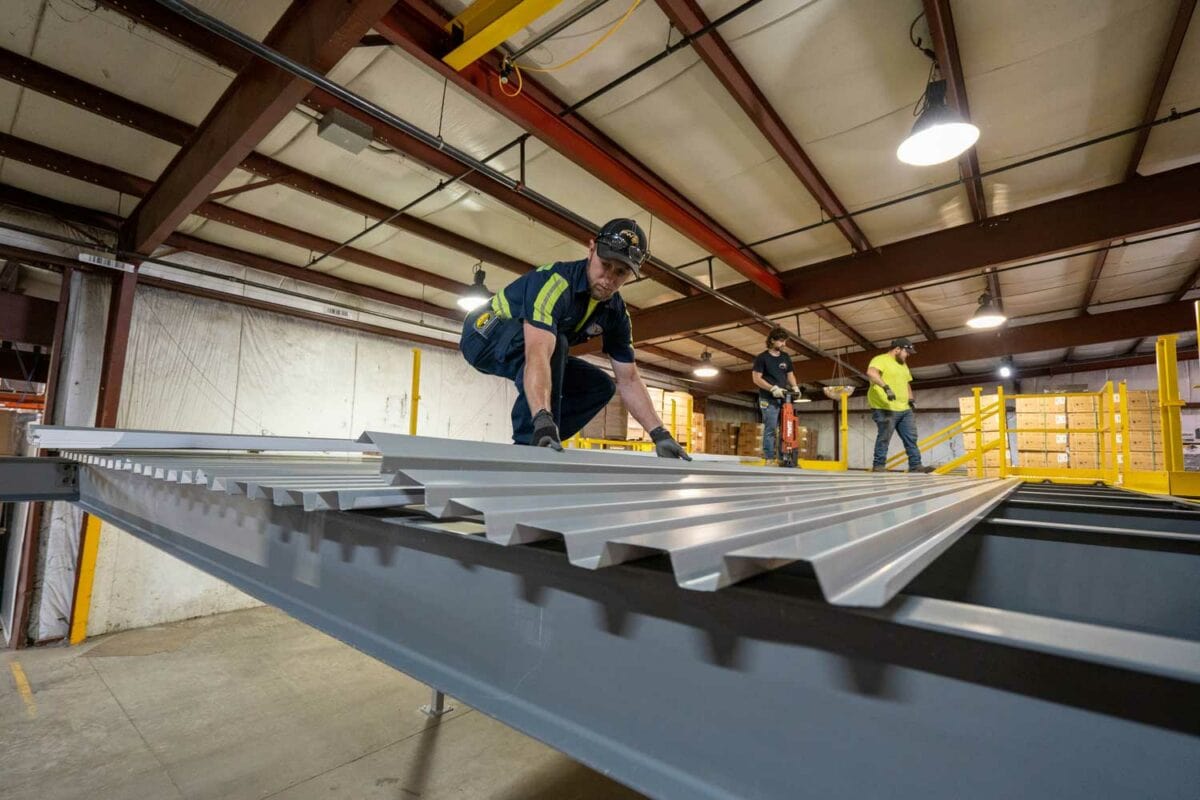

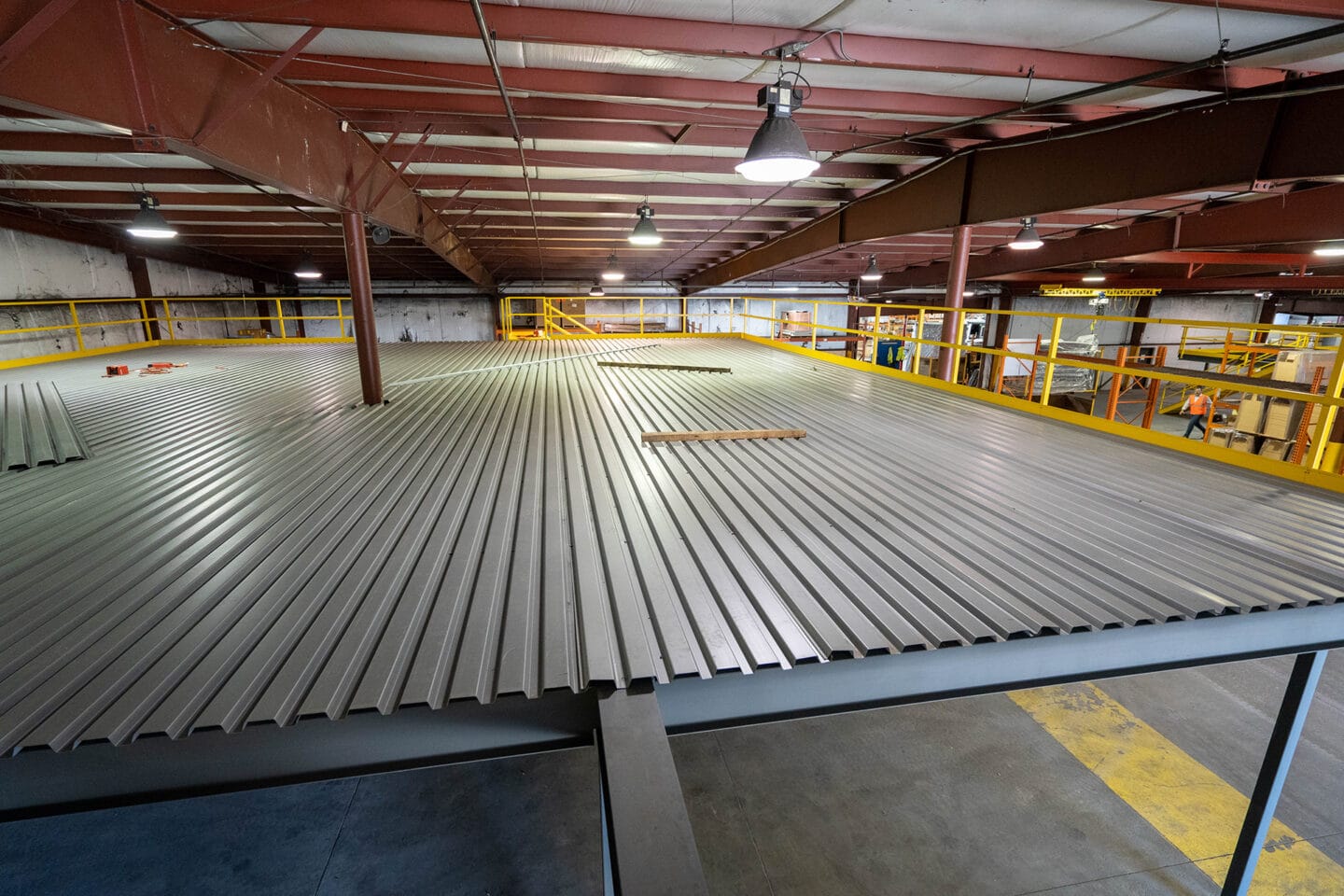

  • b-deck-floor-large-mezzanine

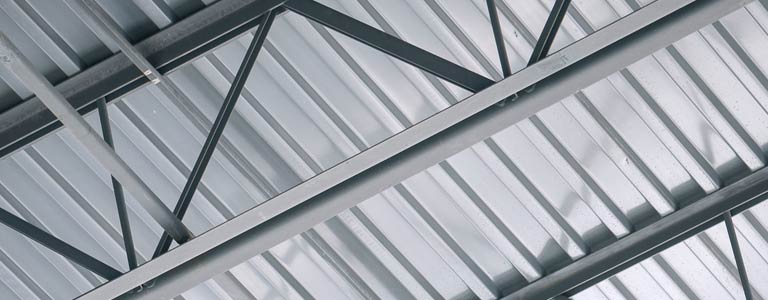

  • header-b-deck
  • installing-b-decking
  • deck on-site-installer
  • floor decking roll forming machine

All of our steel deck roll forming machines are custom sized, we can design the machine according to your request (profile measurement, material gauge, and other special details)
