Descripción de Maquina para zincalum 5v
Maquina para zinc acanalado y zincalum 5v , Máquina perfiladora de para zinc 5v y 6v. Este conjunto de maquina para hacer zinc se exporta a nuestro cliente de Chile. Y podríamos ofrecer la Certificación de Original a Chile.



Profile drawing for reference:

Maquina para zincalum 5v profile drawing like below picture. If you need different sizes, we can also customized machine according to it.

Technical Farameters

Working Process

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material

Coil Type

PPGI,PPGL,GI

Width

1200/1220mm

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

5.5kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

11 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

5.8m×1.5m×1.2m

Total weight (Approx)

3.6T

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

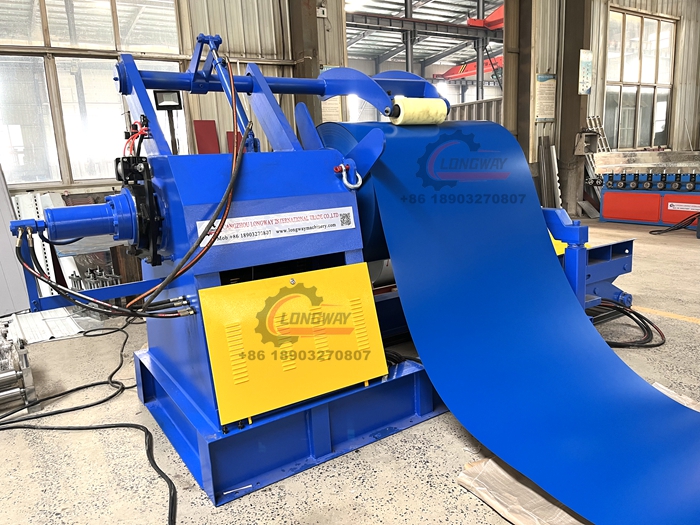

  • auto wrapper
  • Calamina 5V05

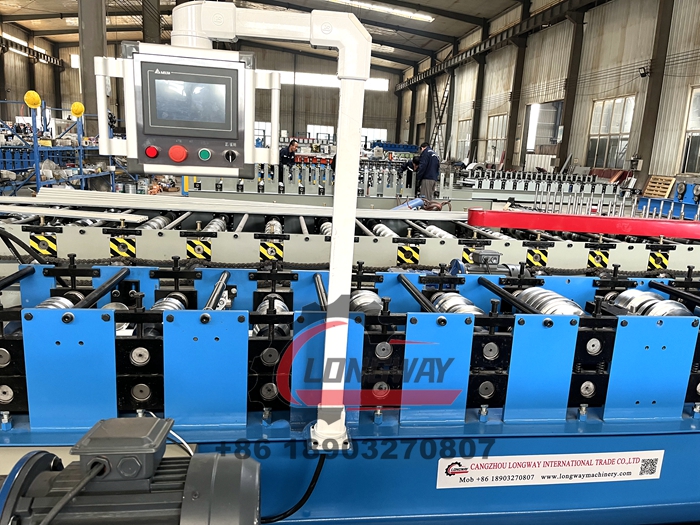

  • roll forming machine control
  • Calamina 5V07

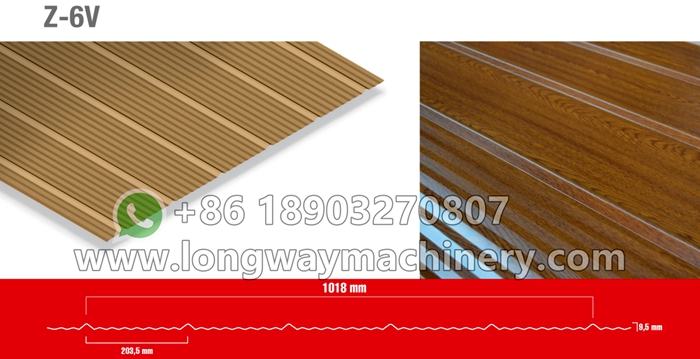

  • Calamina 5V10

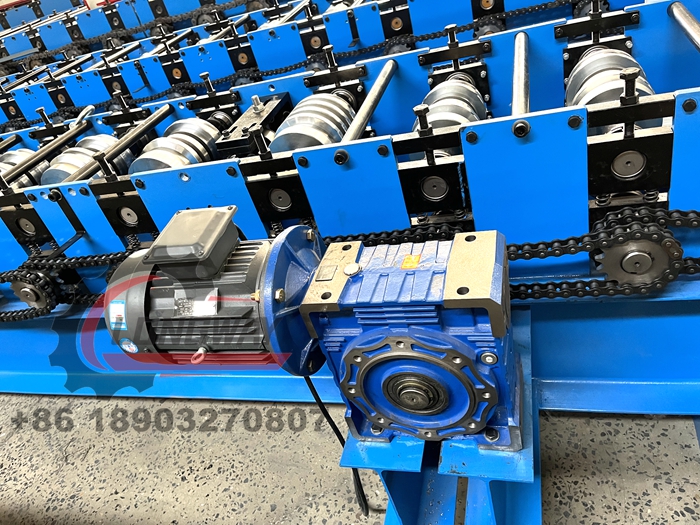

  • roll forming machine motor

Applications

  • cut to length machine
  • cut to length machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

The advantage of Tr4 metal sheets includes beautiful, classica, appearance and grace taste. t is widely used in village, hotel,exhibition, vacation village, family construction and outdoor decorating.

Related Machines

LONGWAY valuable customer

  • Chile

    Chile

  • lran

    lran

  • Philippine

    Philippine

  • South Africa

    South Africa

Package and Delivery

  • metal roofing machine
  • metal roofing machine
  • metal roofing machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
