Chile PV8 Roof Panel forming machine pt825 panel

máquinas formadoras de rollos para techos PV8

CONTACT NOW DOWNLOAD PDF

Details

Profile drawing for reference:

Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand,Pv8 roofing sheet is popular in whole South America market .

Technical Farameters

Processing Flow

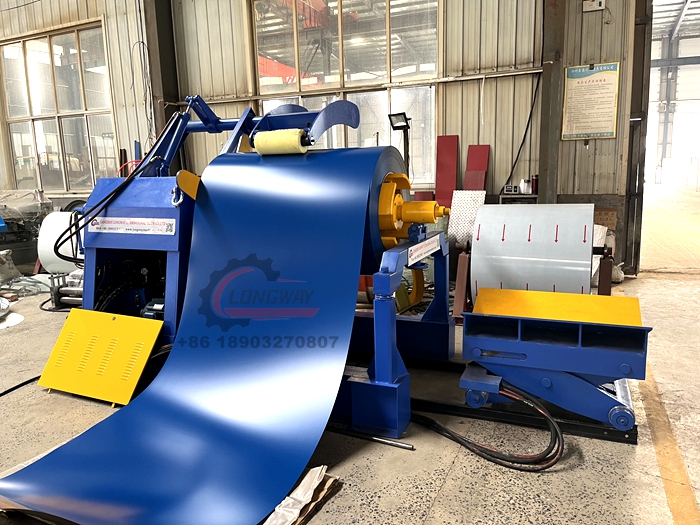

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1200/1250mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	4+4kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)

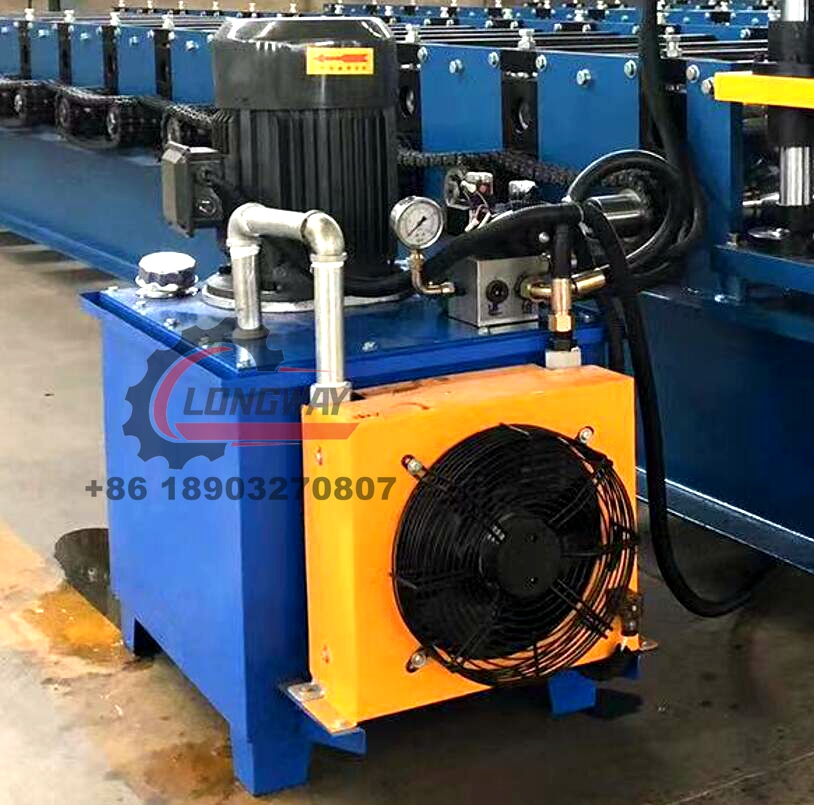

Type of cutting		Hydraulic Pillar type and length-set cutting

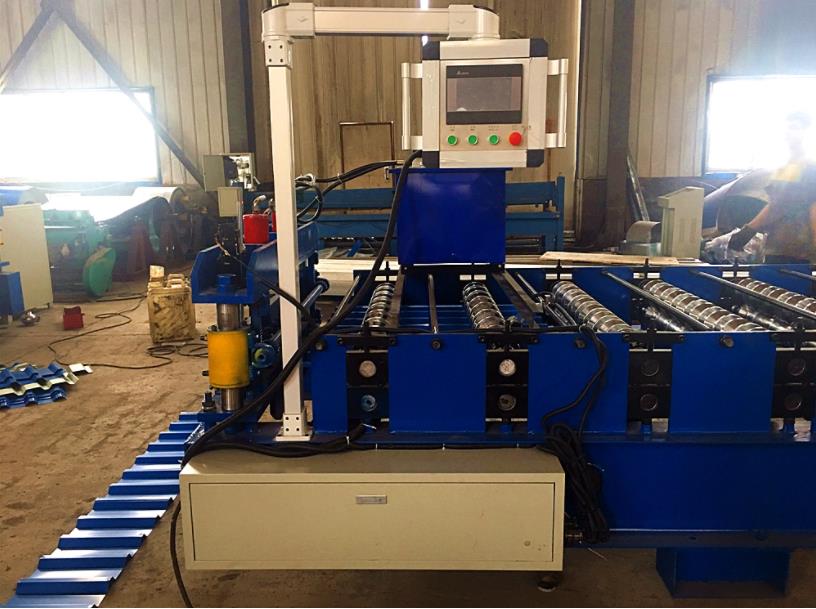

Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		9.5m×1.5m×1.2m
Total weight (Approx)		5.6T

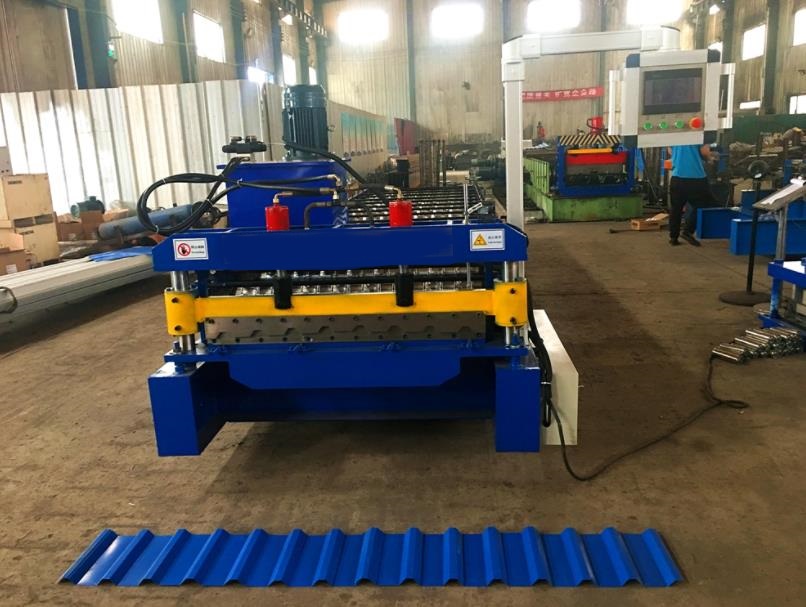

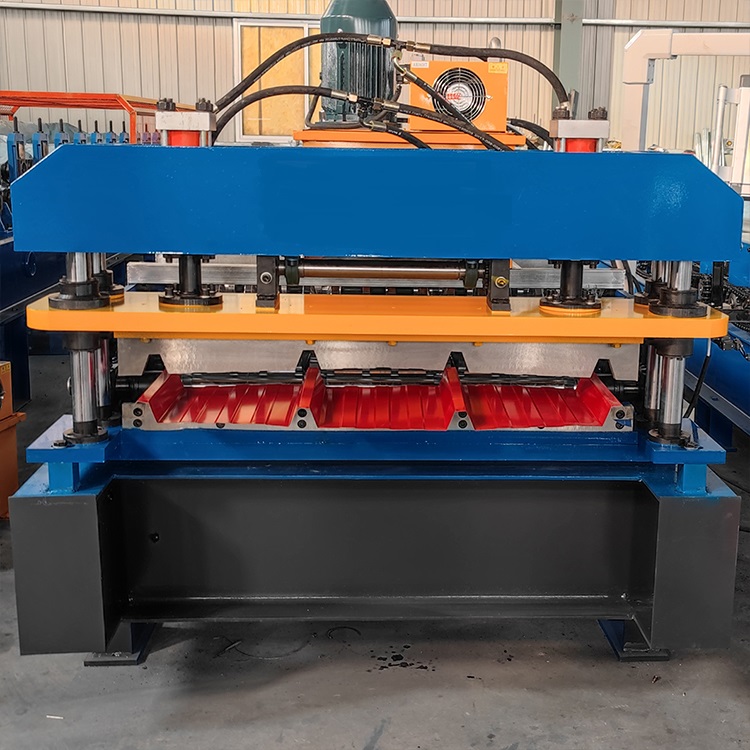

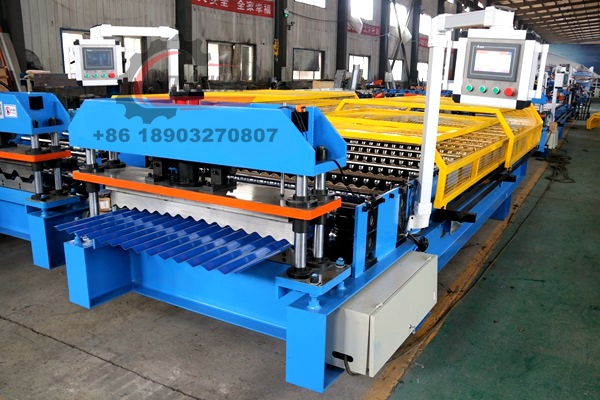

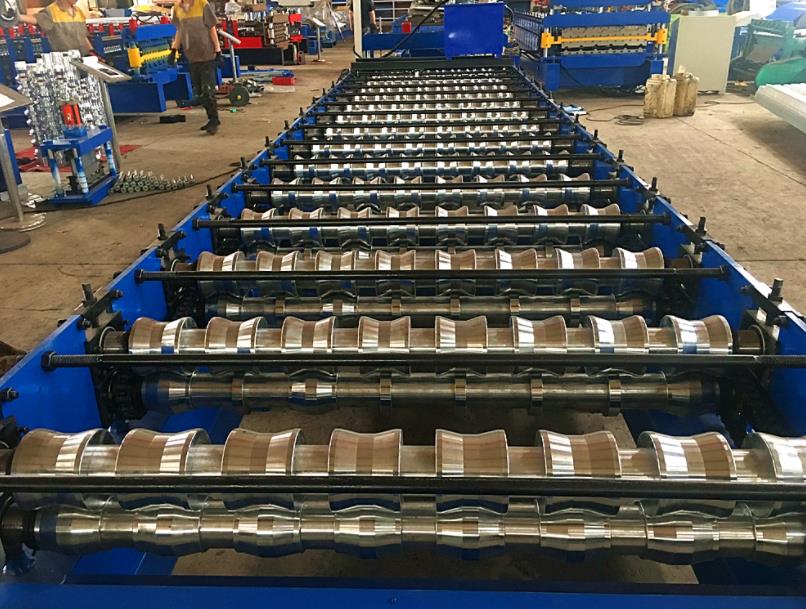

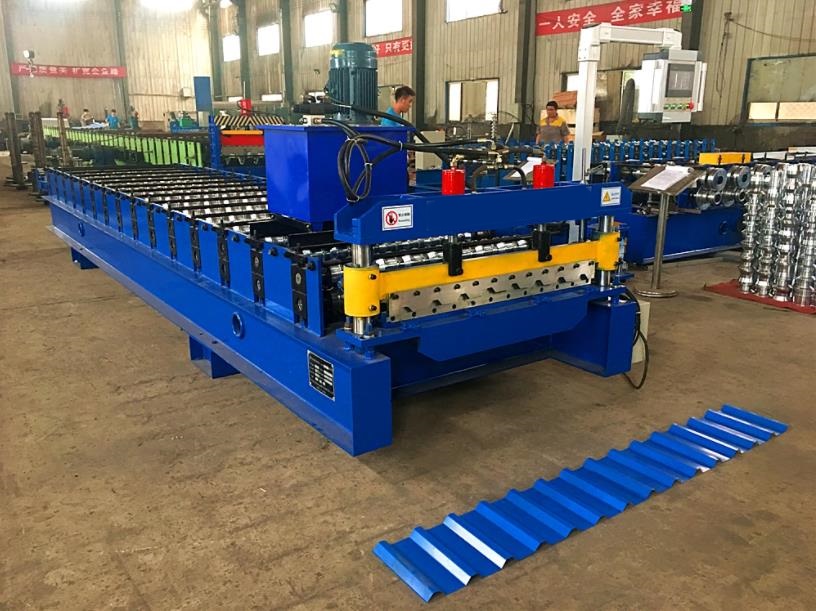

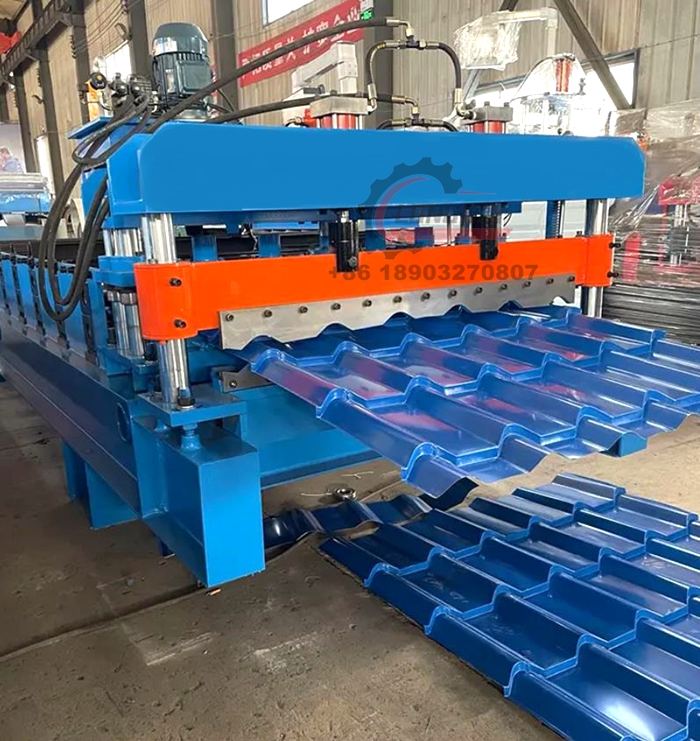

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

Applications

Cubiertas y revestimientos. Revestimientos siempre y cuando la superficie a cubrir se encuentre encamisada estructuralmente, o con una superficie lisa.

Cubiertas y revestimientos laterales.
Construcciones industriales y frigoríficos.
Edificaciones comerciales.
Edificaciones institucionales.
Construcciones habitacionales.

Related Machines

LONGWAY valuable customer

Chile
lran
Philippine
South Africa

Package and Delivery

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
