Product Details
Tr20 Tr40 Double deck roof panel forming machine have alternating bottom and upper stands. Rolls for one profile( like ibr sheeting ) are installed in the bottom stands, and rolls for another profile(like corrugated sheeting )are mounted on the upper stands. The whole line will use only one uncoiler, one cutoff unit, one controlled box. But the machine can’t produce the 2 profiles at the same time.

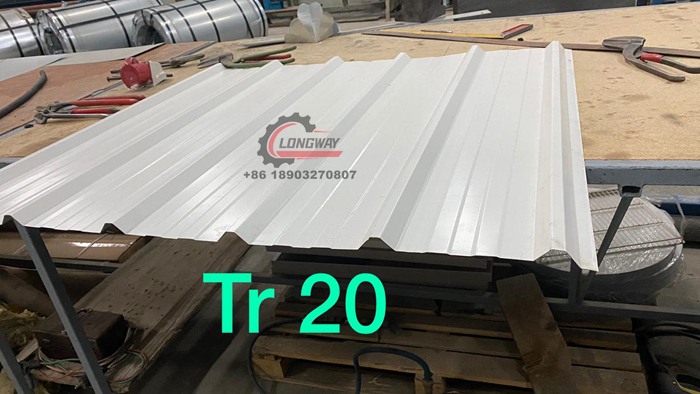

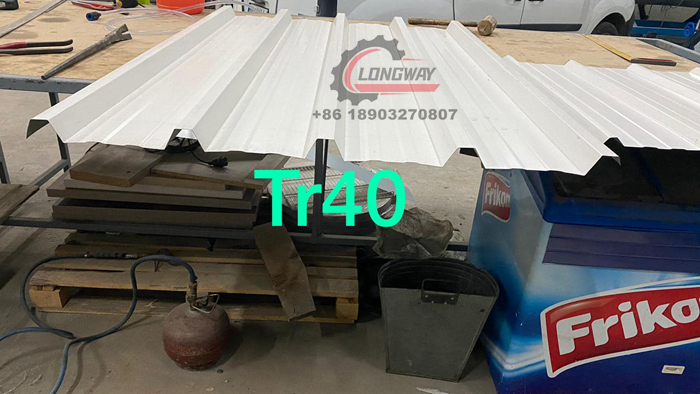

Profile drawing for reference:
Technical Farameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table
|
Raw Material |
Coil Type |
PPGI,PPGL,GI |
|
Width |
1000/1200/1220mm |
|
|
Thickness range |
29-22 Gauge (0.3-0.6mm) |
|
|
Power Requirement
|
Voltage |
380v/3ph/50hz(Customized) |
|
Main Motor power |
5.5kw |
|
|
Cutter power |
4kw |
|
|
Forming speed |
15-20m/min |
|
|
Machine Frame |
350mm H Beam Structure |
|
|
Thickness of structure |
18 mm Welded Steel Middle Support Plate |
|
|
Forming shaft |
75mm solid shaft with heat treatment |
|
|
Material Of Rollers |
High Grade 45# Forged Steel |
|
|
Forming stations |
14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision |
|
|
Transmission Way |
Chain drive 1 inch (Double Chain) |
|
|
Type of cutting |
Hydraulic Pillar type and length-set cutting |
|
|
Control system |
PLC Delta and Inverter Delta |
|
|
Screen |
Touch screen |
|
|
Dimension(Approx) |
8.8m×1.5m×1.2m |
|
|
Total weight (Approx) |
7.6T |
|

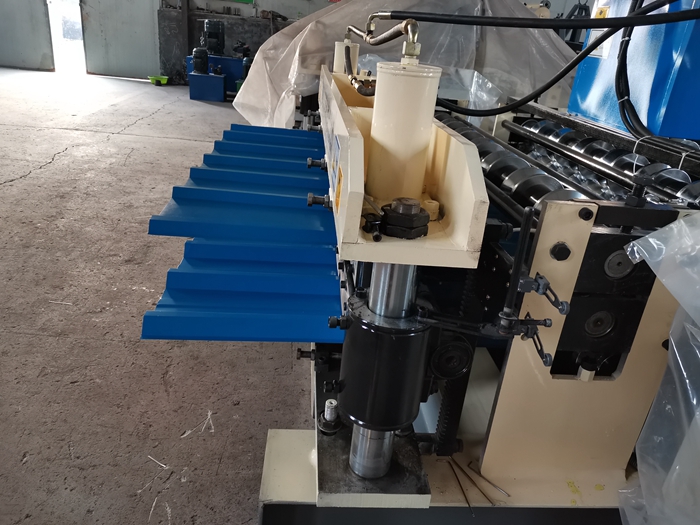

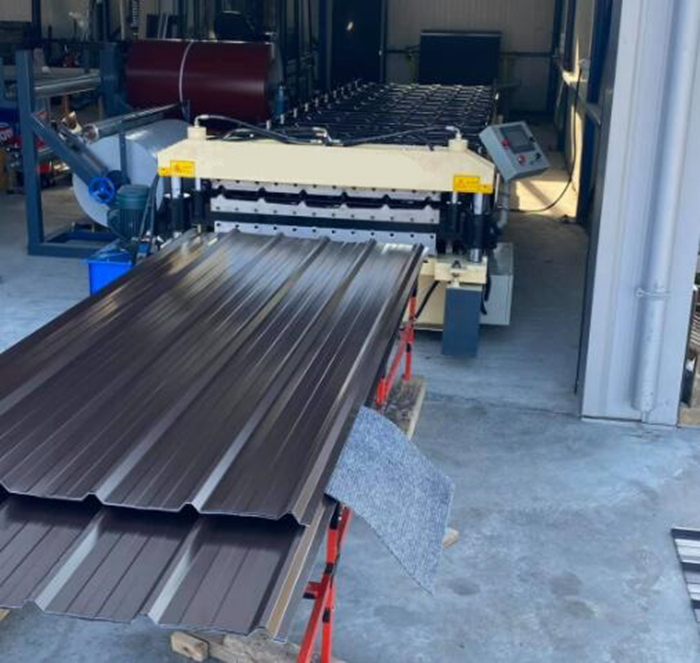

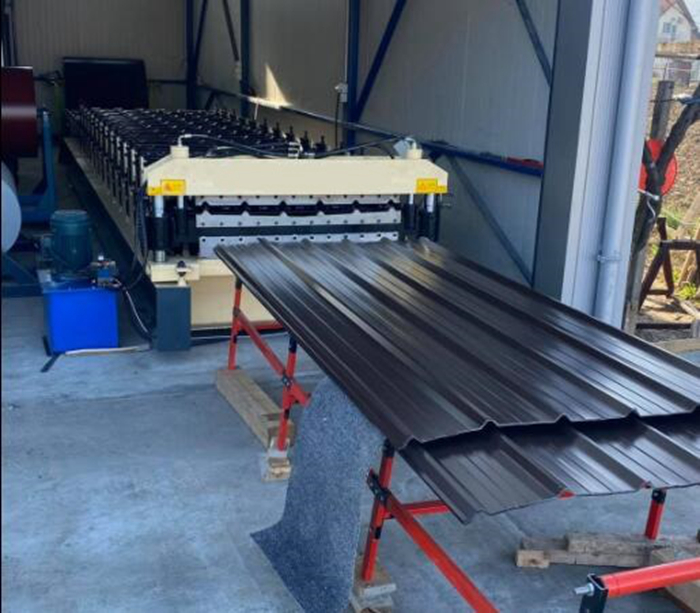

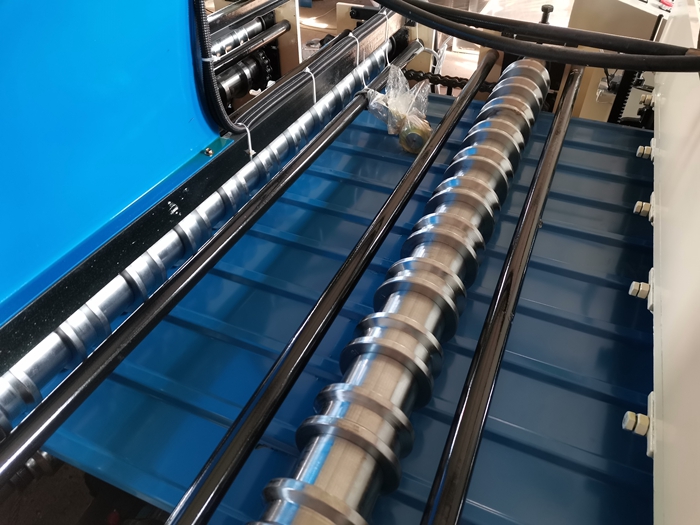

Machine Detailed Pictures
Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
Applications

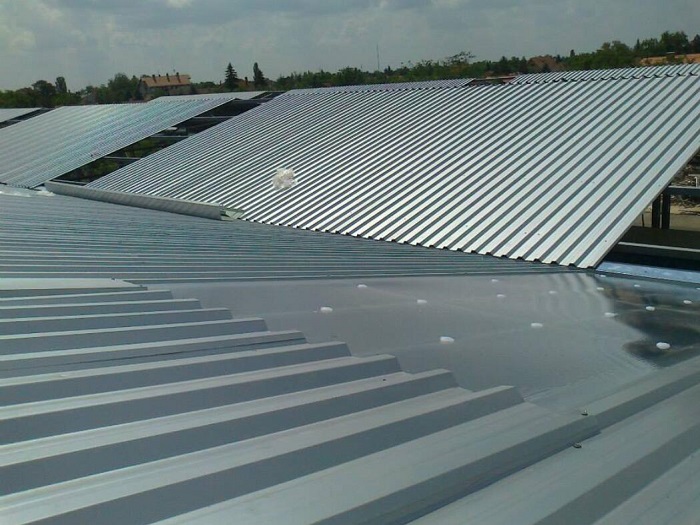

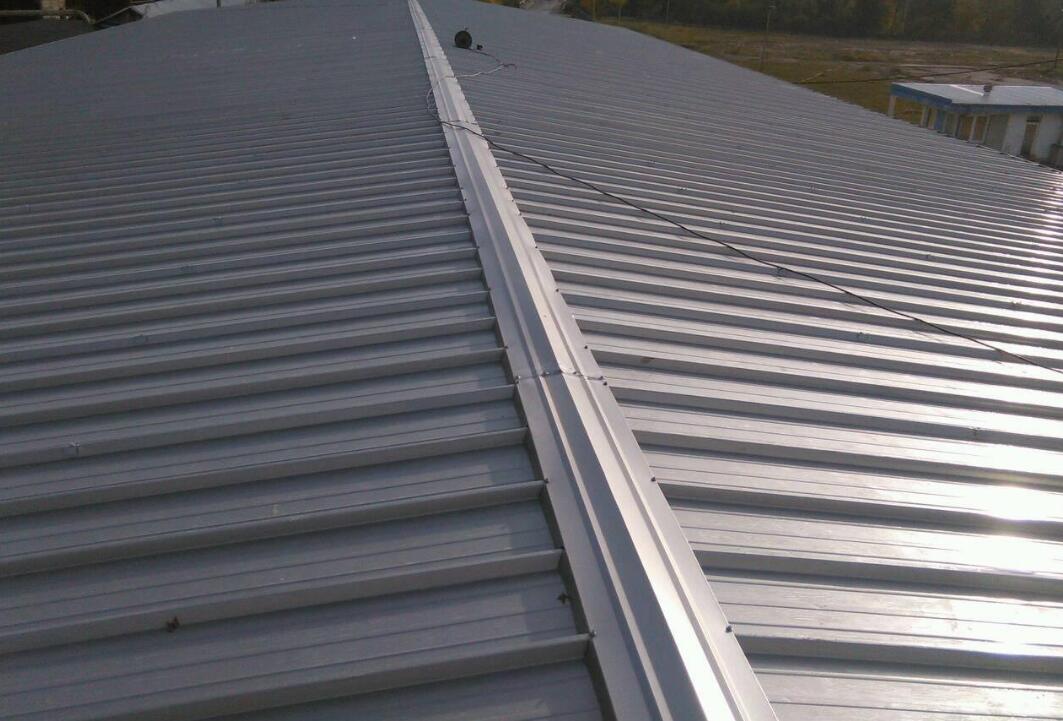

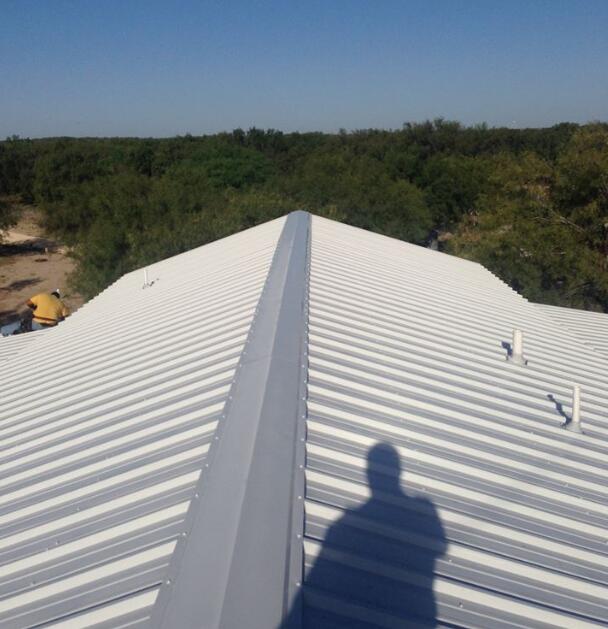

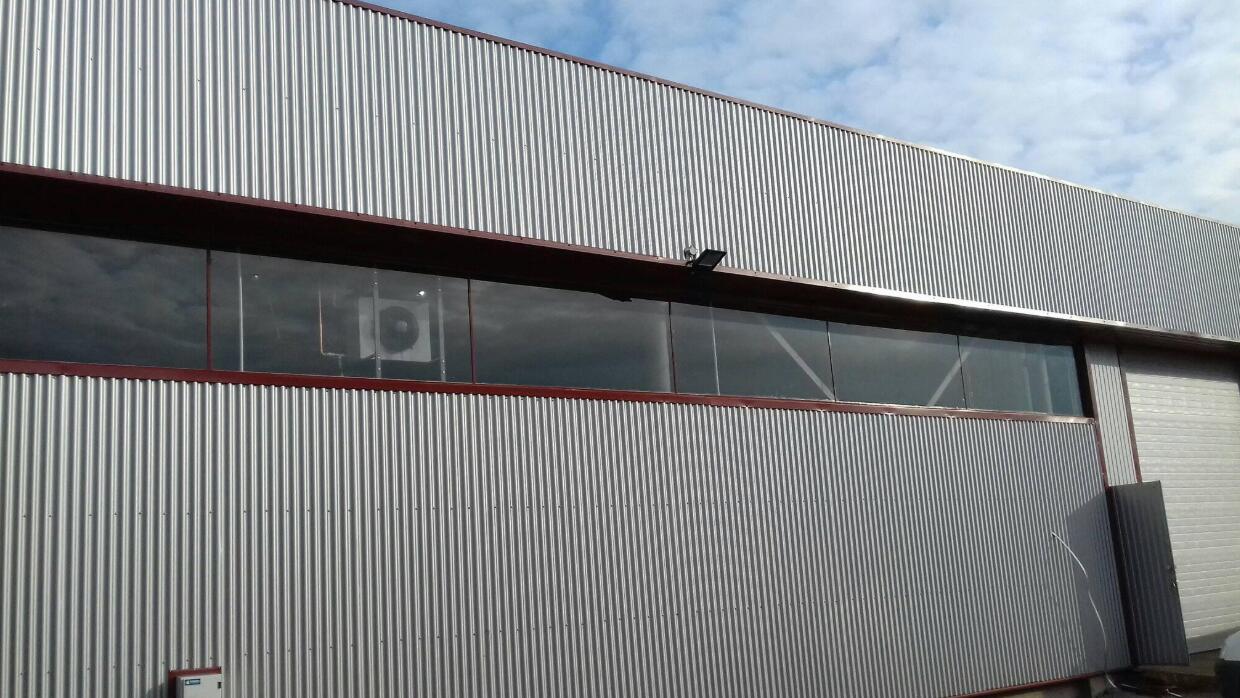

Applications of Roof Panel Roll Forming Machine
This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.
A minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.

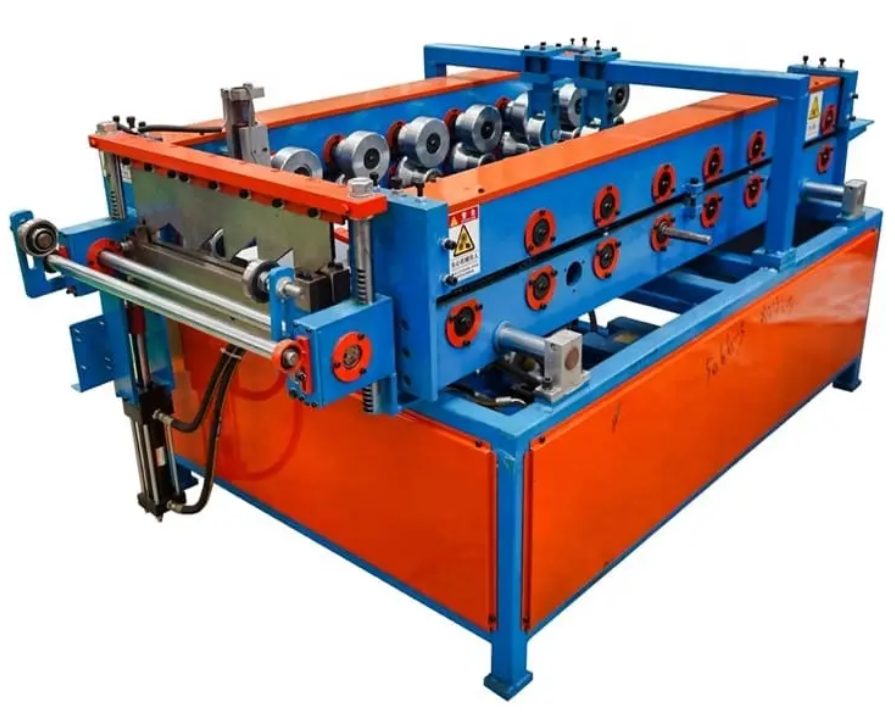

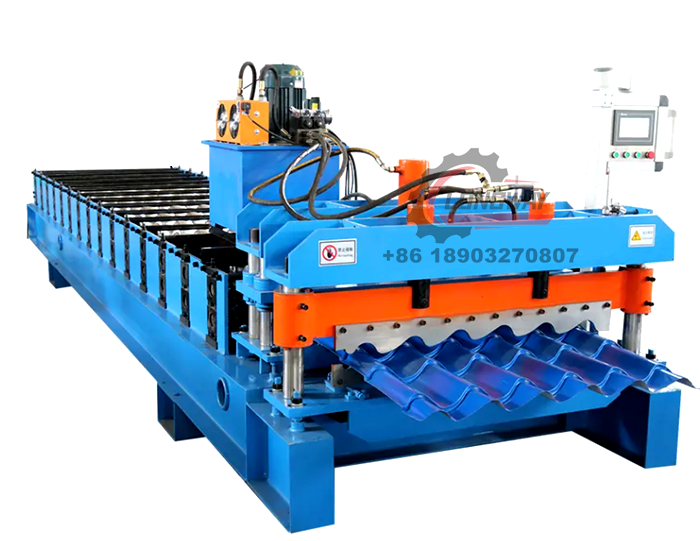

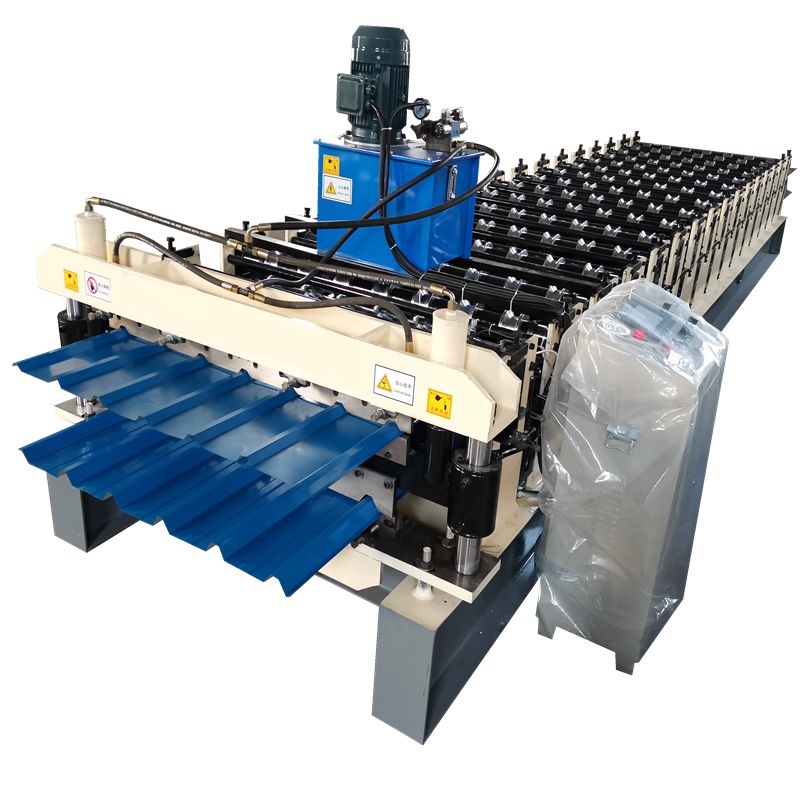

Related Machines
Related Machines
LONGWAY valuable customer
-
Chile
-
lran
-
Philippine
-
South Africa
Package and Delivery
1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
