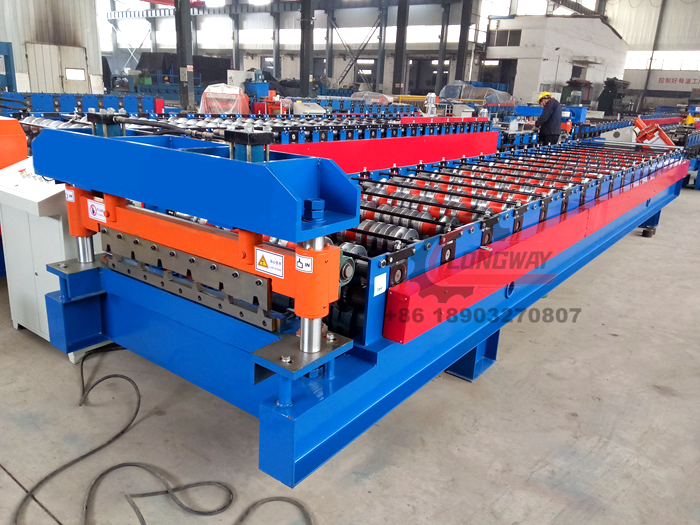

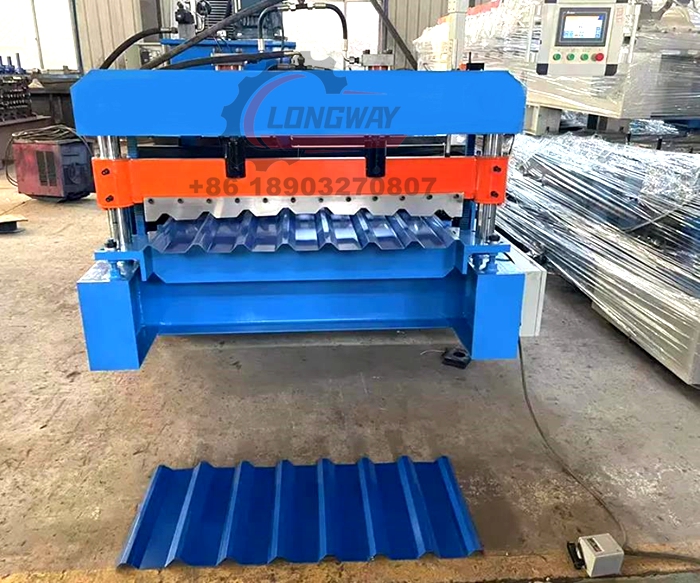

Maquina para fabricar paneles de techo 910 PV6

Maquina para fabricar paneles de techo 910 PV6

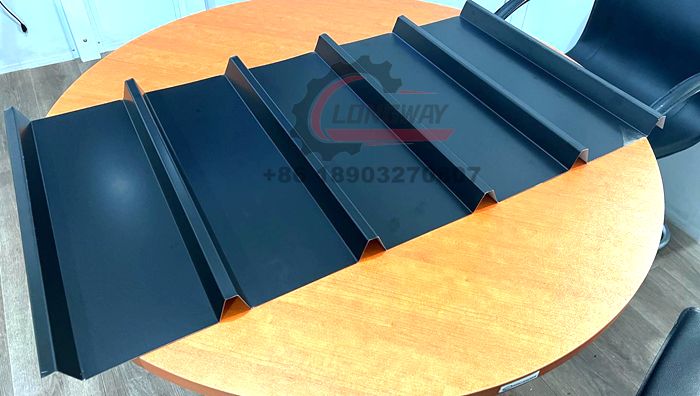

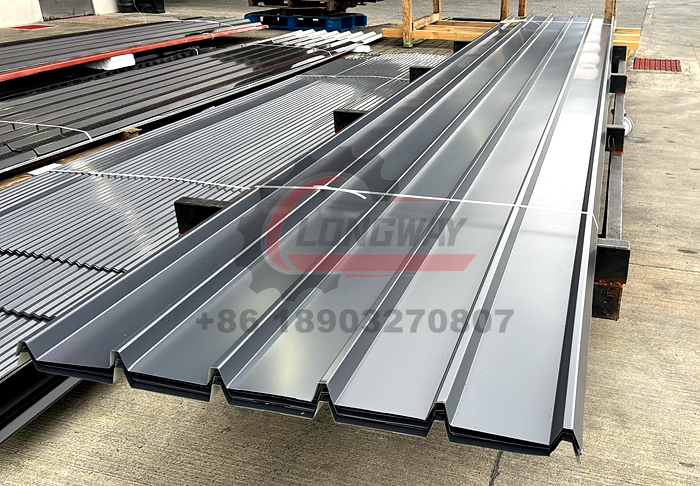

Pv6 Trapezoidal panel, used for roofing and cladding which allows it to with stand loads between the distances of coastal walls by its stiffening ribs. PV6 910 panel Prepainted and zinc-alum finish.

Features of PV6 Panel

Useful width: 910mm
Thicknesses: 0.4mm / 0.5mm / 0.6mm
Lengths: 0.5m to 18.00 m
Finish: Zinc-Alum, Prepainted and galvanized.

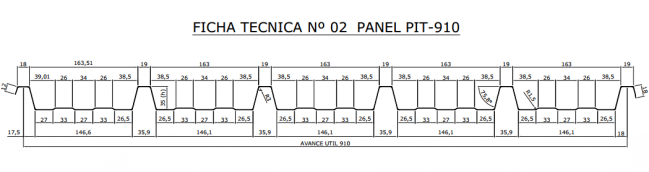

Profile drawing for reference:

This type PV6 Trapezoidal roofing panel is widely used in Chile market , with effective width at 910mm . We can design the machine as eash profile drawing you require .

Processing Flow

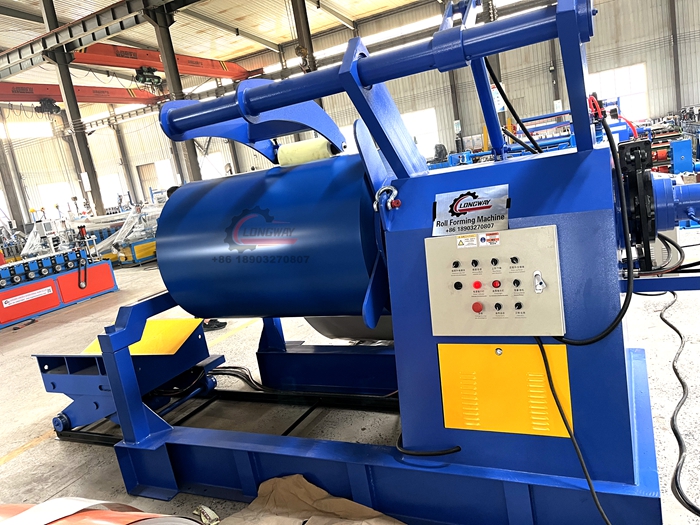

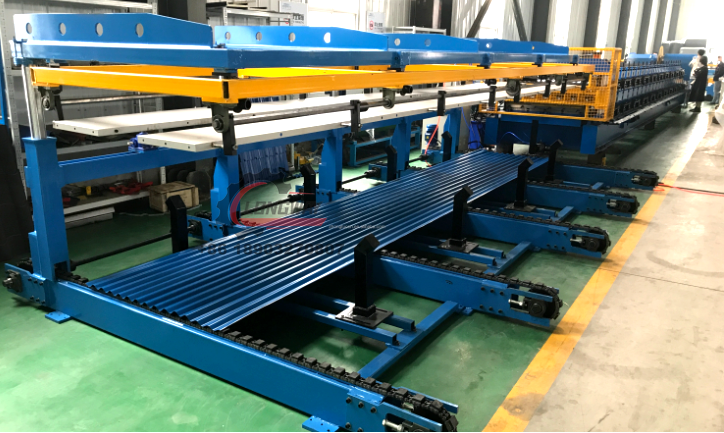

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	4+4kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel

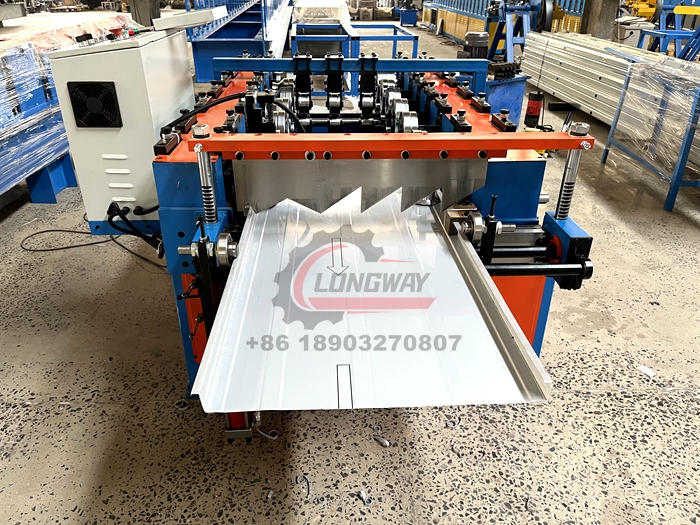

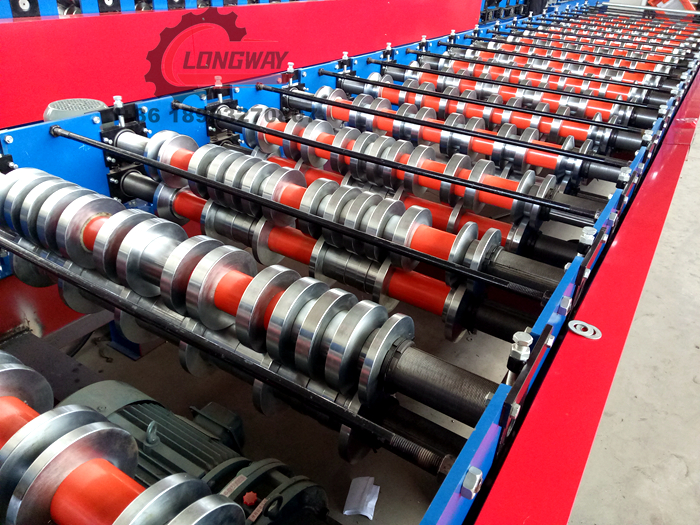

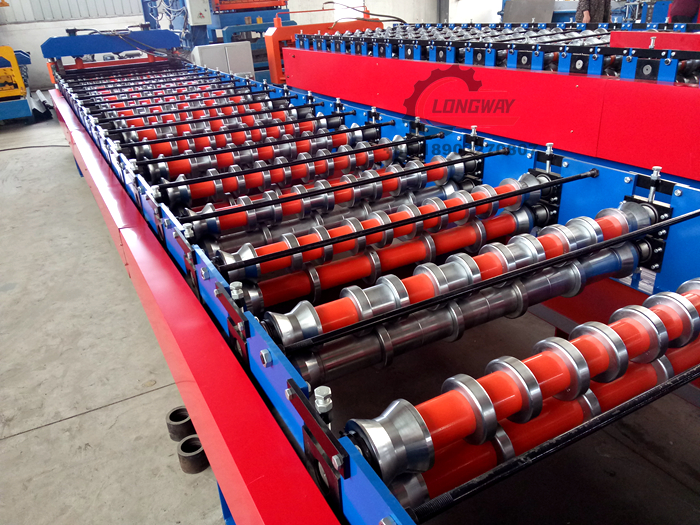

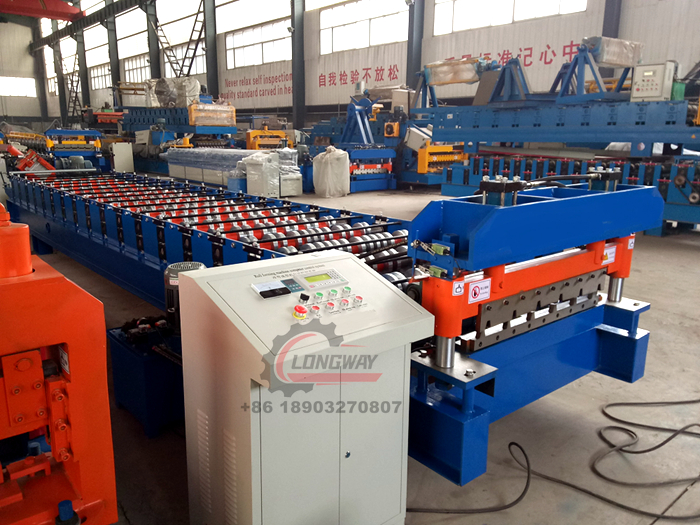

Forming stations		18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)

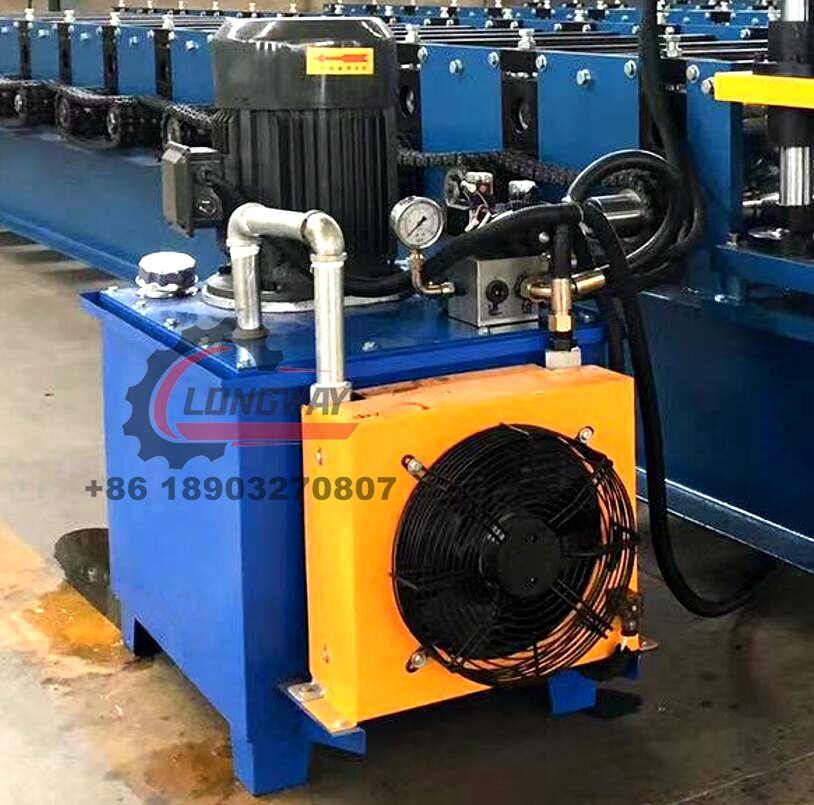

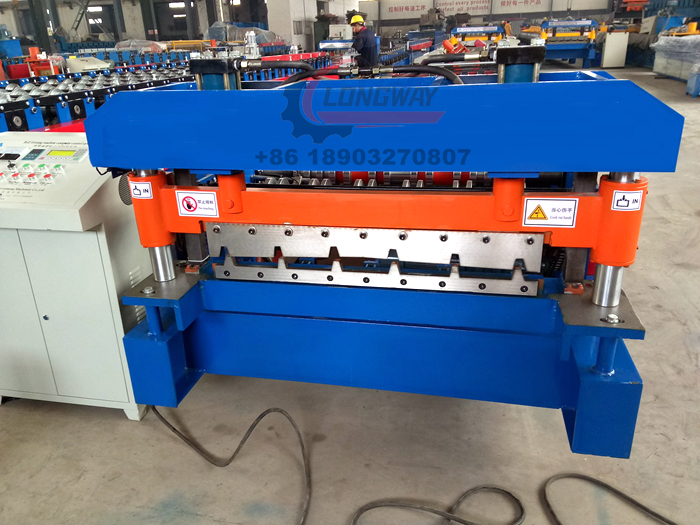

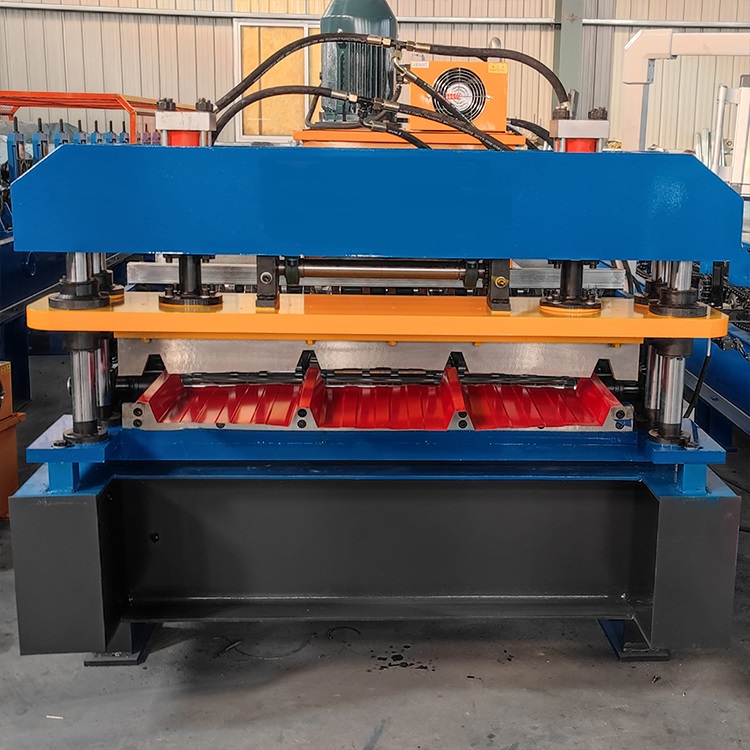

Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		9.5m×1.5m×1.2m
Total weight (Approx)		5.6T

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.

A minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.
