Product Details
Soffit machine is popular in united states.Metal Wall and Soffit Panel,Snap-Loc metal roof ,REVEAL PANELS,Flush Wall/Soffit Panel 1″ Flush Reveal.

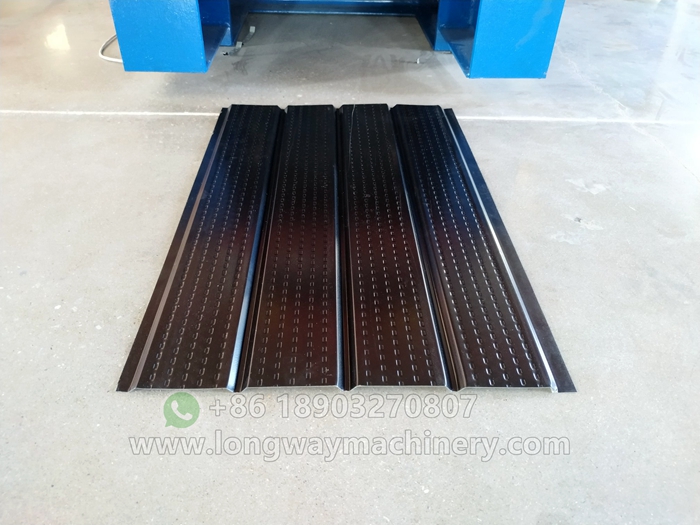

Soffit machine creates fascia and soffit. With or without ventilation strip for solid soffit. Formed in seamless lengths. Adjustable perforation stage with 6 rows of venting. Gives a unique look not like the typical look of V-groove panels.
Profile drawing for reference:
Technical Farameters
Processing Flow

Raw Material |
Coil Type |
PPGI,PPGL,GI |
Width |
Adjustable |
|
Thickness range |
29-22 Gauge (0.3-0.6mm) |
|
Power Requirement
|
Voltage |
380v/3ph/50hz(Customized) |
Main Motor power |
4+4kw |
|
Cutter power |
4kw |
|
Forming speed |
15-20m/min |
|
Machine Frame |
350mm H Beam Structure |
|
Thickness of structure |
18 mm Welded Steel Middle Support Plate |
|
Forming shaft |
75mm solid shaft with heat treatment |
|
Material Of Rollers |
High Grade 45# Forged Steel |
|
Forming stations |
14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision |
|
Transmission Way |
Chain drive 1 inch (Double Chain) |
|
Type of cutting |
Hydraulic Pillar type and length-set cutting |
|
Control system |
PLC Delta and Inverter Delta |
|
Screen |
Touch screen |
|
Dimension(Approx) |
7.5m×1.5m×1.2m |
|
Total weight (Approx) |
3.6T |

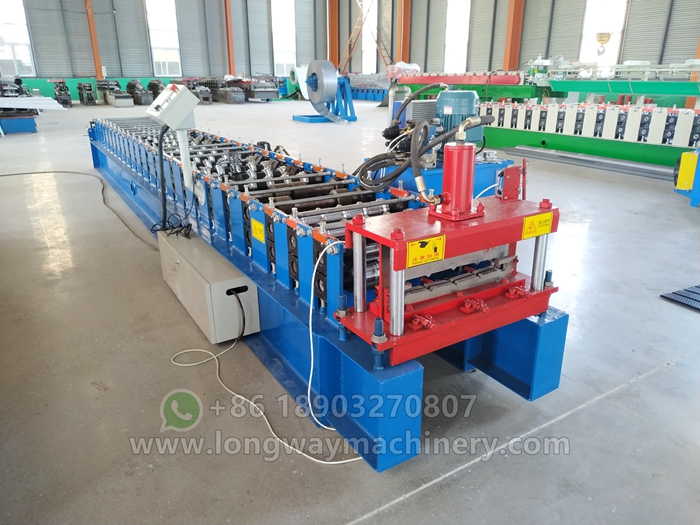

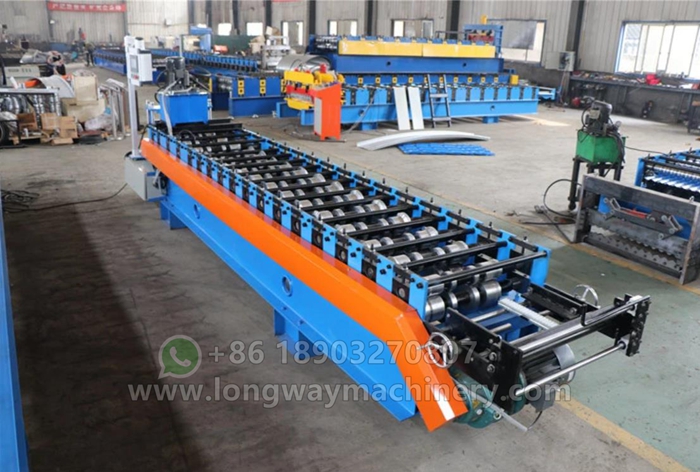

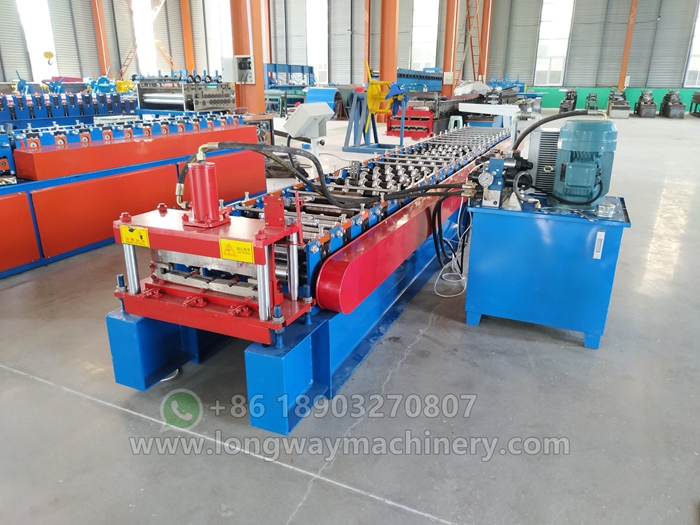

Machine Detailed Pictures
Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
Applications
The advantage of Tr4 metal sheets includes beautiful, classica, appearance and grace taste. t is widely used in village, hotel,exhibition, vacation village, family construction and outdoor decorating.

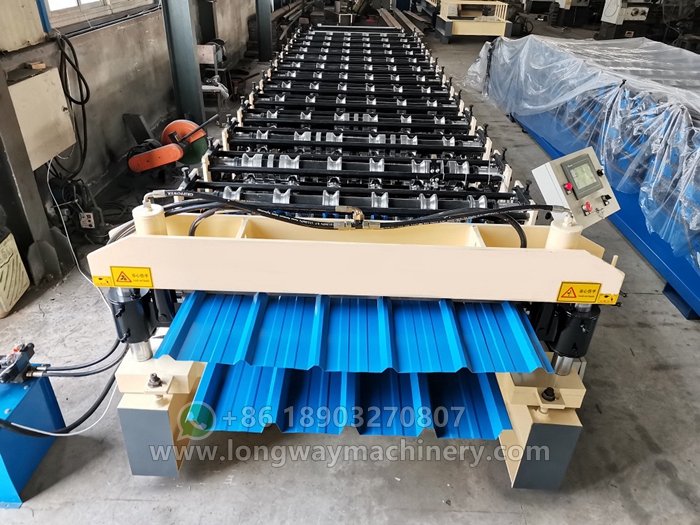

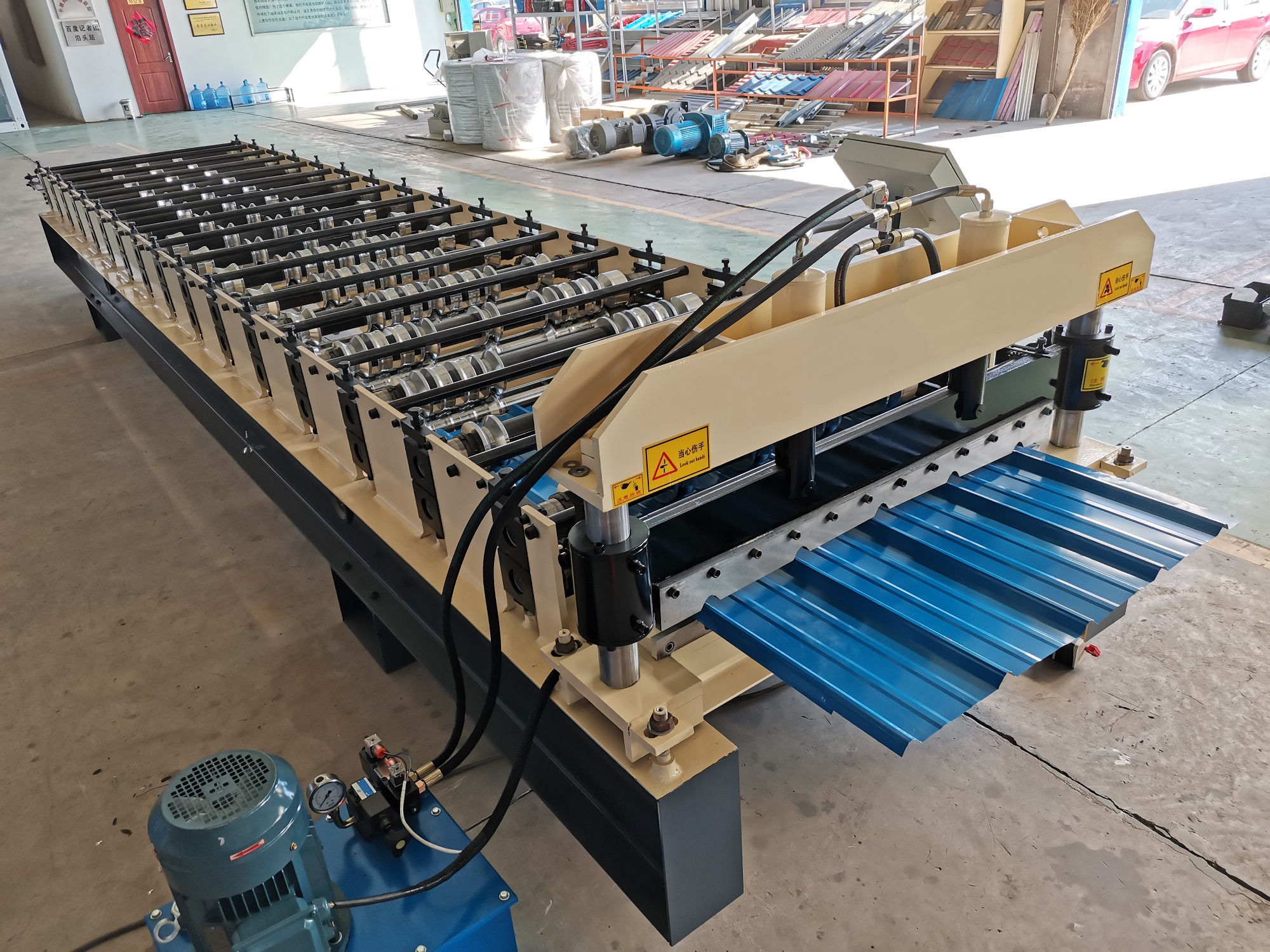

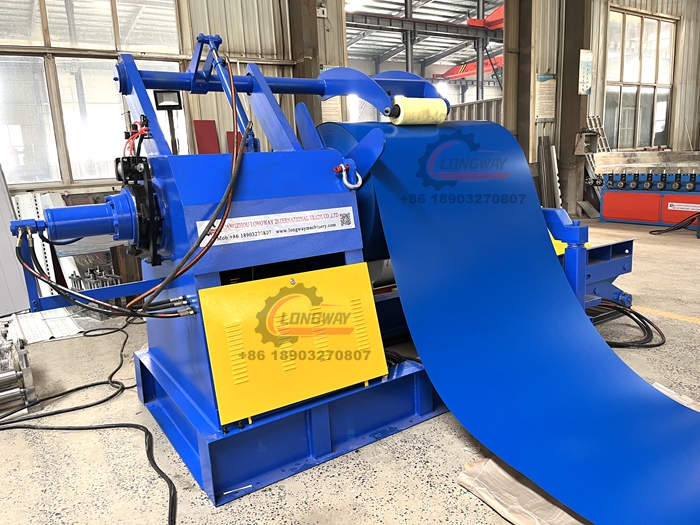

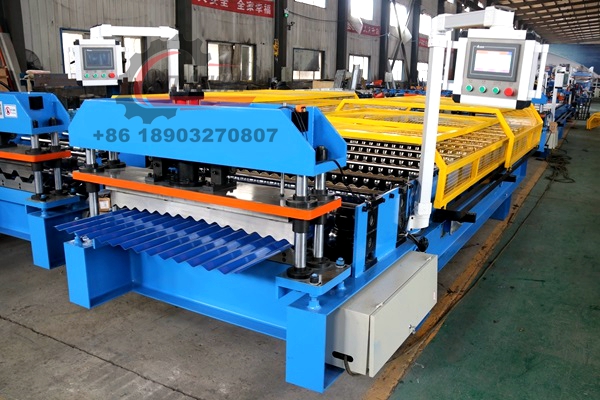

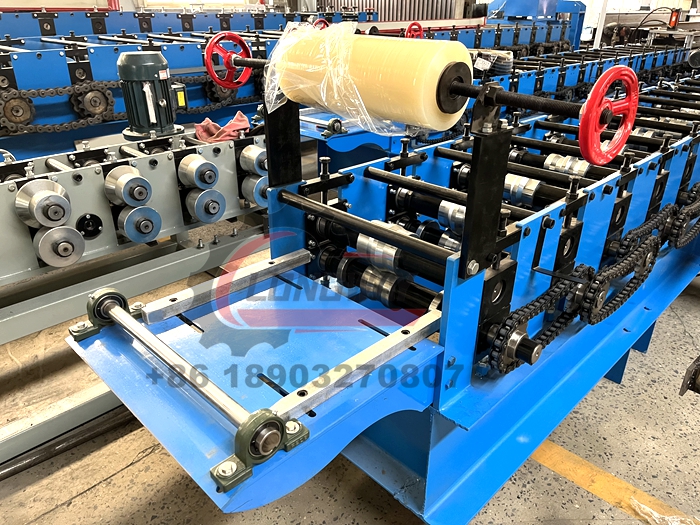

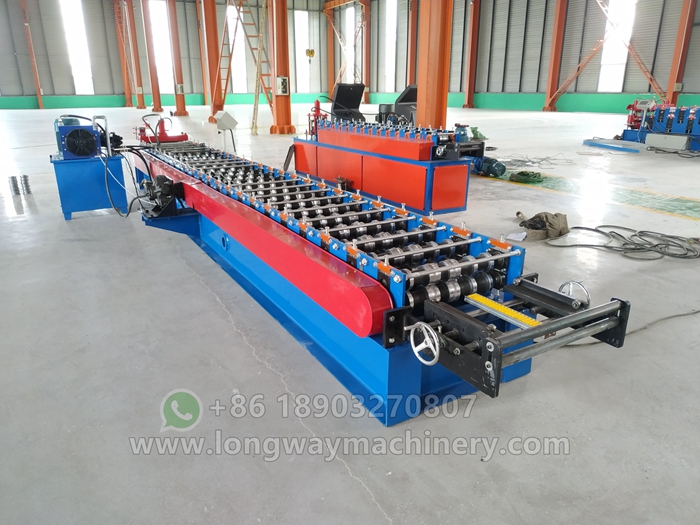

Related Machines
LONGWAY valuable customer
-
Chile
-
lran
-
Philippine
-
South Africa
Package and Delivery
1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
