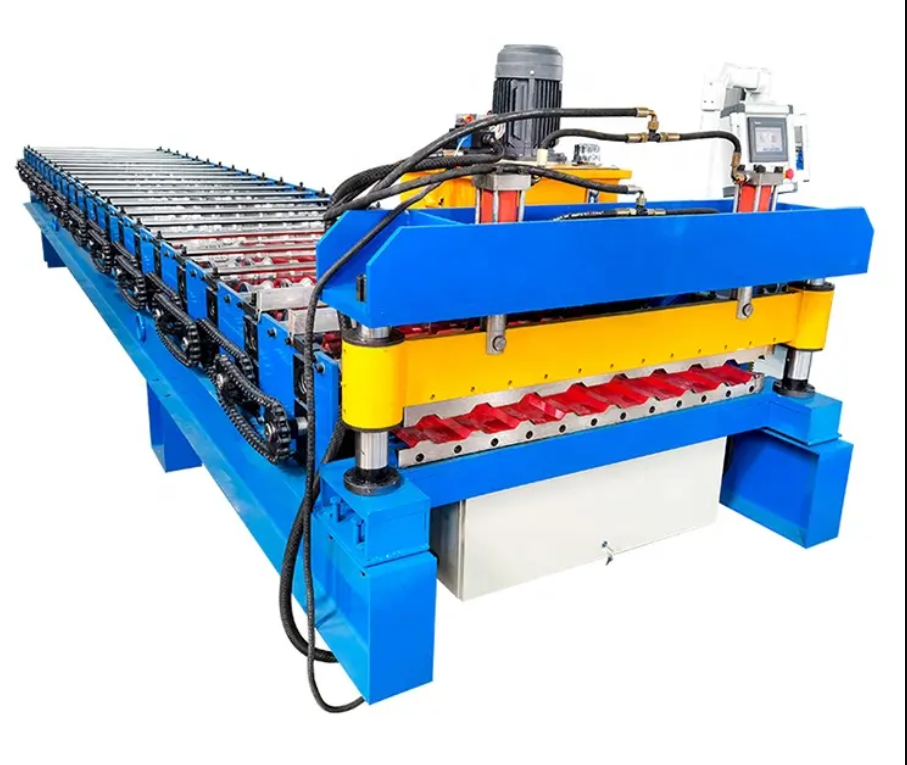

T18 C18 Metal roofing machine Roof sheet forming machine

T18 metal roofing machine C18 roll former

CONTACT NOW DOWNLOAD PDF

Details

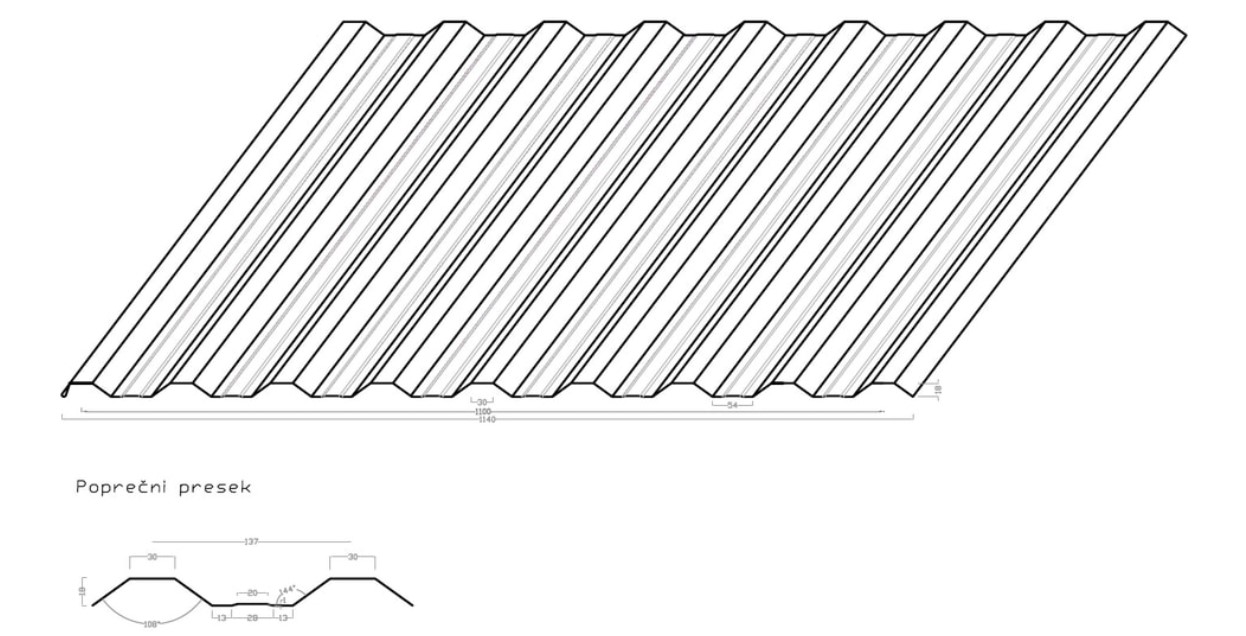

Profile drawing for reference:

Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand,T18 roofing profile is popular for whole European market .

Technical Farameters

Processing Flow

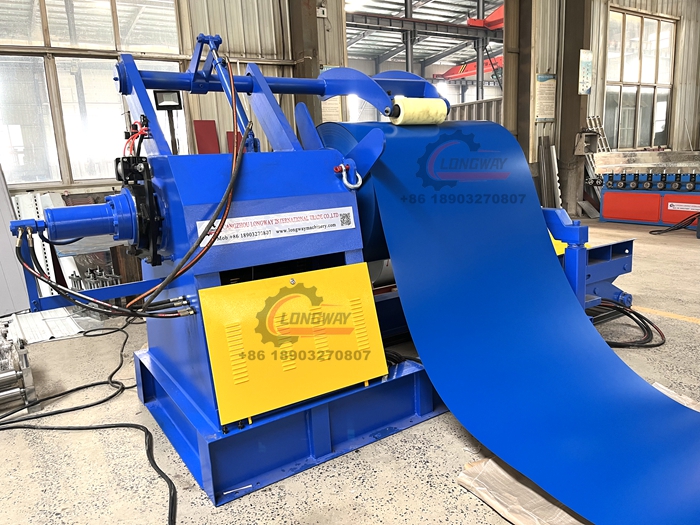

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1250mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	4+4kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		9.5m×1.5m×1.2m
Total weight (Approx)		5.6T

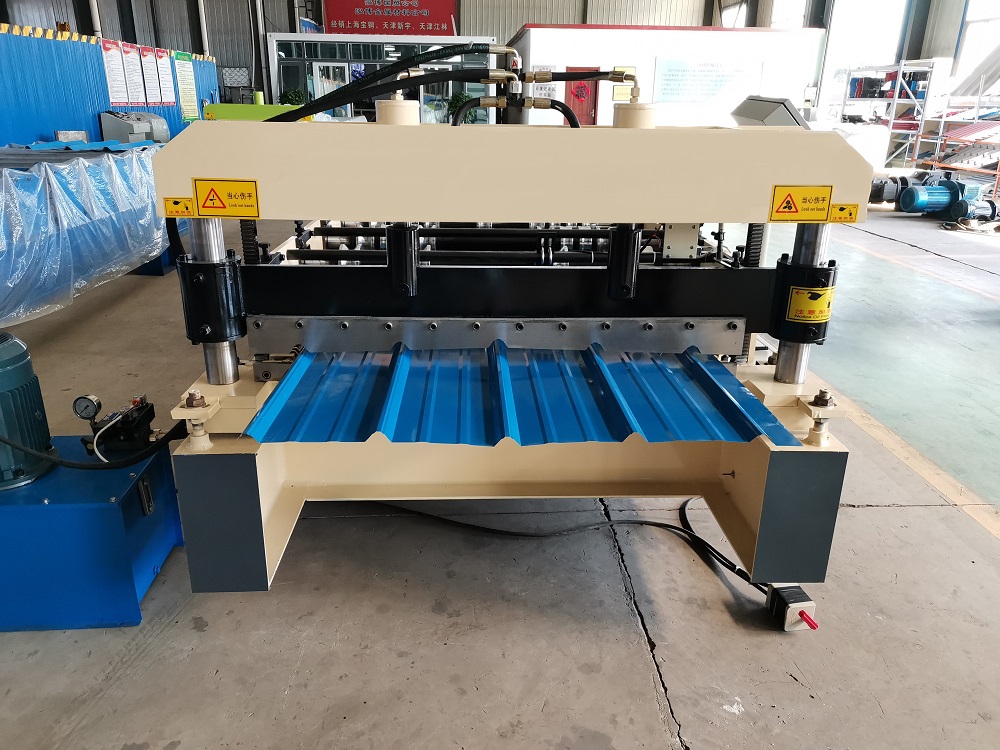

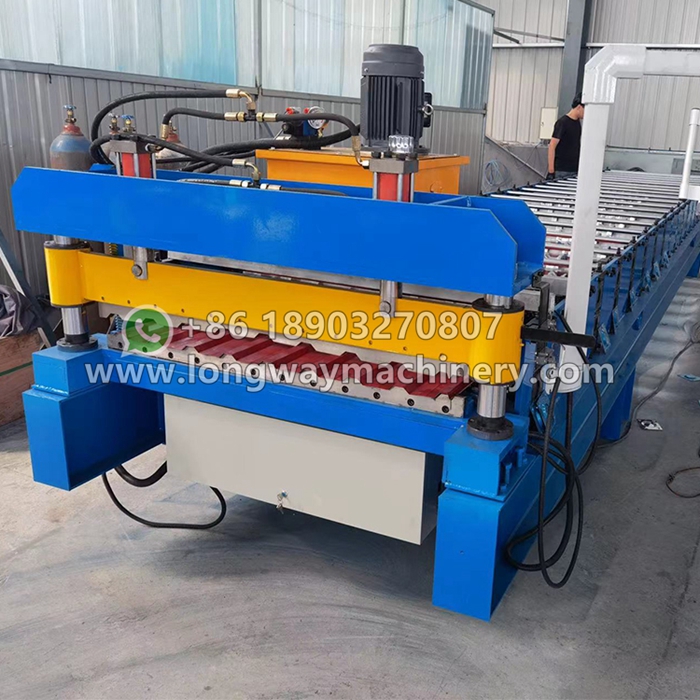

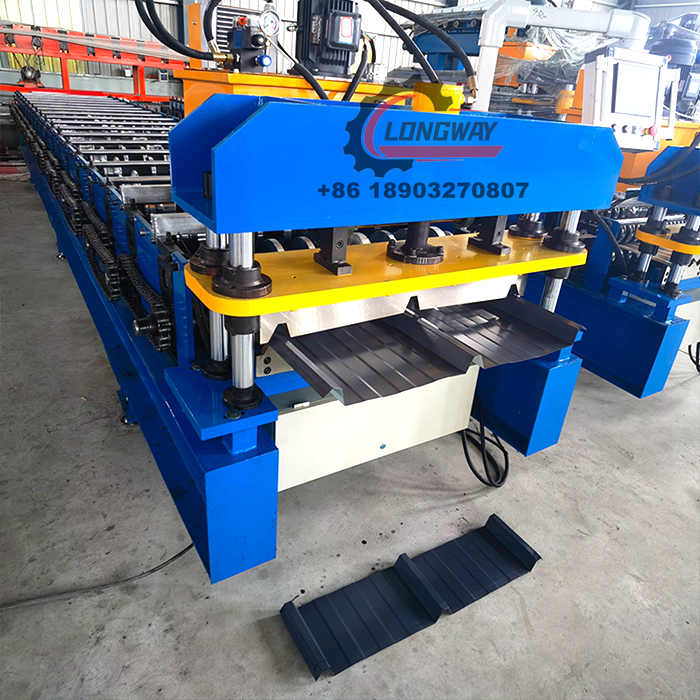

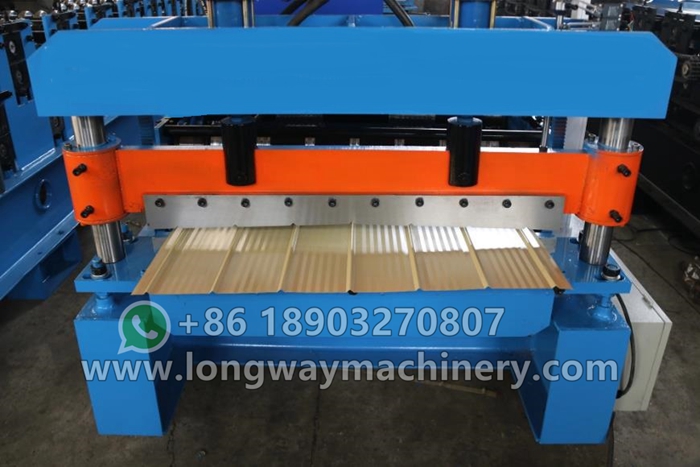

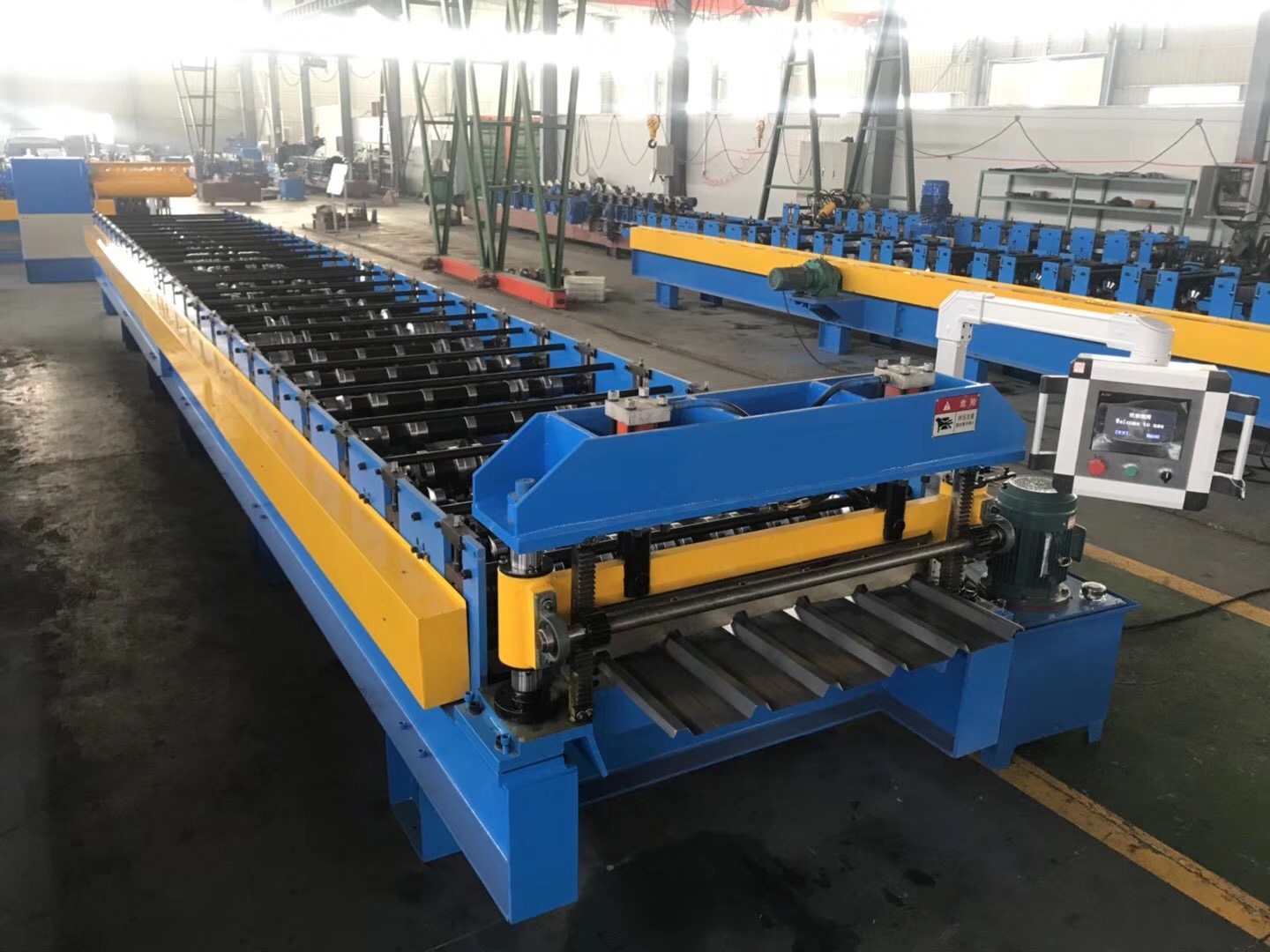

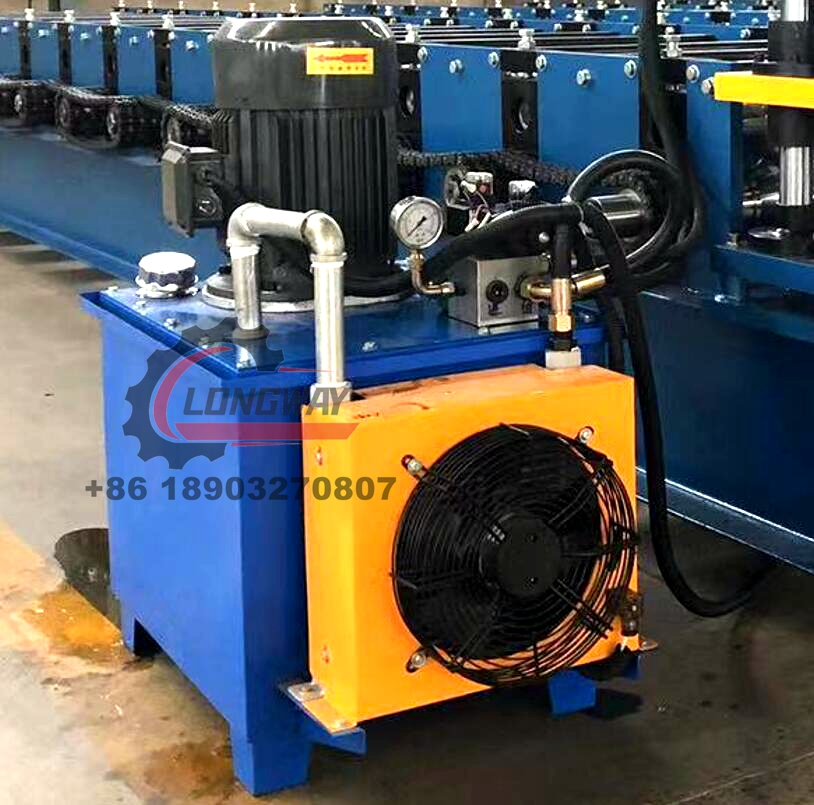

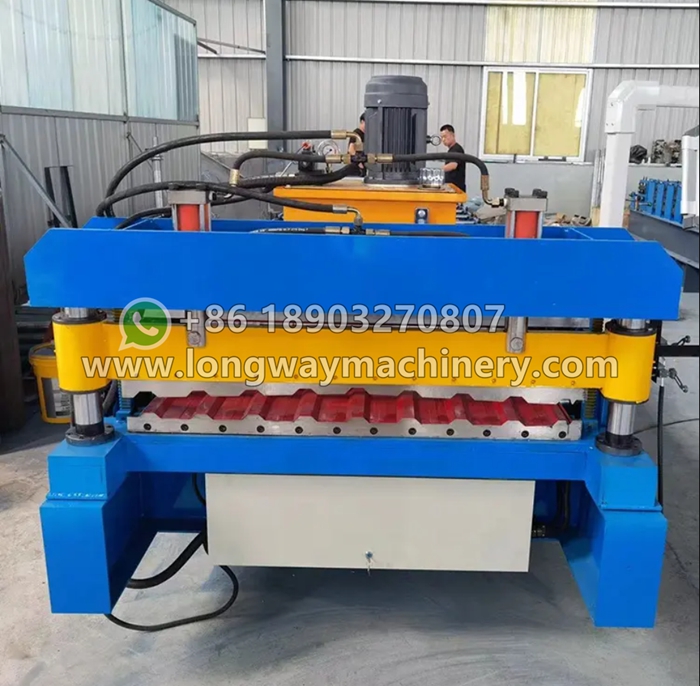

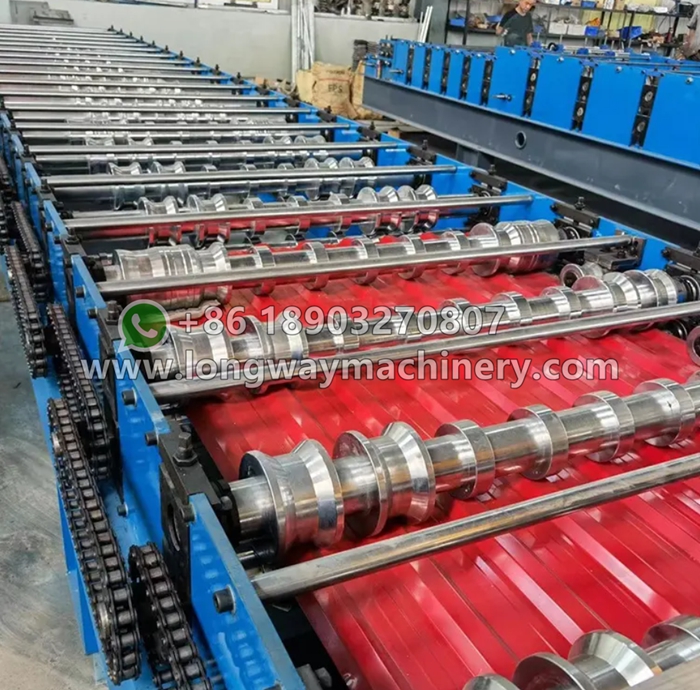

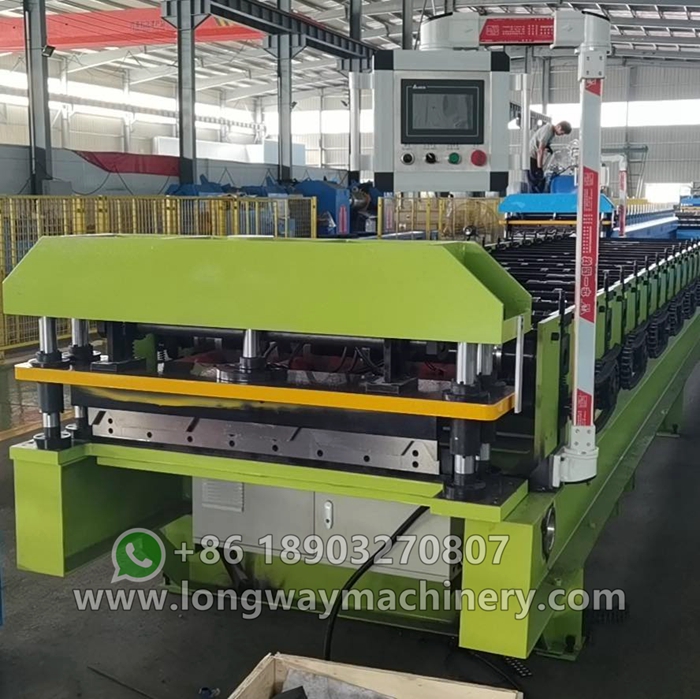

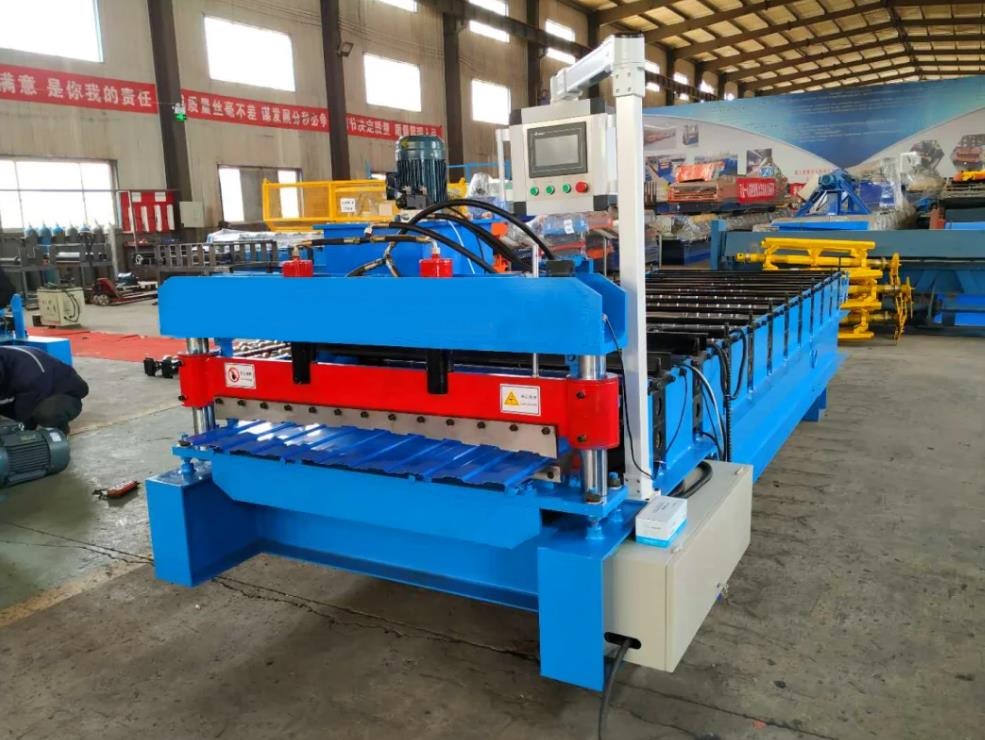

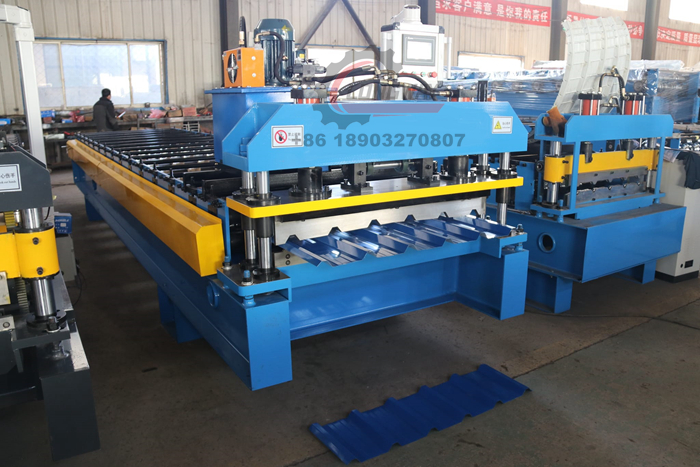

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

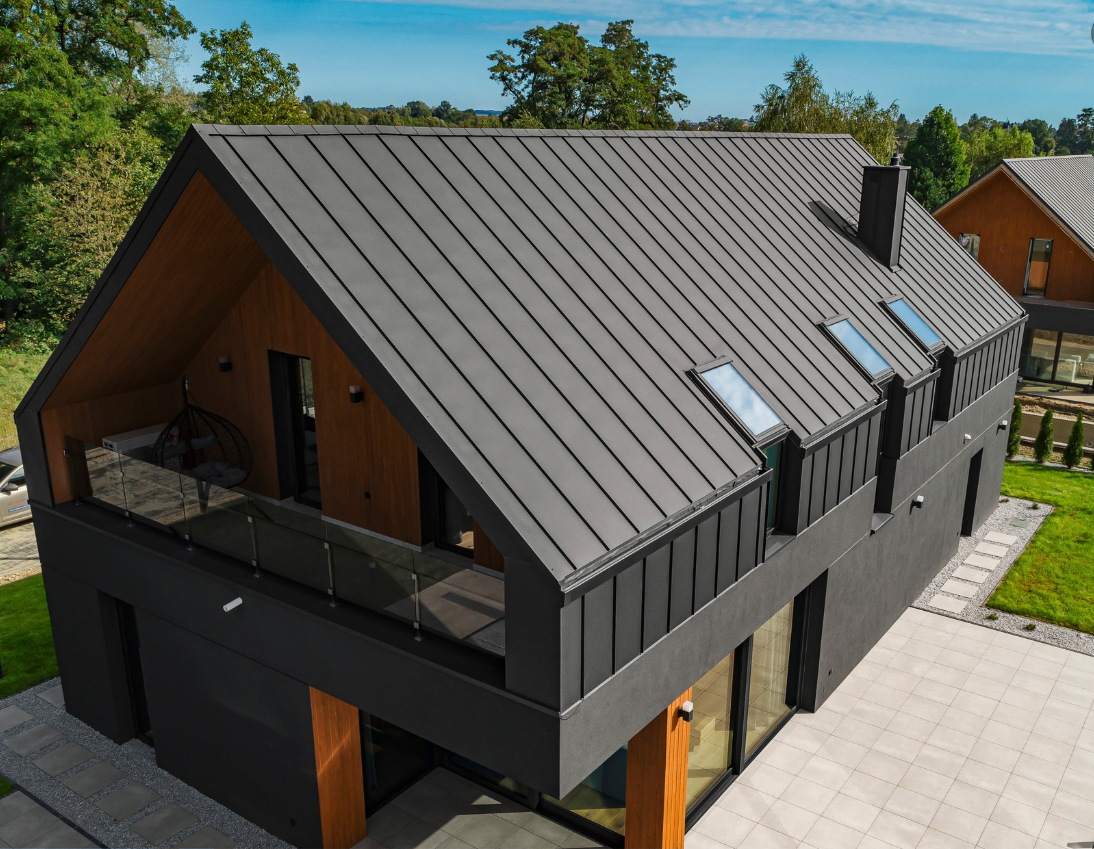

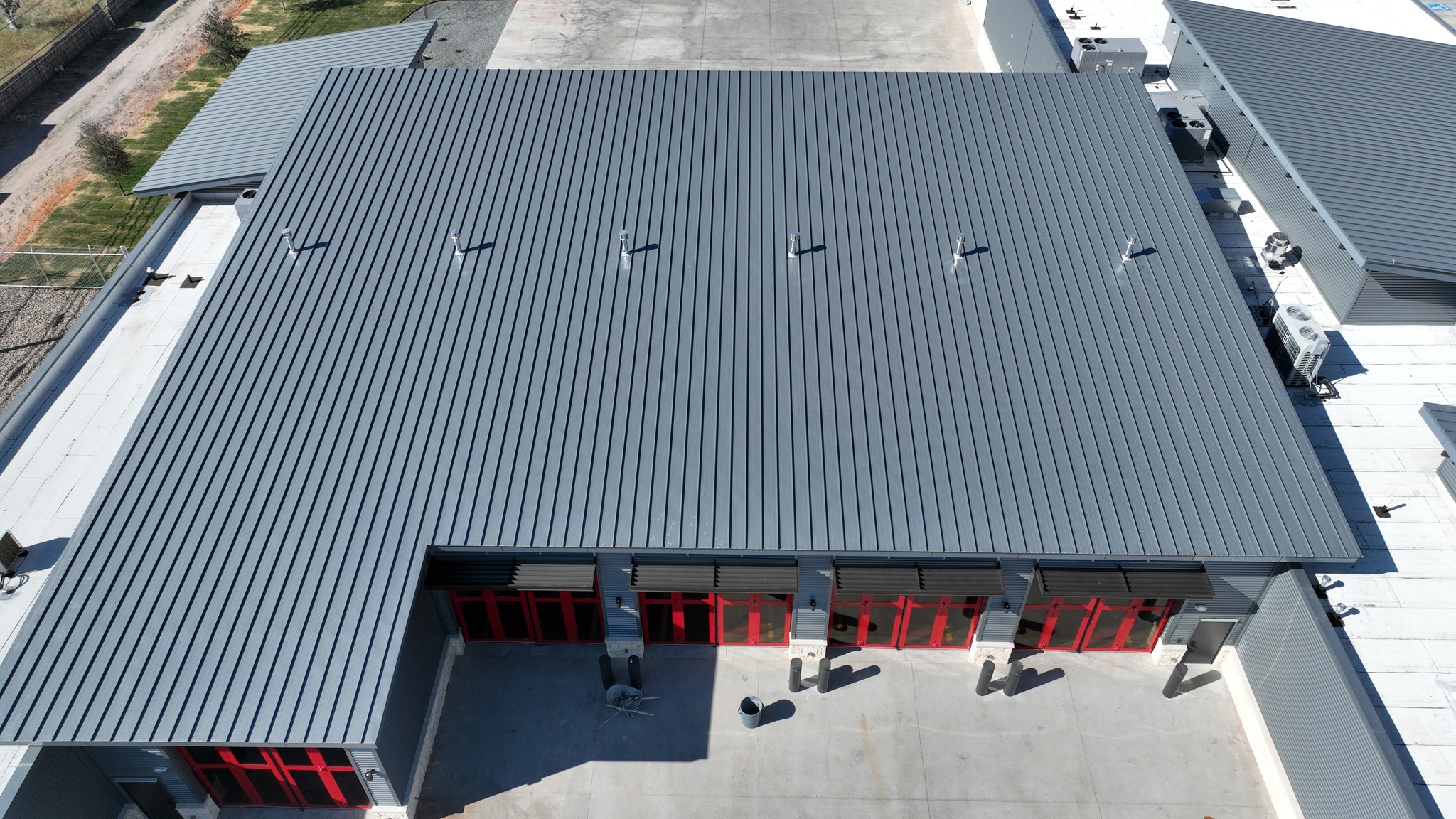

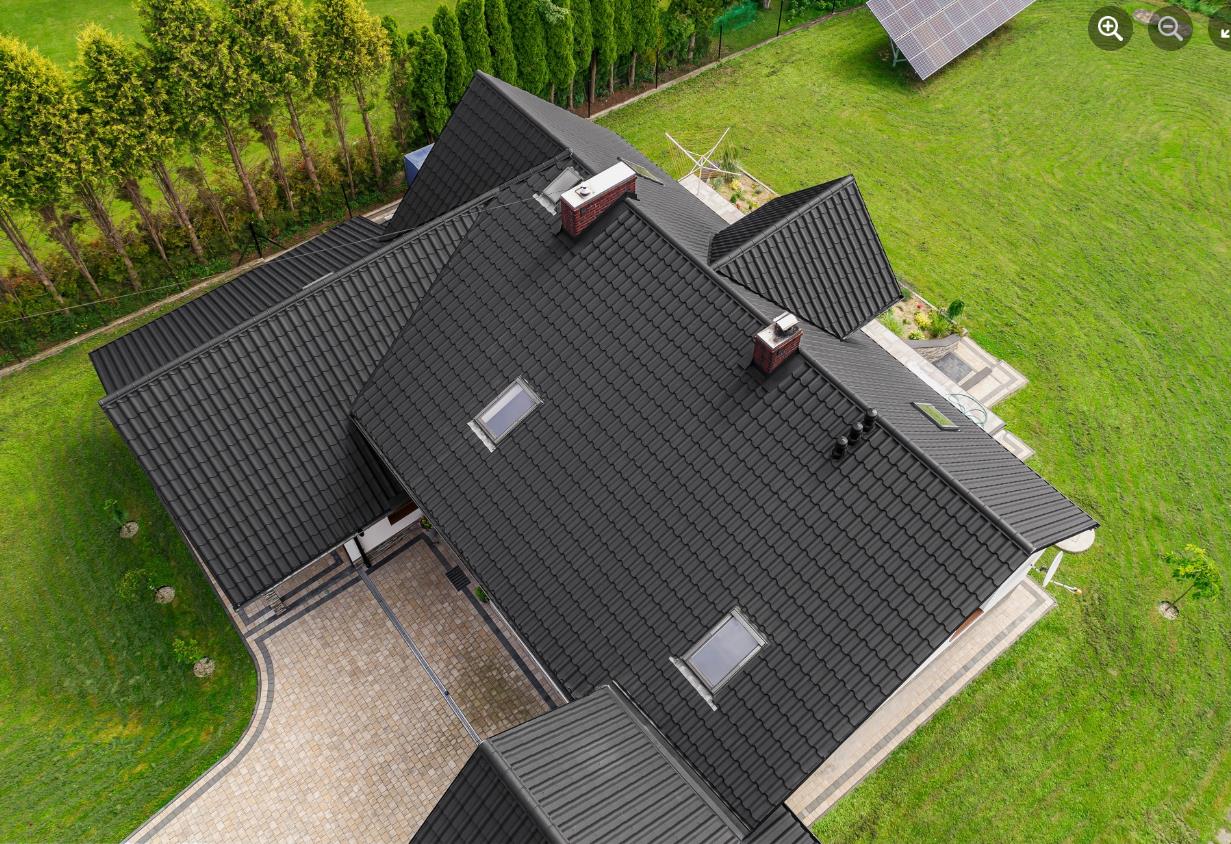

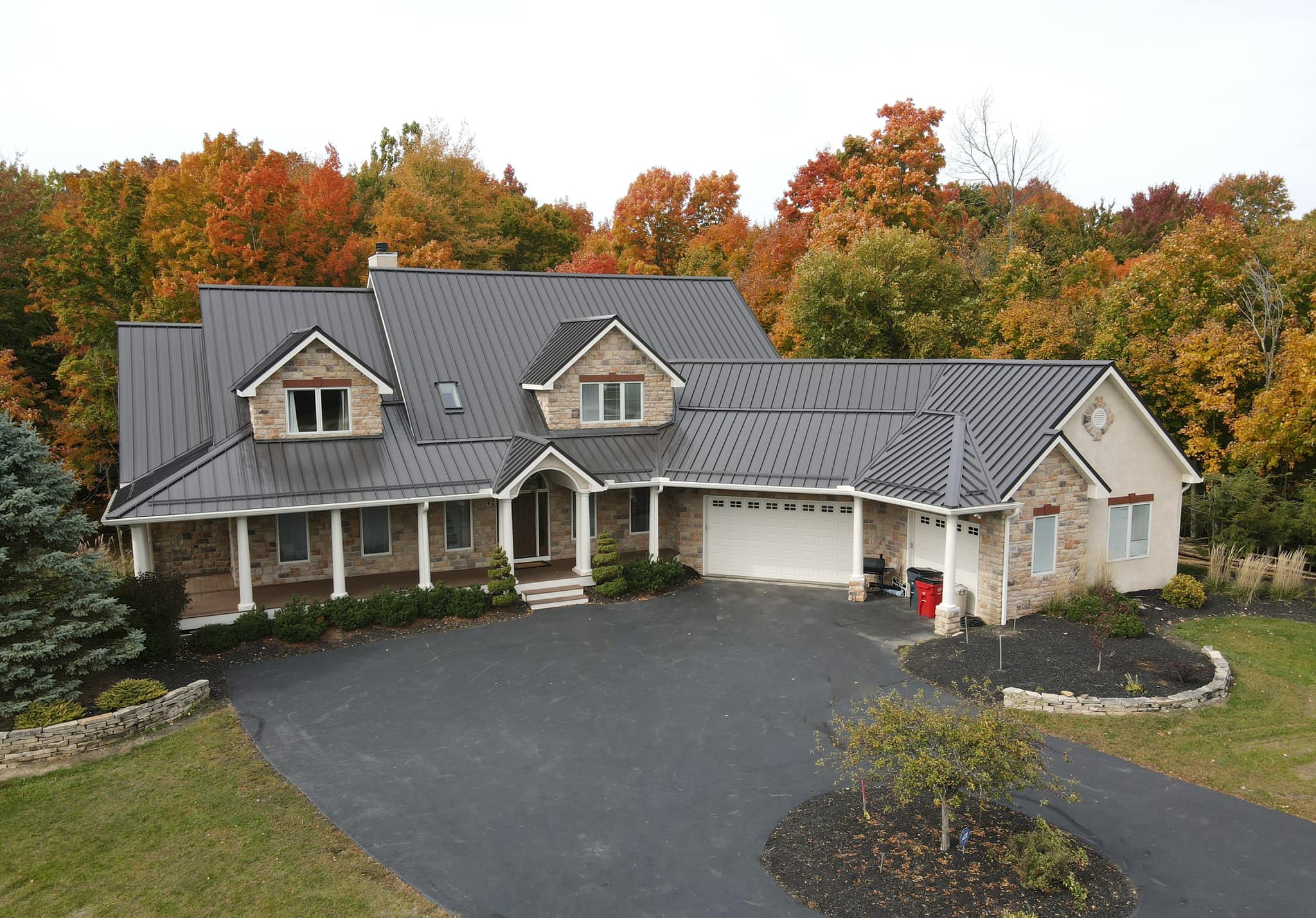

Applications

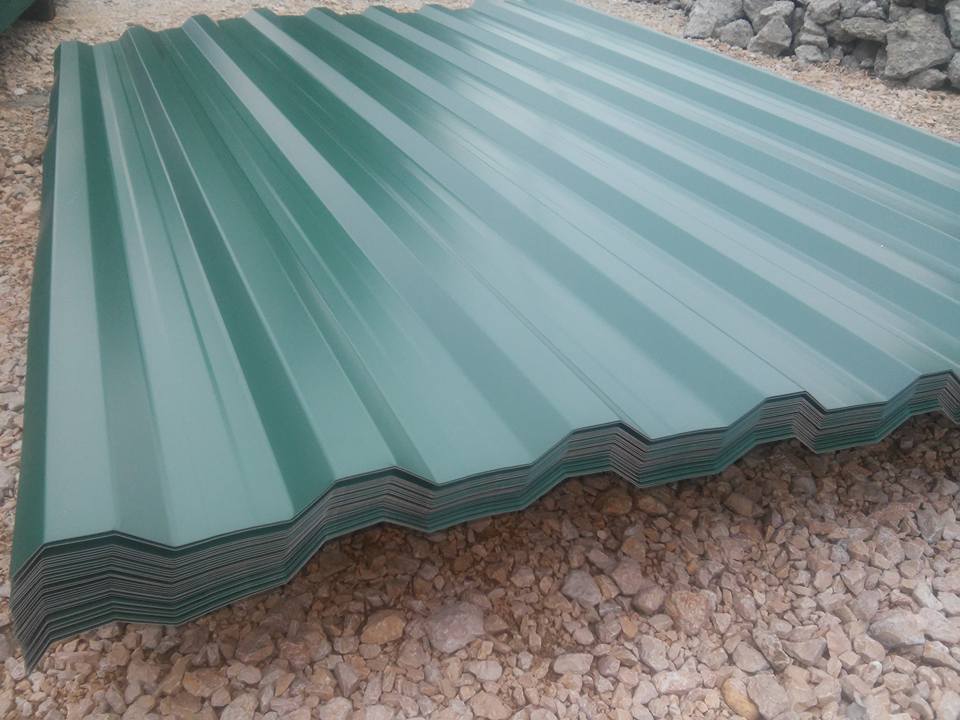

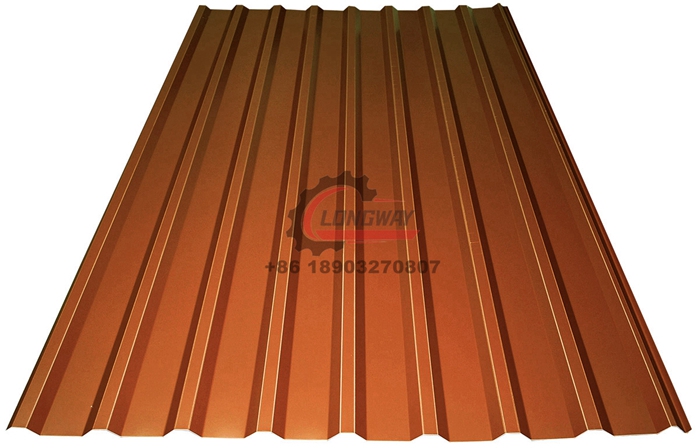

T18 PROFILE

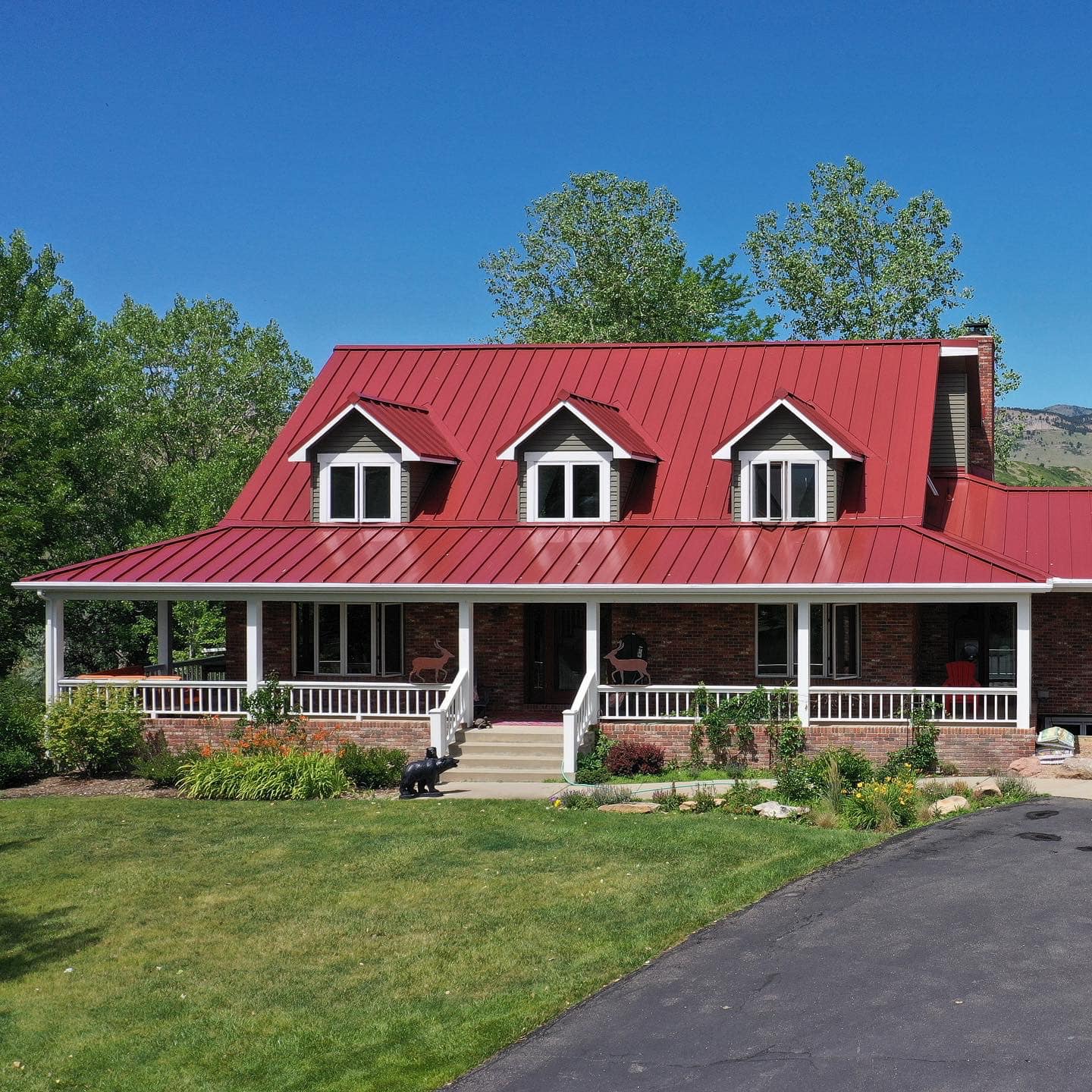

Ribbed metal panels are suitable for lower sloped roofs and other exterior applications.
T18 (Rib Panel) may be applied directly over the old roofing material, without the need for tear-off and disposal.

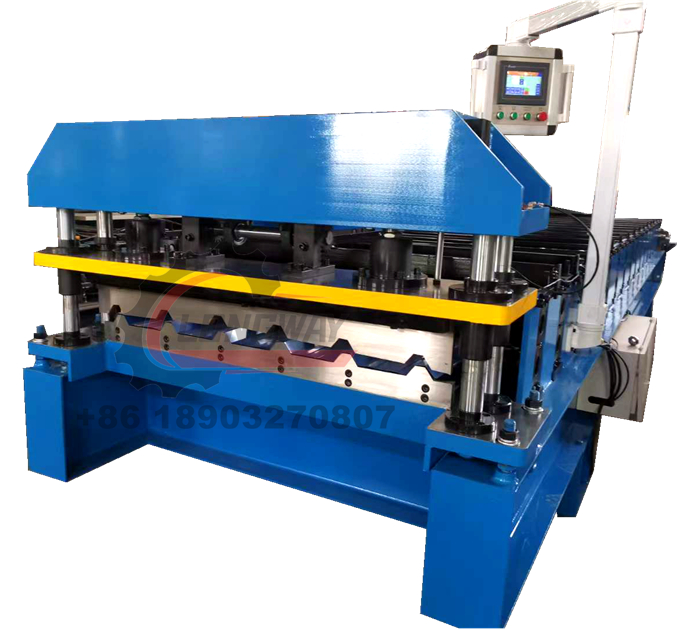

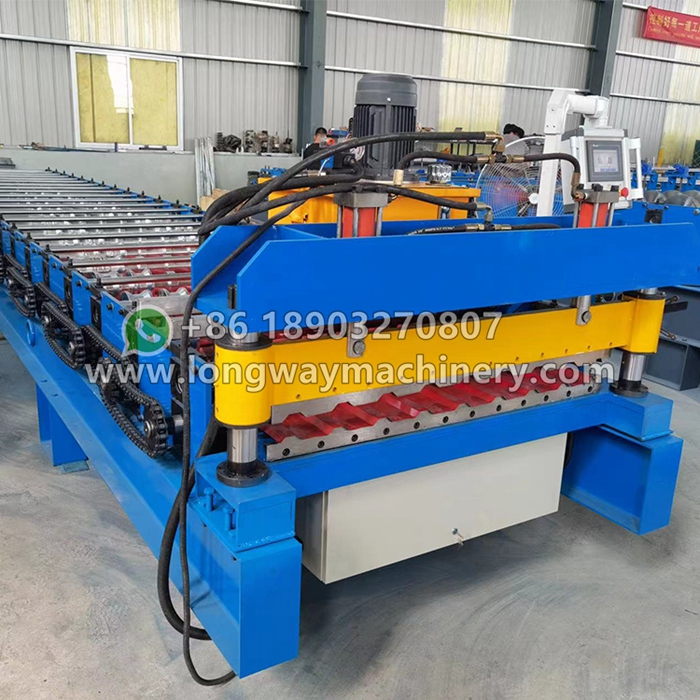

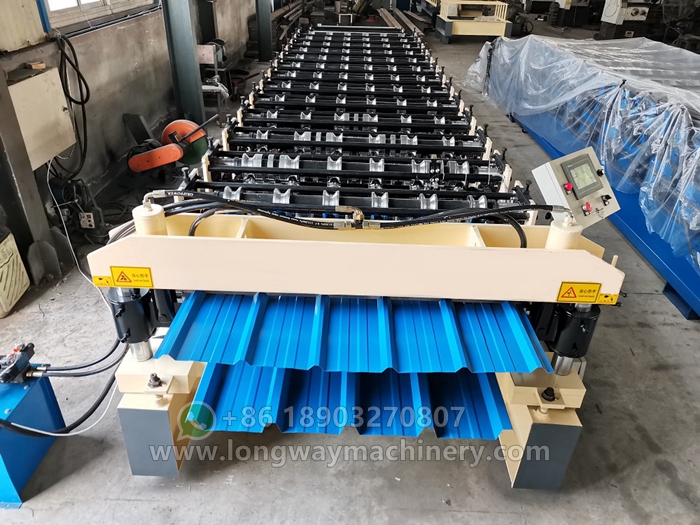

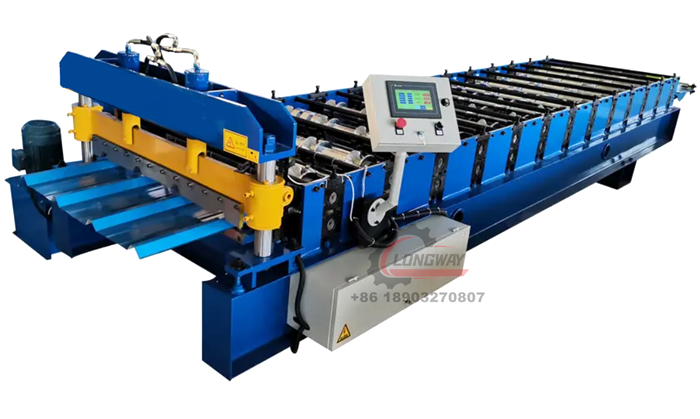

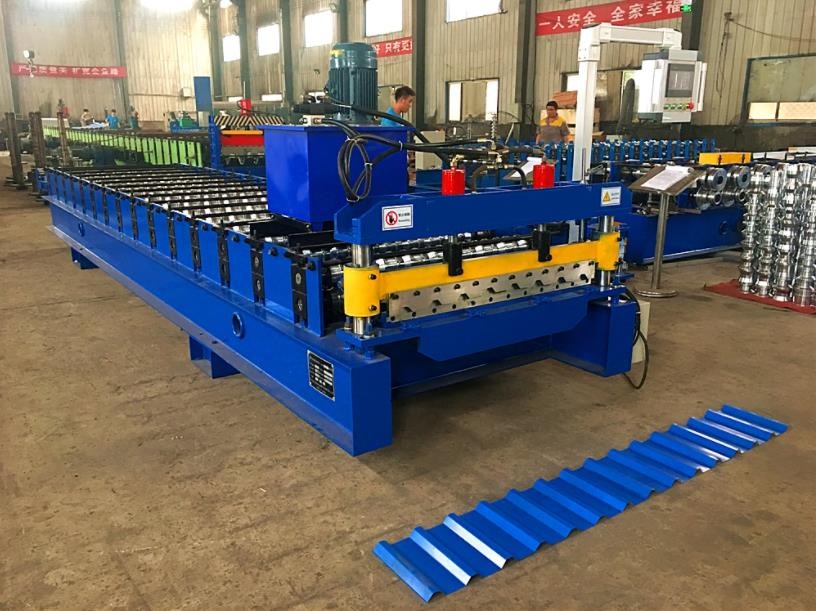

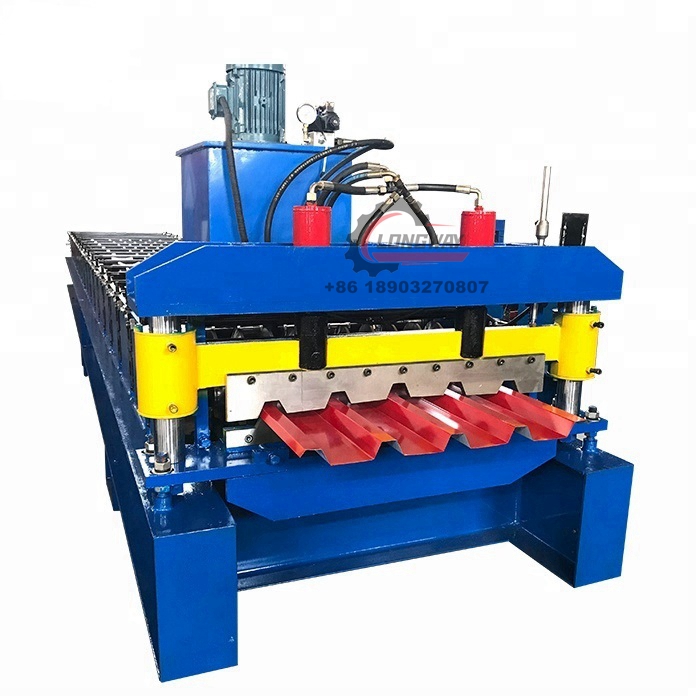

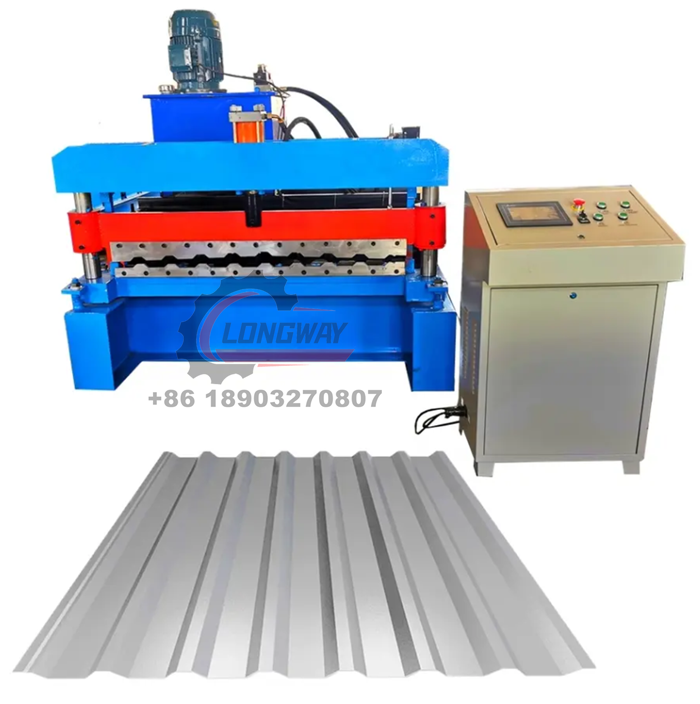

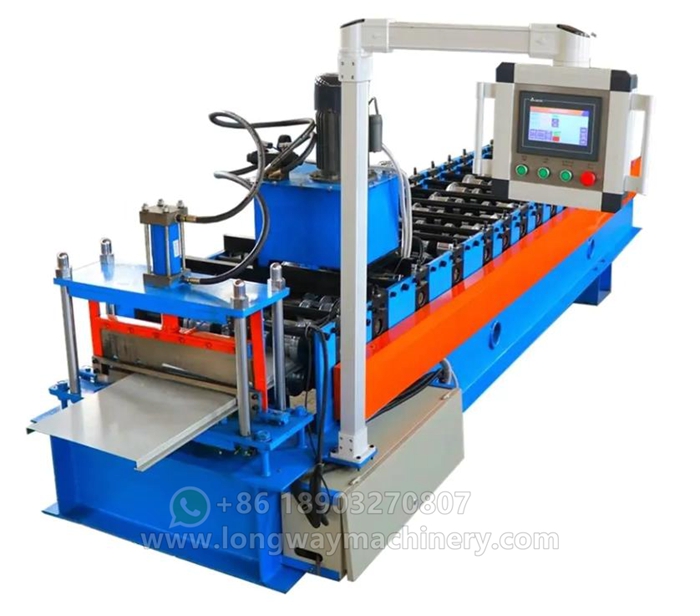

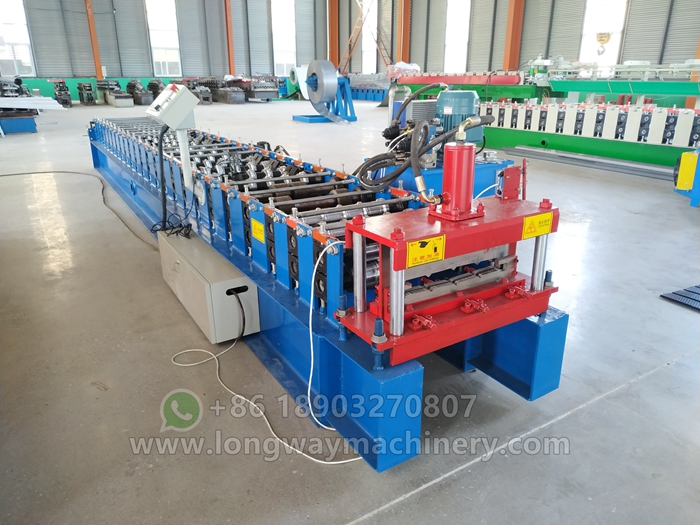

Related Machines

LONGWAY valuable customer

Chile
lran
Philippine
South Africa

Package and Delivery

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
