Product Details
Design Idea：
Higher speed 0-30m/min:Main motor uses Servo motor to improve the speed,Electric motor cutting instead of hydraulic cutting, speed will be higher,Twice as fast as normal design mode.
Classic Rib panel has been a staple for decades for pole barns, storage sheds, utility buildings and light commercial construction. This exposed fastened, bell-top rib panel applies over open framing or solid substrate for multiple applications.

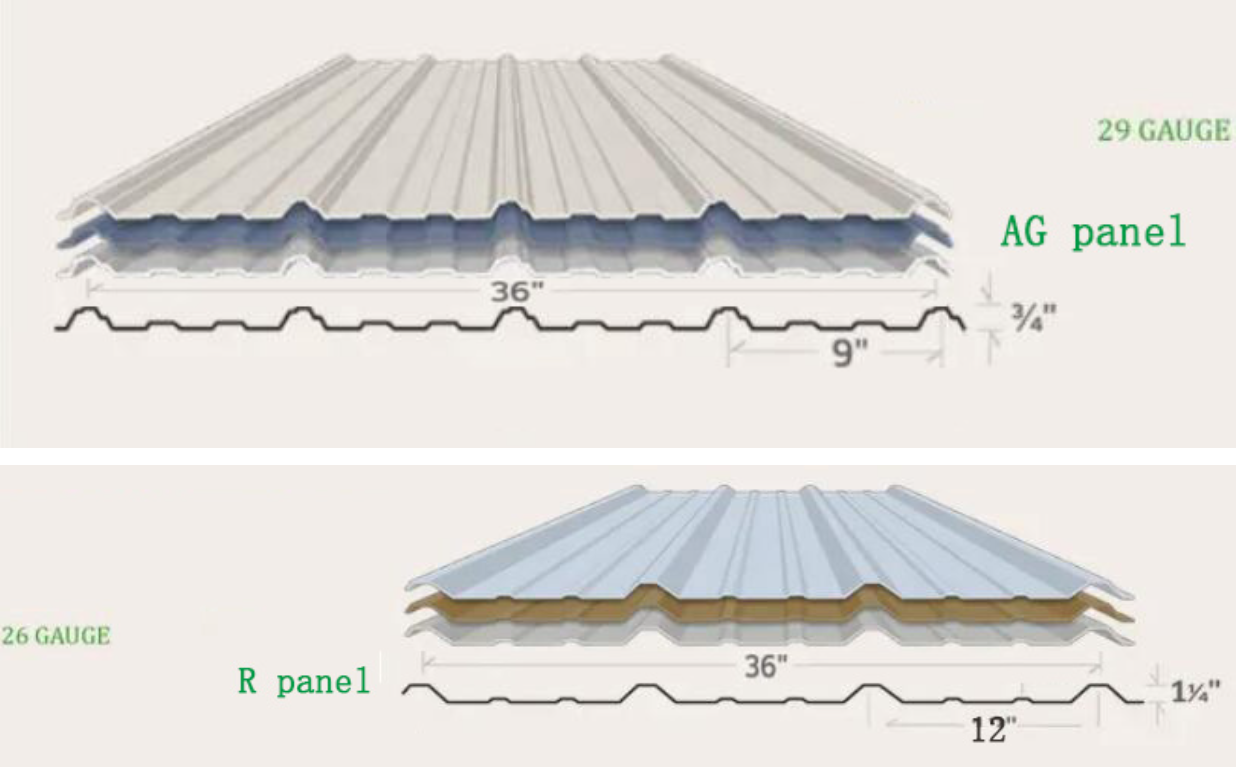

Profile drawing for reference:
The "Ag Panel" or "R-Panel Machine produces one of two of the most popular Metal Roofing / Metal Building profiles used today. A very strong panel used as a Roof Panel and/ or Wall Panel. The machine will accept approximately a 42" wide coil stock (26-29 ga. Steel), giving you a 38" wide panel and 36" coverage with the panel overlap. The 3/4" Ag Panels are typically 9" o.c. with 5 major ribs within the panel - minor ribs in between. The " R-Panels are typically 12" o.c. with 4 major ribs - minor ribs in between.
Technical Farameters
Working Process

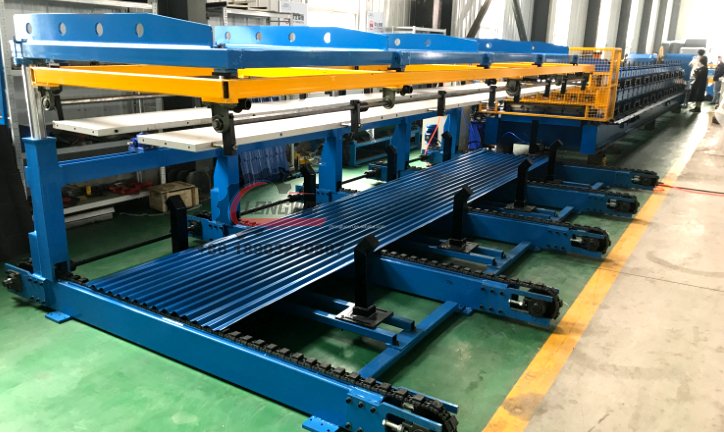

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table
|

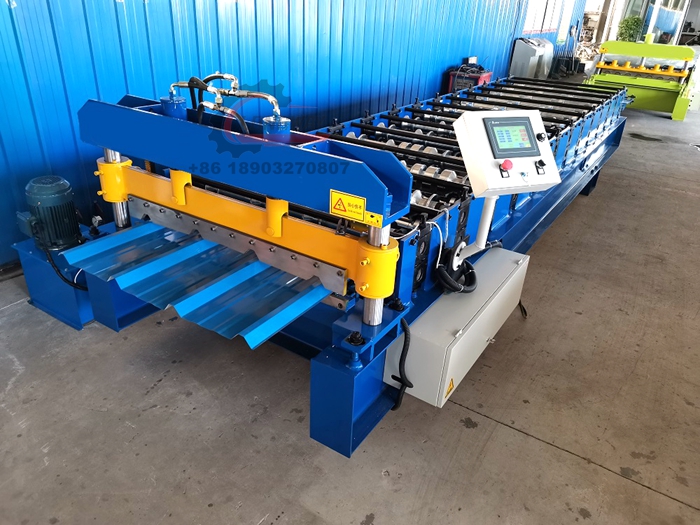

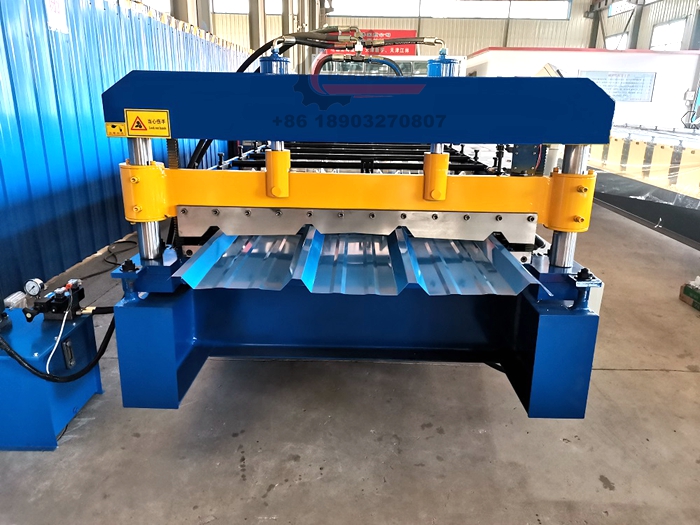

US Ag classic rib roof panel roll forming machine
|
|
|
Raw Material
|
PPGI,PPGL
|
|
Material Thickness:24/26 Gauge （0.4-0.6 Mm)
|
|
|
Machine Frame
|
350mm H Beam Structure, With 18mm Welded Steel Middle Support Plate.
|
|
Roller Material
|
45# steel, chromed on the surface
|
|
Forming Stations
|
Roller Stations :16-18 Rows
|
|
Diameter Of Shafts
|
Φ80mm Solid
|
|
Material Of Shafts
|
High Grade 45#,With Heat Treatment
|
|
Forming Speed
|
15 M/Min
|
|
Voltage
|
380v/50hz/3p (As Requested)
|
|
Transmission Way
|
By 1 Inch Chain (Double Chains)
|
|
Main Motor
|
5.5 KW
|
|
Cutting Blade Material
|
Gcr12 quenched treatment
|
|
Cutting Type
|
hydraulic post cutting
|
|
Driving Method
|
By pillar type Cylinder
|

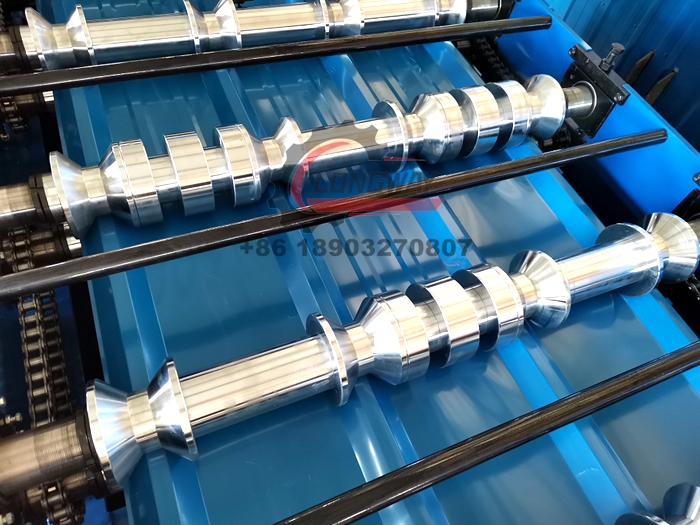

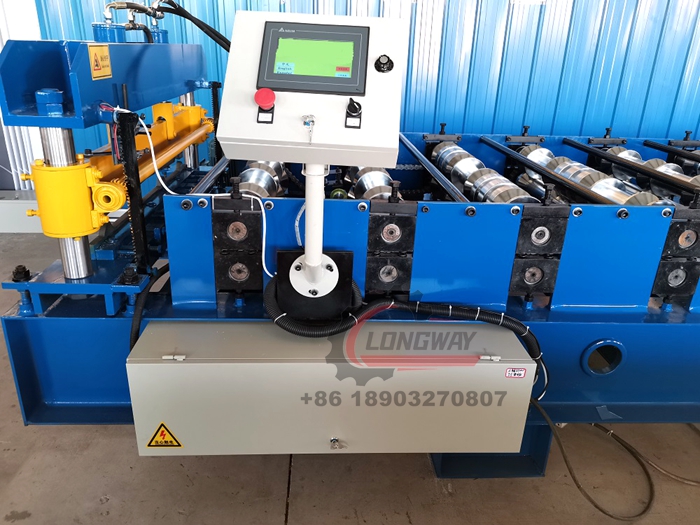

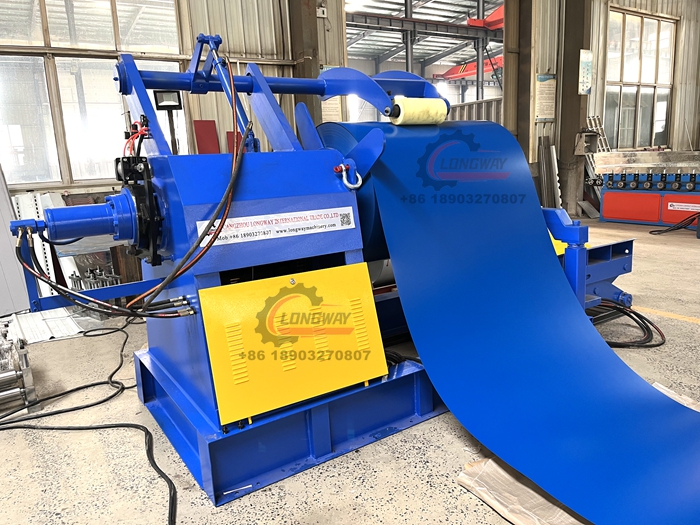

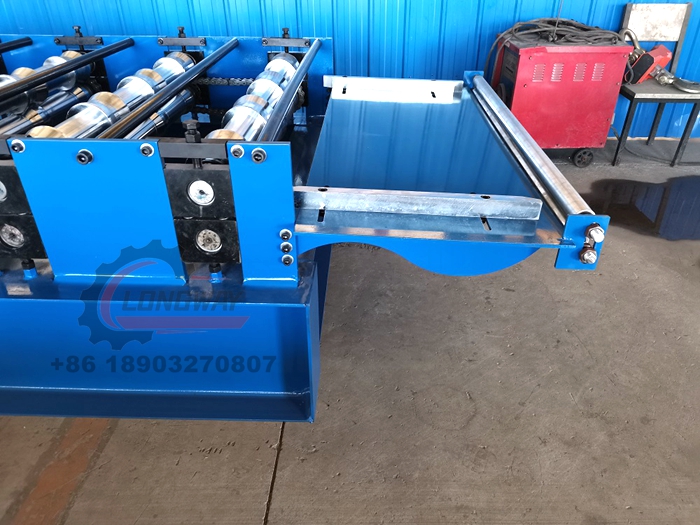

Machine Detailed Pictures
Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
Applications
Classic Rib panel has been a staple for decades for pole barns, storage sheds, utility buildings and light commercial construction. This exposed fastened, bell-top rib panel applies over open framing or solid substrate for multiple applications. Roof, wall, liner, soffit, ceiling, fencing, skirting and many others. With a wide variety of applications and finish options, Classic Rib is one of the most versatile panels available in the market.
