3 Rib Trapezoid roof sheet making machine

3 Rib roofing sheet Customized profile acceptable

CONTACT NOW DOWNLOAD PDF

Details

Profile drawing for reference:

3 rib roof sheet roll forming machine standard profile drawing like below picture, If you have special requirement, we also can customized machine according to it, lilke wide span roofing sheet , self lock panel etc .

Technical Farameters

Working Process

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1200/1220mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		20 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)
Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		8.8m×1.5m×1.2m
Total weight (Approx)		5.6T

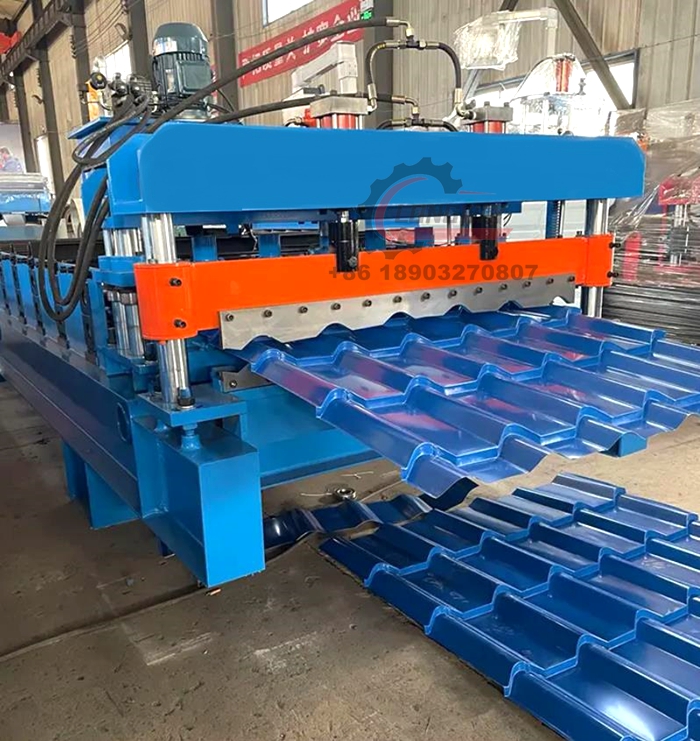

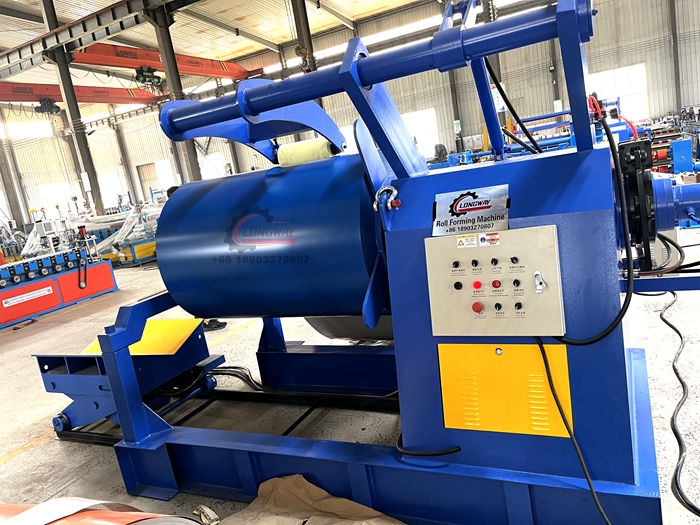

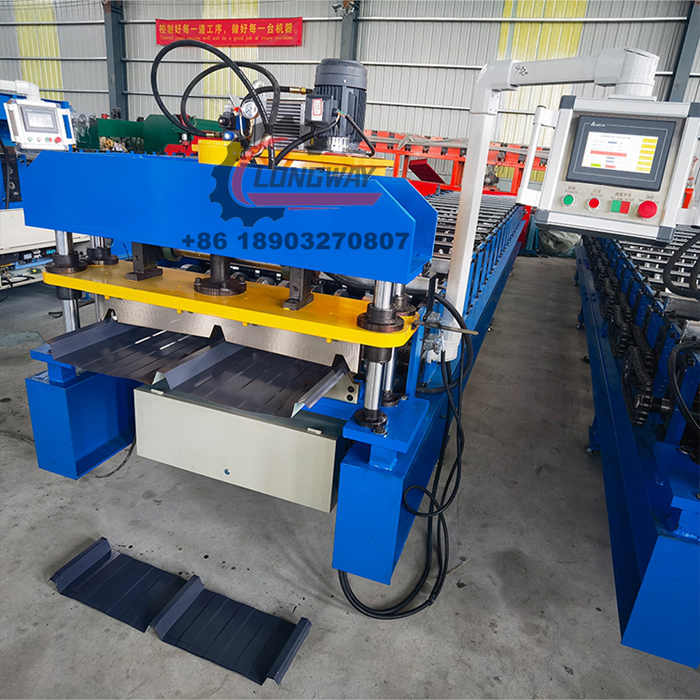

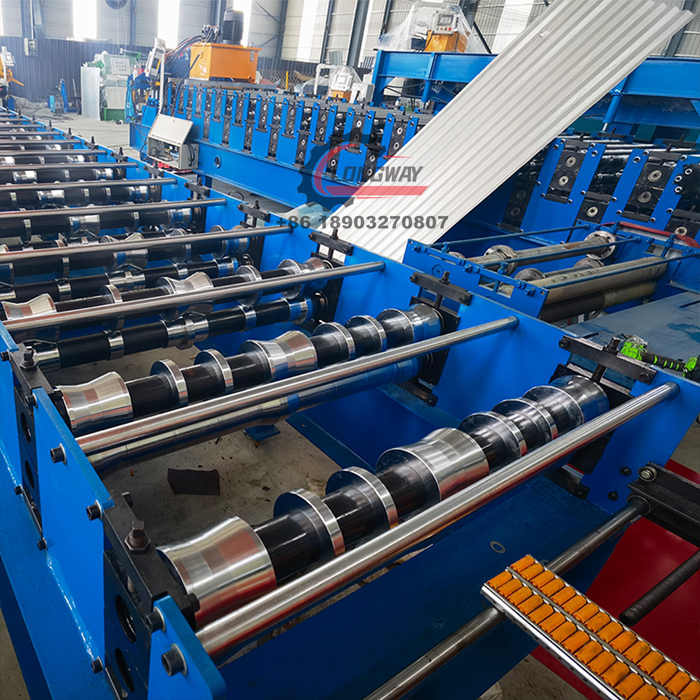

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

Applications

Because of this mix of cost-effectiveness and design, it can have a variety of applications ranging from residential to industrial purposes. Its adaptability and versatility make the rib-type roof a favorite not just for roofing but for sidings and fencing as well.
