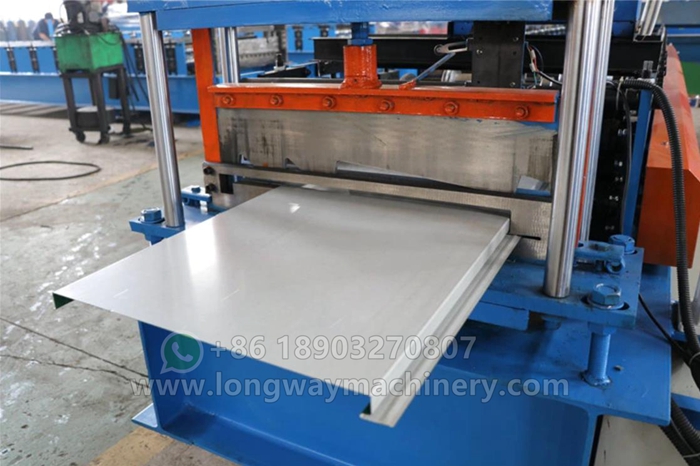

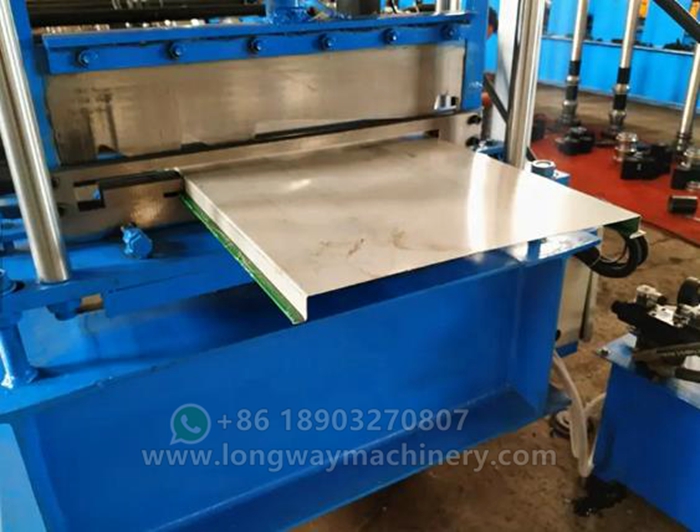

Soffit machine creates fascia and soffit. With or without ventilation strip for solid soffit. Formed in seamless lengths. Adjustable perforation stage with 6 rows of venting. Gives a unique look not like the typical look of V-groove panels.

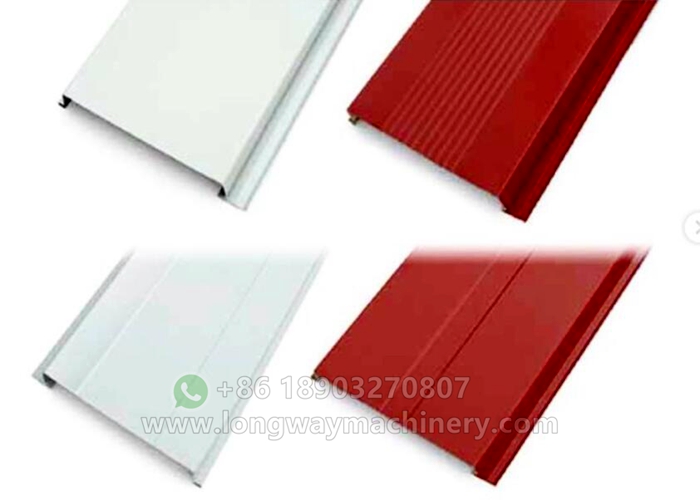

Profile drawing for reference:

This type soffit panel is widely used in whole world , with adjustable effective width .We can design the machine as eash profile drawing you require .

Technical Farameters

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material

Coil Type

PPGI,PPGL,GI

Width

Adjustable

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

4+4kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

14-18 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

5.5m×1.5m×1.2m

Total weight (Approx)

3.6T

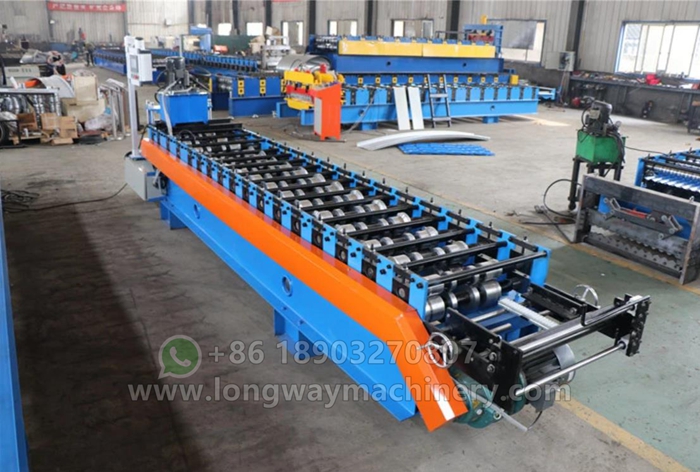

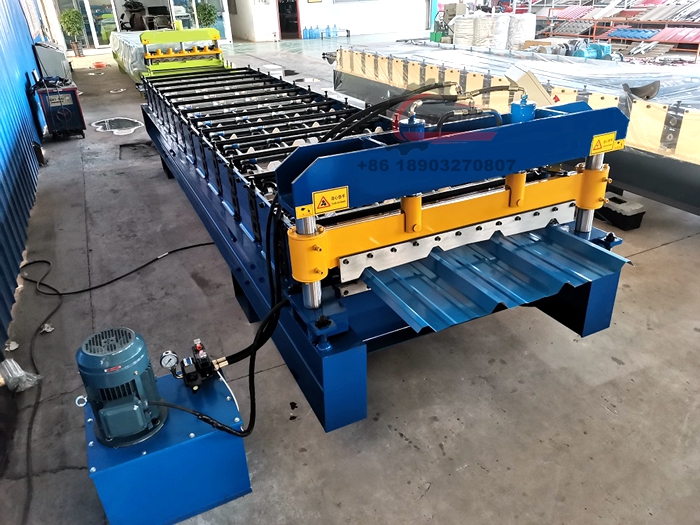

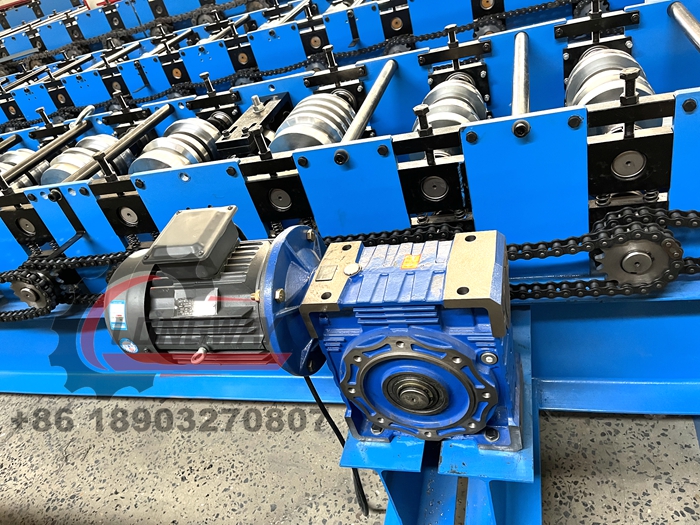

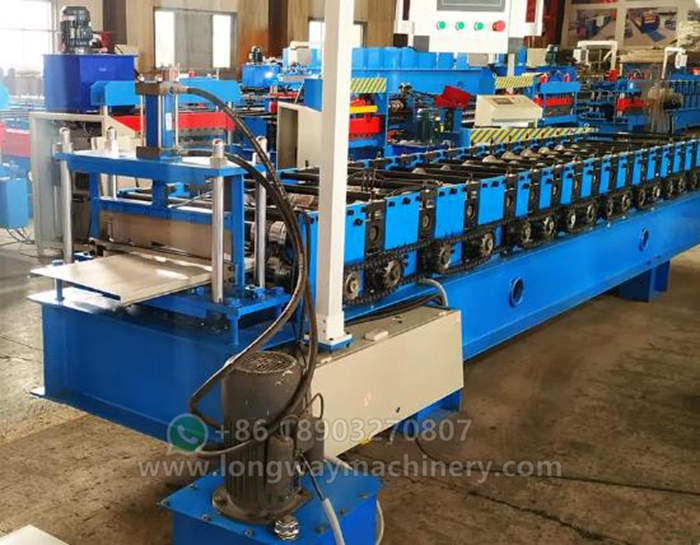

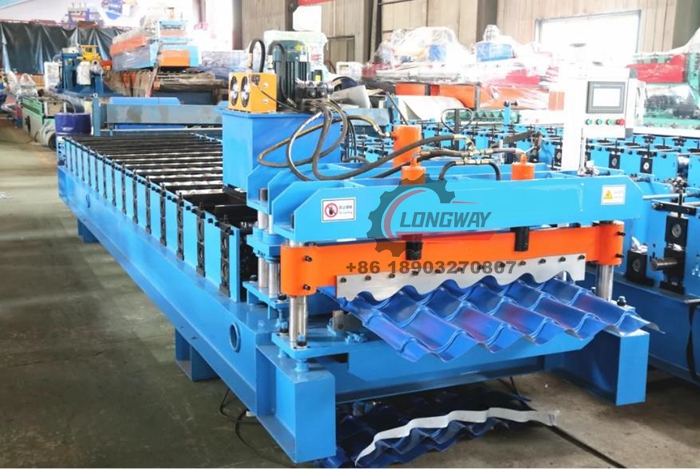

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • soffit panel02
  • soffit panel01
  • soffit panel17

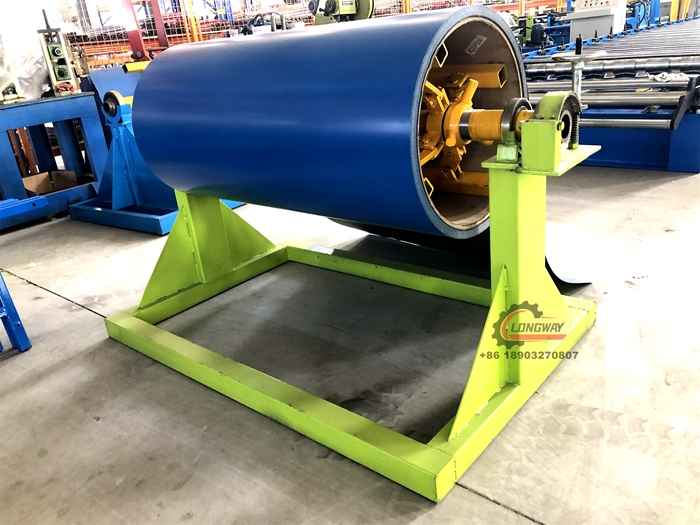

  • manual decoiler (2)

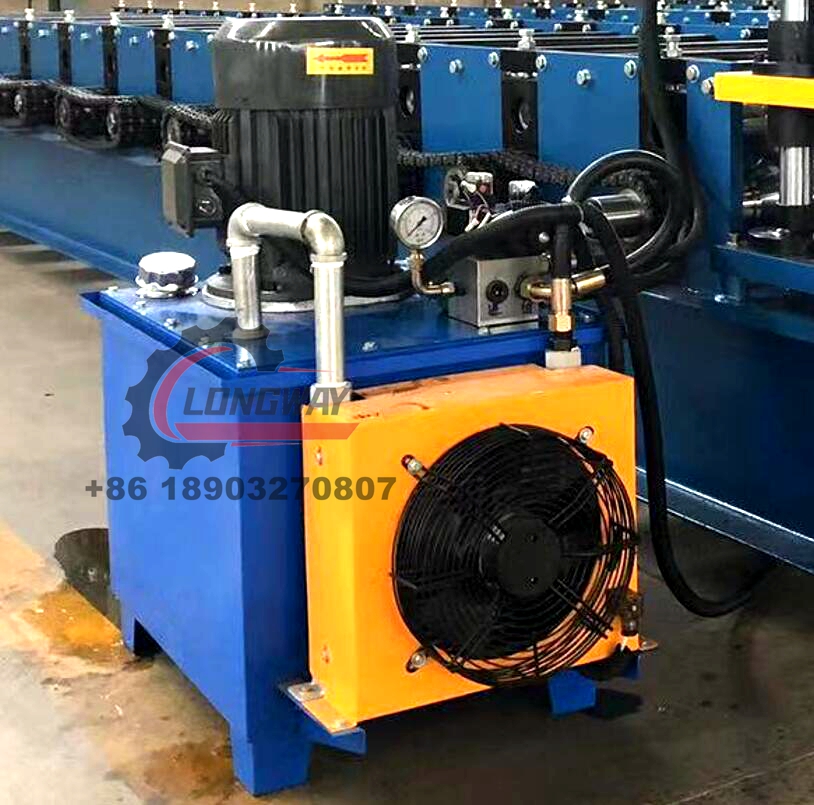

  • Pump station
