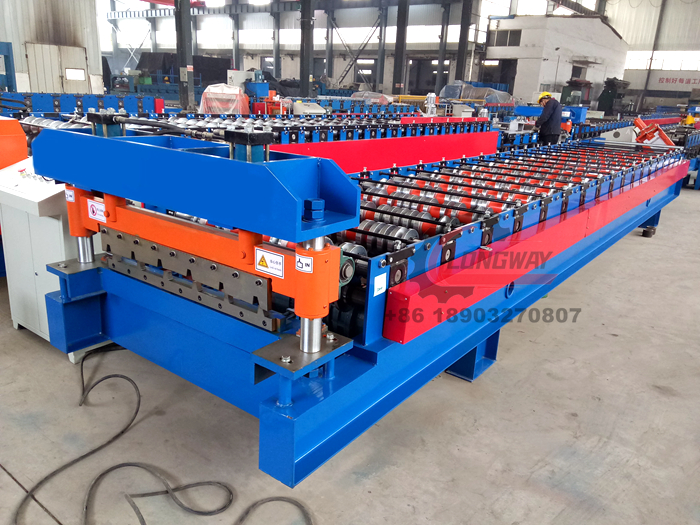

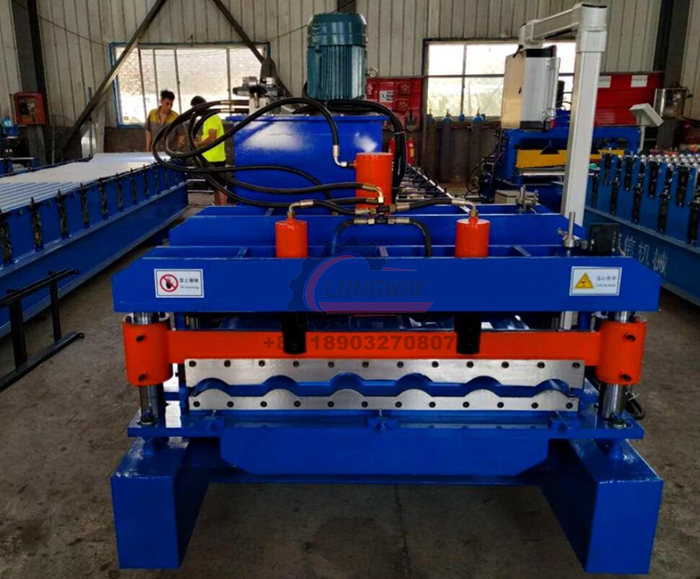

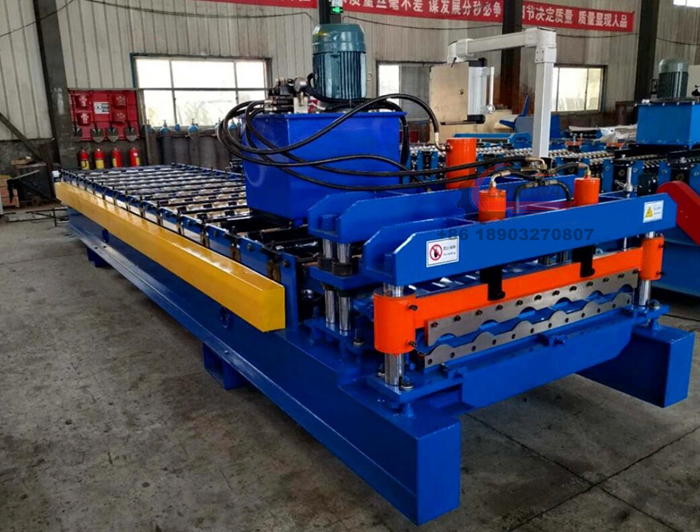

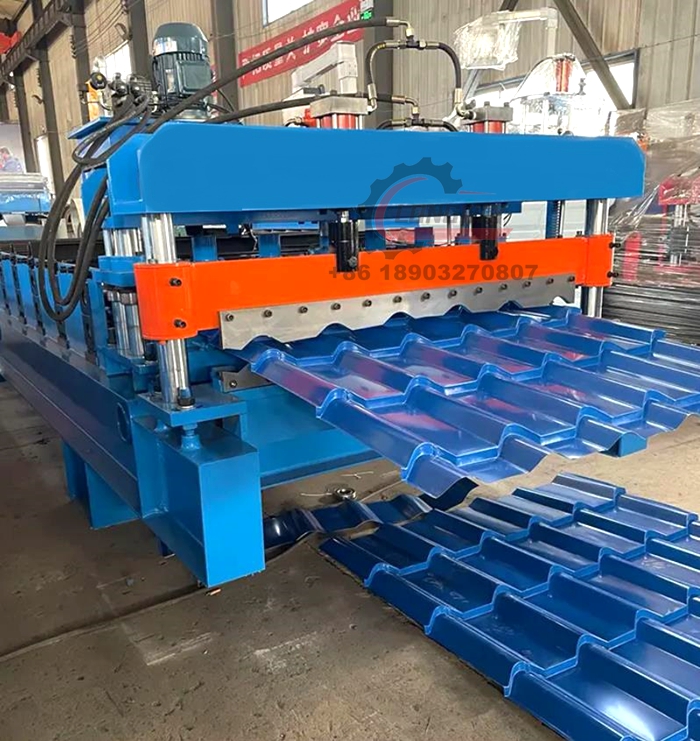

Metal Roofing Tile Roll Forming Machine

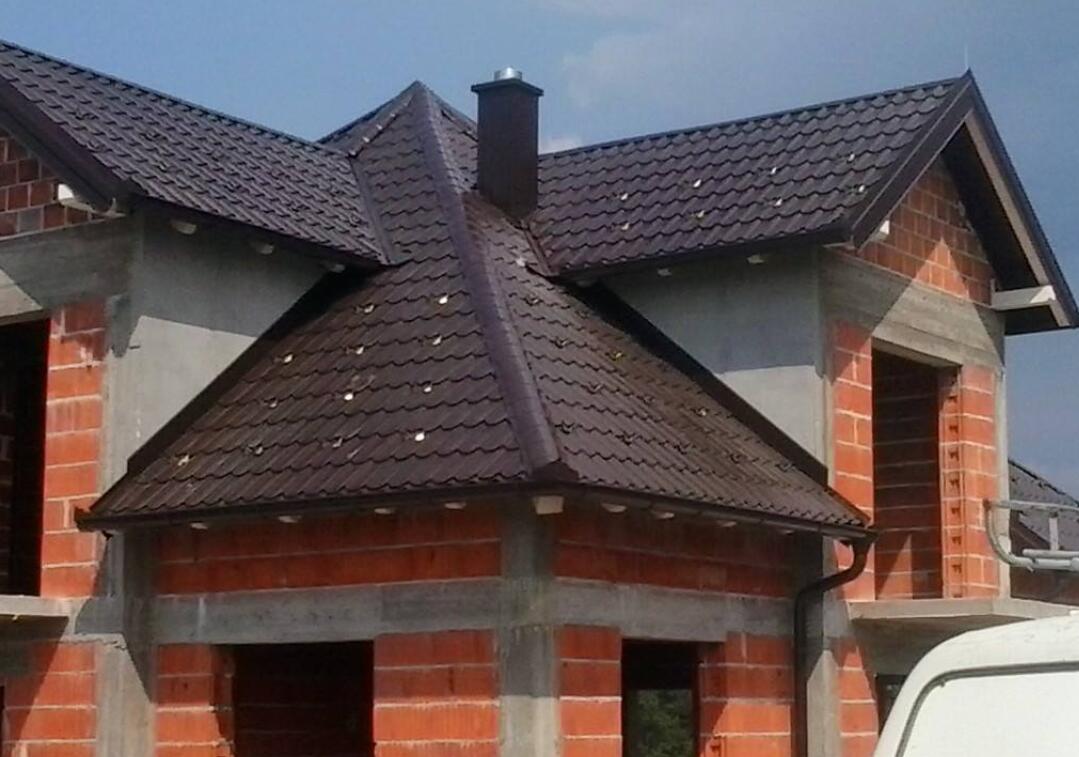

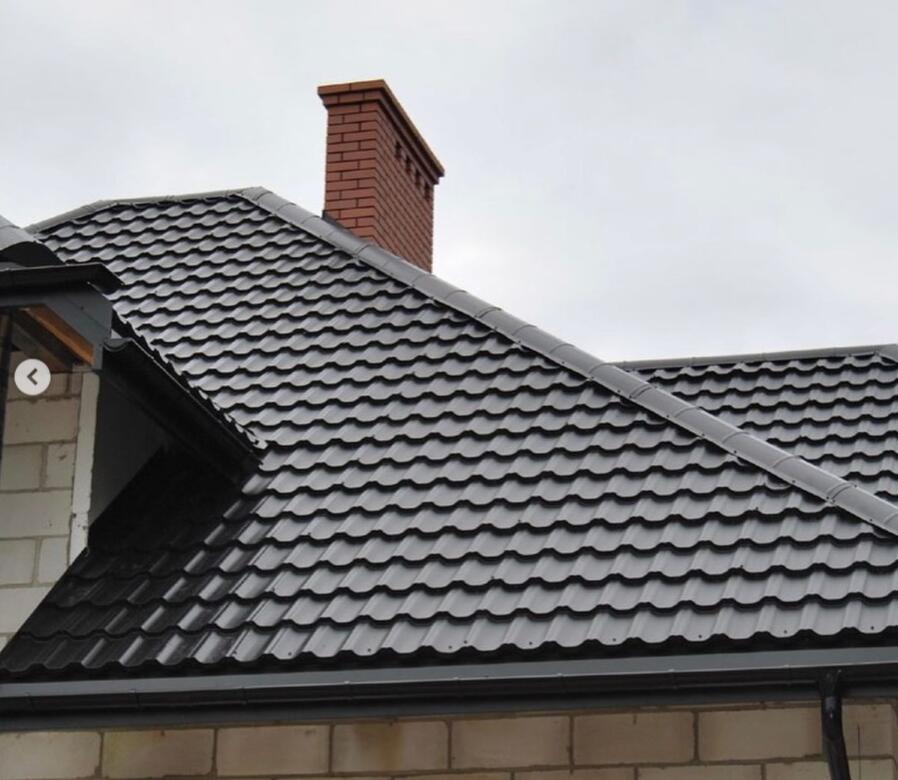

Glazed roof tiles represent the elegant style of traditional decoration and suit every architectural design. And these finished products are much more convenient campared with other types of roof panels. It take shorter time to install these glazed roof tiles . Our Metal Roofing Tile Roll Forming Machine can be designed as custom profiles .

Profile drawing for reference:

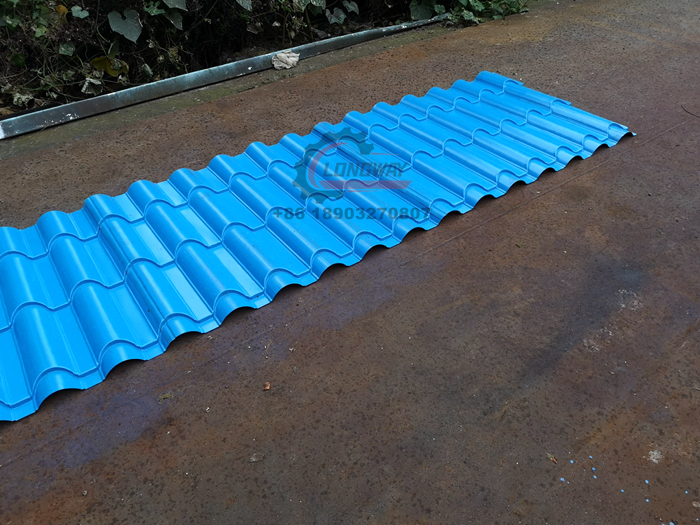

This type roof tile is widely used in whole world , with effective width at 980-1000mm . It has different input width to meet customer needs from different market . We work 1000/1200 and 1250 profile , height can be 25 , 30 up to 50mm .

Processing Flow

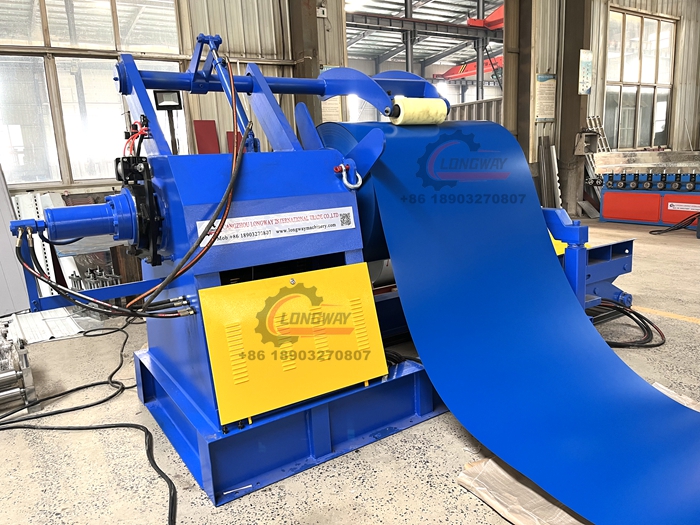

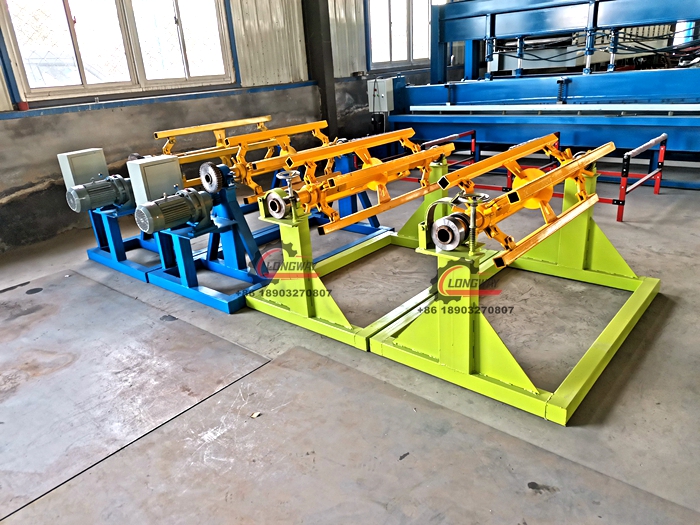

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1000/1200/1250mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	5.5kw
Forming speed		4m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

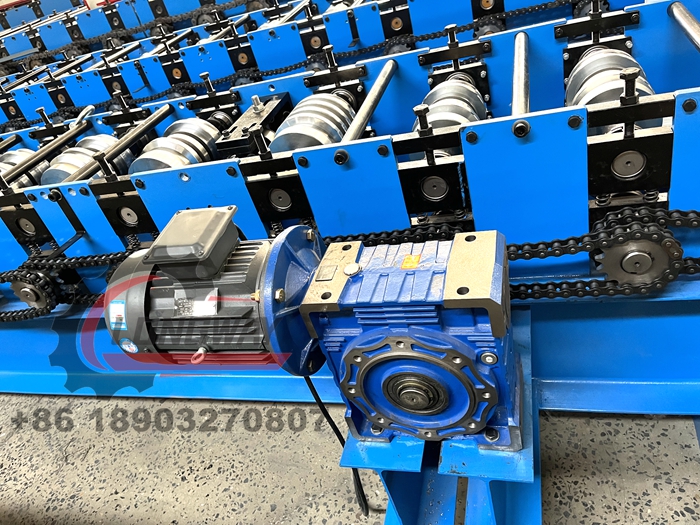

Transmission Way		Chain drive 1 inch (Double Chain)

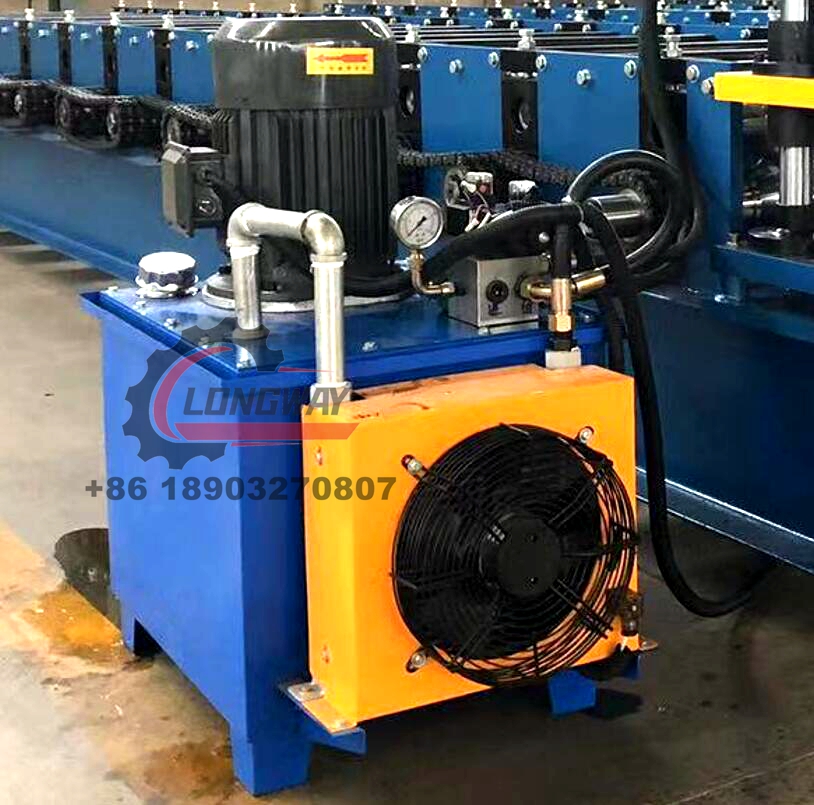

Type of cutting		Hydraulic Pillar type and length-set cutting

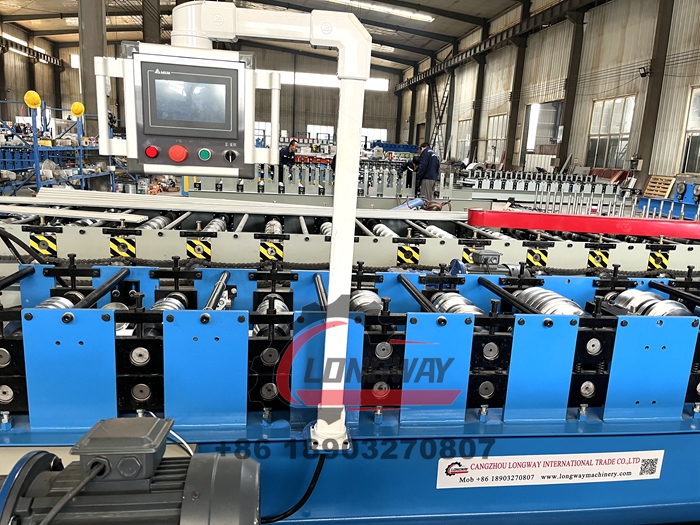

Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		7.5m×1.5m×1.2m
Total weight (Approx)		4.6T



Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

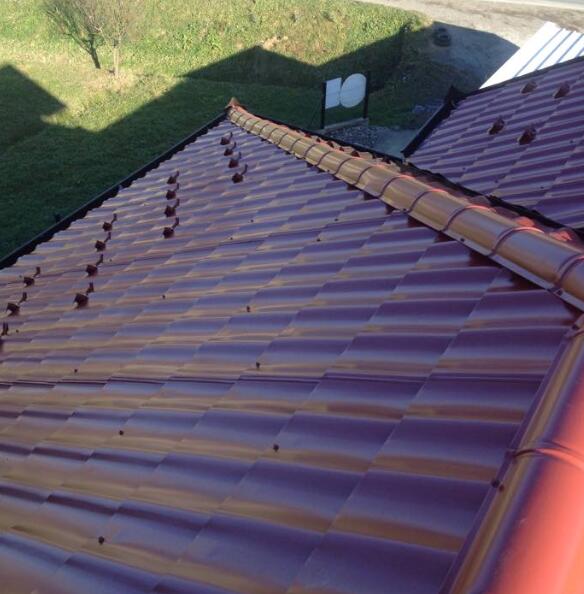

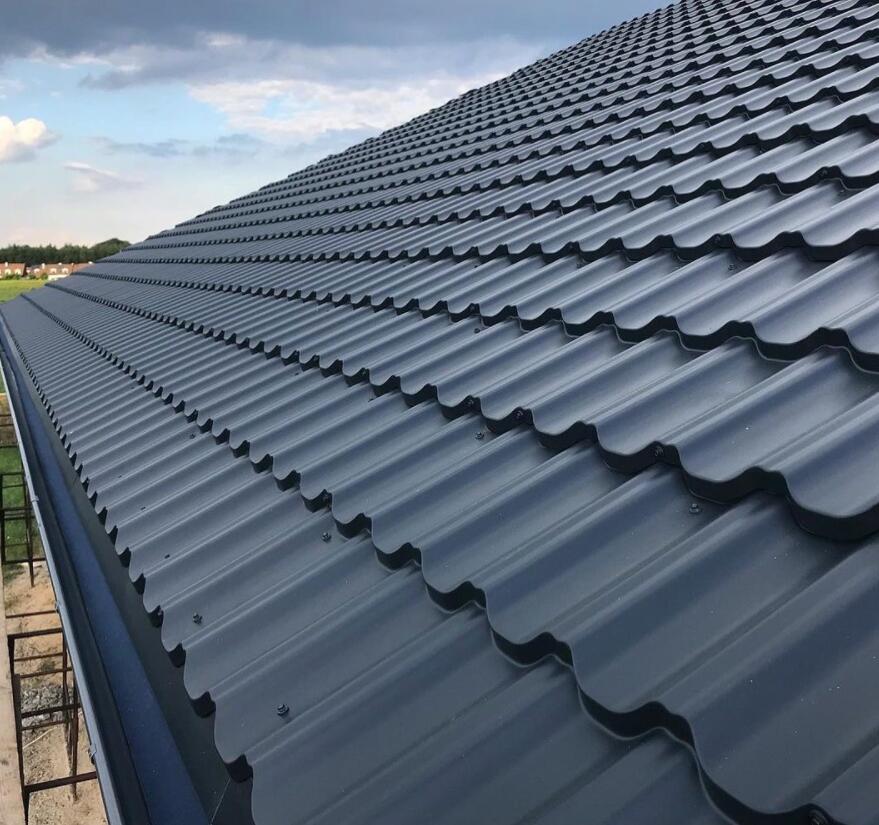

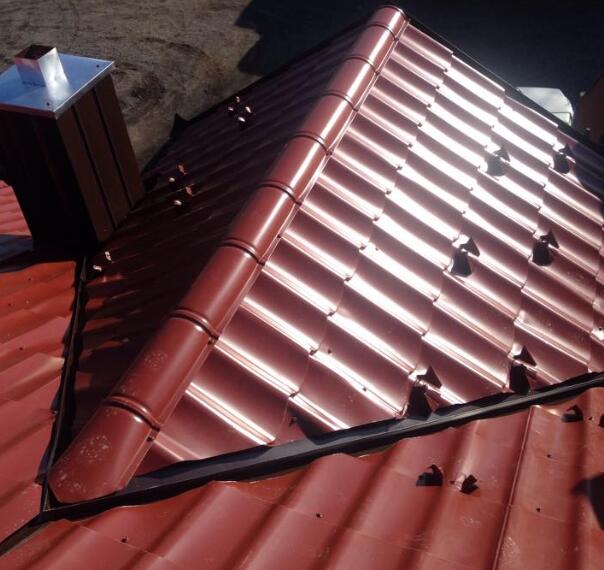

The roof tiles made by our glazed roof tile making machine are in different colors and have beautiful appearance. These finished products are widely used in gardens, factories, resorts, hotels, exhibition halls and modern villas.
