R72 R101 Multi Ribs metal roof sheet forming machine

R72 R101 in one machine 40 Day delivery 2 Years free warranty




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

Design Idea:
Stable Transmission: Double chain and gear drive,keynote rollers design.

Easy Operation:Only need to set orders on the PLC control station,very easy operation .
R72 R101 Multi Ribs metal roof sheet forming machine

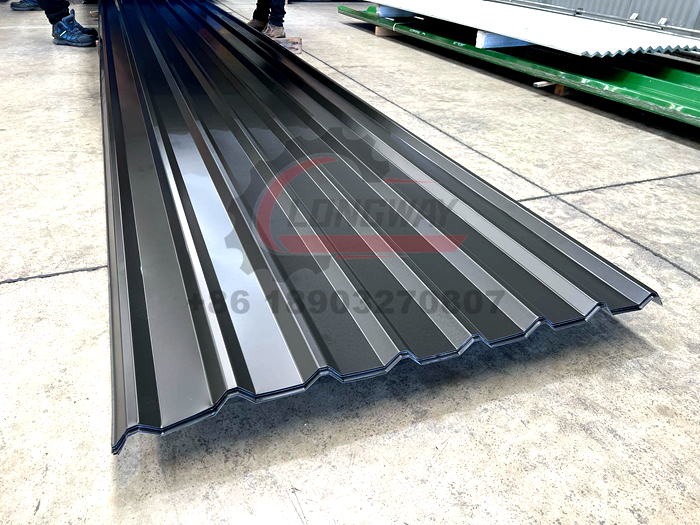

Profile drawing for reference:

Trapezoidal roofing sheet has many different shapes,usually different countries have its own popular design ,we can customize the machine as customers’ demand,R101 roofing sheet is most popular in Mexico market.

Technical Farameters

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material

Coil Type

PPGI,PPGL,GI

Width

1200/1250mm

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

4+4kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

14-18 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

9.5m×1.5m×1.2m

Total weight (Approx)

5.6T

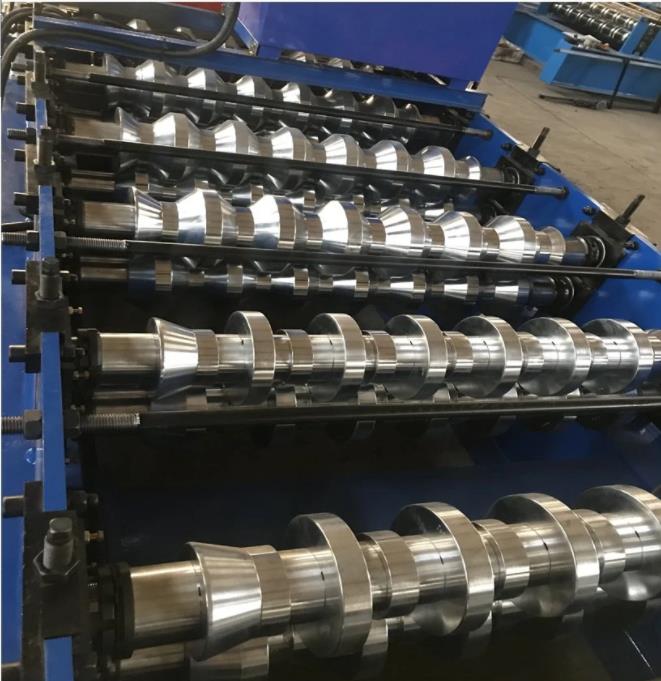

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

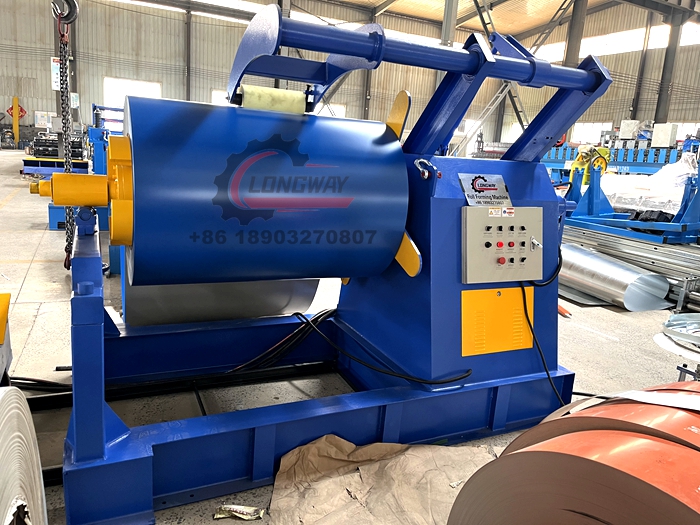

  • coil stand

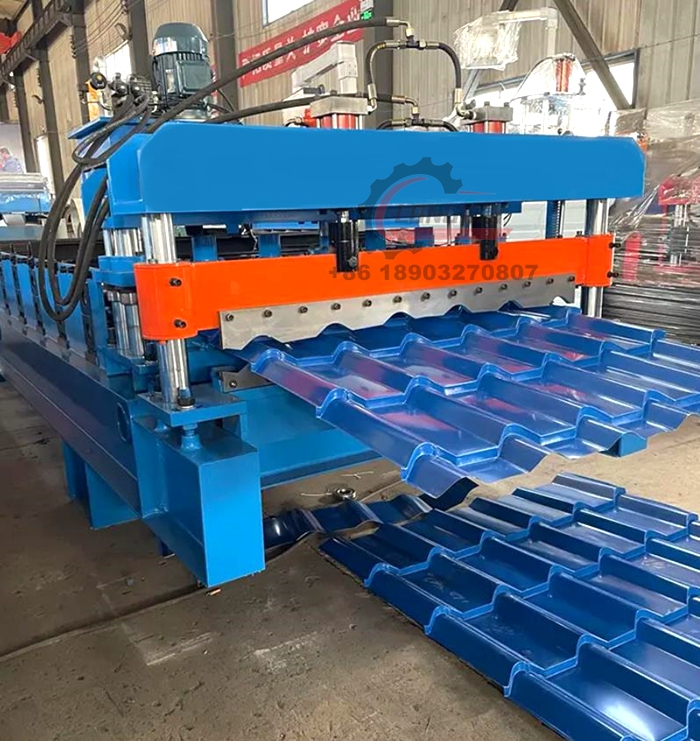

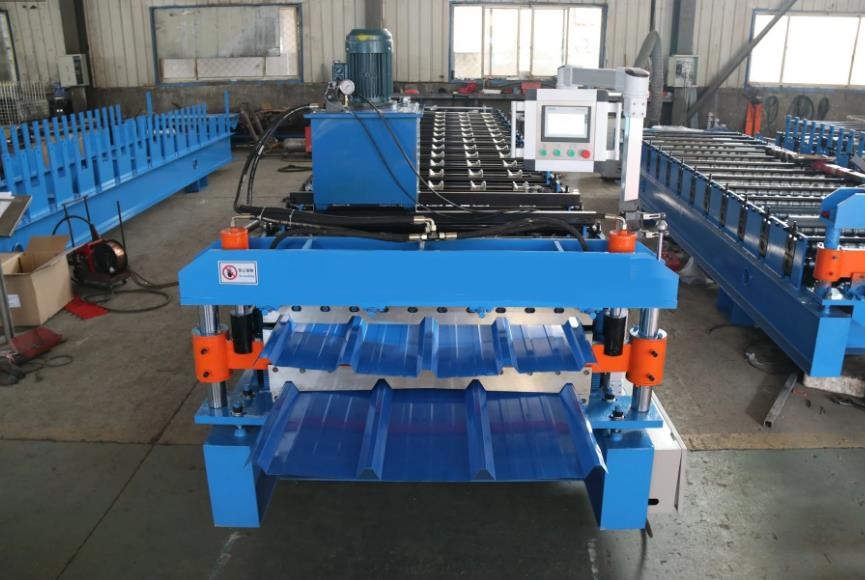

  • R72 R101 Multi Ribs metal roof sheet forming machine

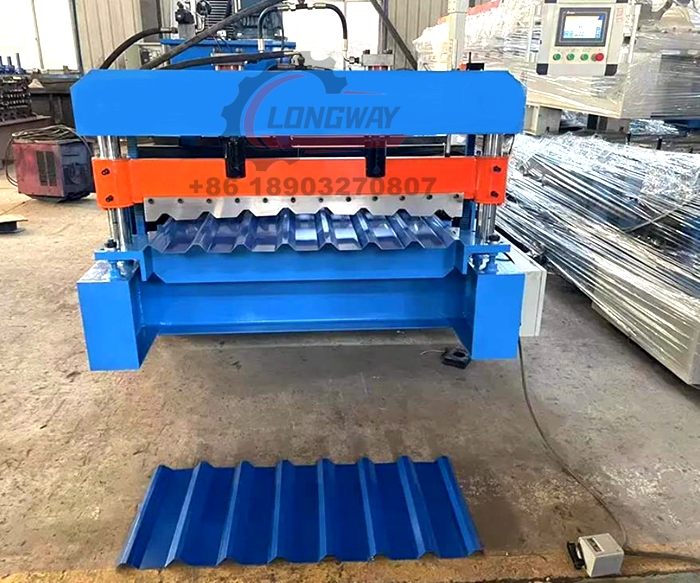

  • R72 R101 Multi Ribs metal roof sheet forming machine

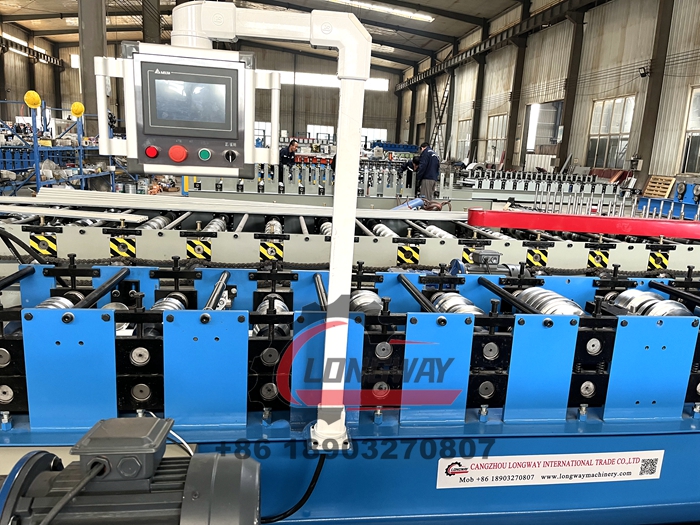

  • roll forming machine control

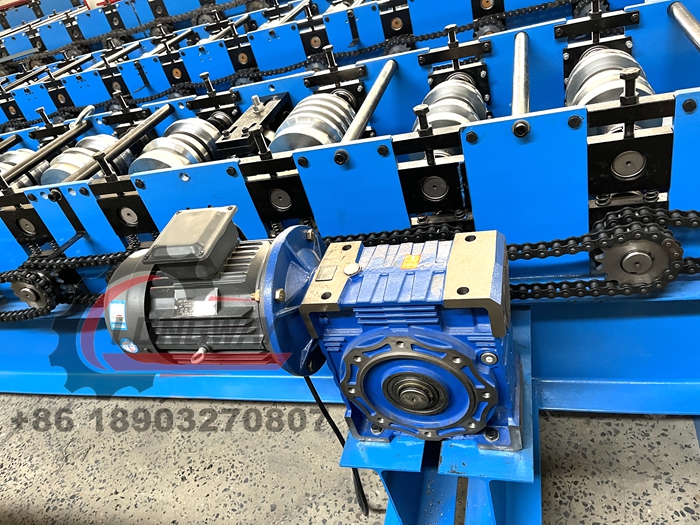

  • roll forming machine motor

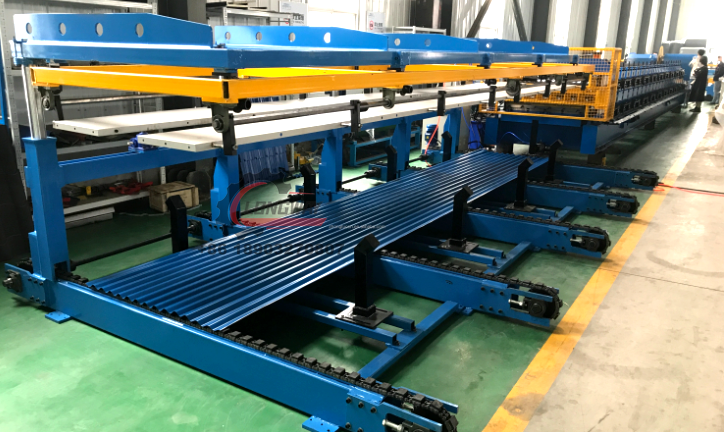

  • auto stacker
