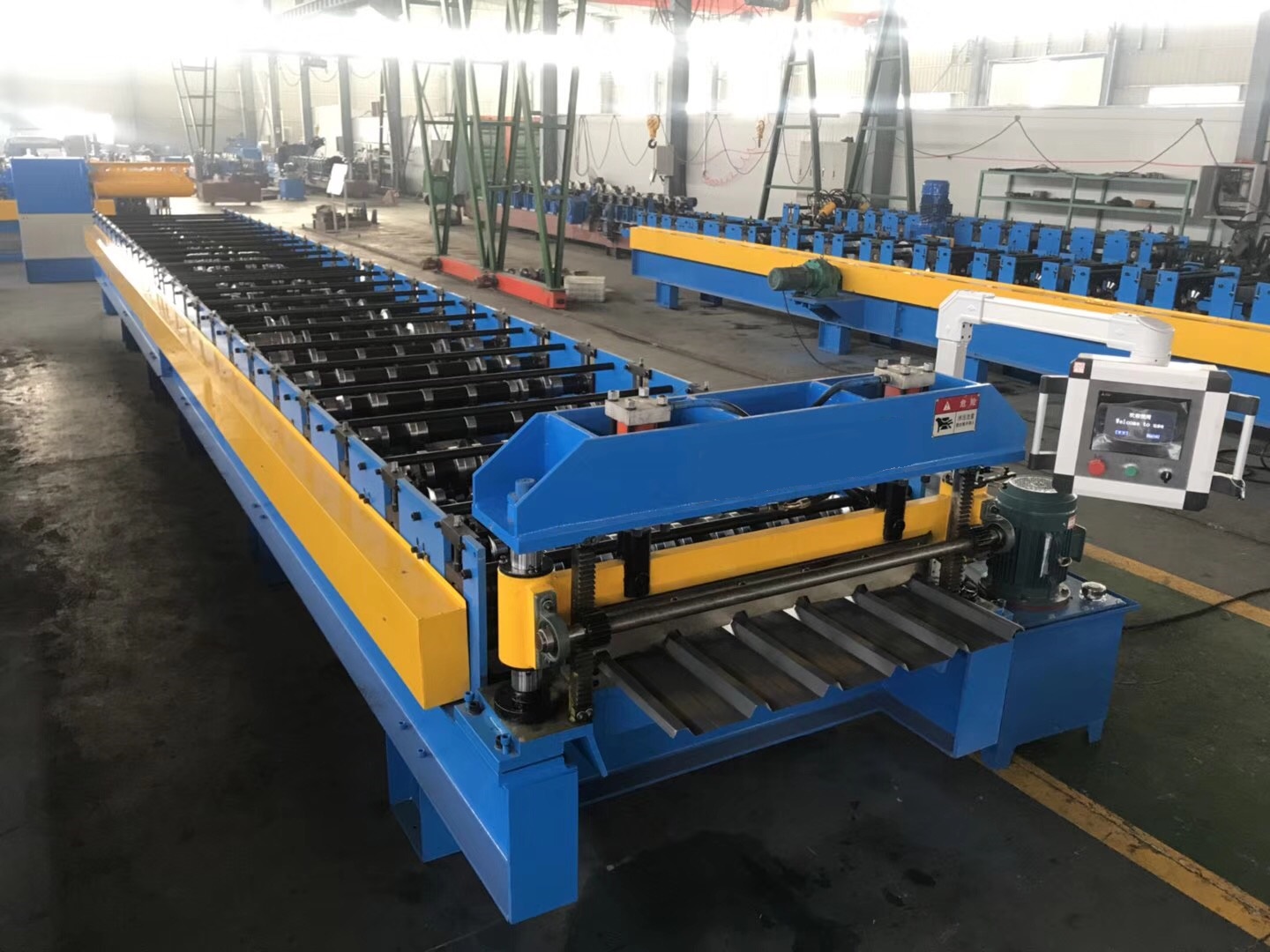

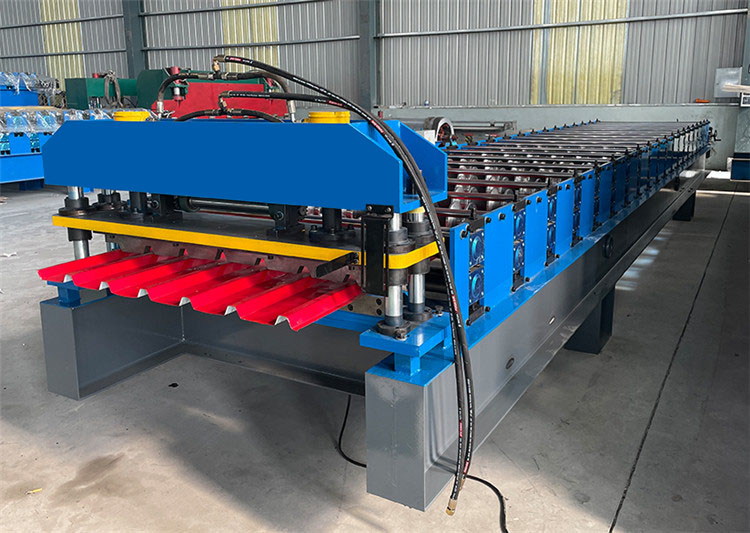

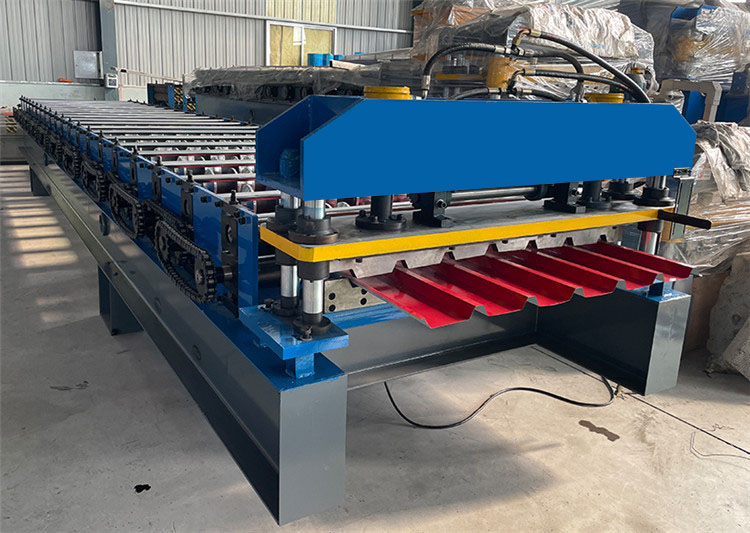

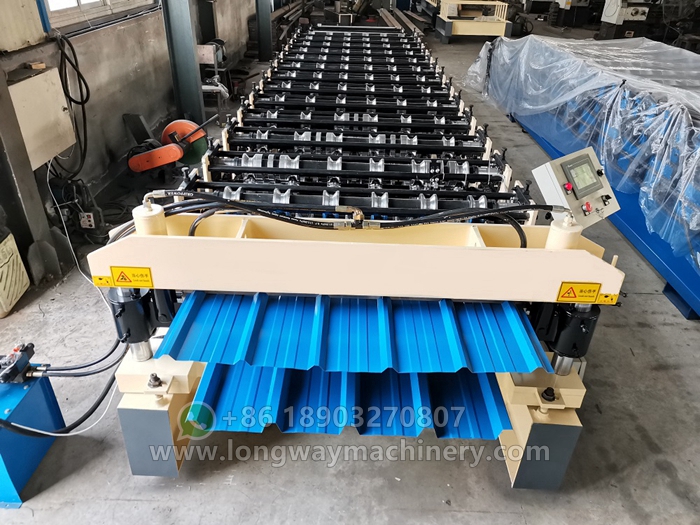

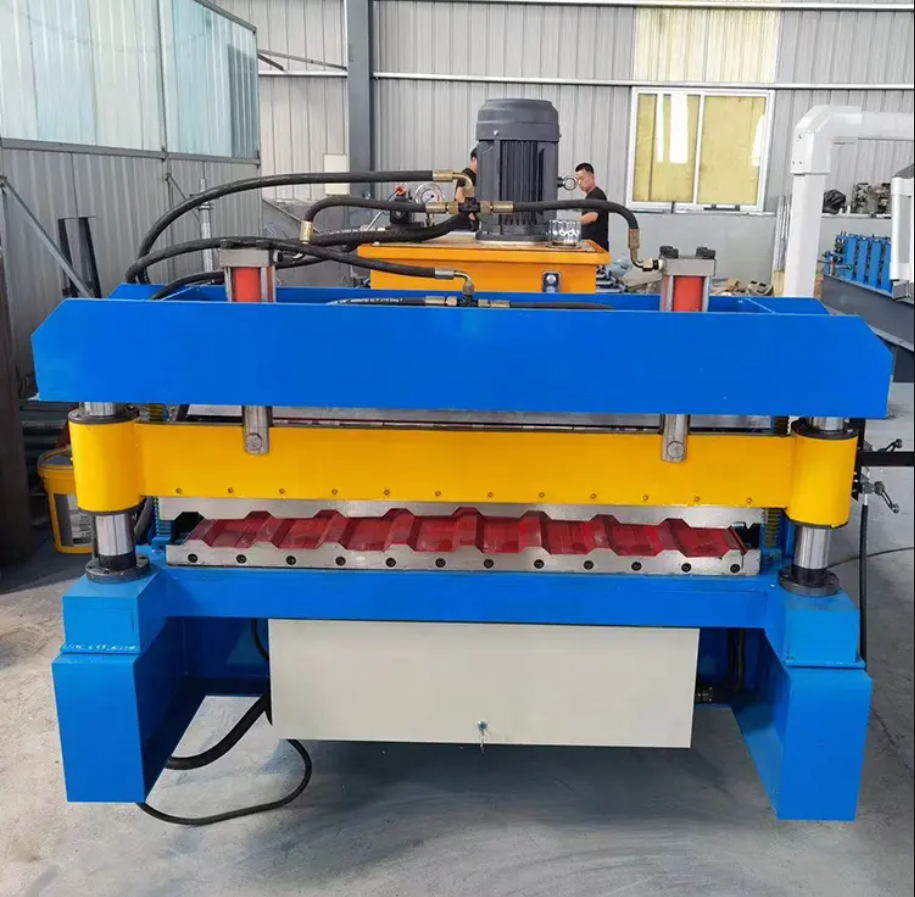

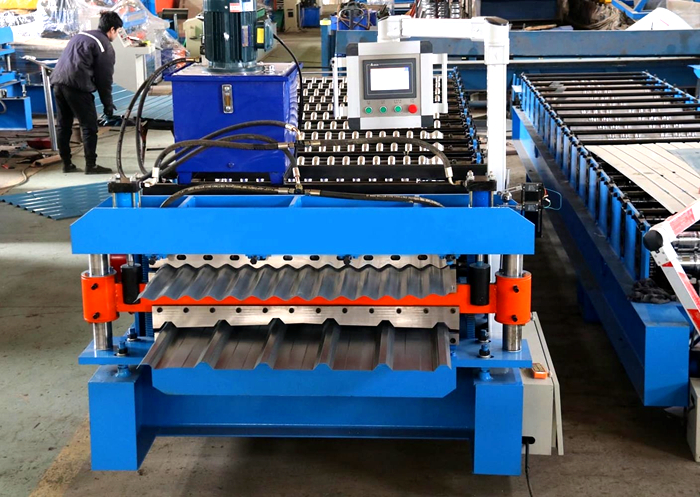

T35 Trapezoidal Metal Roof Panel Machine with 1000 cover

T35 Trapezoidal Metal Roof Panel Machine with 1000 cover can work IBR roof panel in 6 rib . The panels are about performance on a large scale and design versatility. As walls, they can be installed vertically or horizontally. They can also be curved in highly customized ways to meet the functional and aesthetic needs of a building.

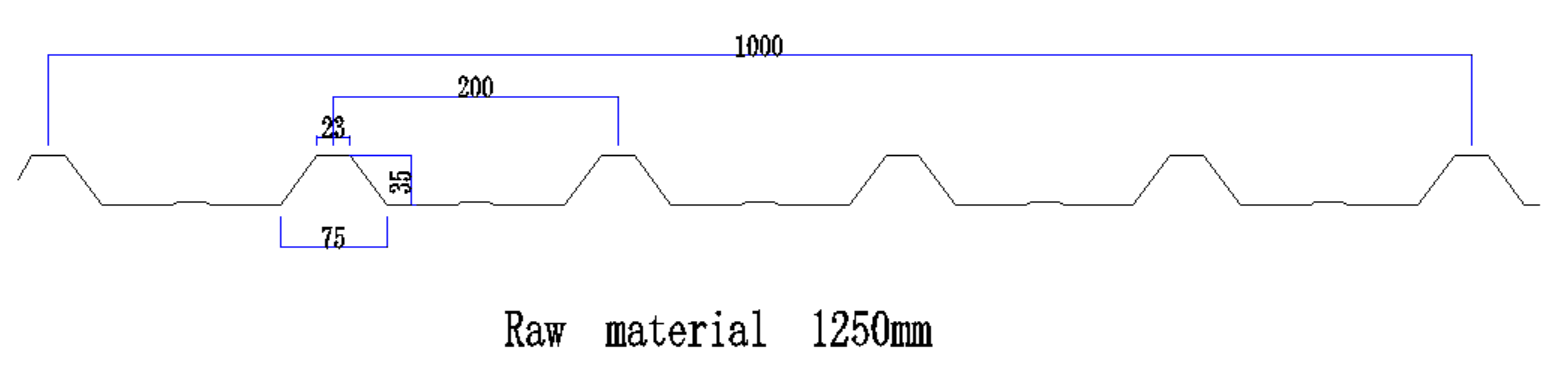

Profile drawing for reference:

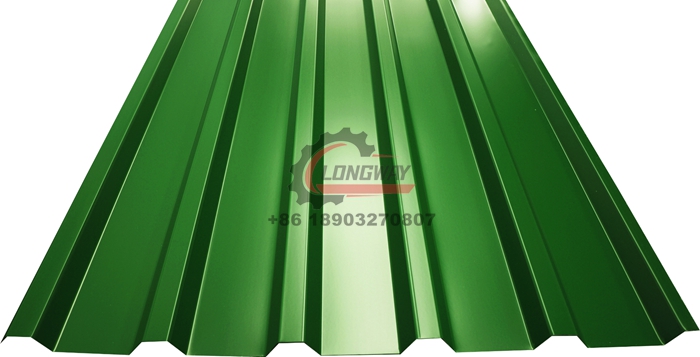

This type Trapezoidal roofing panel is widely used in whole world , with effective width at 980-1000mm . We can design the machine as eash profile drawing you require .

Processing Flow

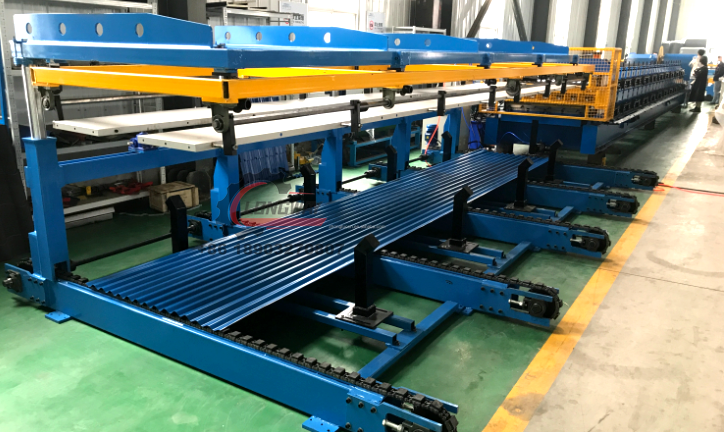

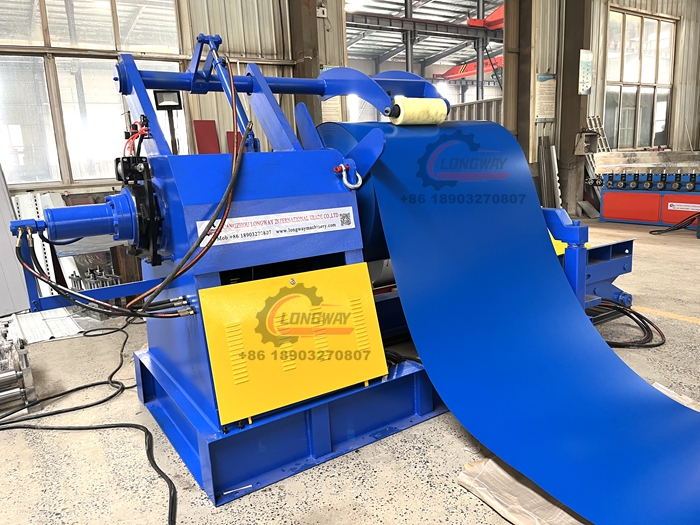

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	1200/1250mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	4+4kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment

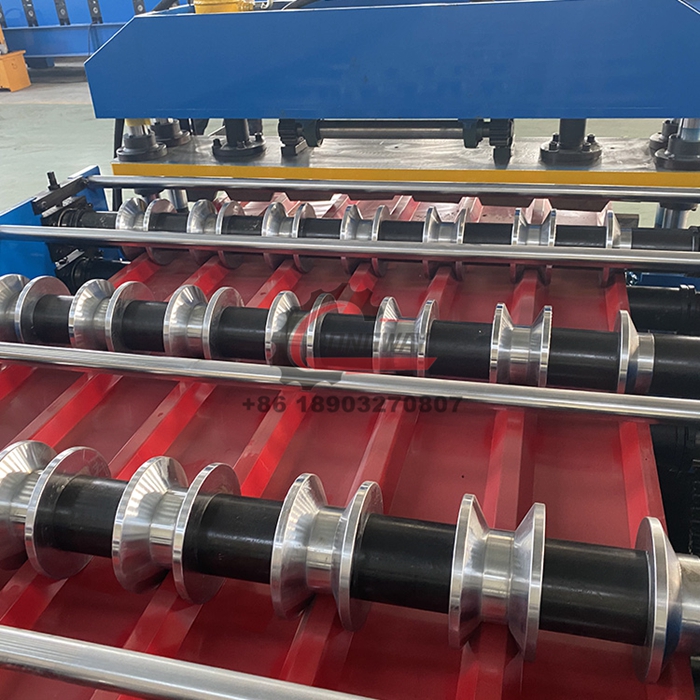

Material Of Rollers		High Grade 45# Forged Steel
Forming stations		14-18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)

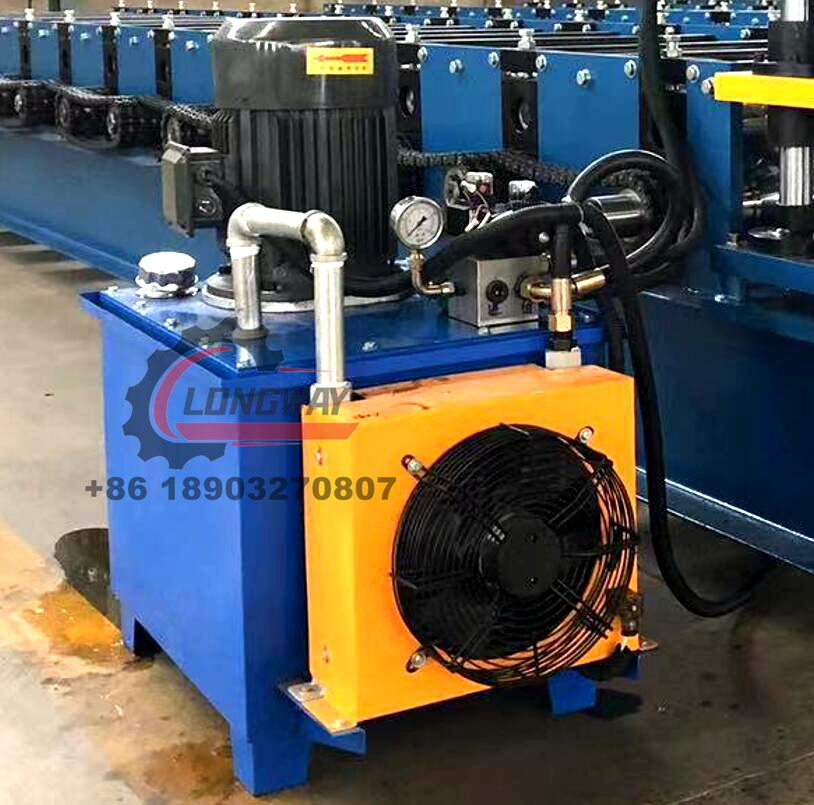

Type of cutting		Hydraulic Pillar type and length-set cutting

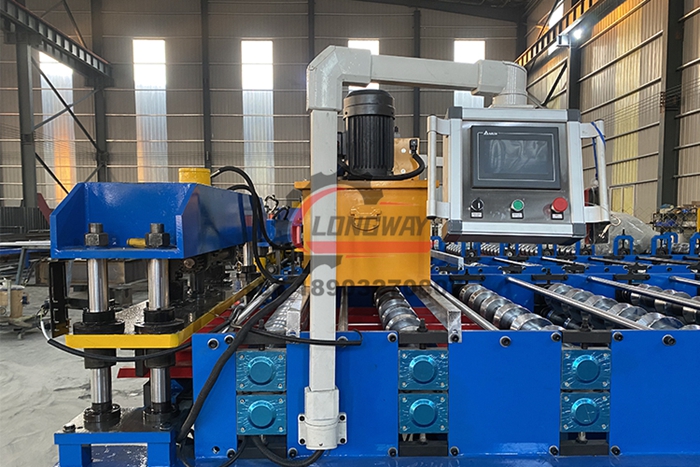

Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		9.5m×1.5m×1.2m
Total weight (Approx)		5.6T

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

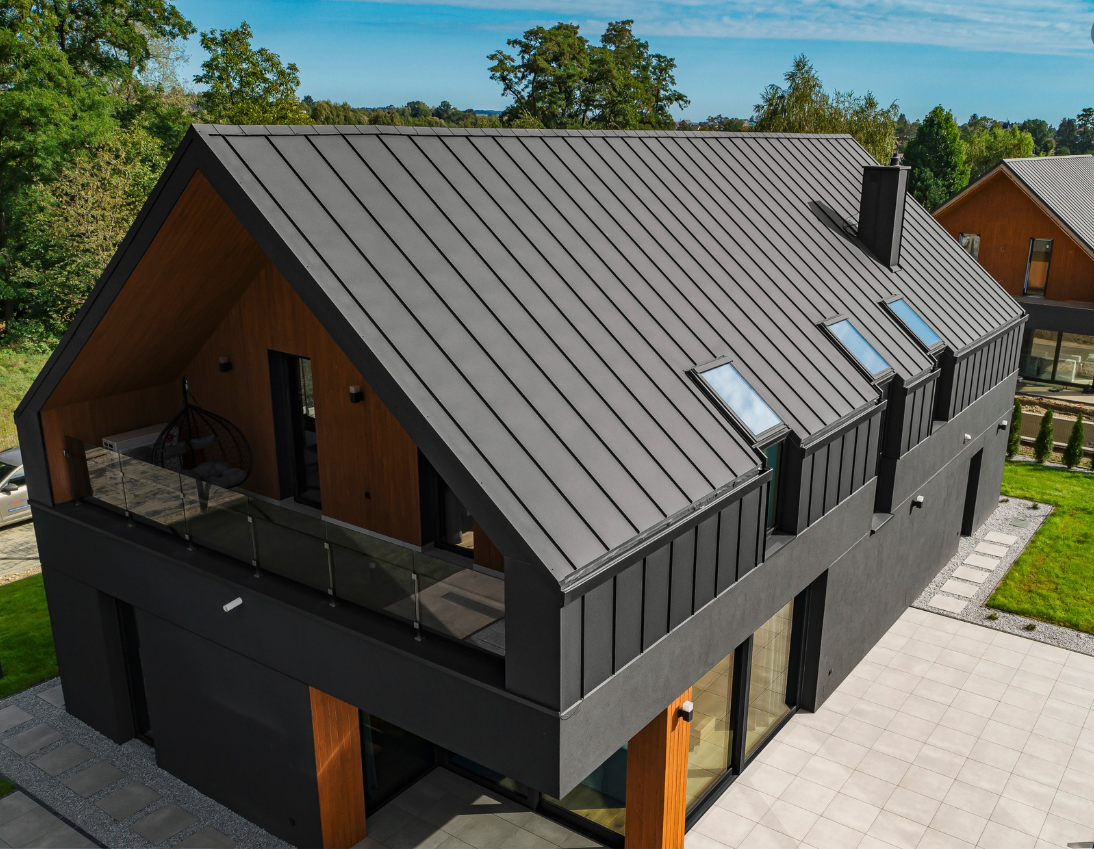

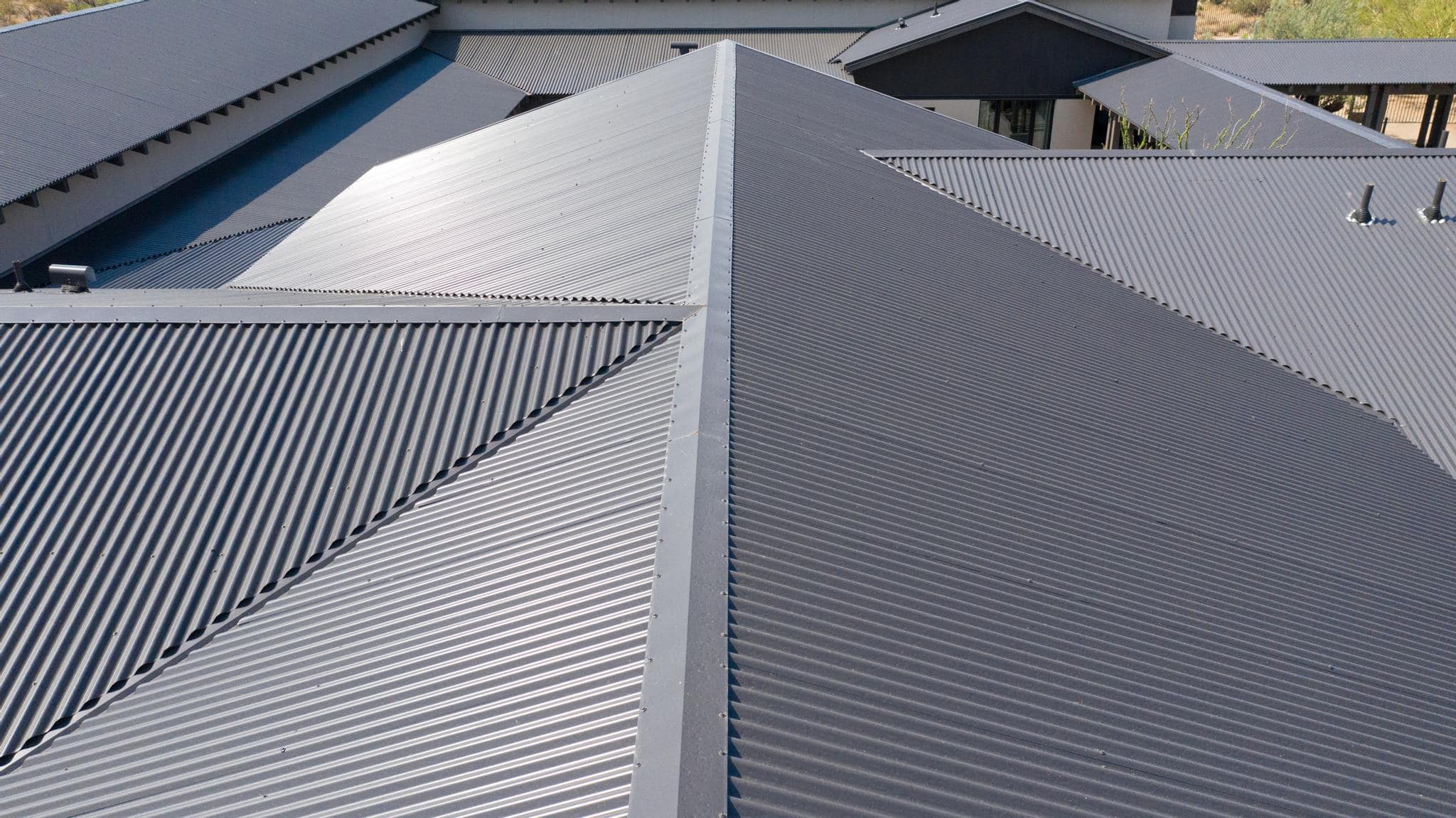

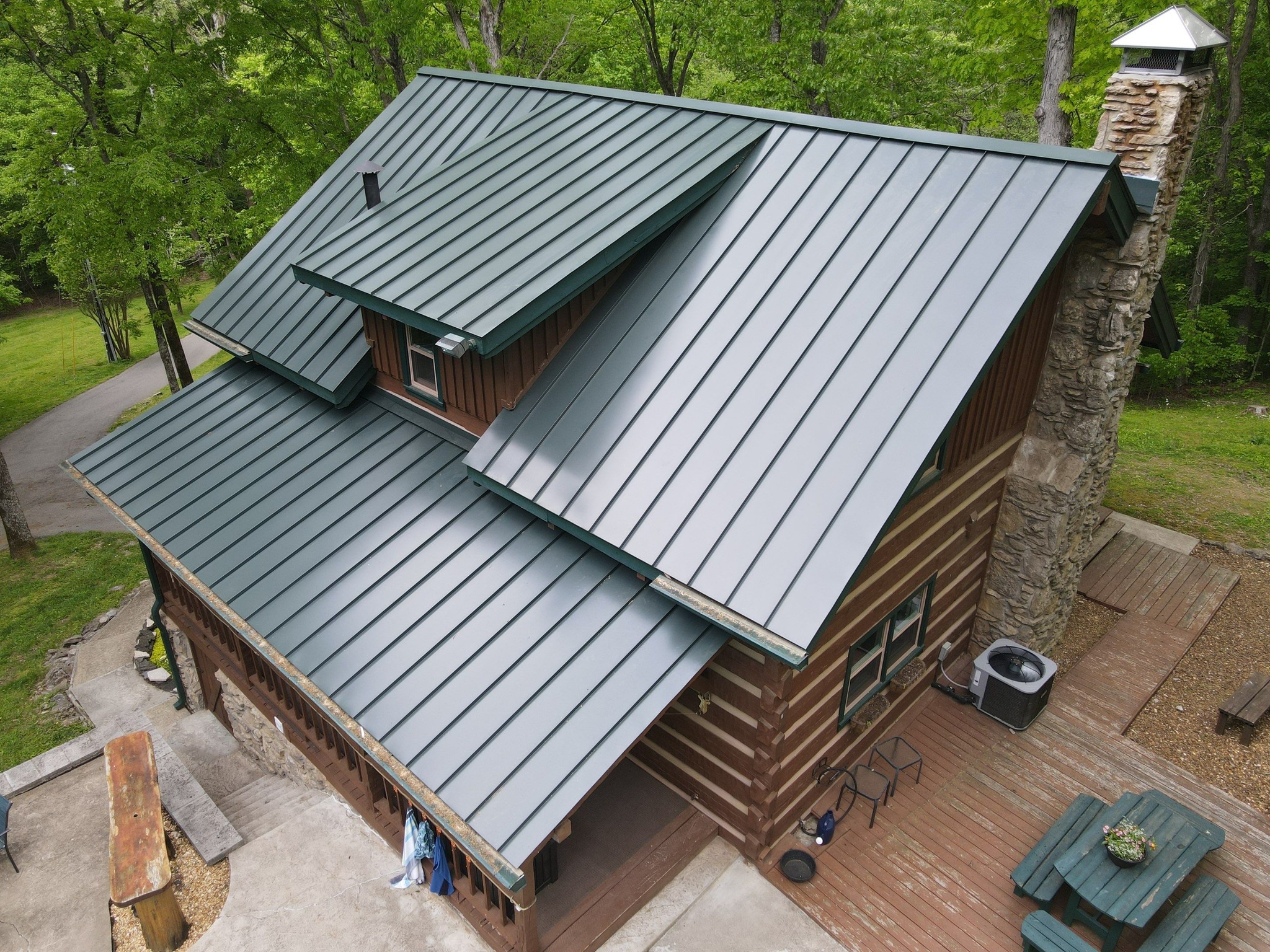

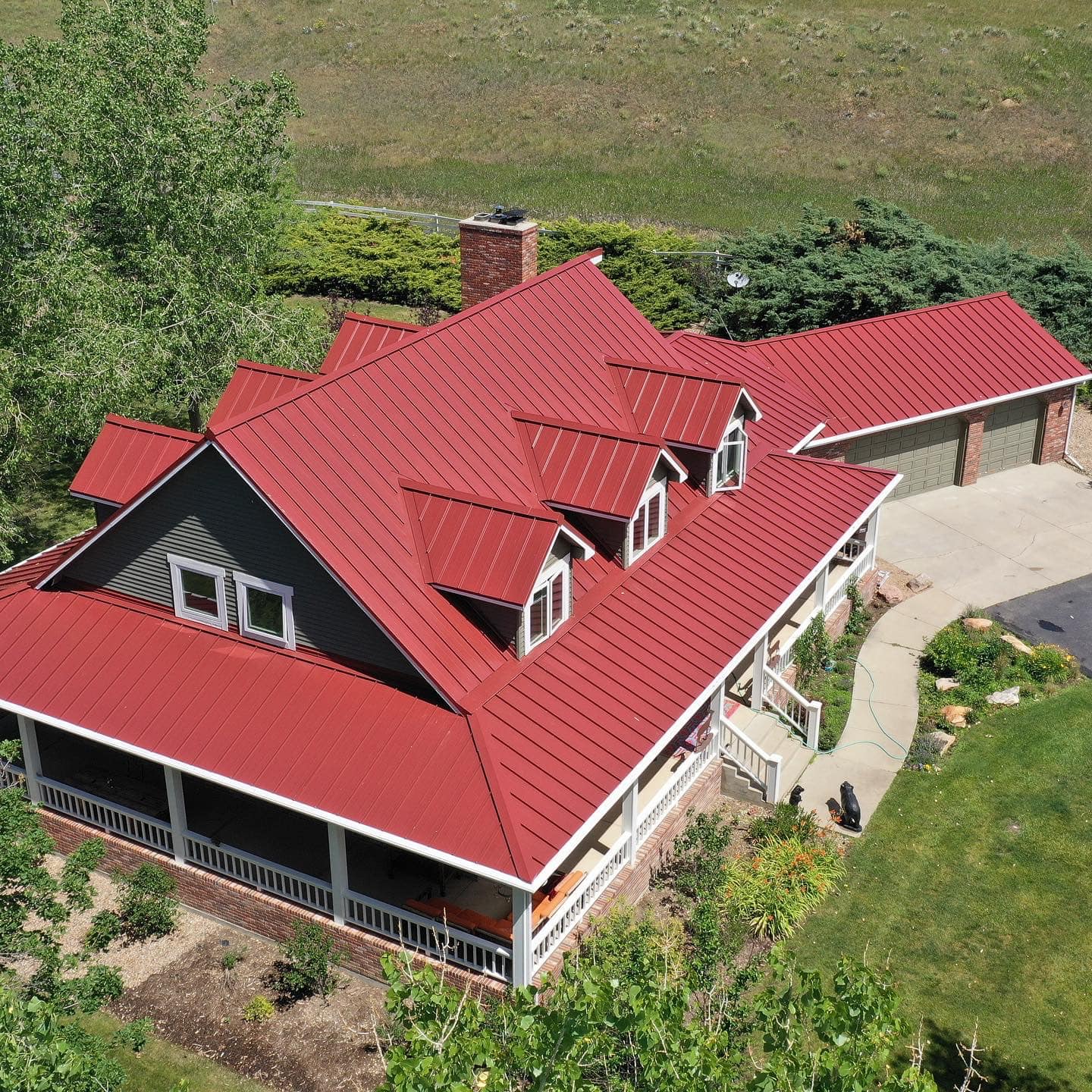

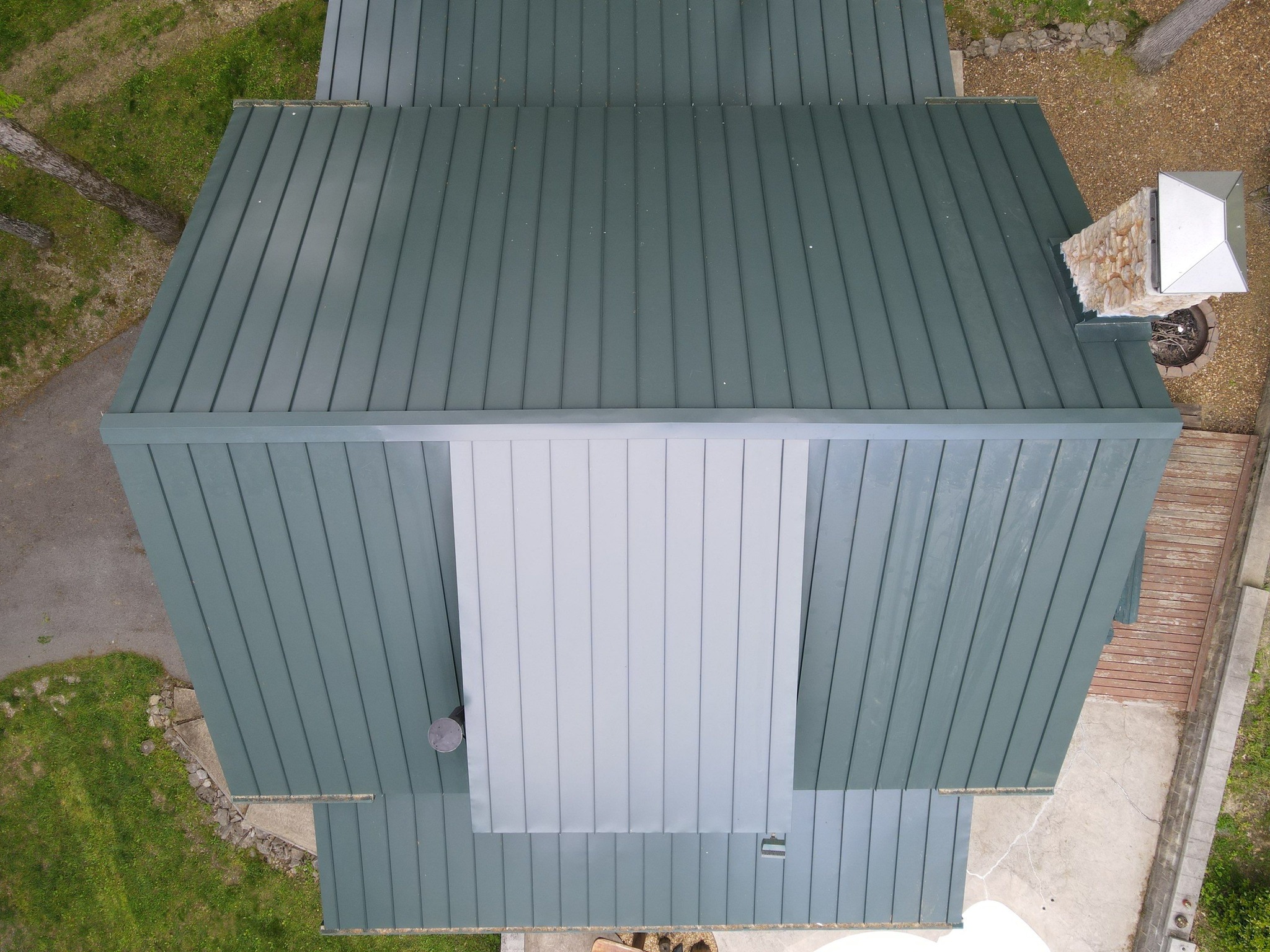

This series of the profile is designed to be economical roofing panels for residential, industrial, and commercial projects.

A minimum of 0.30mm and a maximum of 0.7mm gives more resilience to damage.
