Maquina para PANEL TINGLADO , TINGLADO panel forming machine

PANEL TINGLADO 1000 Cladding wall panel machine

CONTACT NOW DOWNLOAD PDF

Details

Tags

Product Details

Revestimiento exterior metálico de uso habitacional para fachadas de alta durabilidad y resistencia al paso del tiempo, gracias a la estabilidad que proporciona el acero y su esquema de pintura incorporado de fábrica. El formato continuo de panel tinglado permite suministrar un producto a la medida del muro a cubrir lo que dará a su obra un carácter estético eficiente.

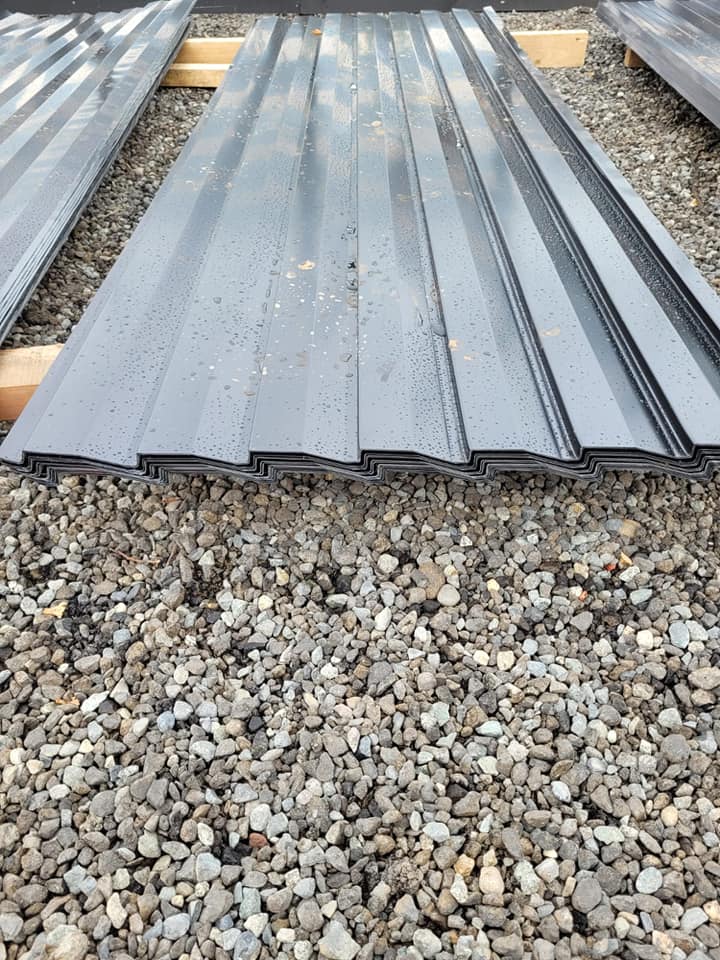

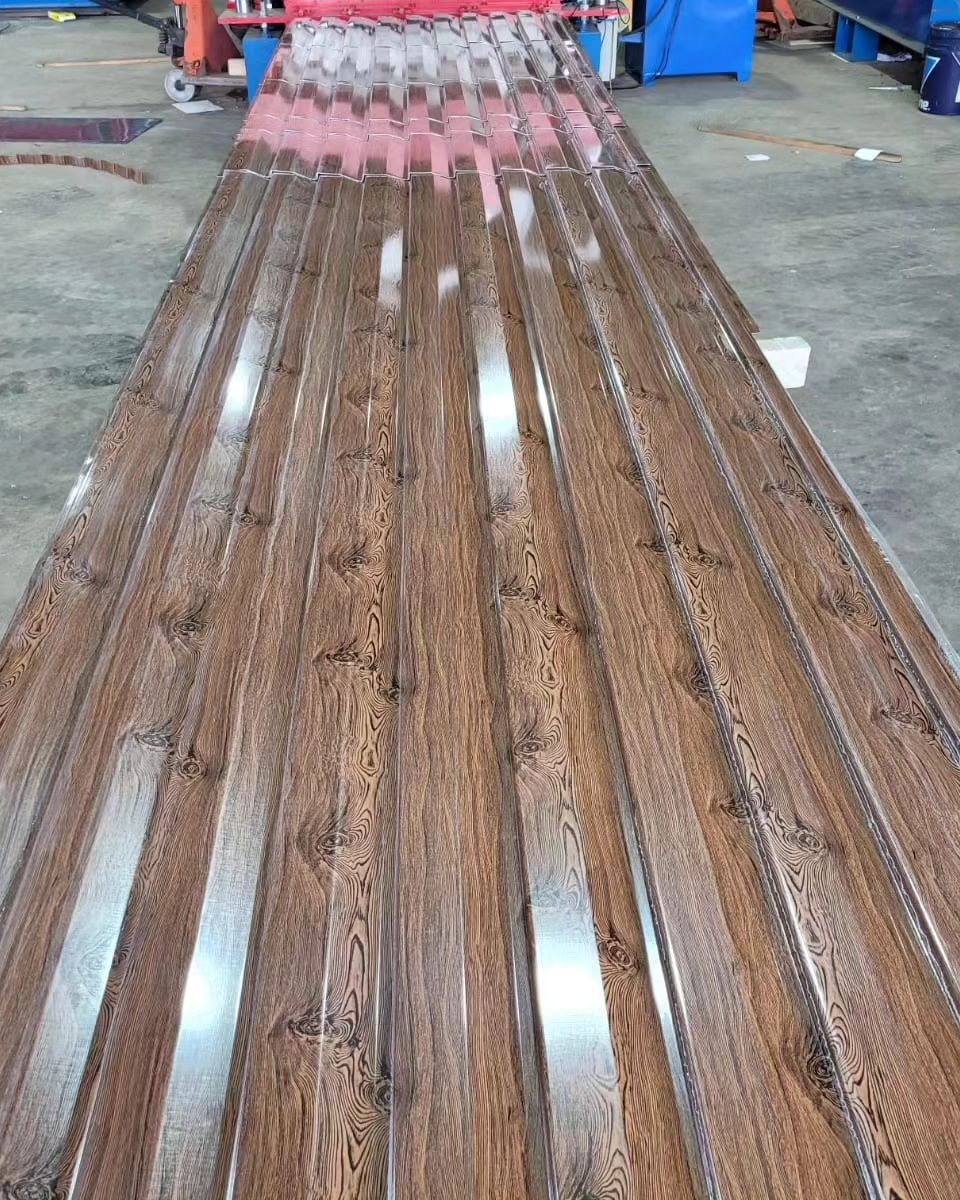

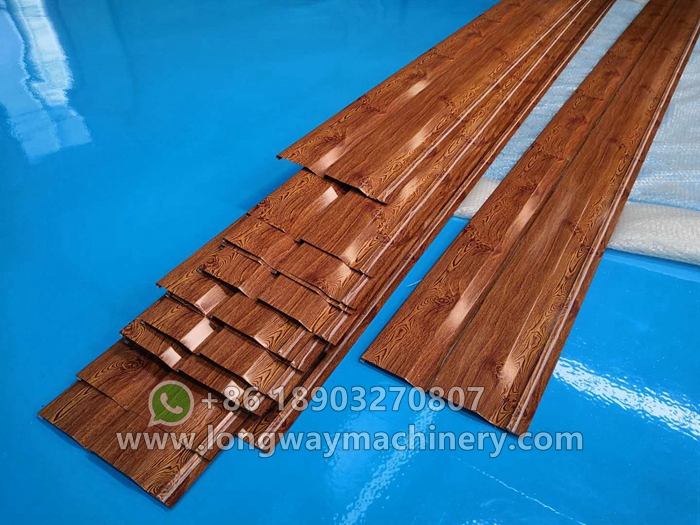

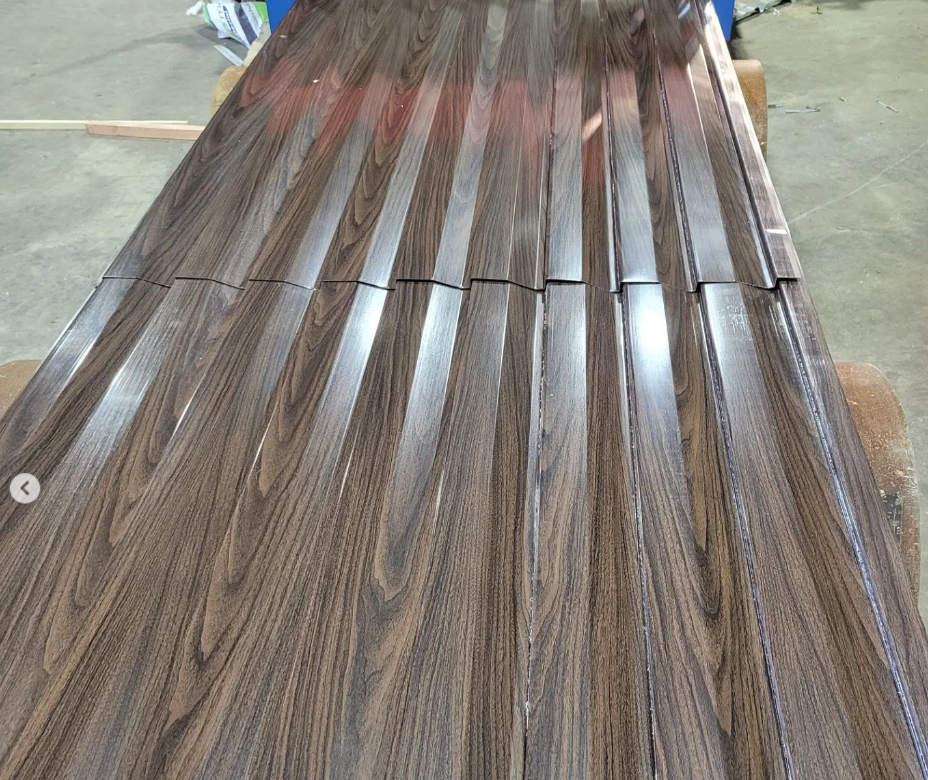

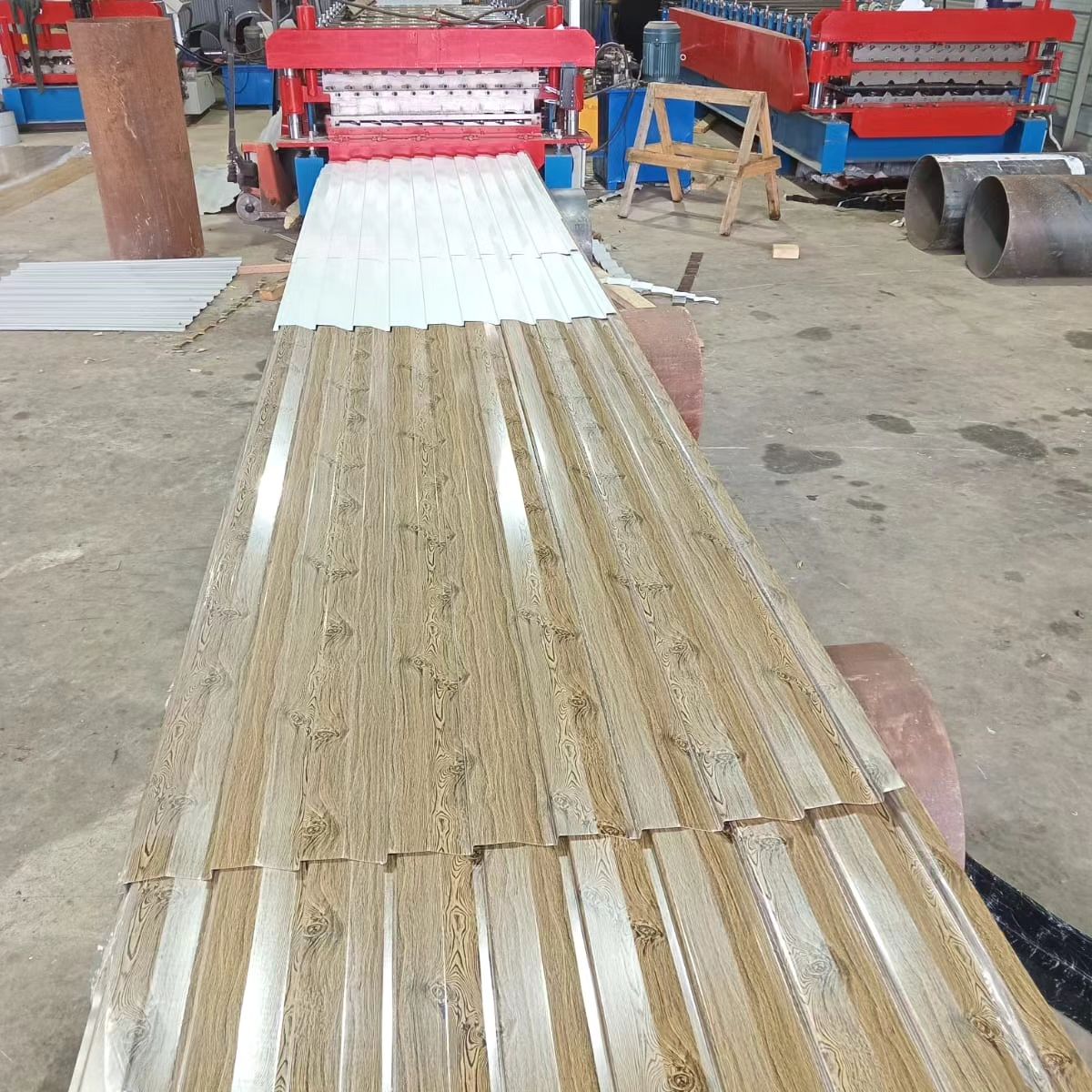

Below is the cladding wall sheets finished by our PANEL TINGLADO 1000 machine , customer give good feedback .

We can also design in different sizes .

Technical Farameters

Working Process

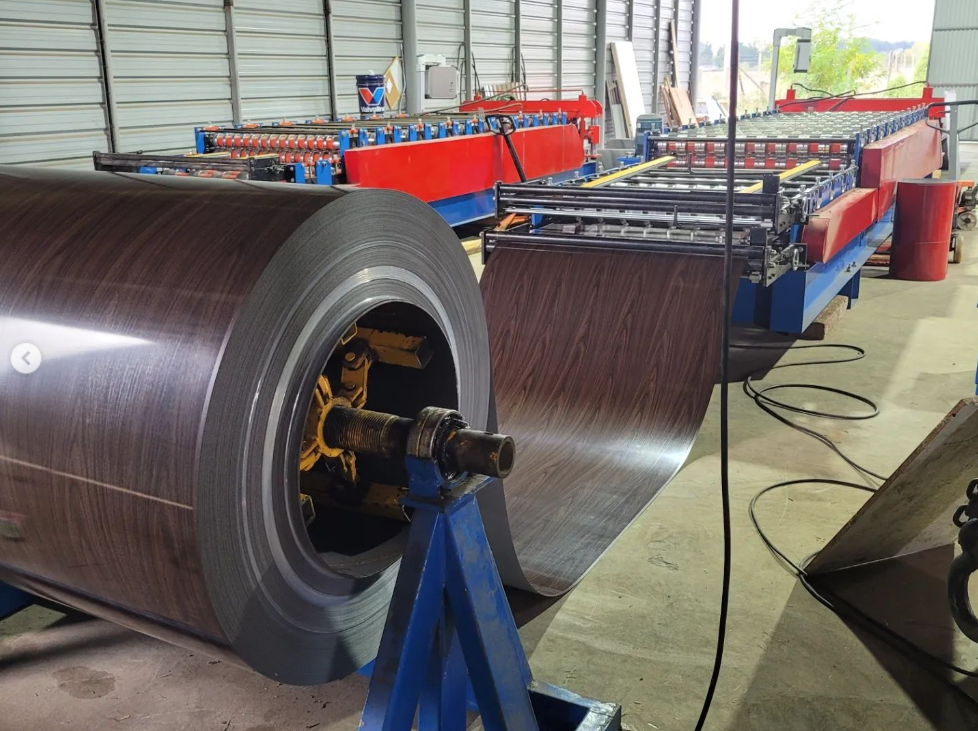

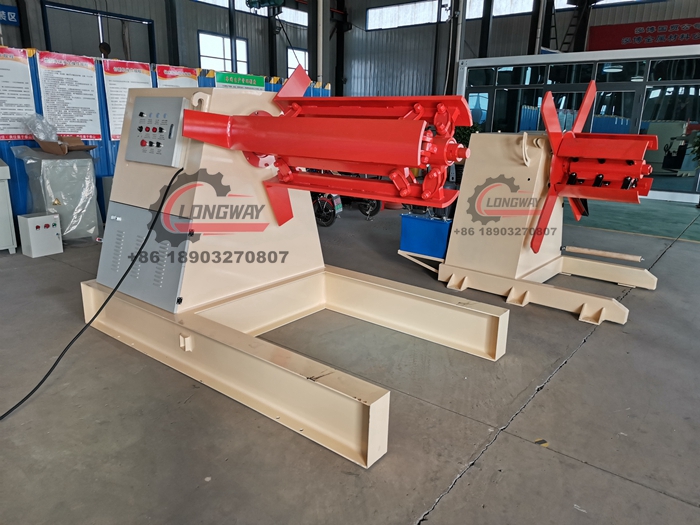

Decoiler--leveling beach with the manual cutter and with the filming system--> main rolling forming machine separated molding rolling--> bearing shearing-->>receiving table

Raw Material	Coil Type	PPGI,PPGL,GI
	Width	400mm
	Thickness range	29-22 Gauge (0.3-0.6mm)
Power Requirement	Voltage	380v/3ph/50hz(Customized)
	Main Motor power	5.5kw
	Cutter power	4kw
Forming speed		15-20m/min
Machine Frame		350mm H Beam Structure
Thickness of structure		18 mm Welded Steel Middle Support Plate
Forming shaft		75mm solid shaft with heat treatment
Material Of Rollers		High Grade 45# Forged Steel
Forming stations		14 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision
Transmission Way		Chain drive 1 inch (Double Chain)

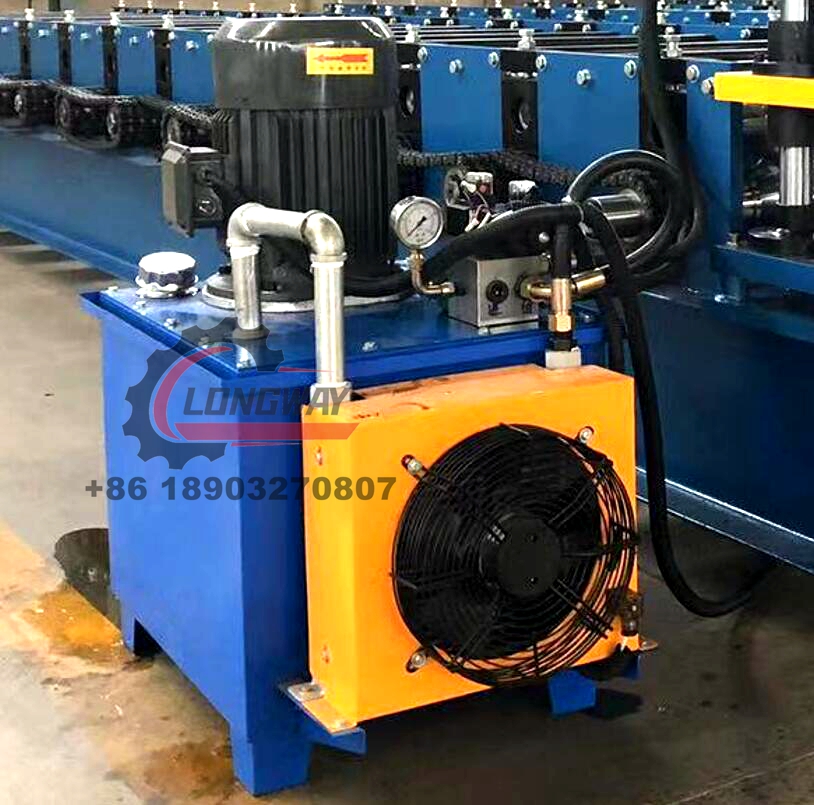

Type of cutting		Hydraulic Pillar type and length-set cutting
Control system		PLC Delta and Inverter Delta
Screen		Touch screen
Dimension(Approx)		6.5m×1.5m×1.2m
Total weight (Approx)		3.6T

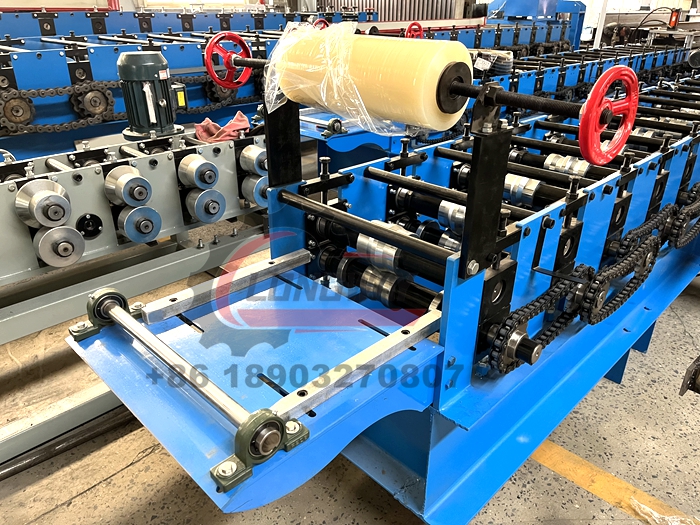

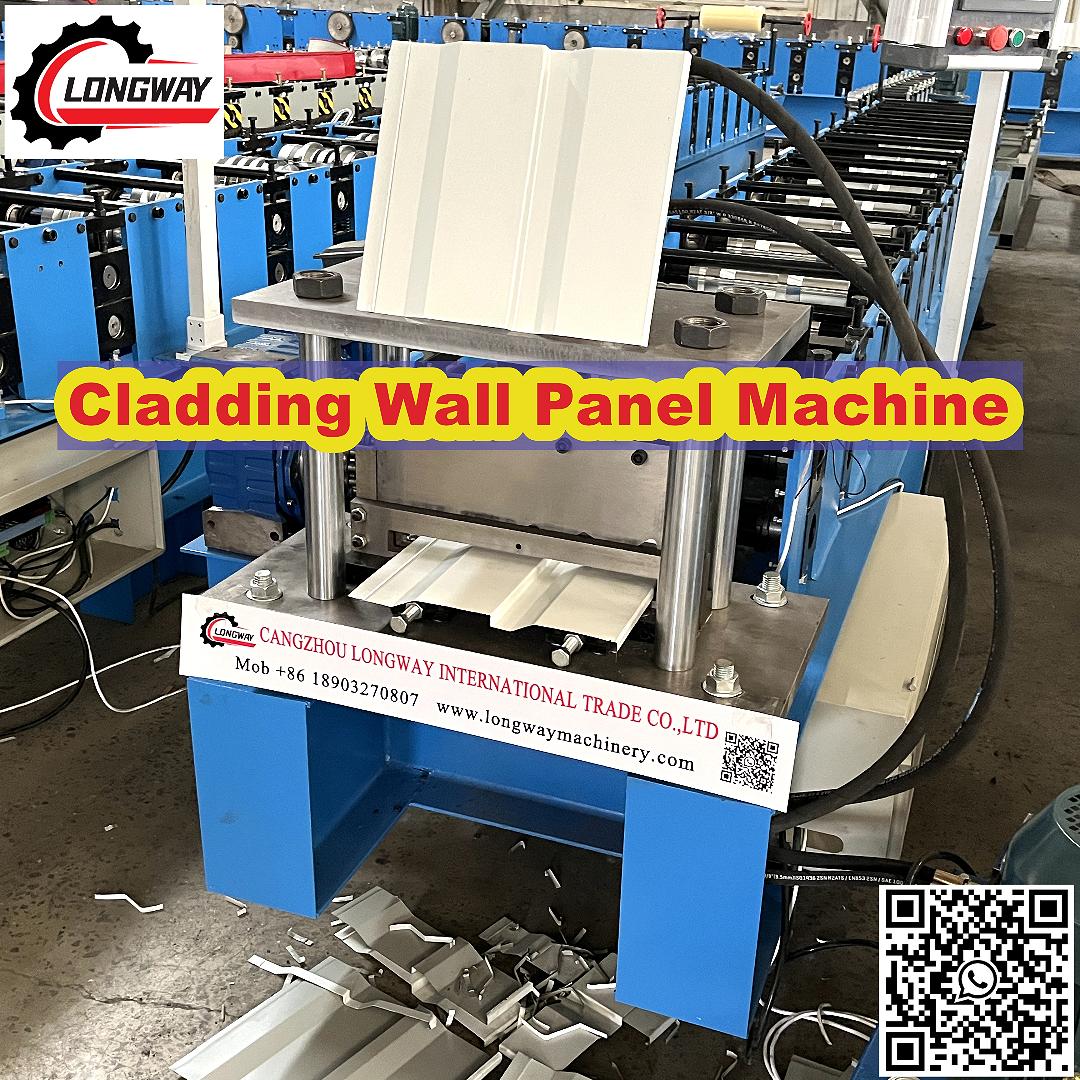

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

Applications

Hidden fixing installation.
Allows a clean and aesthetic surface.
Use in coatings.
Lengths on request, consult.
Allows horizontal and vertical coating.

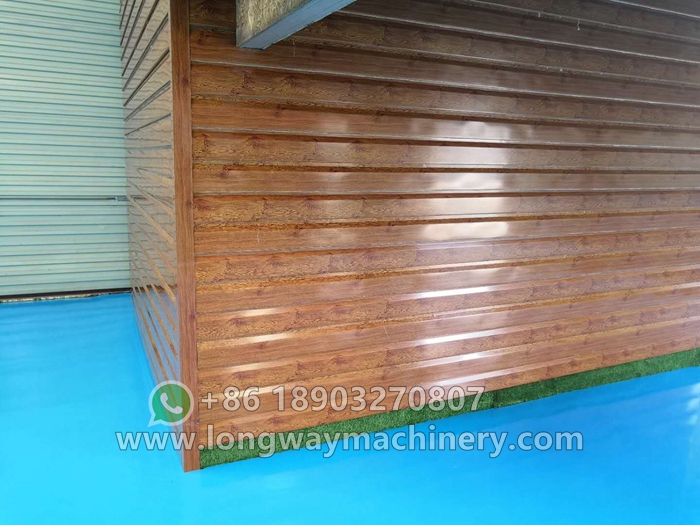

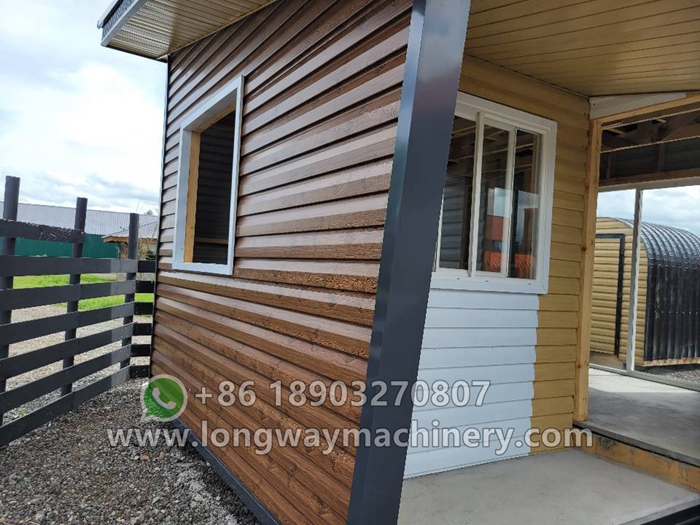

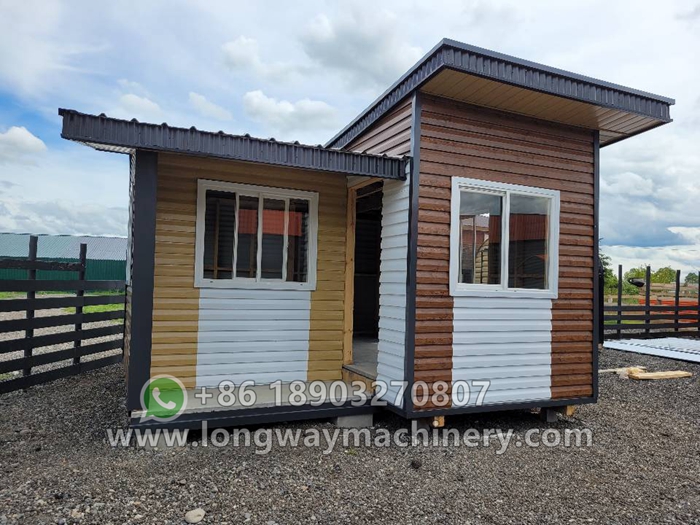

Steel panel for exterior coverings.
Covering

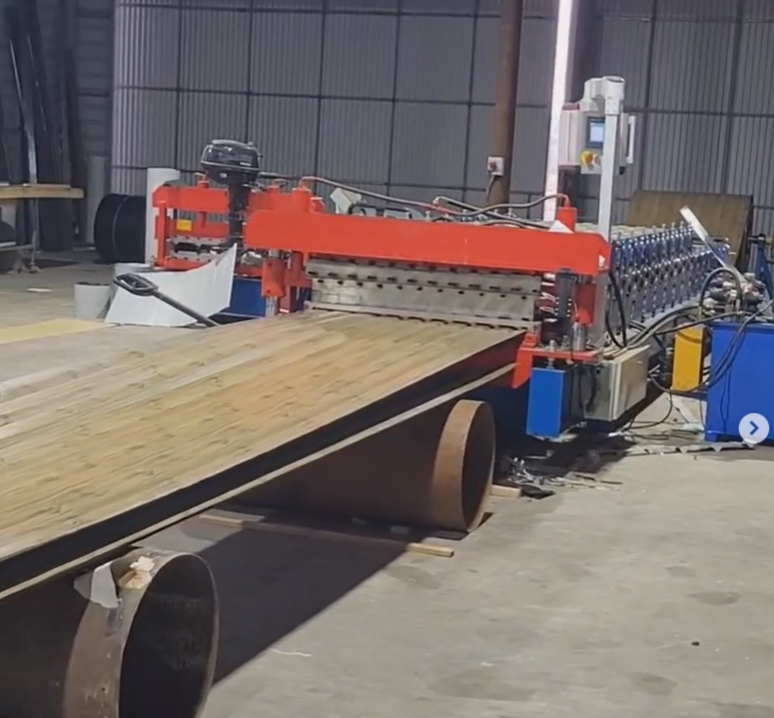

Related Machines

LONGWAY valuable customer

Chile
lran
Philippine
South Africa

Package and Delivery

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period

Factory Display

metal roofing machine
