Plancha Micro Acanalada Corrugated sheet forming machine can work micro corrugated sheets with Concealed fixing way .

The geometry of its waves is semi-circular and continuous, for which the mechanical resistance itself is very high .

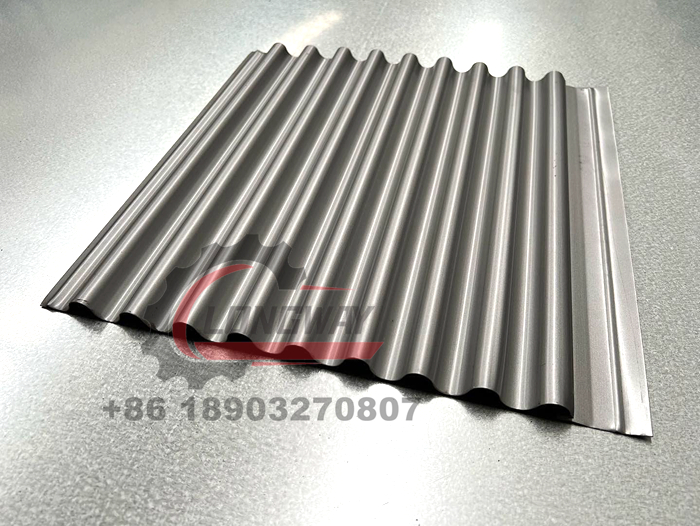

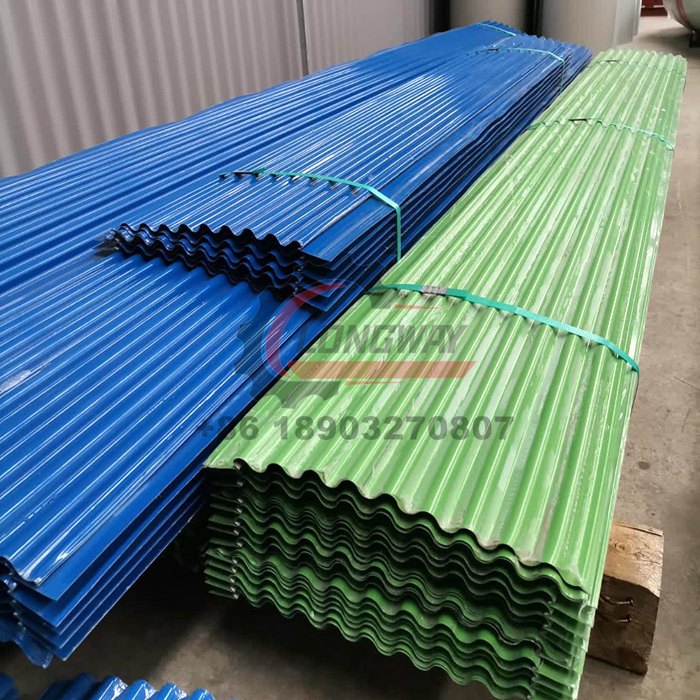

Profile drawing for reference:

this type Micro Acanalada panel is very hot sale in Chile .As we mainly work for South Ameria market , we have rich experience on it to confirm the finished product good and suit for market.


Technical Farameters

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving



Raw Material

Coil Type

PPGI,PPGL,GI

Width

As Profile

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

4+4kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

22-26 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

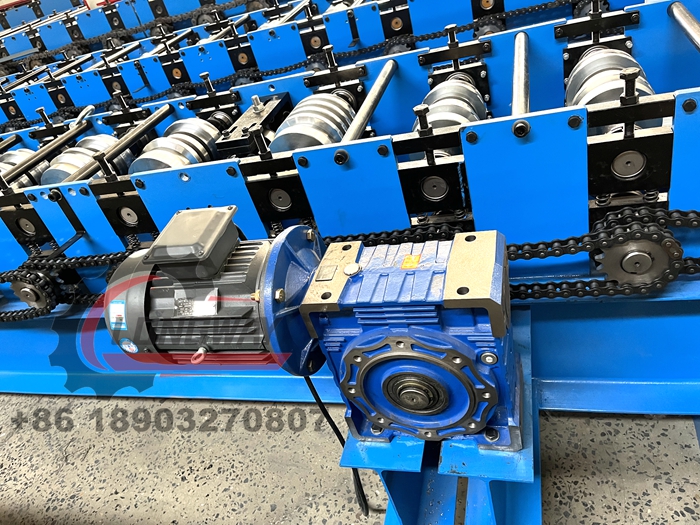

Transmission Way

Chain drive 1 inch (Double Chain)

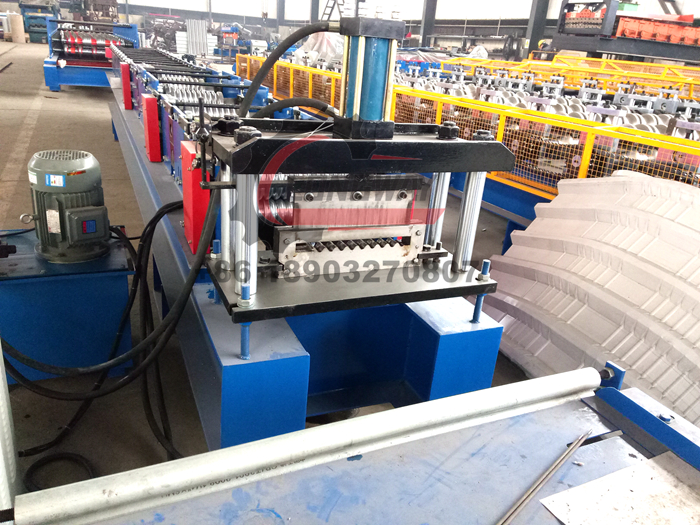

Type of cutting

Hydraulic Pillar type and length-set cutting

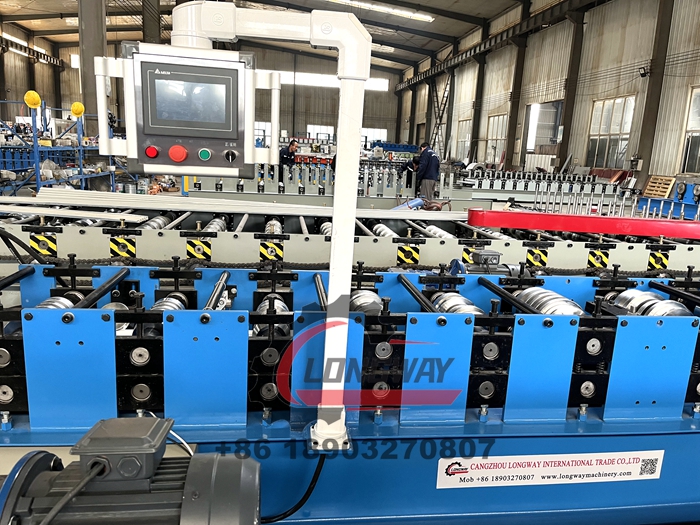

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

11.5m×1.5m×1.2m

Total weight (Approx)

5.6T



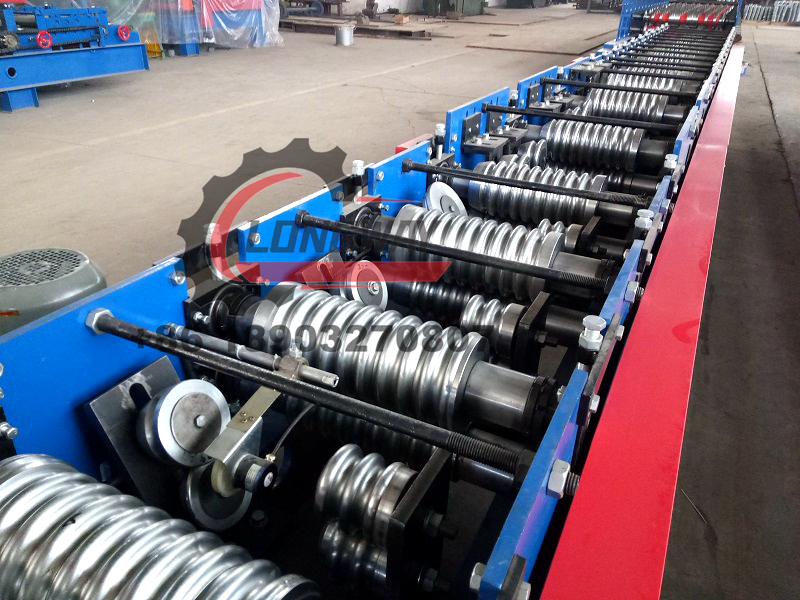

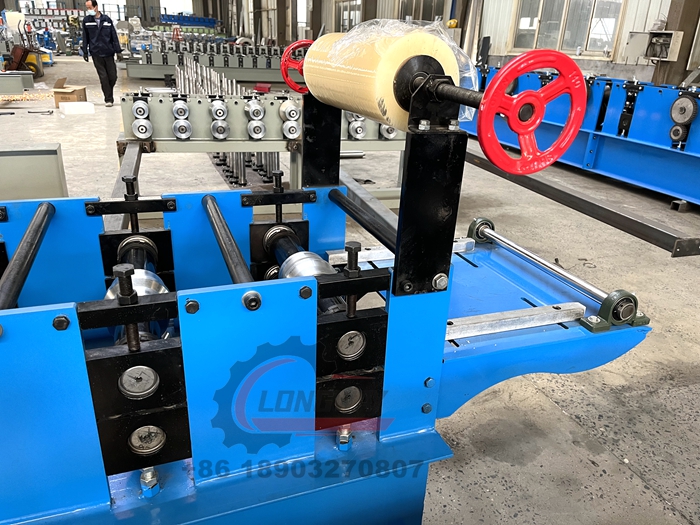

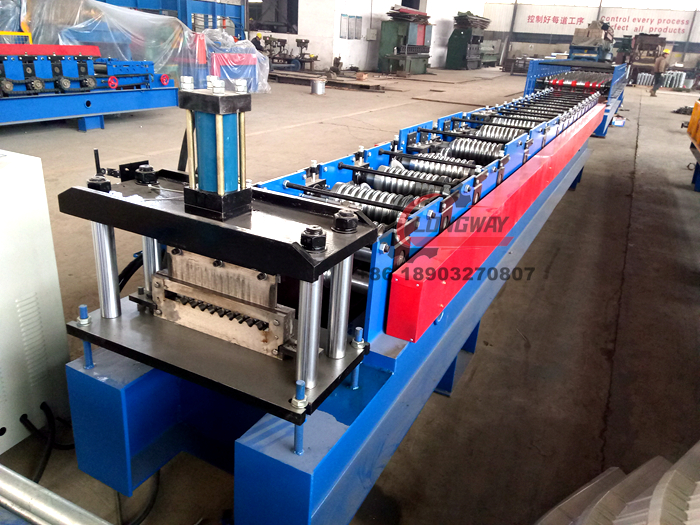

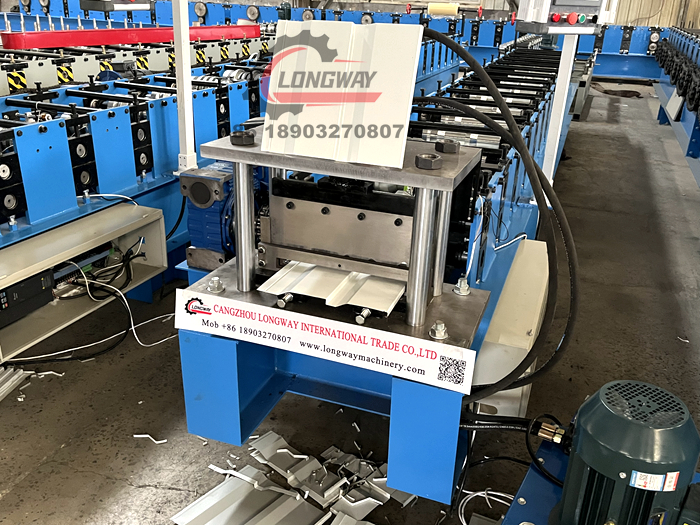

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

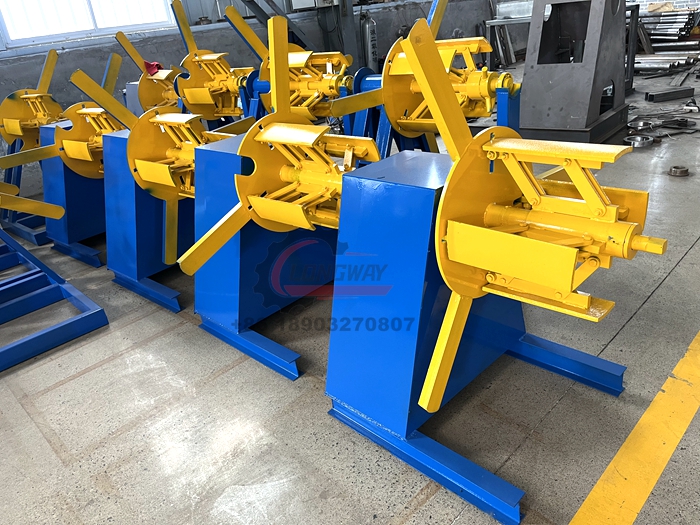

  • small decoiler
