320 Cladding wall panel roll former

320 Cladding wall panel roll former WhatsApp +86 18903270807




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

320 Cladding wall panel roll former is designed with an overlap system that allows its installation both horizontally with visible fixings. Cladding sheet has the feature of continuous, homogeneous and orthogonal modulation.

Each profile is offered in a no-clip (fastener flange) option, or a clip-fastened panel to accommodate thermal expansion and contraction. All Precision Series panels can connect to each other if desired.

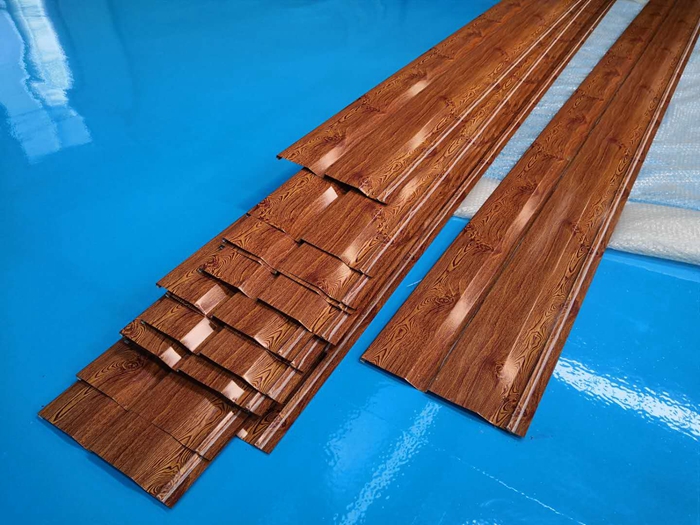

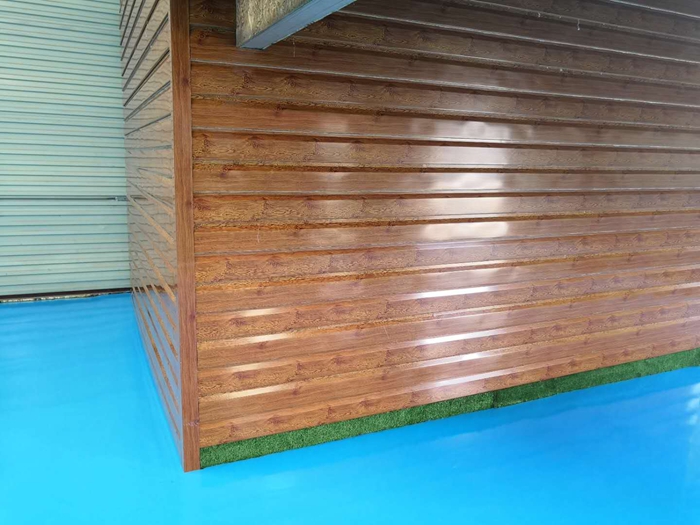

Below is the cladding wall sheets finished by our Quadro Cladding Wall Panel machine , customer give good feedback .

We can also design in different sizes .



Technical Farameters

Working Process

Decoiler--leveling beach with the manual cutter and with the filming system--> main rolling forming machine separated molding rolling--> bearing shearing-->>receiving table



Raw Material

Coil Type

PPGI,PPGL,GI

Width

400mm

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

5.5kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

14 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

6.5m×1.5m×1.2m

Total weight (Approx)

3.6T

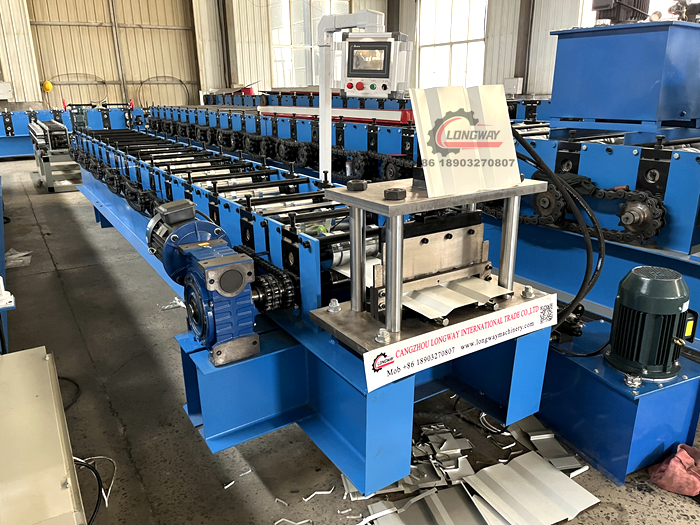

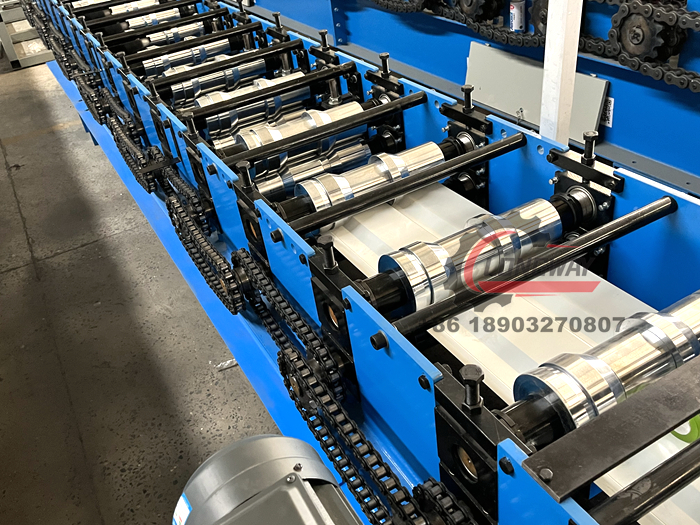

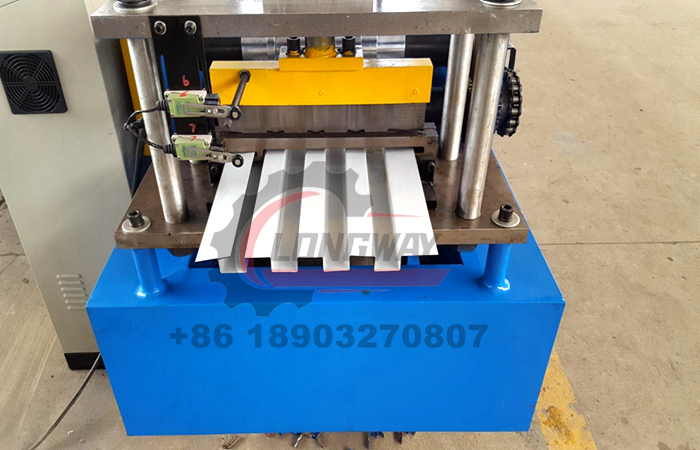

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • 320 Cladding wall panel roll former
  • 320 Cladding wall panel roll former
  • 320 Cladding wall panel roll former
  • 320 Cladding wall panel roll former
  • 320 Cladding wall panel roll former
  • 320 Cladding wall panel roll former

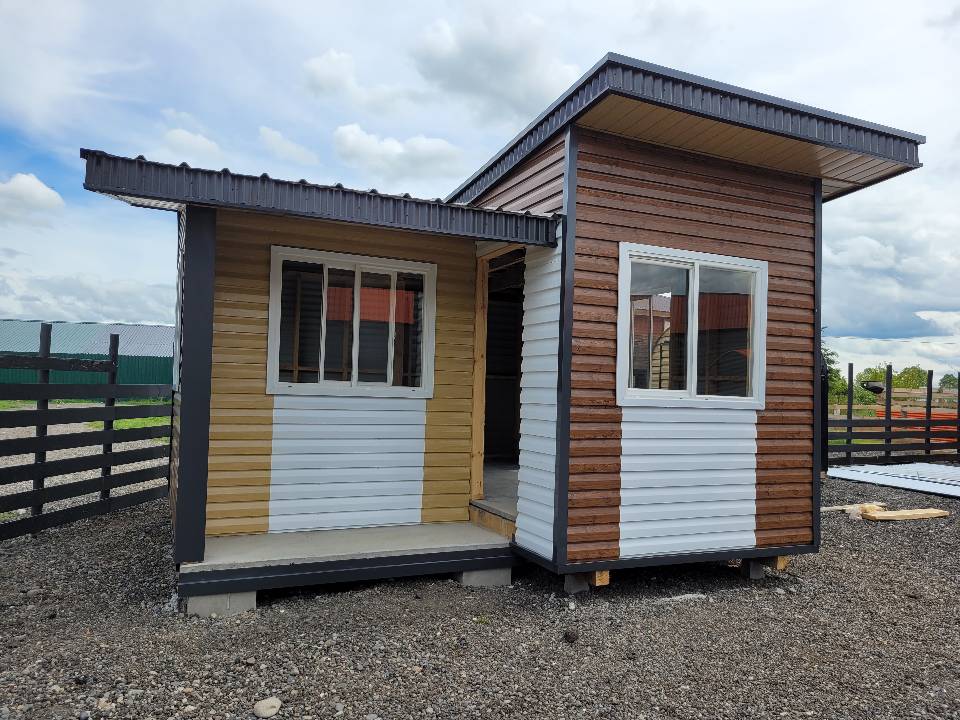

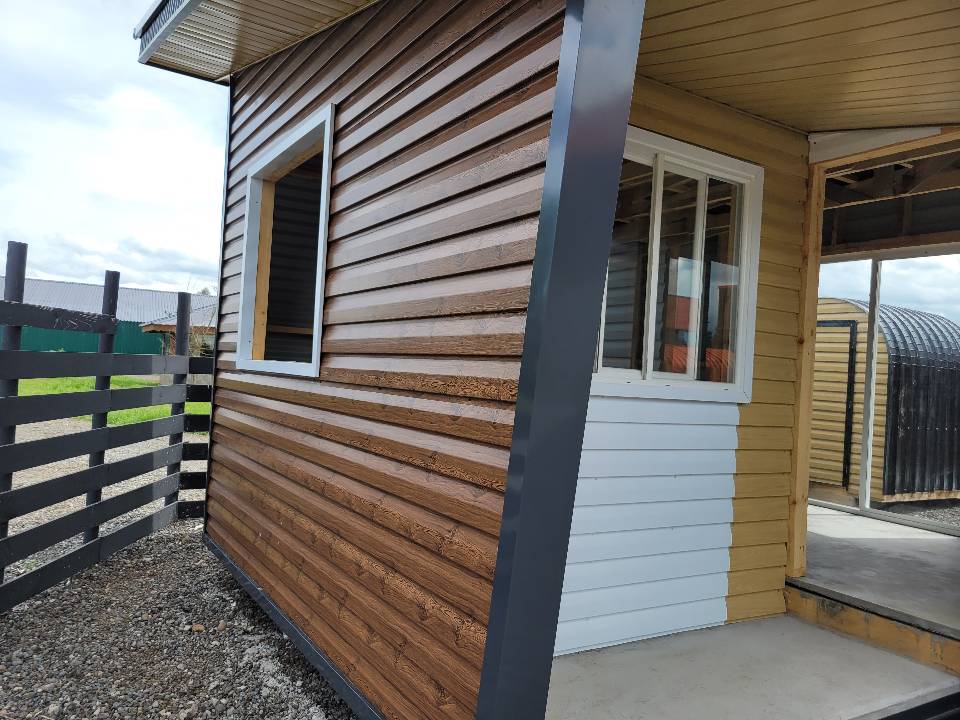

Applications
