Maquina para panel micro acanalado/ondulado 762/1020

PANEL ACANALADO/ONDULADO 1020 Micro ACANALADO/ONDULADO




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

Design Idea:


Higher speed 0-30 m/min: Main motor uses Servo motor to improve the speed.
speed will be higher,Twice as fast as normal design mode.
Protect cover: design the machine cover to protect the machine body and it's also safe for the worker.



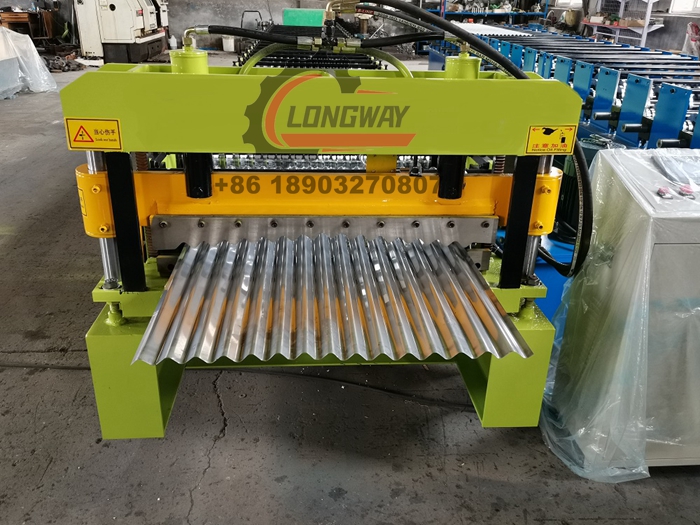

Calamima Micro Ondulada corrugated roof sheet machine

small corrugated metal profiles are durable yet weightless. Highly popular for building the roof and side. Corrugated Metal Panels have more recently gained tremendous popularity as modern contemporary roofing and siding.

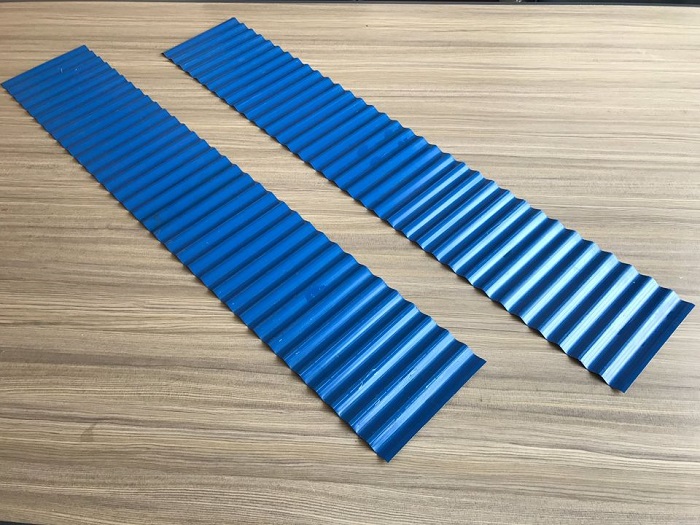

Profile drawing for reference

This Micro Ondulada profiles is mainly produce mini corrugated profiles , for height 8mm and 10mm , similar profiles are popular used in European and American market .

Technical Farameters

Working Process

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table

Raw Material

Coil Type

PPGI,PPGL,GI

Width

1000/1200/1220mm

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

5.5kw+5.5kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

20-26 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

9.8m×1.5m×1.2m

Total weight (Approx)

8.6T

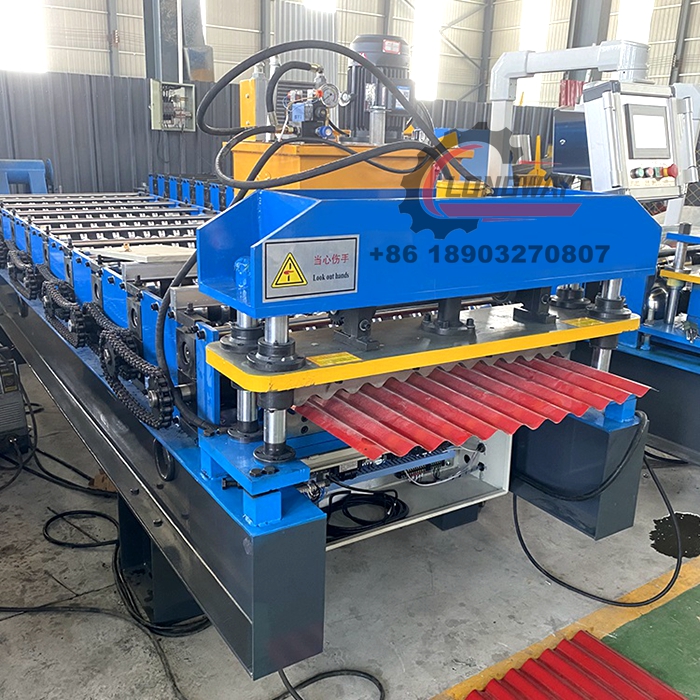

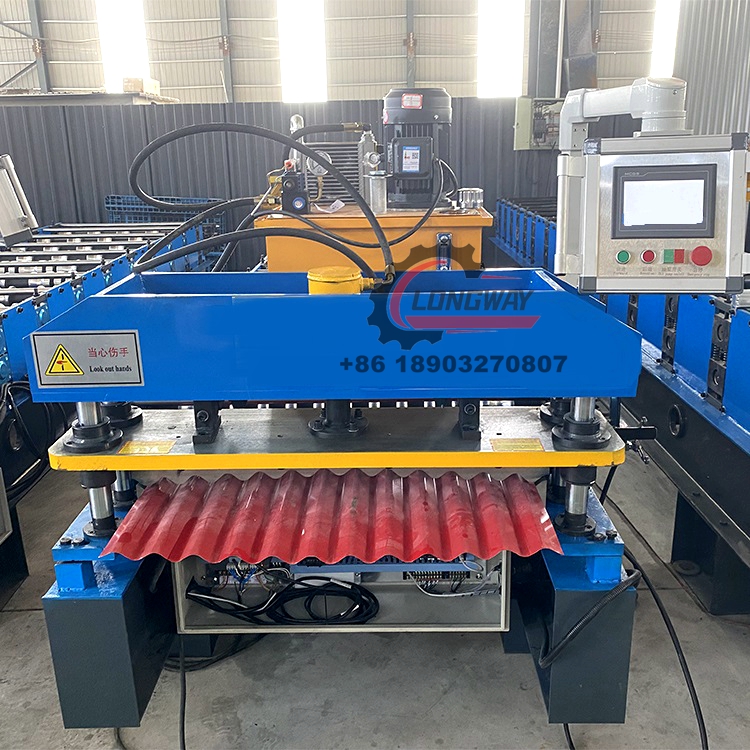

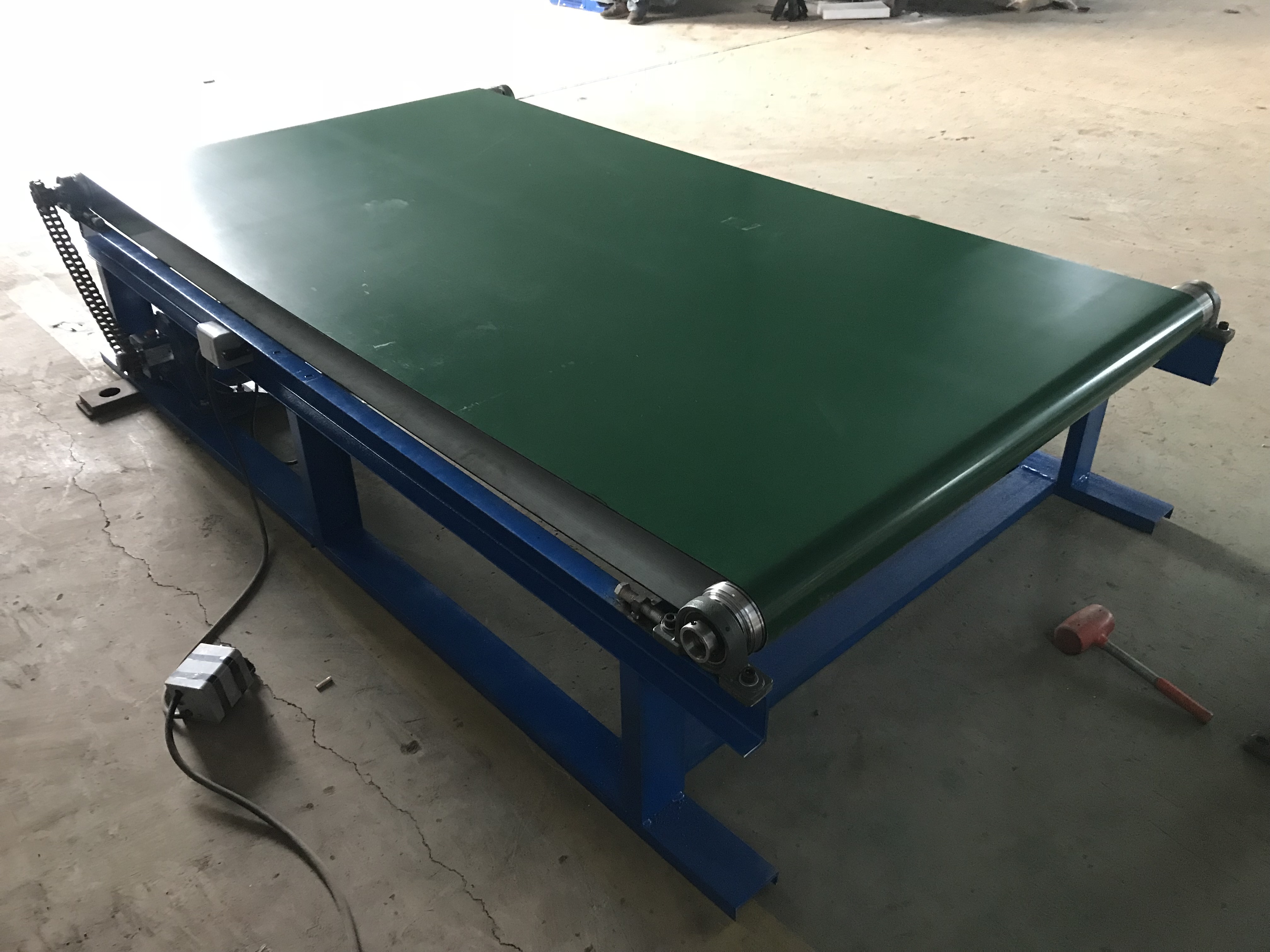

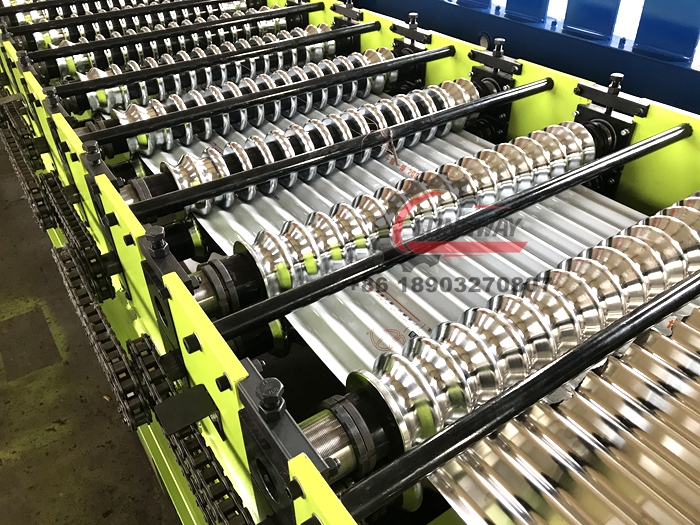

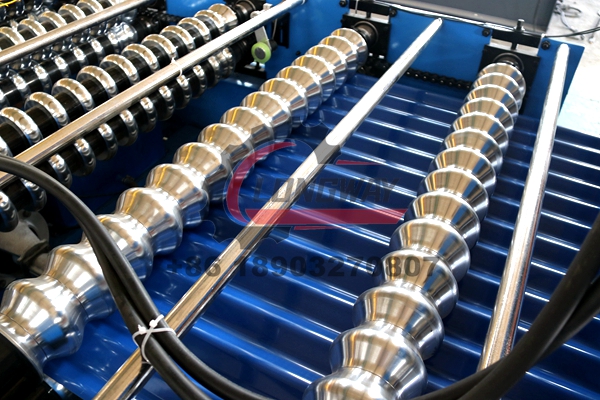

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • 1 (2)
  • 微信图片_202006121640364_副本
  • 微信图片_2020061216321732_副本

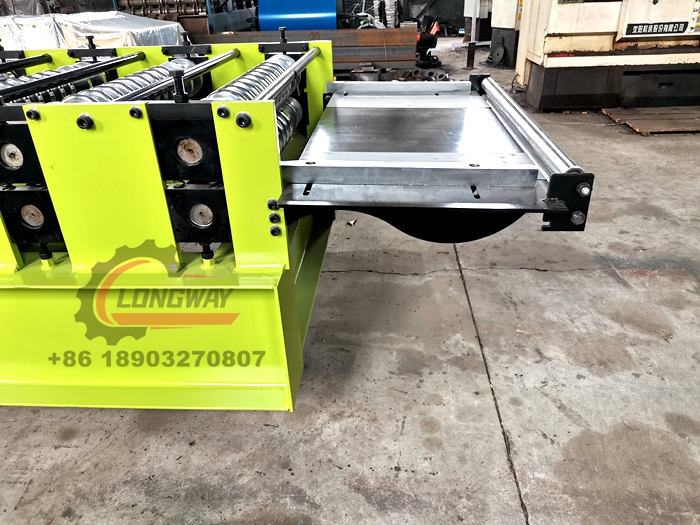

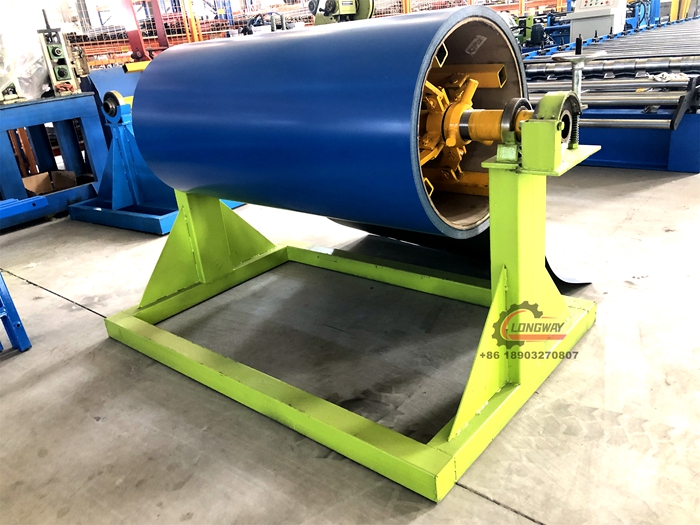

  • manual decoiler (2)
  • ab4f5edff4f71c464a2c88b092bdadc

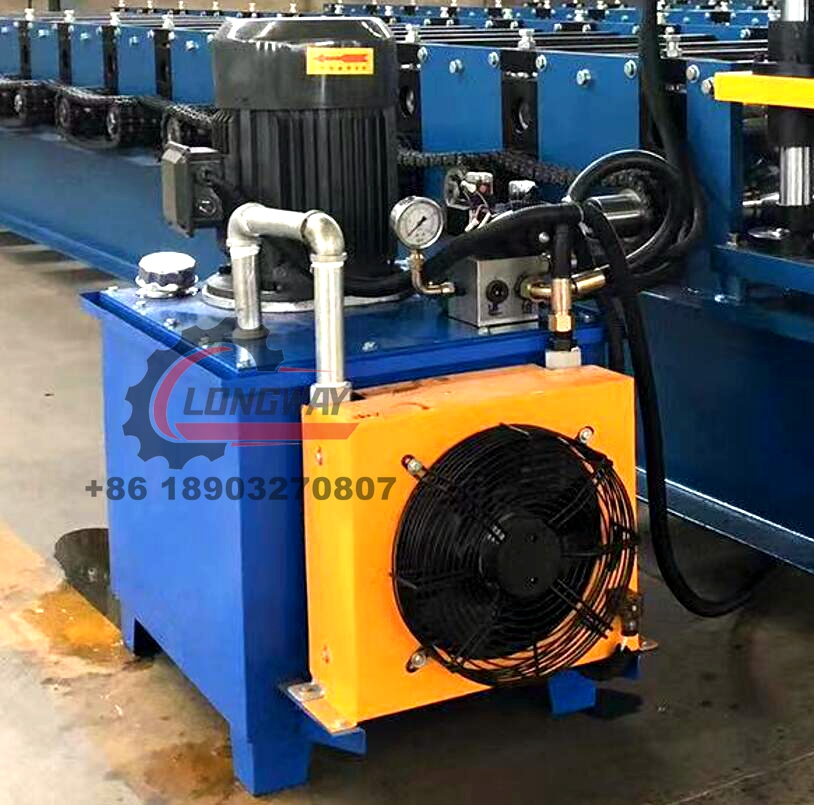

  • Pump station

Applications

  • 342184622_925392838698547_7752146409992563976_n
  • 342187237_584582896780772_7178451339005218270_n
  • 352365534_556458703362122_266921239344876522_n
  • QQ截图20210915213242
  • 微信截图_20230816183906

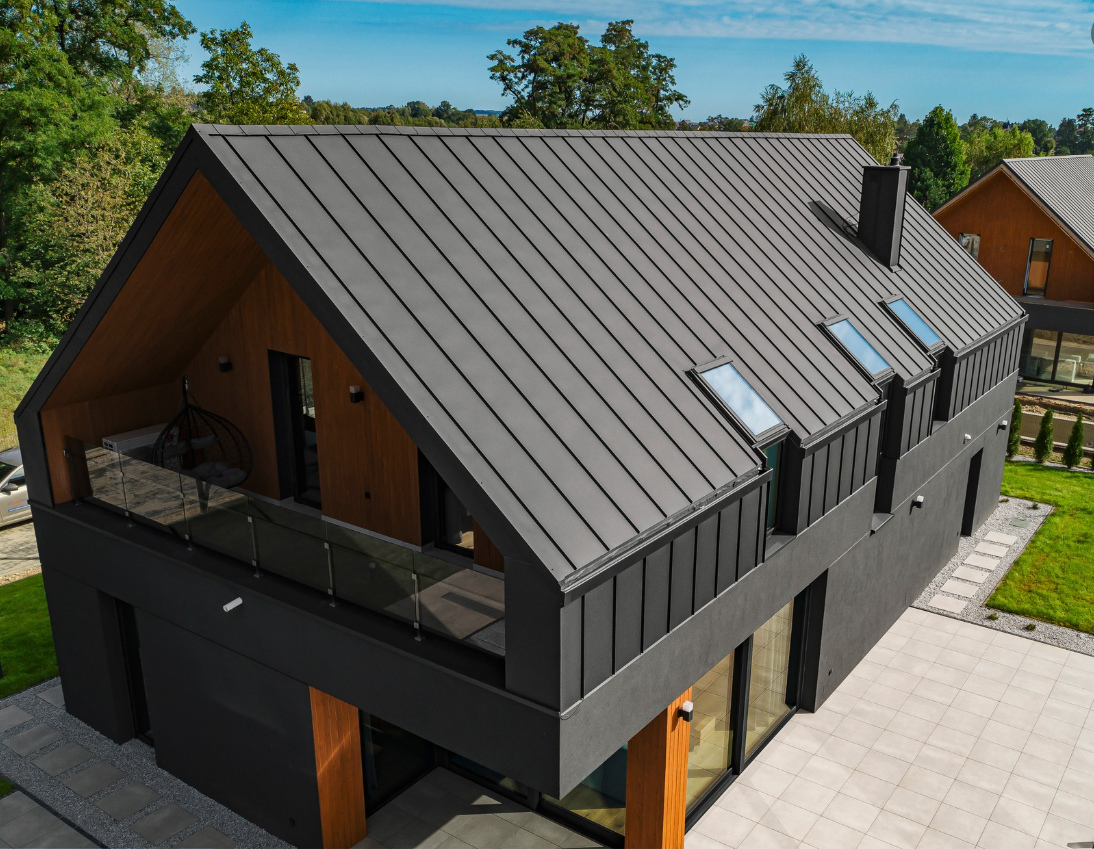

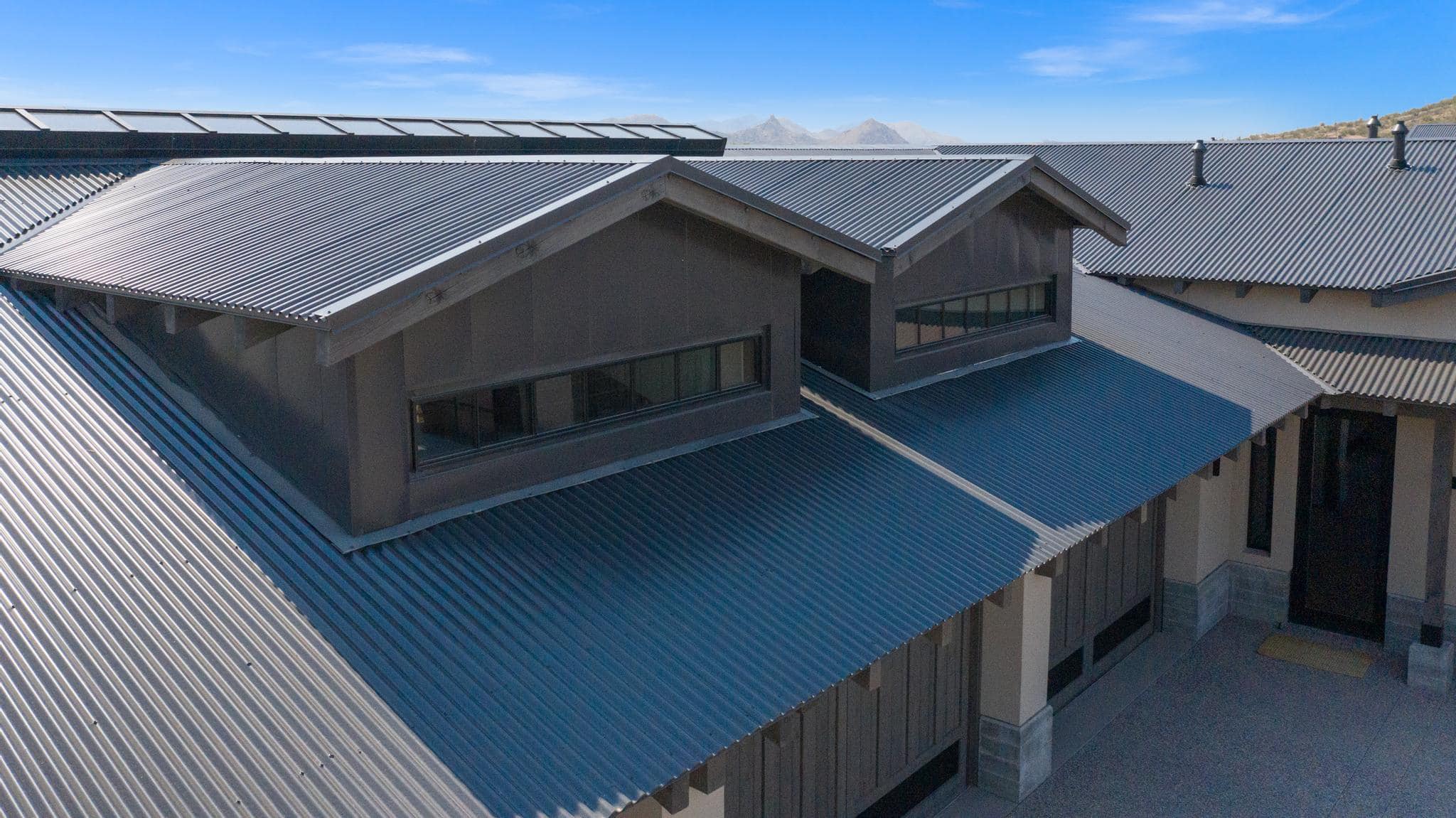

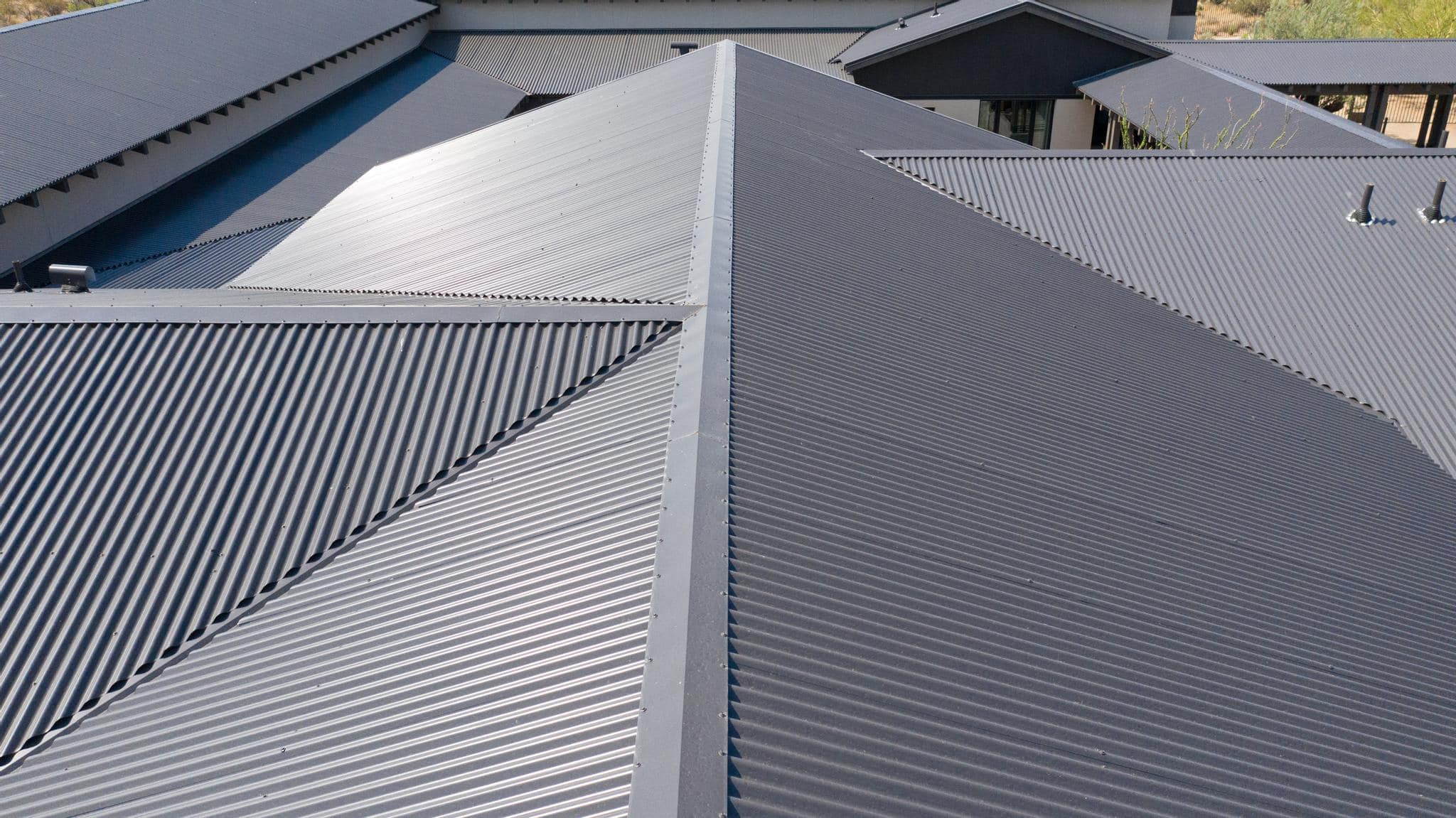

Wide-width ribbed steel sheet. Used for roofs of houses, sheds, small sheds, side coverings and perimeter closures. 1020 Ribbed Panel Finished in Prepainted and Zinc-Alum. 1020 Translucent FRP Ribbed Panel available with the same geometry to solve the required luminosity of the project.
