Aluminum 5 inch K gutter forming machine

5 Inch K gutter forming machine Customized gutter available




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

A rain gutter, eavestrough, eaves-shoot or surface water collection channel is a component of a water discharge system for a building. It is necessary to prevent water dripping or flowing off roofs in an uncontrolled manner for several reasons: to prevent it damaging the walls, drenching persons standing below or entering the building, and to direct the water to a suitable disposal site where it will not damage the foundations of the building. In the case of a flat roof, removal of water is essential to prevent water ingress and to prevent a build-up of excessive weight.

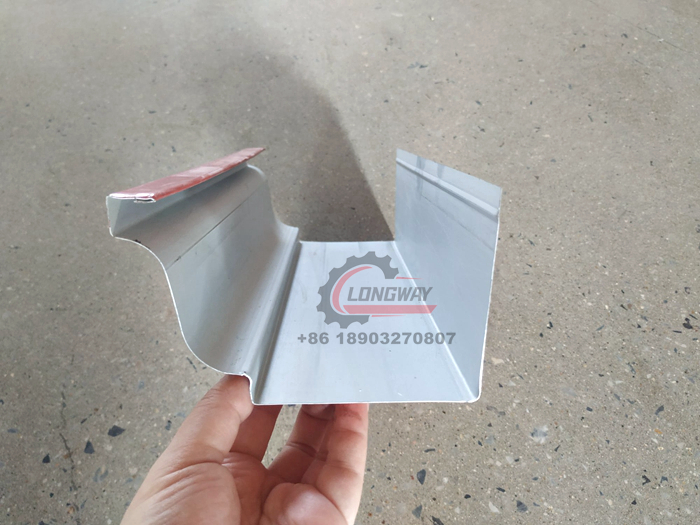

Perfile drawings for reference

Technical Farameters

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Cutting →Products Receiving
Series
Details
Parameter
Comment
Material
Raw material
Steel
Customer confirmed
Material thickness
0.4-0.6 mm
Decoiler
Structure
Manual passive type
The standard one to match the production line
Single head type
Loading capacity
1.5 Tons
Coil inner diameter
450-550 mm










Roll forming machine
Guiding device
Placed on the machine by seller

Rolling shaft material
45# STEEL

Shaft diameter
50 mm

Roller material
GB-Cr12

Rolling station
12 stations

Work speed
40 m/min

Machine structure
Vertical memorial arch frame

Machine basic frame
Steel plate welded

Bearing
Roller bearing
Famous brand of Harbin
Work power
4 kw

Transmission
By gear
With cover
Safety cover
available

Appearance
Good appearance with no burrs in steel body nor traces of rust or defects in painting.
Good electrical and hydraulic cable organization Car painting make the machine more glossy
We confirm each detail can match the standard, ensure the machine is 100% new!

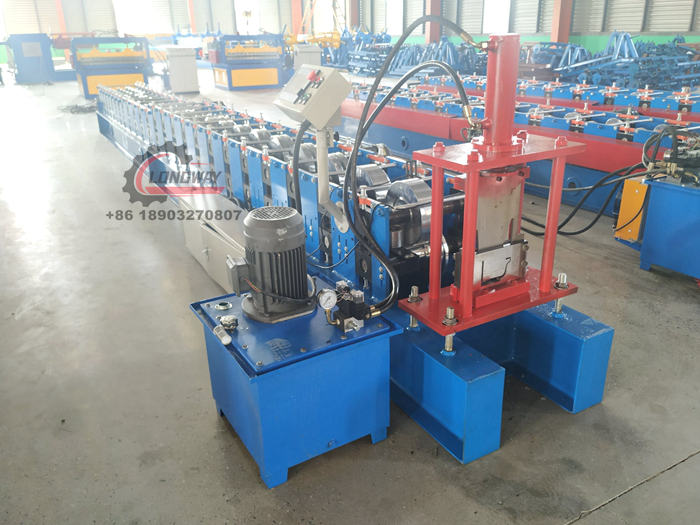

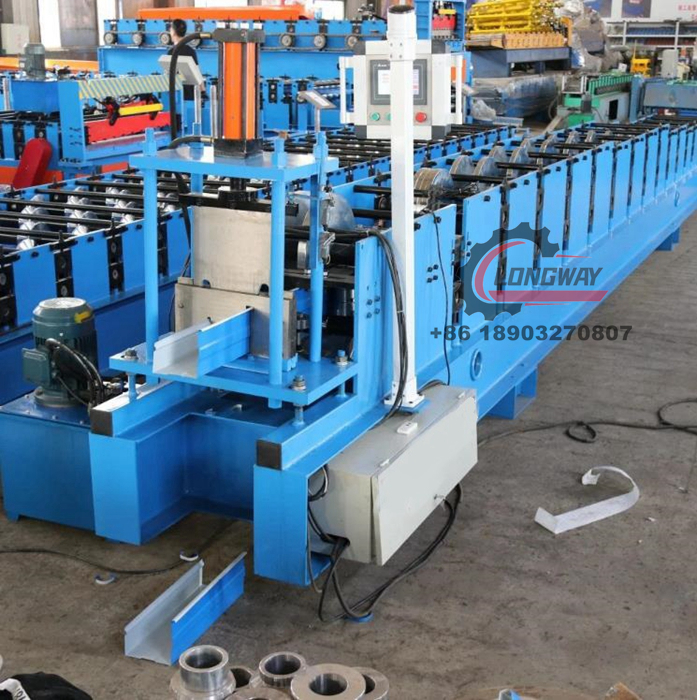

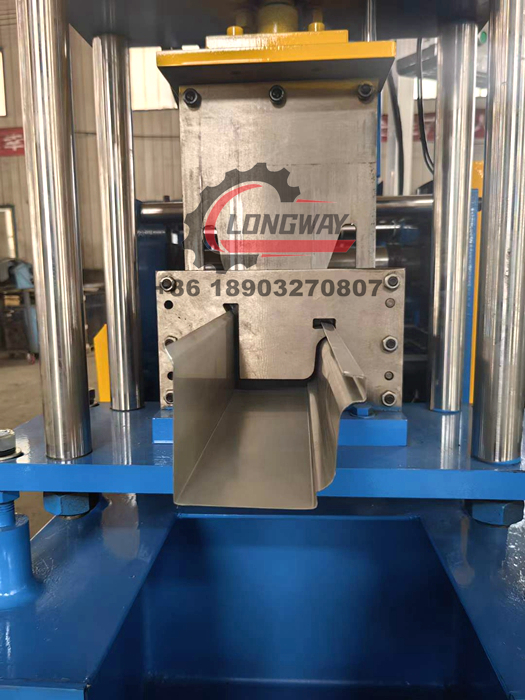

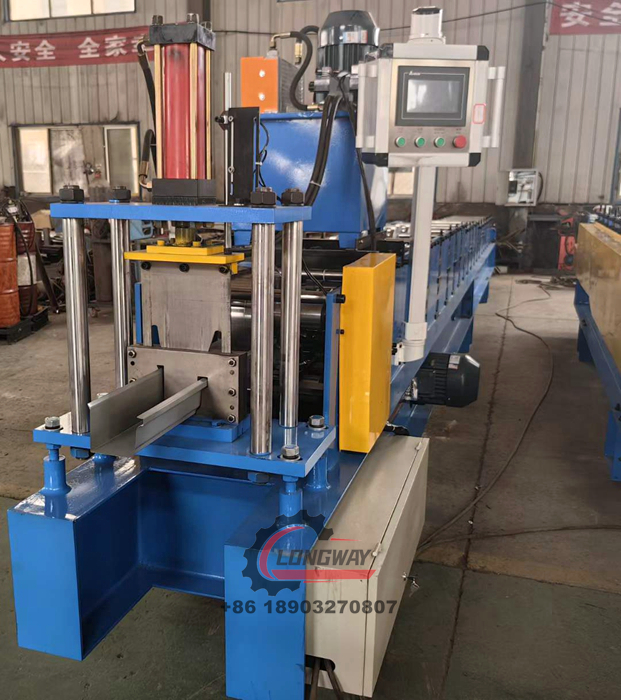

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • Aluminum 5 inch K gutter forming machine
  • Aluminum 5 inch K gutter forming machine
  • Aluminum 5 inch K gutter forming machine
  • K gutter machine13

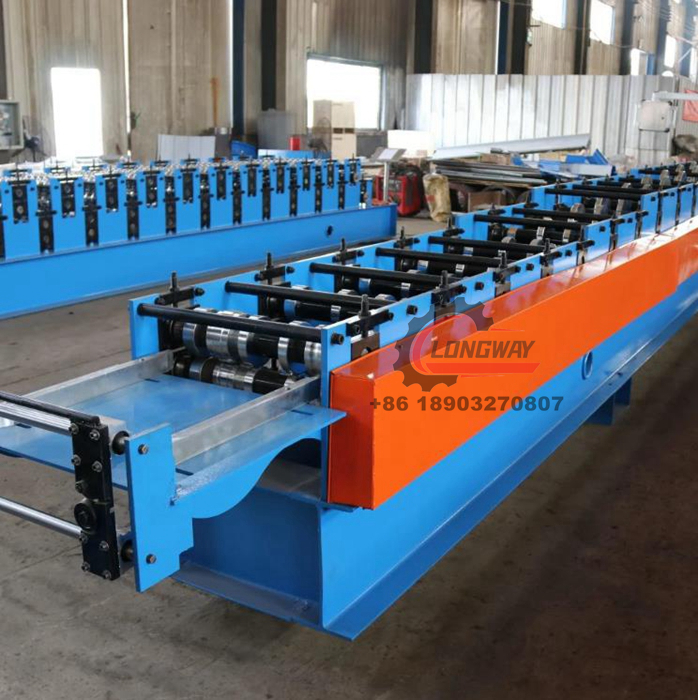

  • K gutter machine15

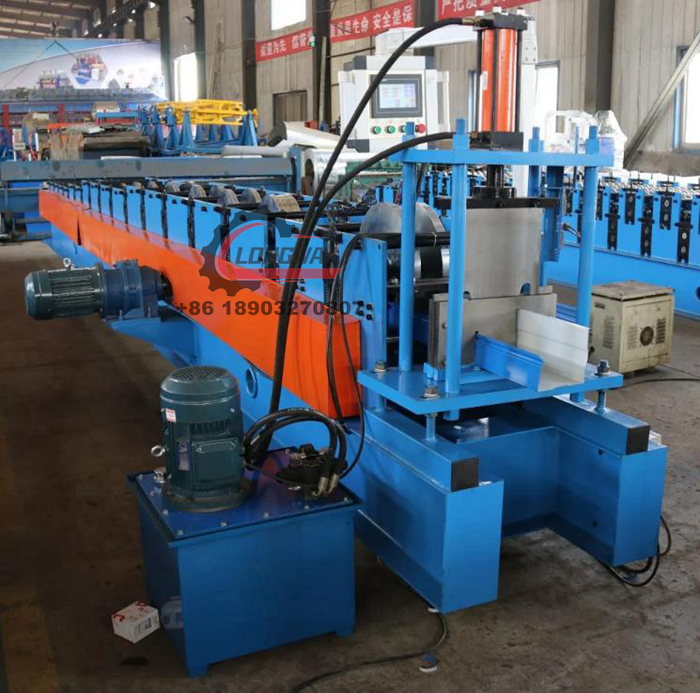

  • K gutter machine16

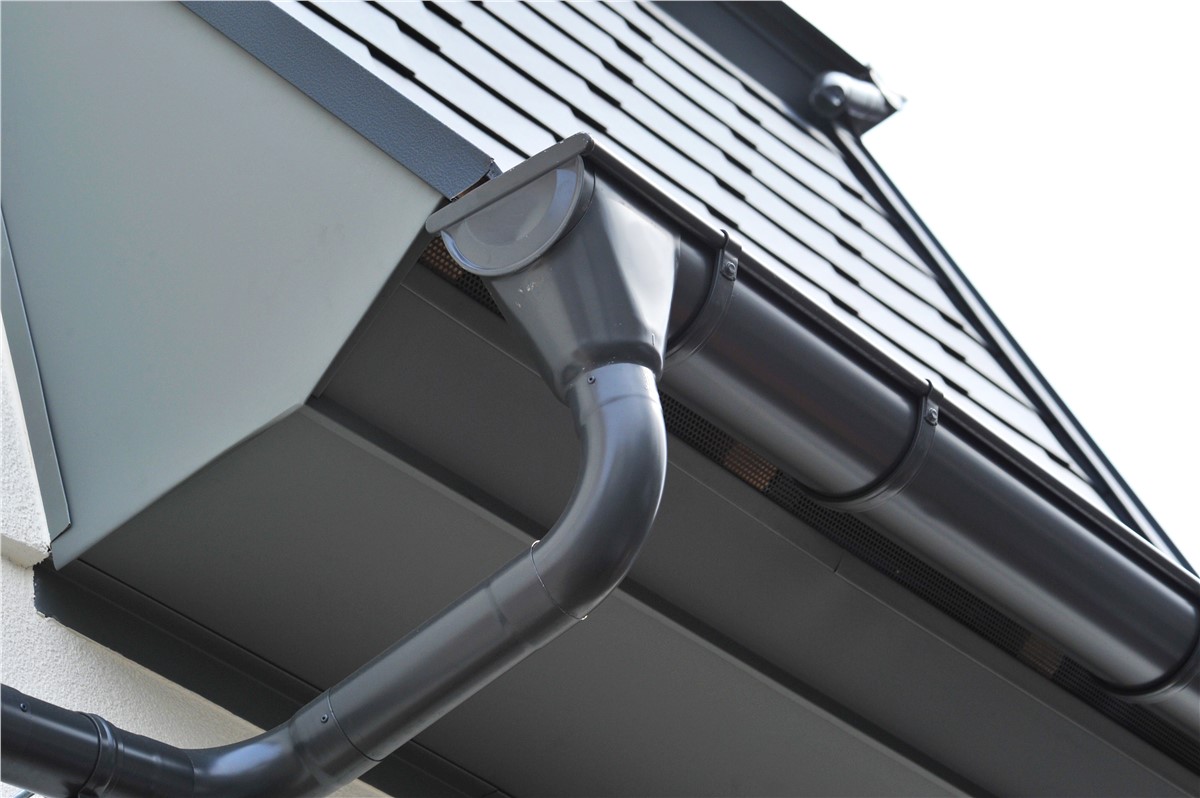

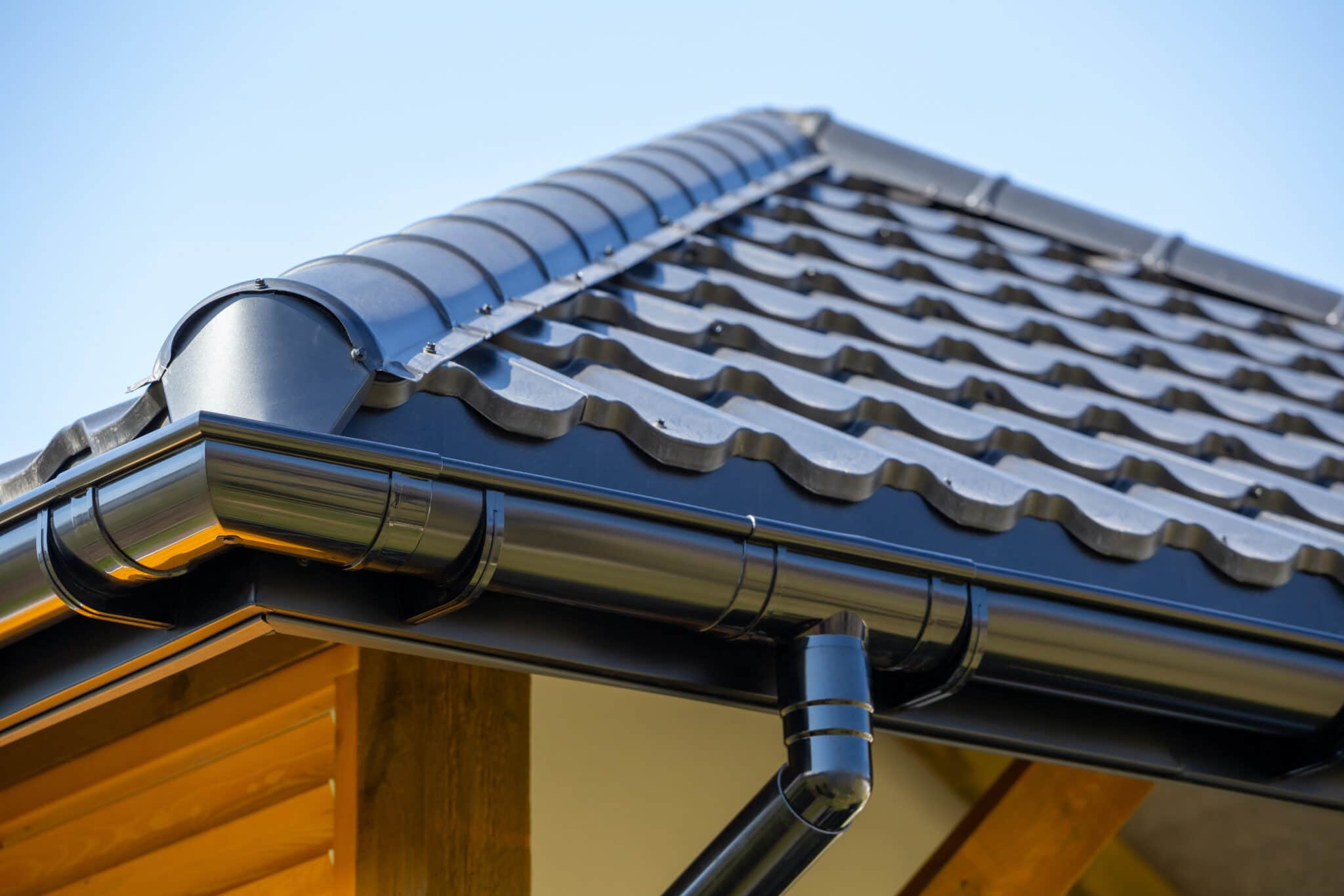

Applications

  • Aluminum 5 inch K gutter forming machine
  • Aluminum 5 inch K gutter forming machine
  • Aluminum 5 inch K gutter forming machine
  • Aluminum 5 inch K gutter forming machine
  • Aluminum 5 inch K gutter forming machine

K-style gutters are rain gutters that feature a flat bottom with a curved edge, similar to a crown molding. The seamless design of K-style gutters allows them to blend in with the roofline of a home or building, making them a popular choice for many homeowners

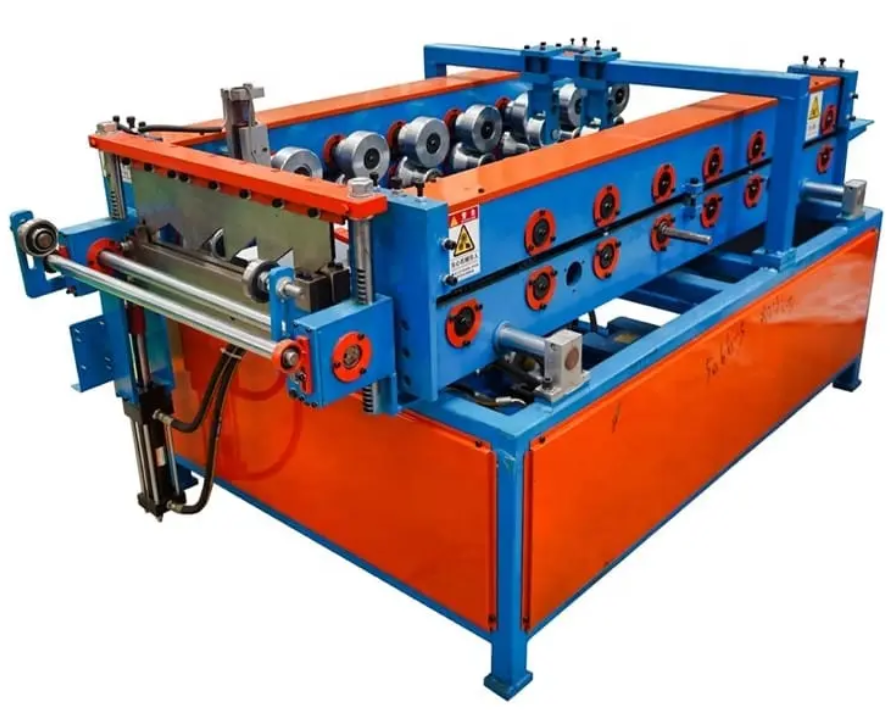

Related Machines

LONGWAY valuable customer

  • Chile

    Chile

  • lran

    lran

  • Philippine

    Philippine

  • South Africa

    South Africa

Package and Delivery

  • metal roofing machine
  • metal roofing machine
  • metal roofing machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
