Metal Gutter Downspout Pipe Forming Machine

Round Pipe 100mm Square pipe 3X4




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

The gutter downspout is the vertical pipe attachment that moves water out of your gutters and away from your building to empty safely into a separate drainage system.

The gutters collect the water, and the downspouts allow the water to drain away effectively.

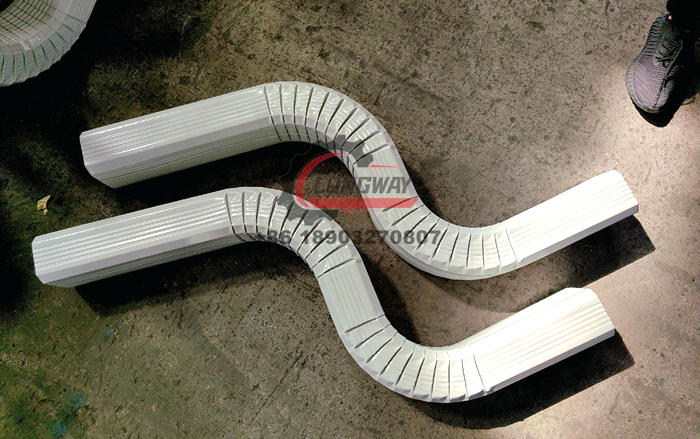

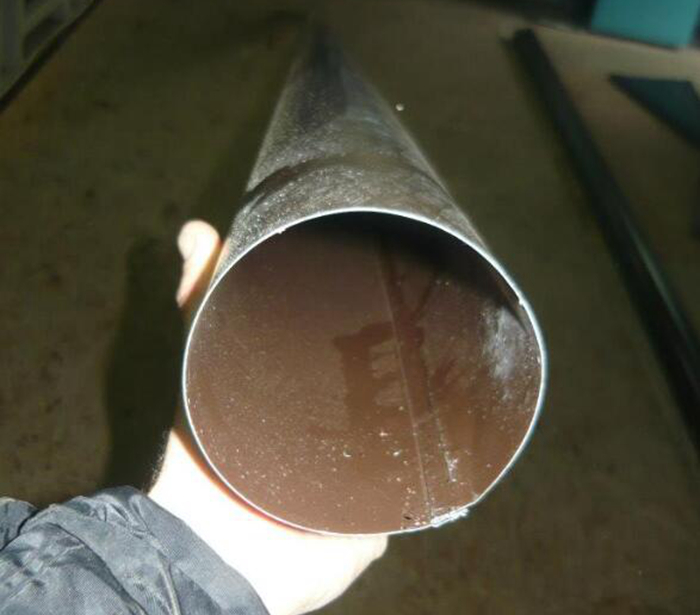

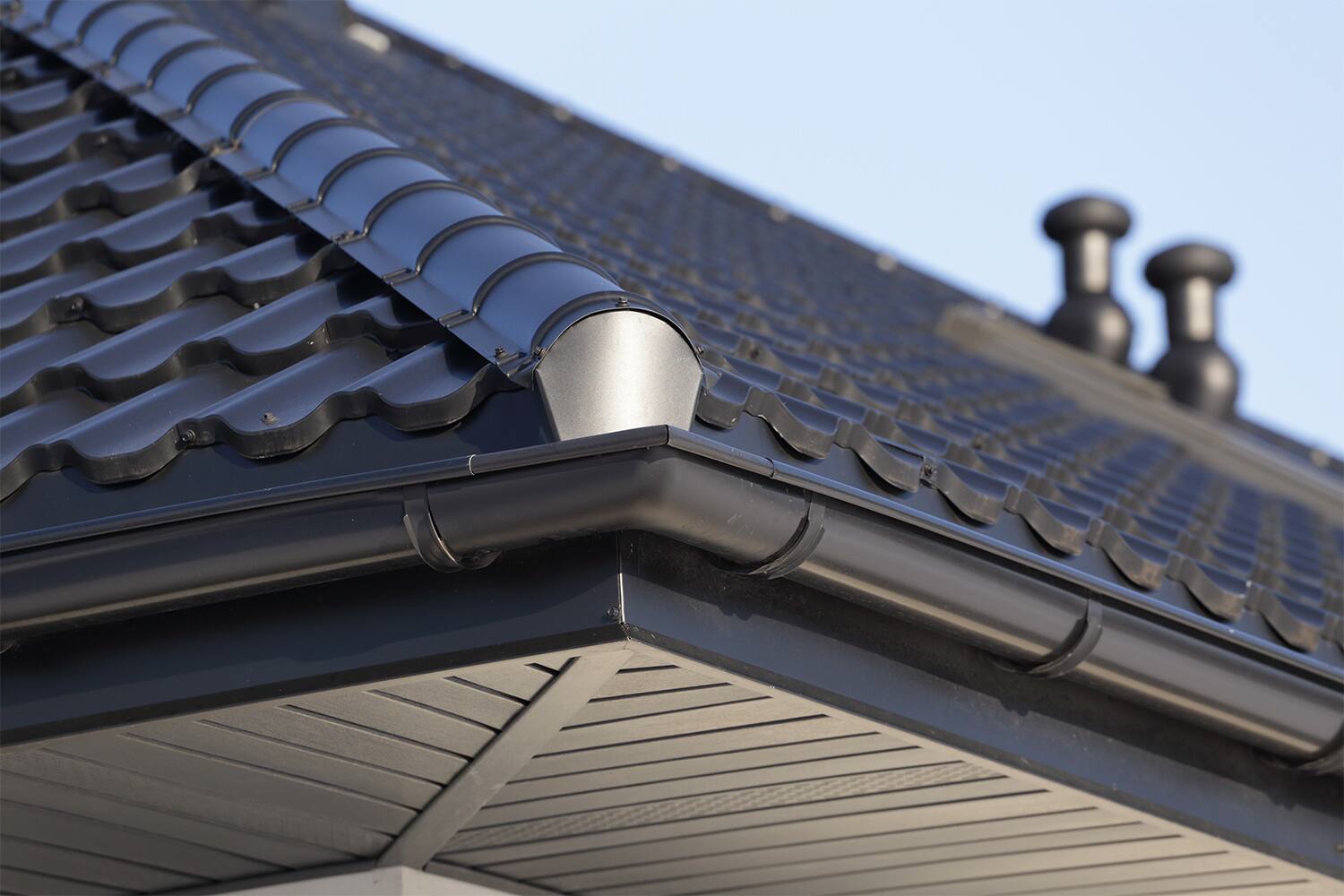

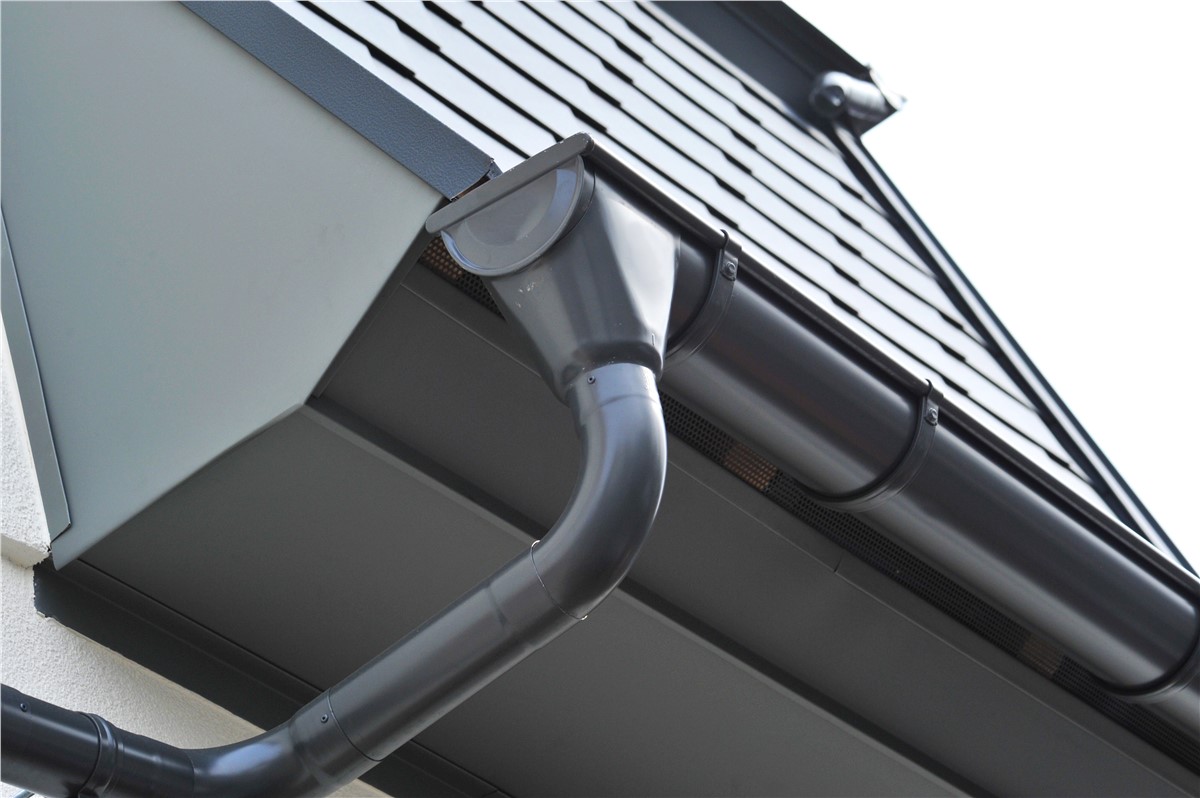

Gutter and Downpout pipe samples for reference :

Technical Farameters

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Auto Cutting →Products Receiving Table
Metal Gutter Downspout Pipe Forming Machine

Raw Material
PPGI,PPGL
Material Thickness: 0.3-0.8 mm
Machine Frame
400mm H beam structure
Material Of Rollers
High grade 45# forged steel,Chromed treatment
Roller Stand
Vertical cast steel structure
Forming Stations
16 rows
Diameter Of Shafts
Φ80mm Solid
Material Of Shafts
High Grade 45#,With Heat Treatment
Forming Speed
20 M/Min
Voltage
380v/50hz/3p (As Requested)
Transmission Way
By gear box
Main Motor
5.5 KW
Cutting Blade Material
Gcr12 quenched treatment
Cutting Type
hydraulic post cutting
Driving method
By pillar type Cylinder

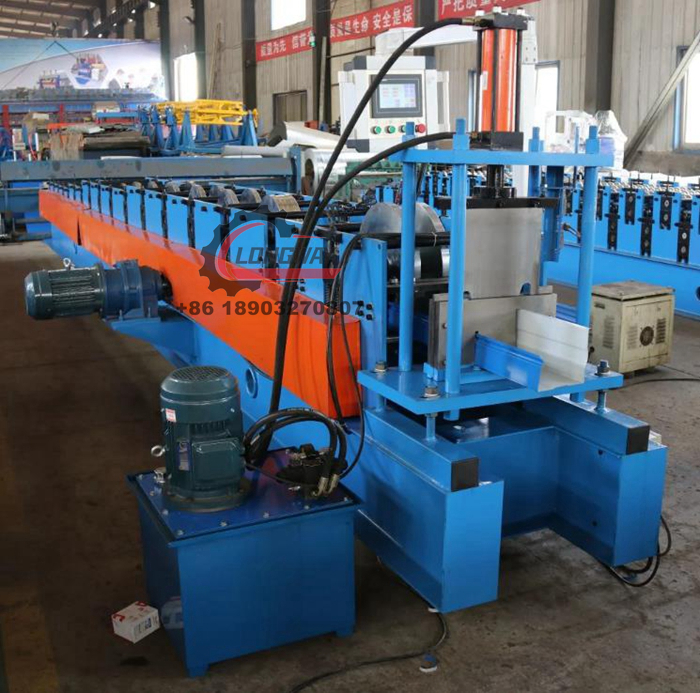

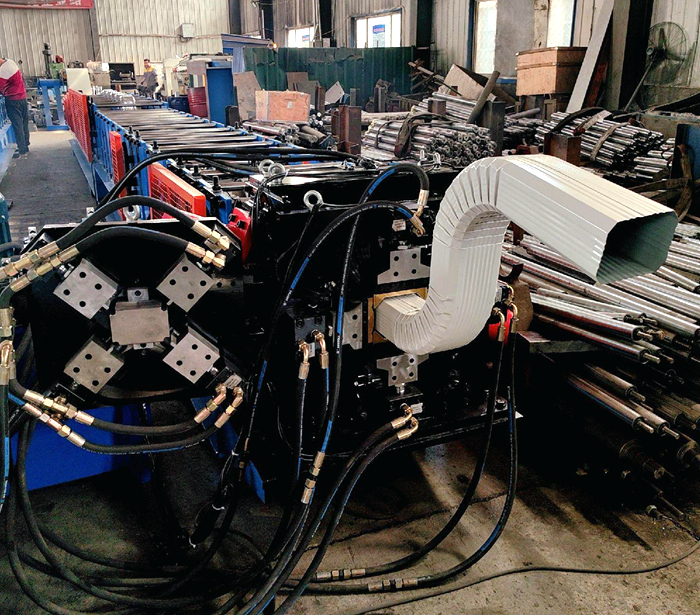

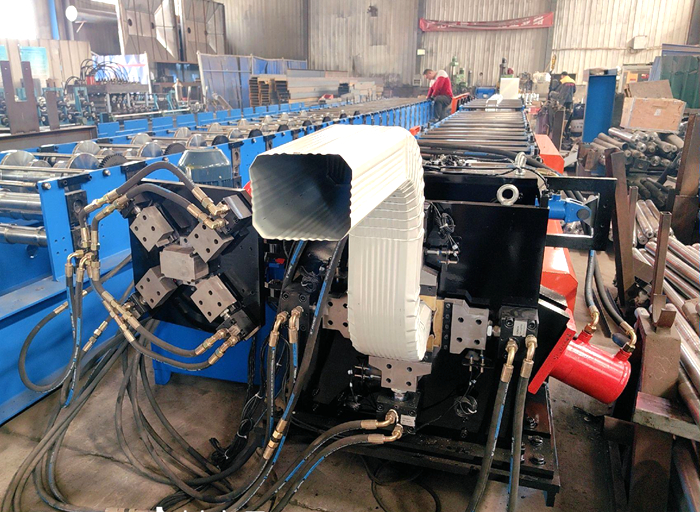

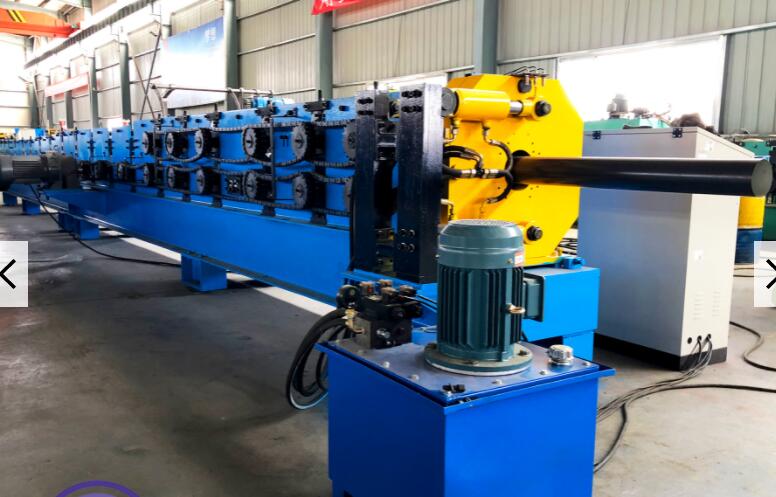

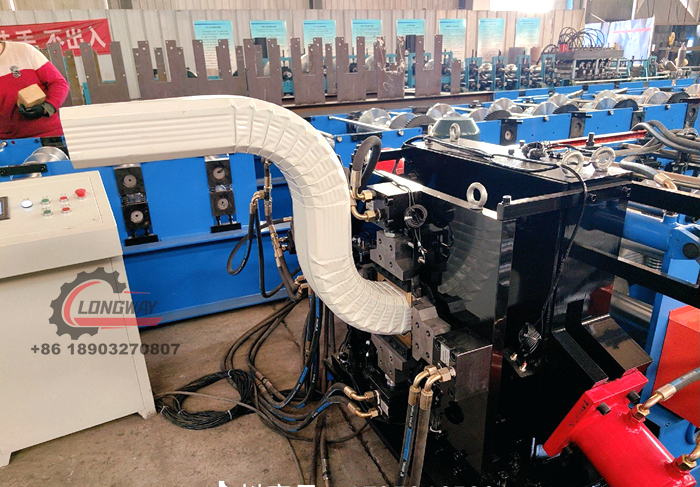

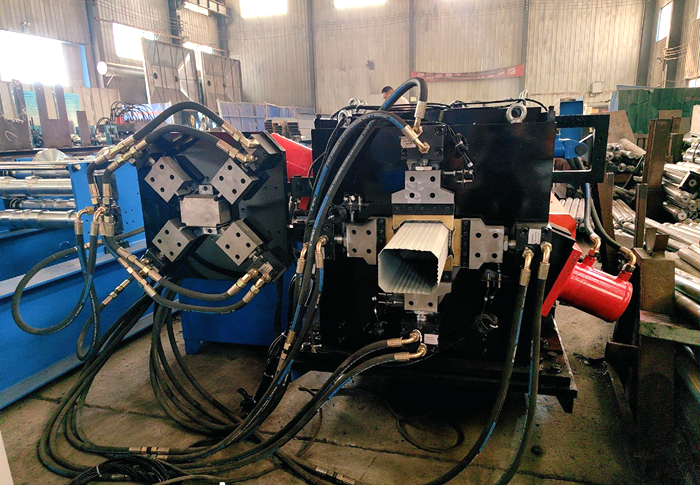

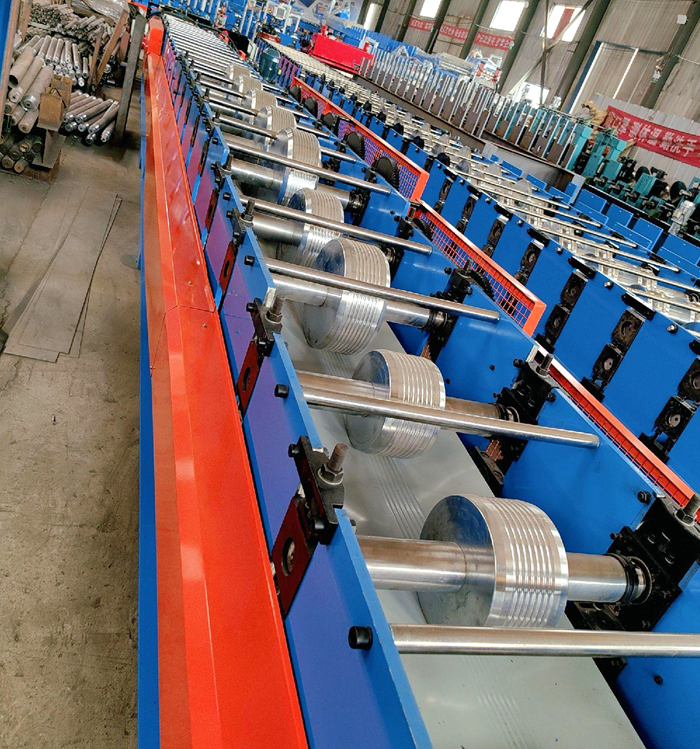

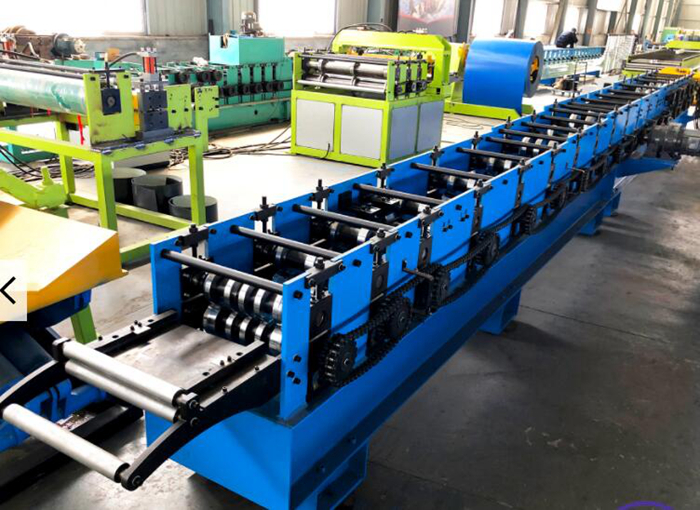

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine

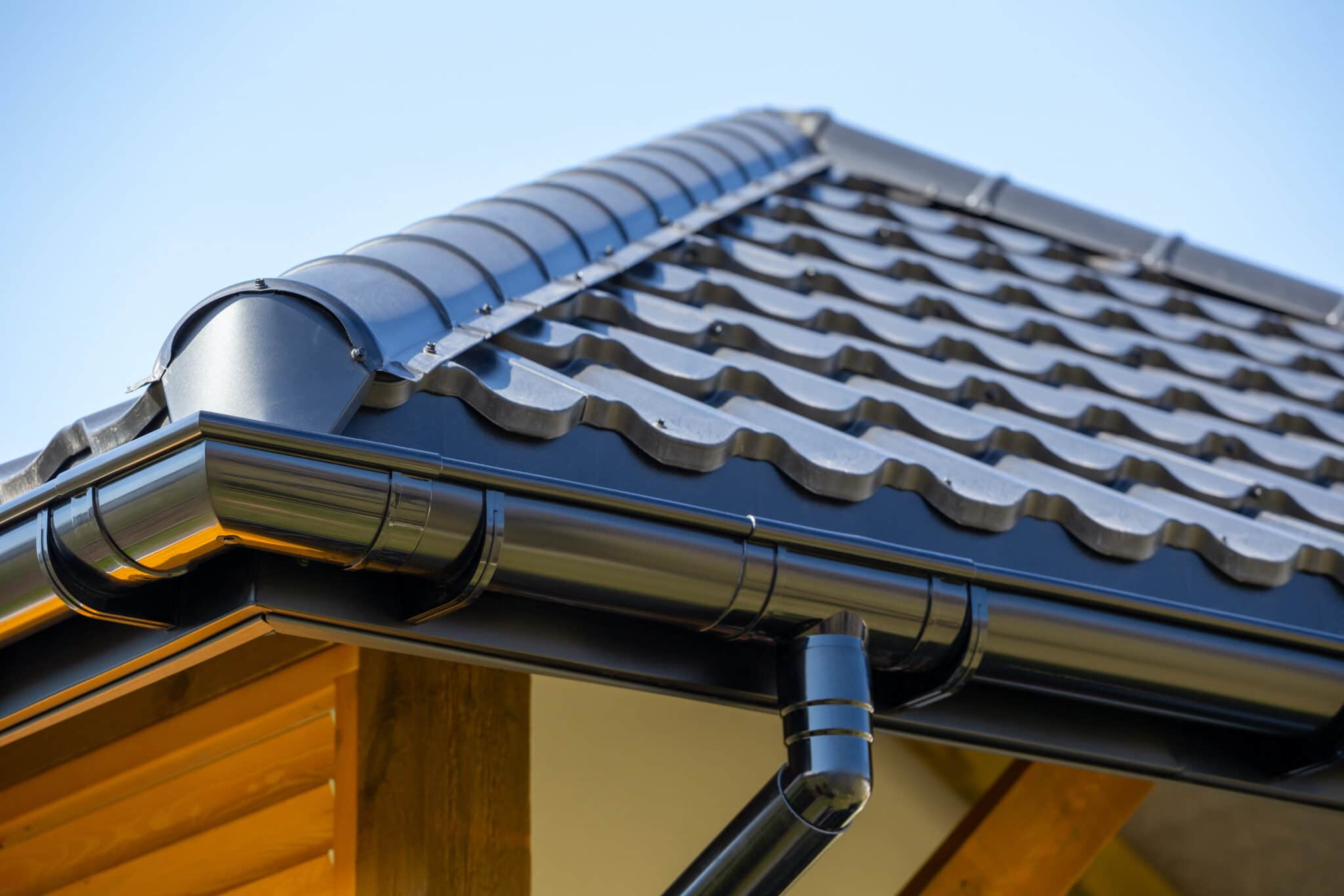

Applications

  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine
  • Metal Gutter Downspout Pipe Forming Machine

Generally speaking, downspouts should be placed every 30 to 40 feet along your gutter system. This usually means your downspouts are placed at the corners of your home or at the end of each channel piece. Once your downspouts are connected, they should be secured to your home using fasteners.

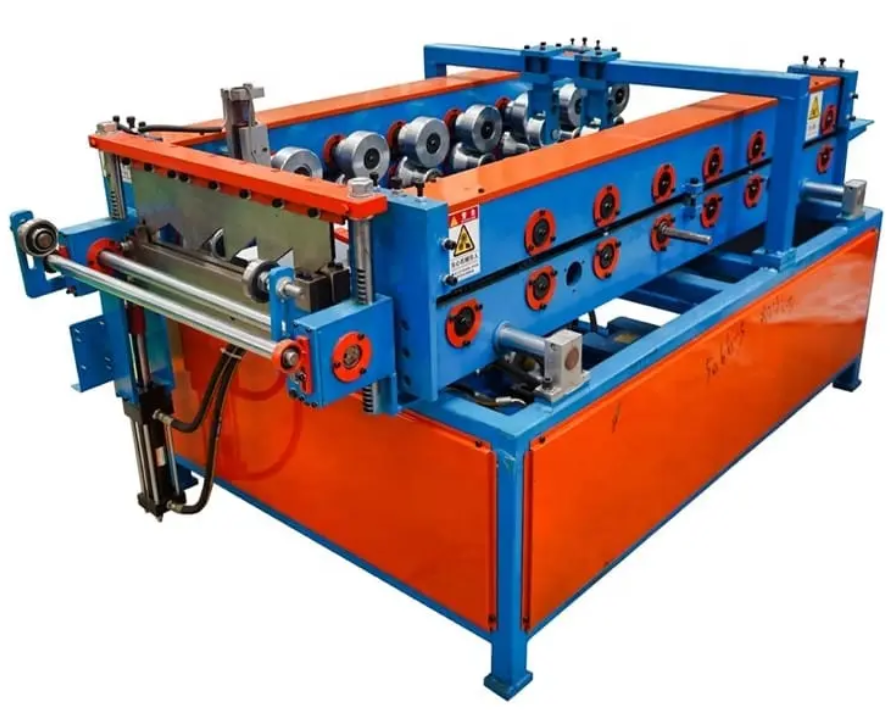

Related Machines

LONGWAY valuable customer

  • Chile

    Chile

  • lran

    lran

  • Philippine

    Philippine

  • South Africa

    South Africa

Package and Delivery

  • metal roofing machine
  • metal roofing machine
  • metal roofing machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period

Factory Display
