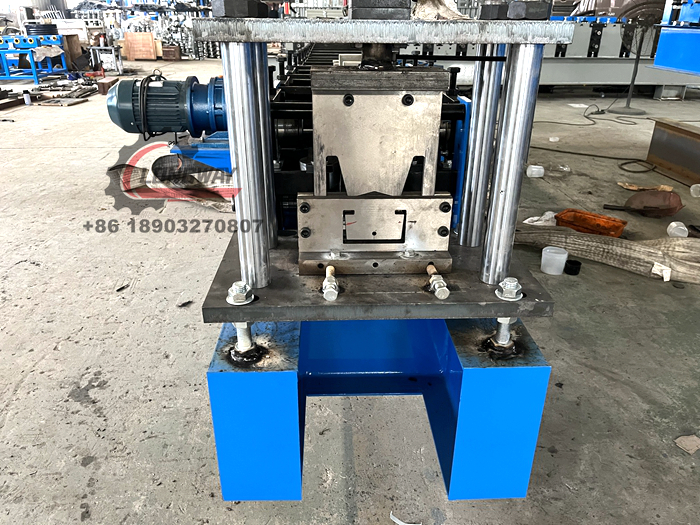

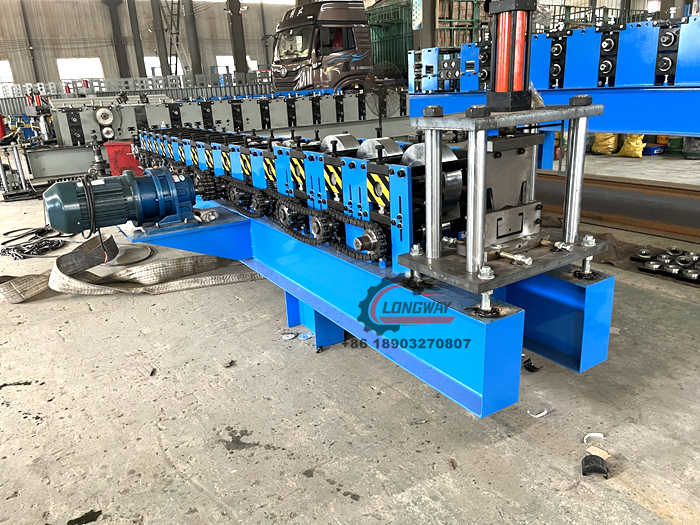

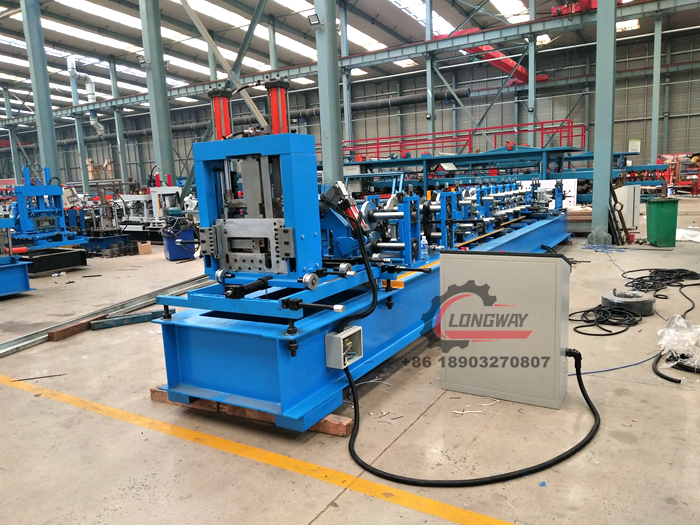

Steel C U purlin Roll Forming Machine

Automatic Steel C U purlin Roll Forming Machine, steel channel making machine can produce different sizes of steel C purlins in various thicknesses. There are manual adjustable purlin machines and automatic purlin machines. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the C purlin machine produces it automatically. The machines are easy to operate and running stable.

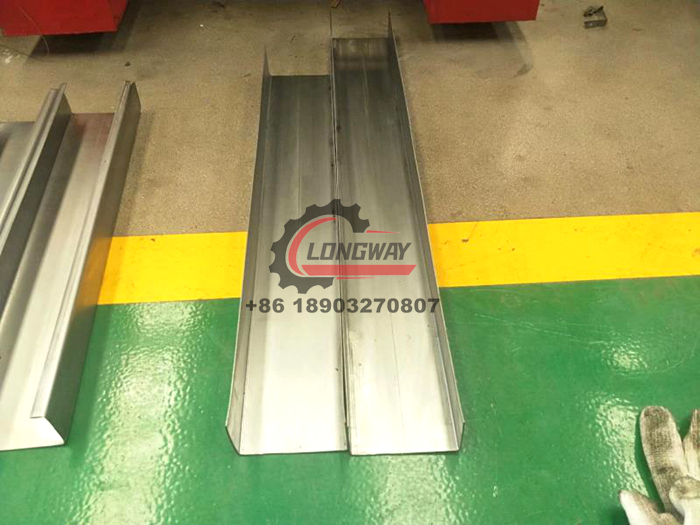

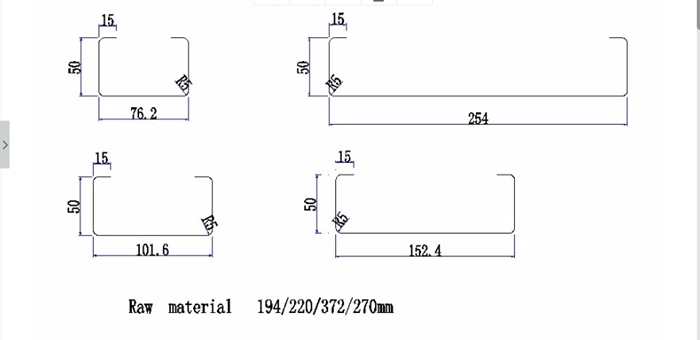

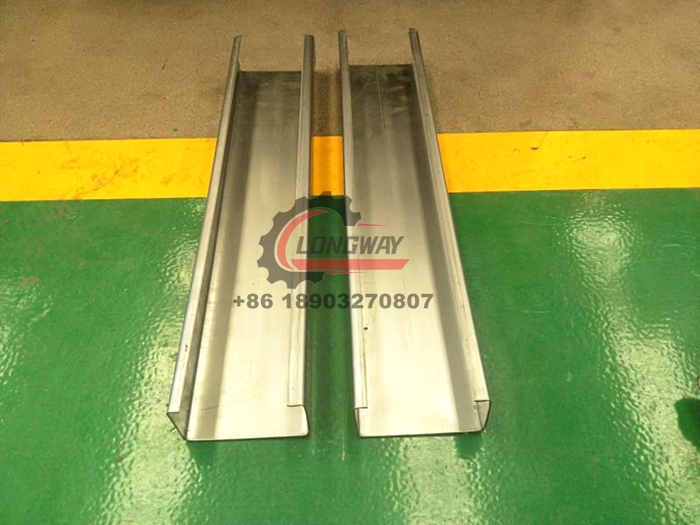

The pictures for the finished product:

Processing Flow

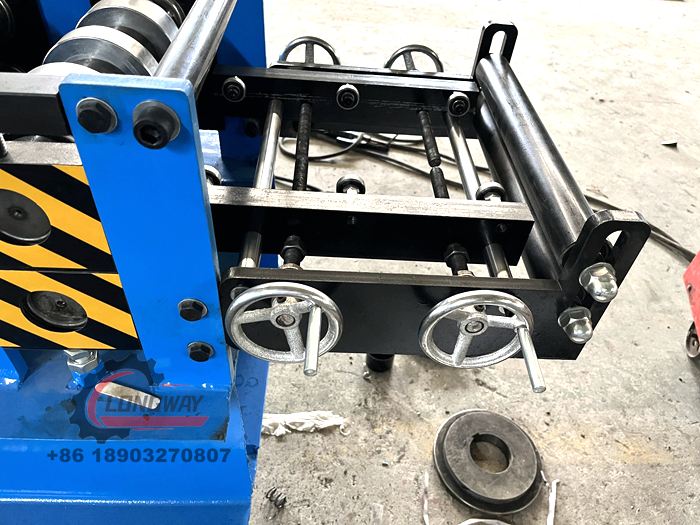

Decoiler-feeding material-roll forming-cutting-receiving the product

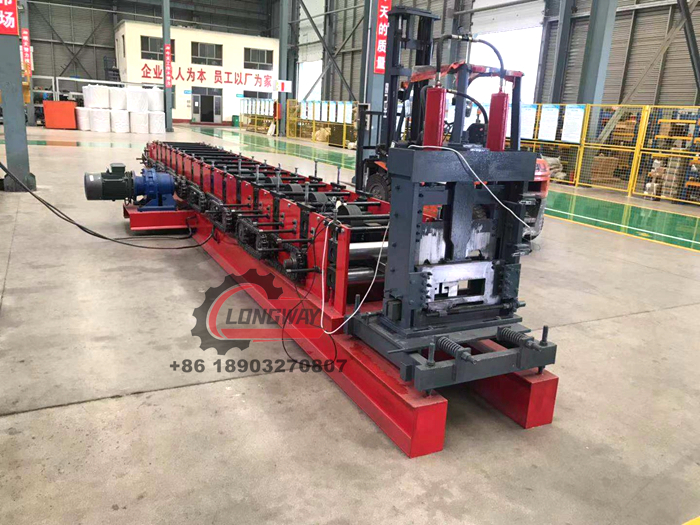

Automatic Steel C U purlin Roll Forming Machine
Coil Material	Q215 Q235 Q345or other
Thickness	2.0-3.0mm
shaft material	45#steel
numbers of forming steps	12-16 stations

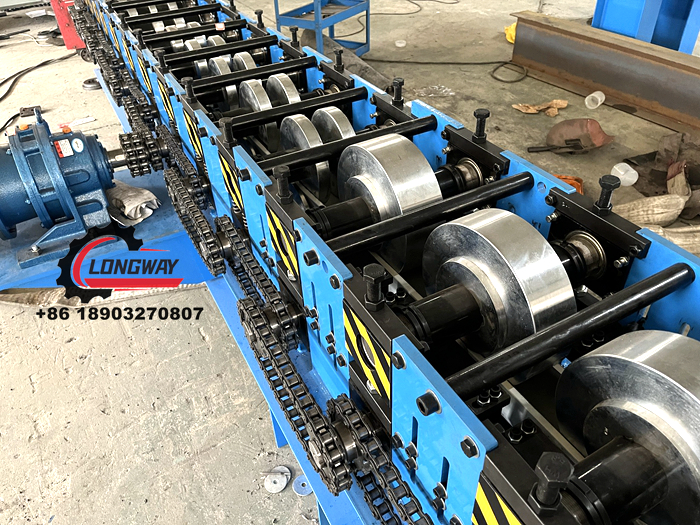

transmission	chain transmission
Frame	400 H steel
Forming speed	8-15m/min
main motor power	11-15kw
voltage	380V50HZ Three-phase or you need

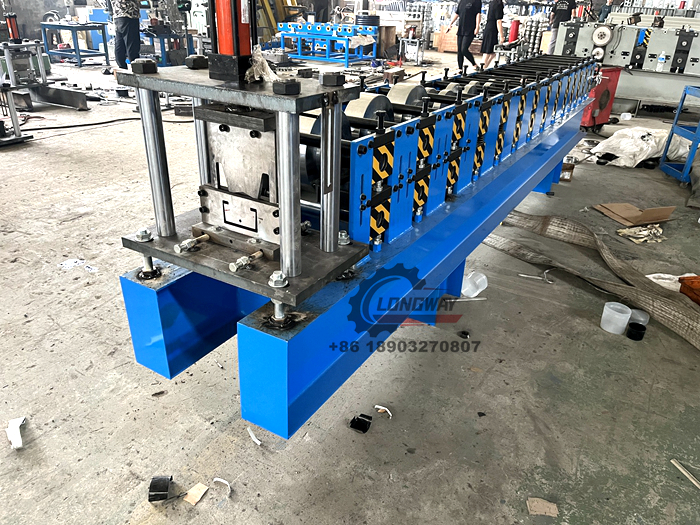

cutting	Hydraulic cutting
Cutting power	5.5-7.5kw
blade material	Cr12 steel with quenched treated 60-62°c

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

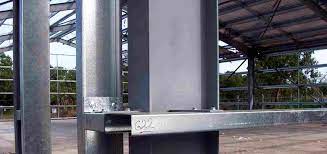

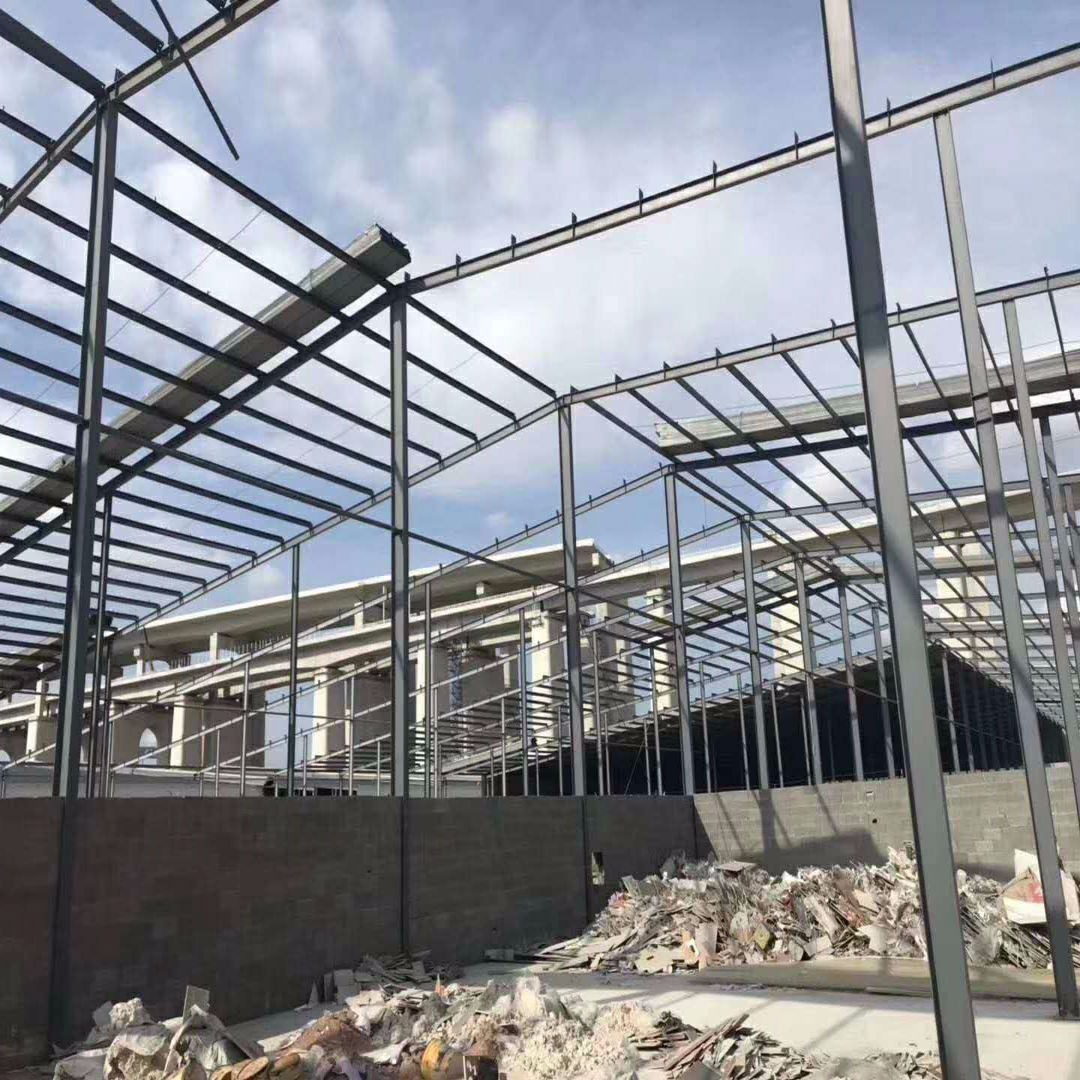

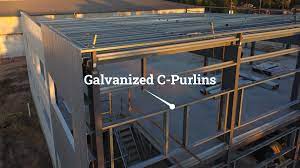

C purlins, also known as Cee purlins, are in the shape of the letter C and provide structural support for beams required for walls and flooring. In addition to roofing, C purlins are often used for structural support in walls and as floor joists
