Glavanized steel Z purlin roll forming machine

Z purlin forming machine




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details

Glavanized steel Z purlin roll forming machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory,warehouse, garage, gymnasium, exhibition center.It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

Profile drawing for reference:

Standard sepcification: Width from 100-300 mm , Thickness from 1-3mm , other specail size we can also customized.

Technical Farameters

Processing Flow

Uncoiling → Feeding And Leveling →Punching/Pre-Shearing→Roll Forming → Auto Cutting →Products Receiving Table
Automatic Steel C U purlin Roll Forming Machine
Coil Material
Q215 Q235 Q345or other
Thickness
2.0-3.0mm
shaft material
45#steel
numbers of forming steps
12-16 stations
transmission
chain transmission
Frame
400 H steel
Forming speed
8-15m/min
main motor power
11-15kw
voltage
380V50HZ Three-phase or you need
cutting
Hydraulic cutting
Cutting power
5.5-7.5kw
blade material
Cr12 steel with quenched treated 60-62°c

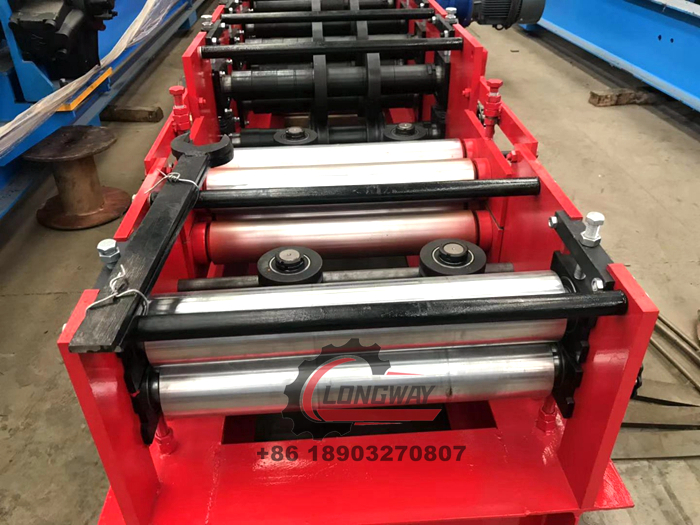

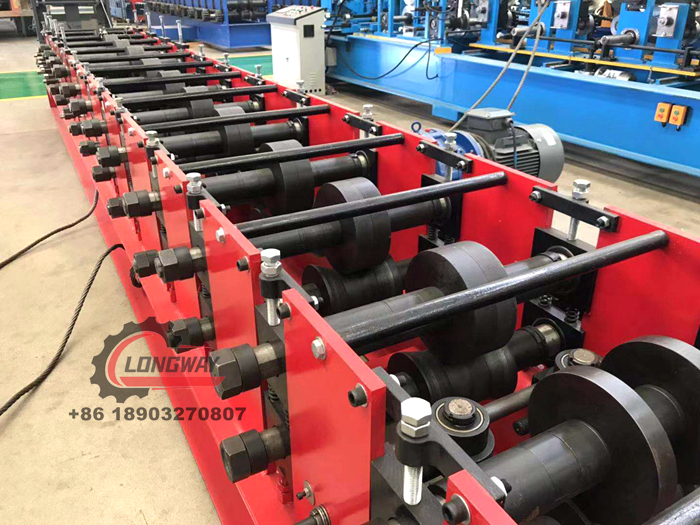

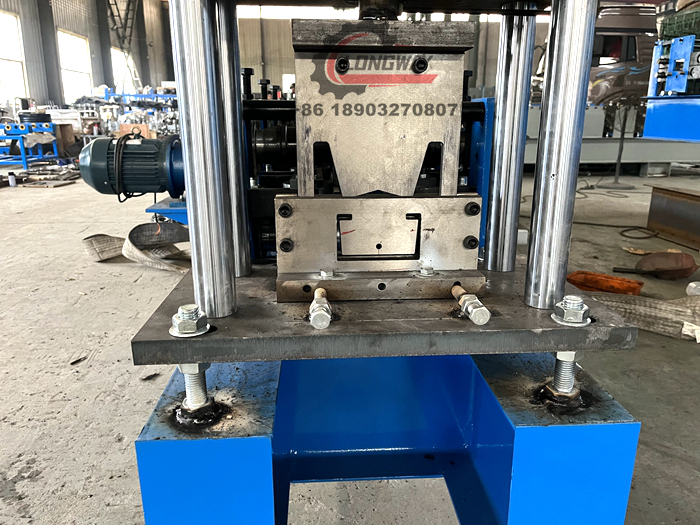

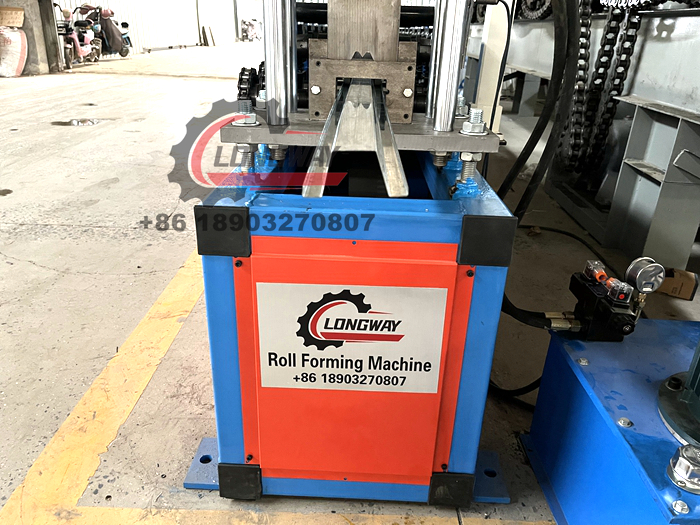

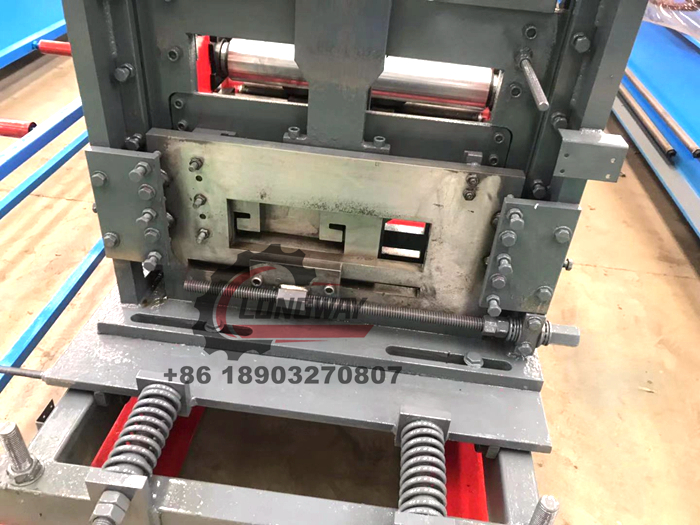

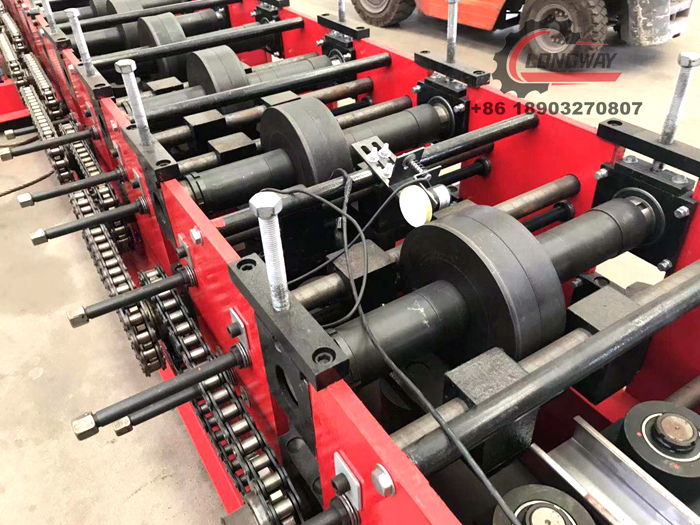

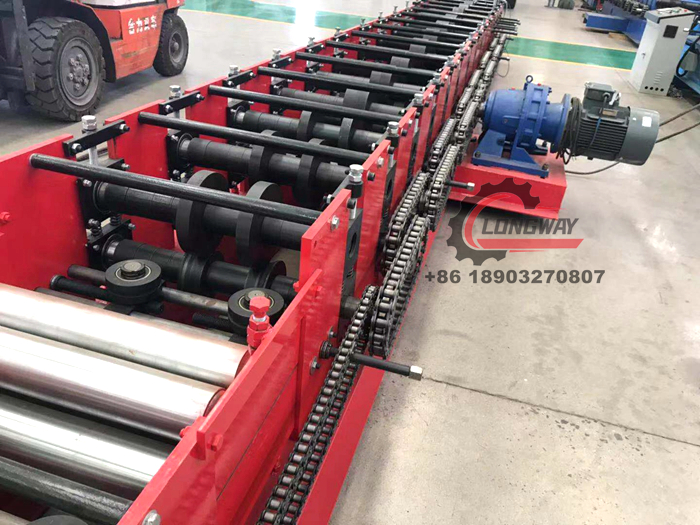

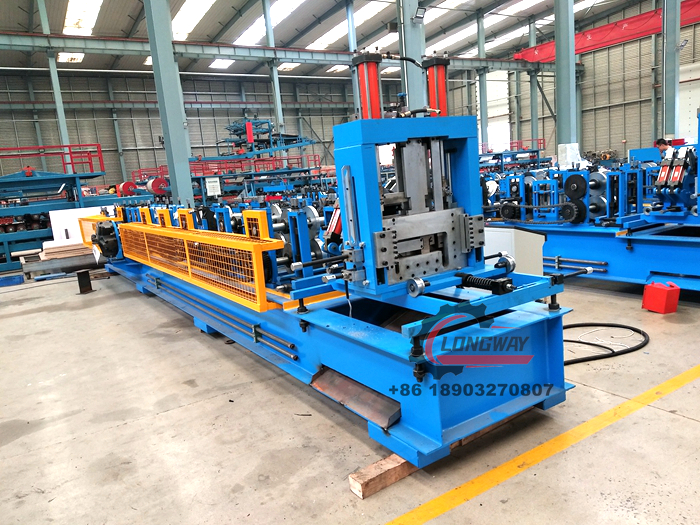

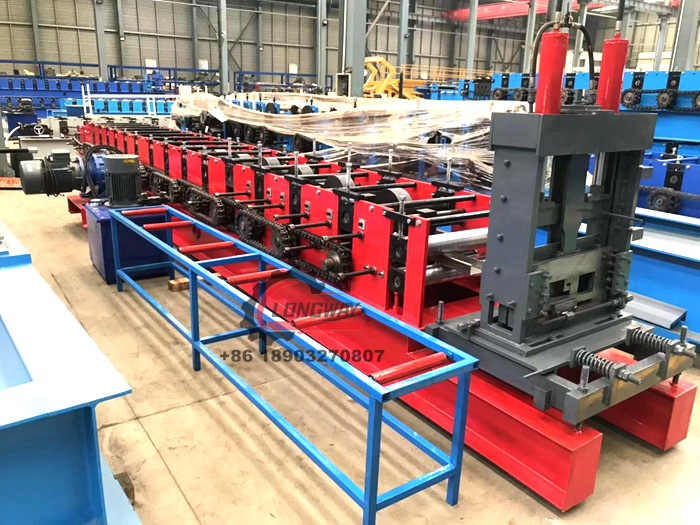

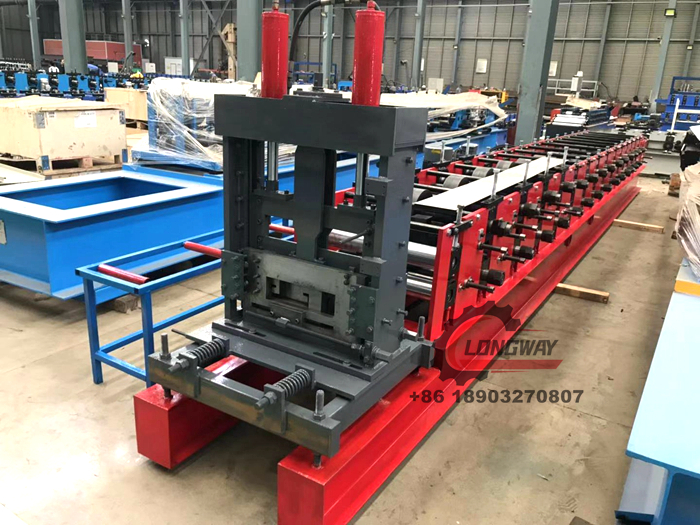

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • C U channel machine09
  • C U channel machine02
  • C U channel machine11
  • C U channel machine12
  • C U channel machine13
  • C U channel machine01

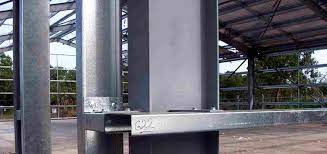

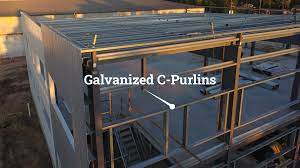

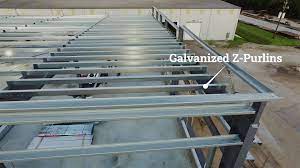

Applications

  • Glavanized steel Z purlin roll forming machine
  • Glavanized steel Z purlin roll forming machine
  • Glavanized steel Z purlin roll forming machine
  • Glavanized steel Z purlin roll forming machine
  • Glavanized steel Z purlin roll forming machine

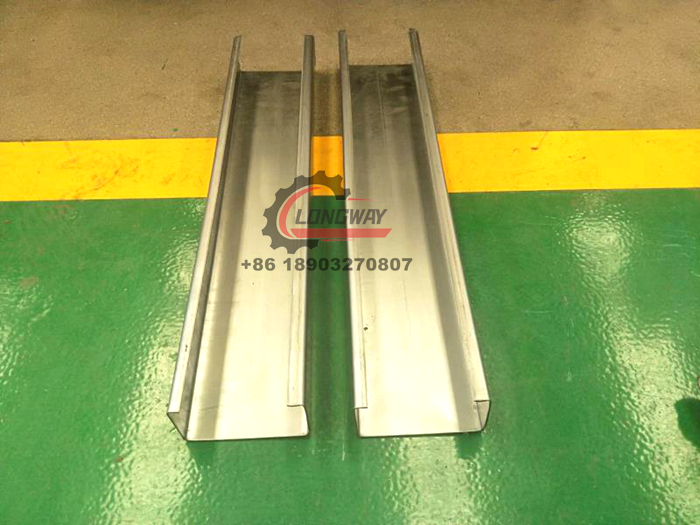

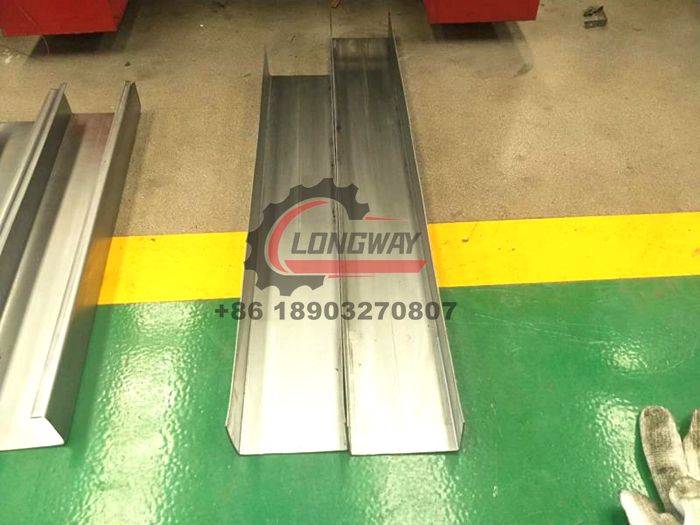

C purlins, also known as Cee purlins, are in the shape of the letter C and provide structural support for beams required for walls and flooring. In addition to roofing, C purlins are often used for structural support in walls and as floor joists

Related Machines

LONGWAY valuable customer

  • Chile

    Chile

  • lran

    lran

  • Philippine

    Philippine

  • South Africa

    South Africa

Package and Delivery

  • metal roofing machine
  • metal roofing machine
  • metal roofing machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
