Maquina para PLACA/PANEL COLABORANTE Deck 950

PLACA/PANEL COLABORANTE Deck 950 instadeck 950

CONTACT NOW DOWNLOAD PDF

Details

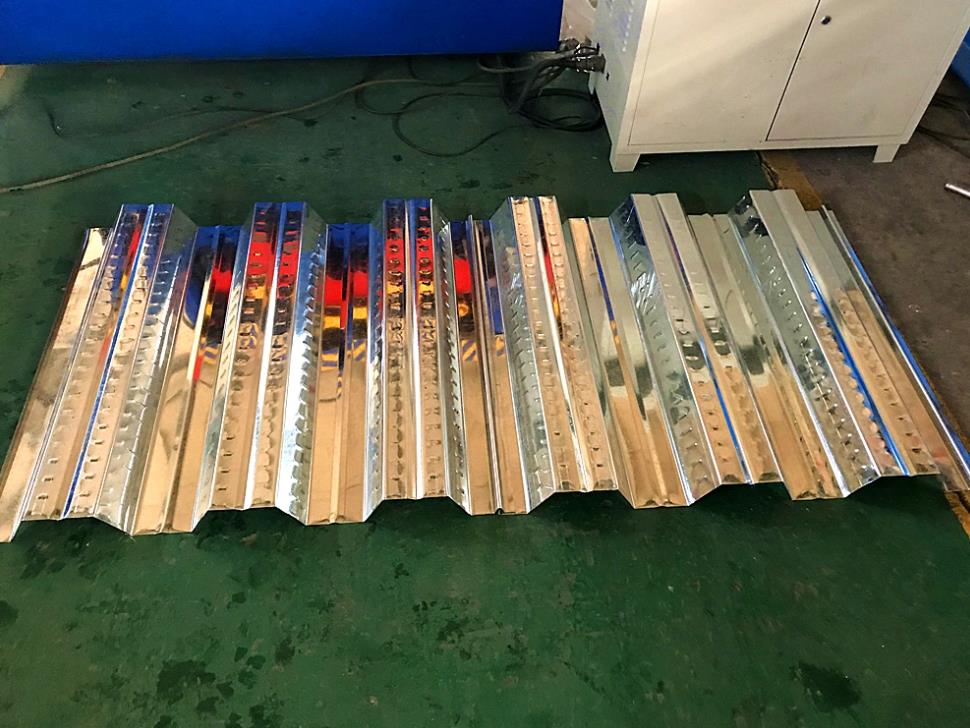

Profile drawing for reference:

The COLABORANTE 950 Floor deck is standard size for South America market , which is popular used in Chile , Peru , Mexico . and the material thickness they used are Gauges 16 18 20 22 as so on.

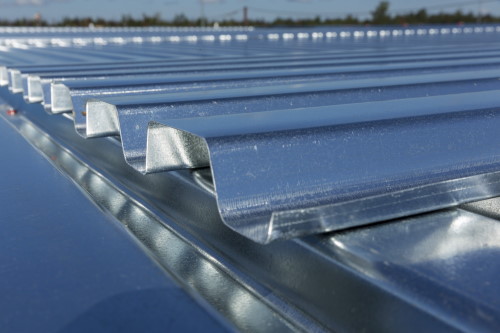

Placa Colaborante DECK 950 Terminación Galvanizado e=0.8mm Acero: Calidad Estructural Grado 37 G90 : 2.600 kg/cm2). Recubrimiento: Zinc Galvanizado, aplicado en ambas caras según norma fabricación ASTM A653 M07 / calidad G-90 (275 gr/m2).

Technical Farameters

Processing Flow

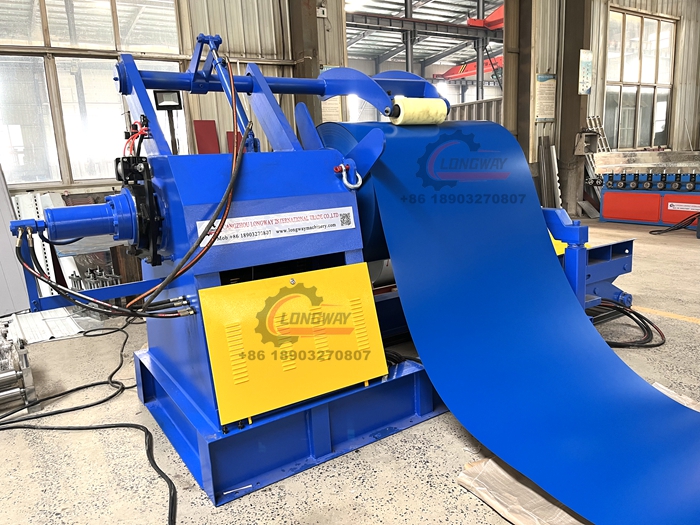

Decoiler-feeding material-roll forming-cutting-receiving the product

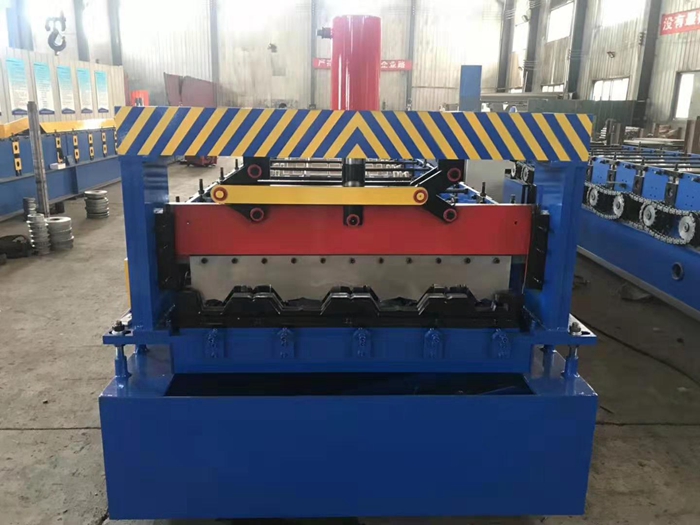

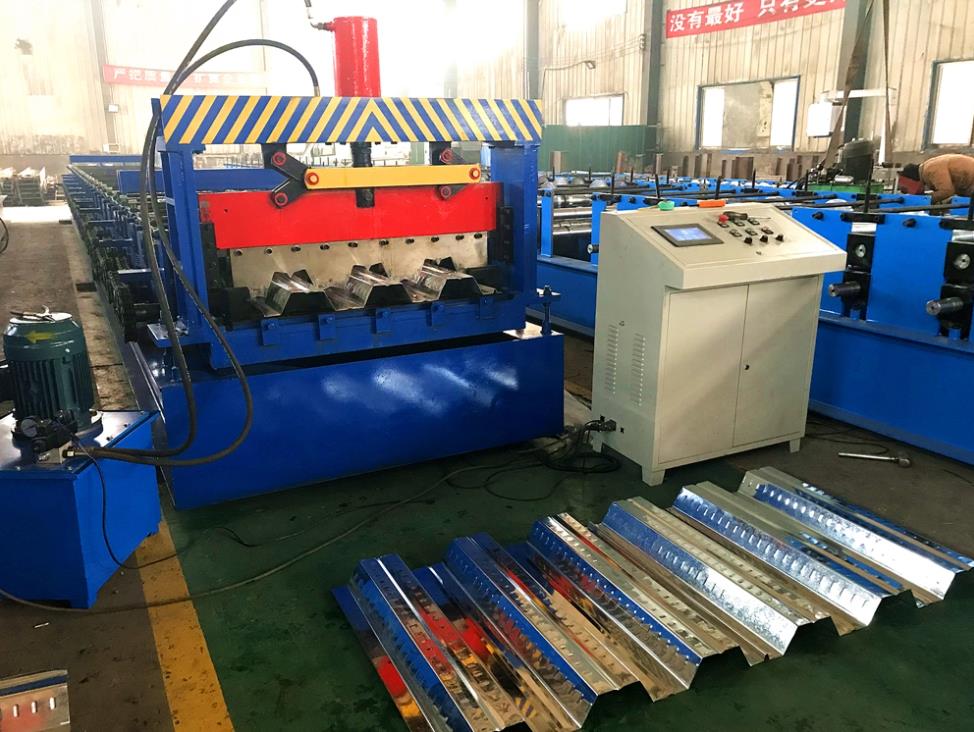

Steel deck floor roll forming machine
Raw material	Galvanized coils yield strength till 550 Mpa
Raw material	Material thickness:16-22gauge( 0.8-1.5 mm)
Machine frame	400 H beam steel welded
Roller fixer	Middle plate (thickness 20mm)

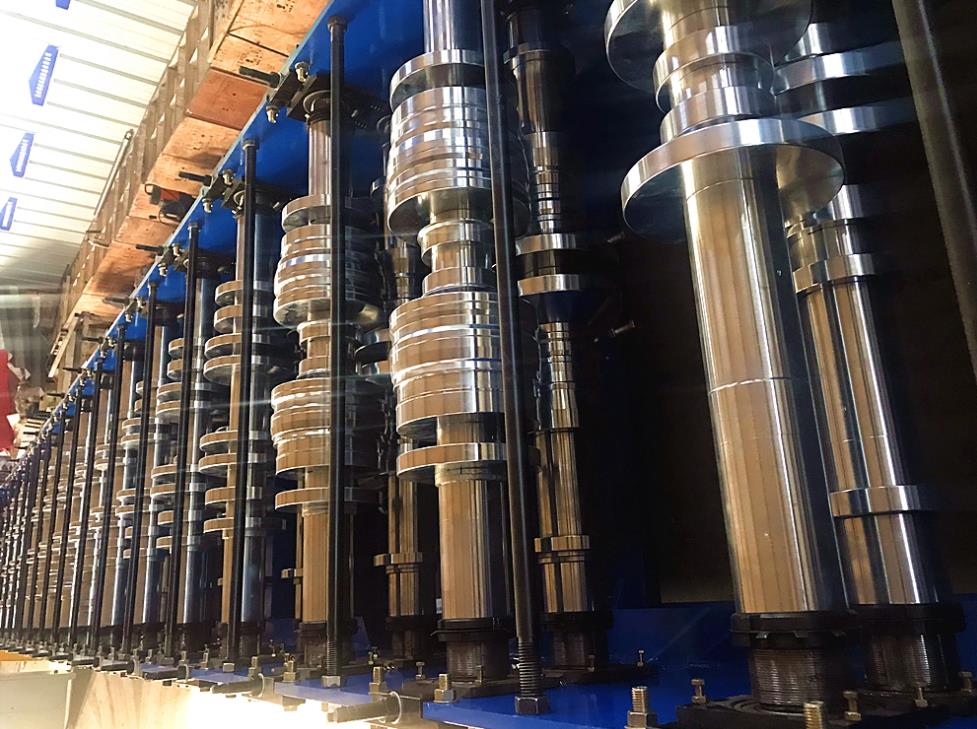

Material of rollers	Gcr15 quenching treat HRC58-60
Forming stations	28 roller stations
Diameter of shafts	φ 95 mm
Material of shafts	45# steel precision-machined
Forming speed	0-15 m per minute
Voltage	380 v 60 hz 3 phase or as request
Transmission way	Gear and 2 inches double chain with chain tensors

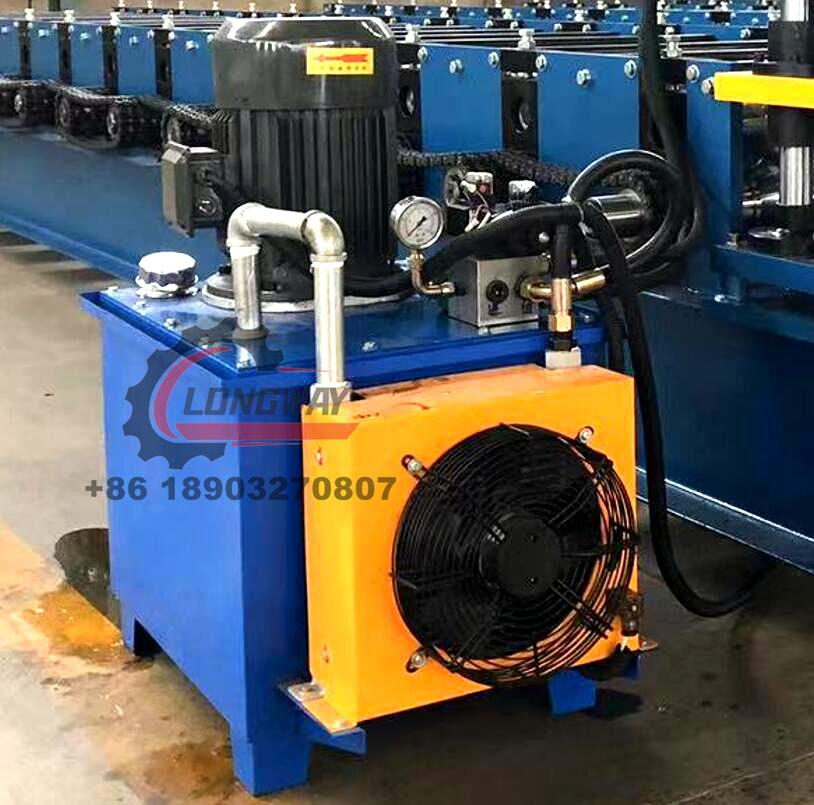

Drive motor	Power:18.5 kw x 2 sets installation: inside the machine
Cutting blade material	Cr12Mov quenched treatment to improve hardness
Cutting type	Hydraulic cutting
Dimension of the machine	11000 х 1850 х 1500 mm
Weight	about 12 t

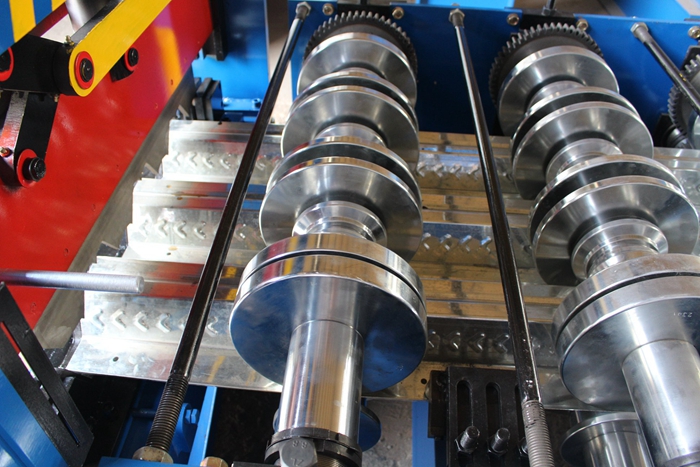

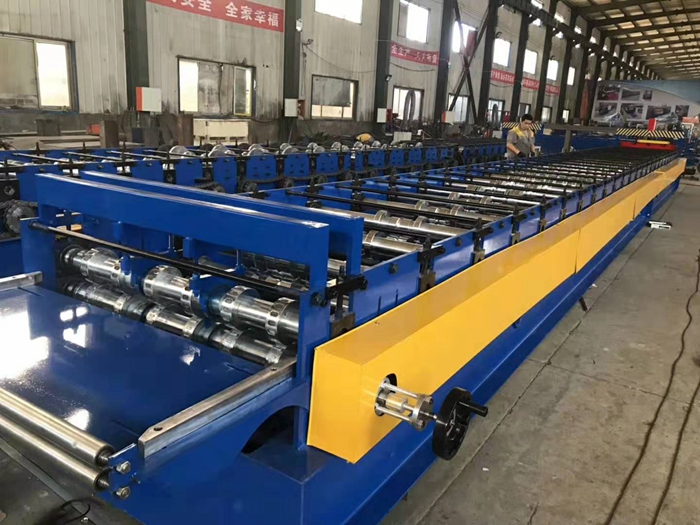

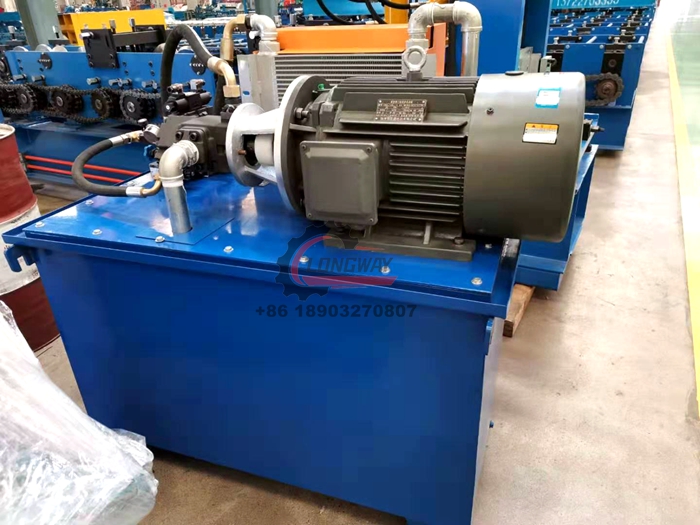

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

Applications

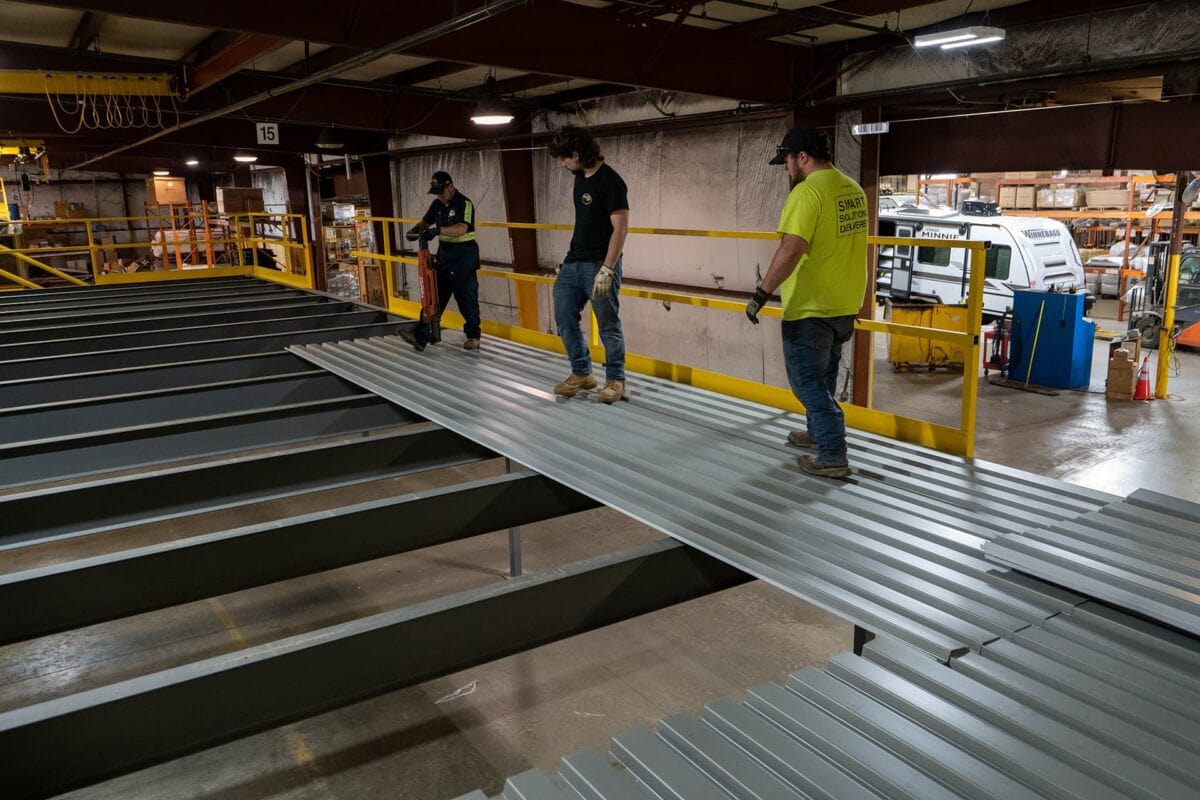

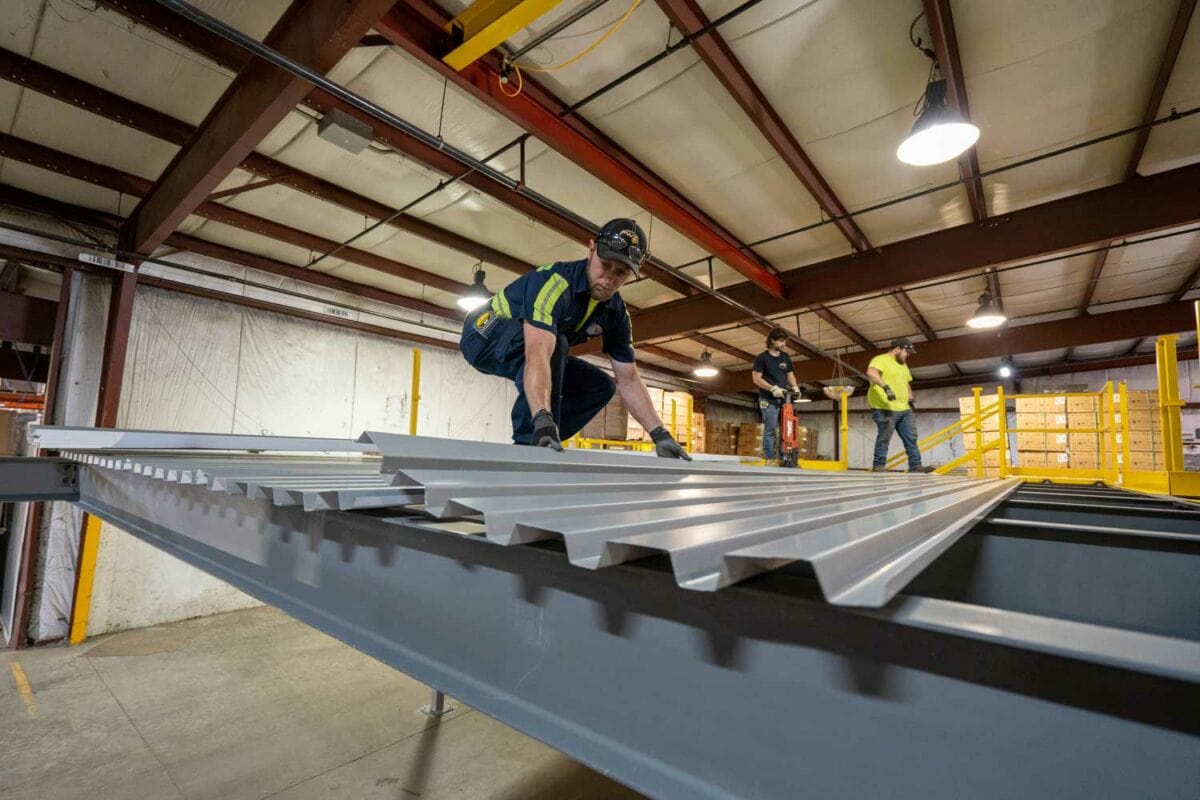

It allows cuts, joints, and openings to be made, additionally facilitating the installation of ducts and cables in the ceiling.

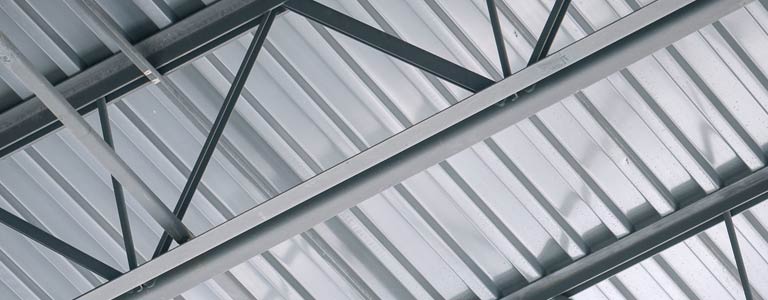

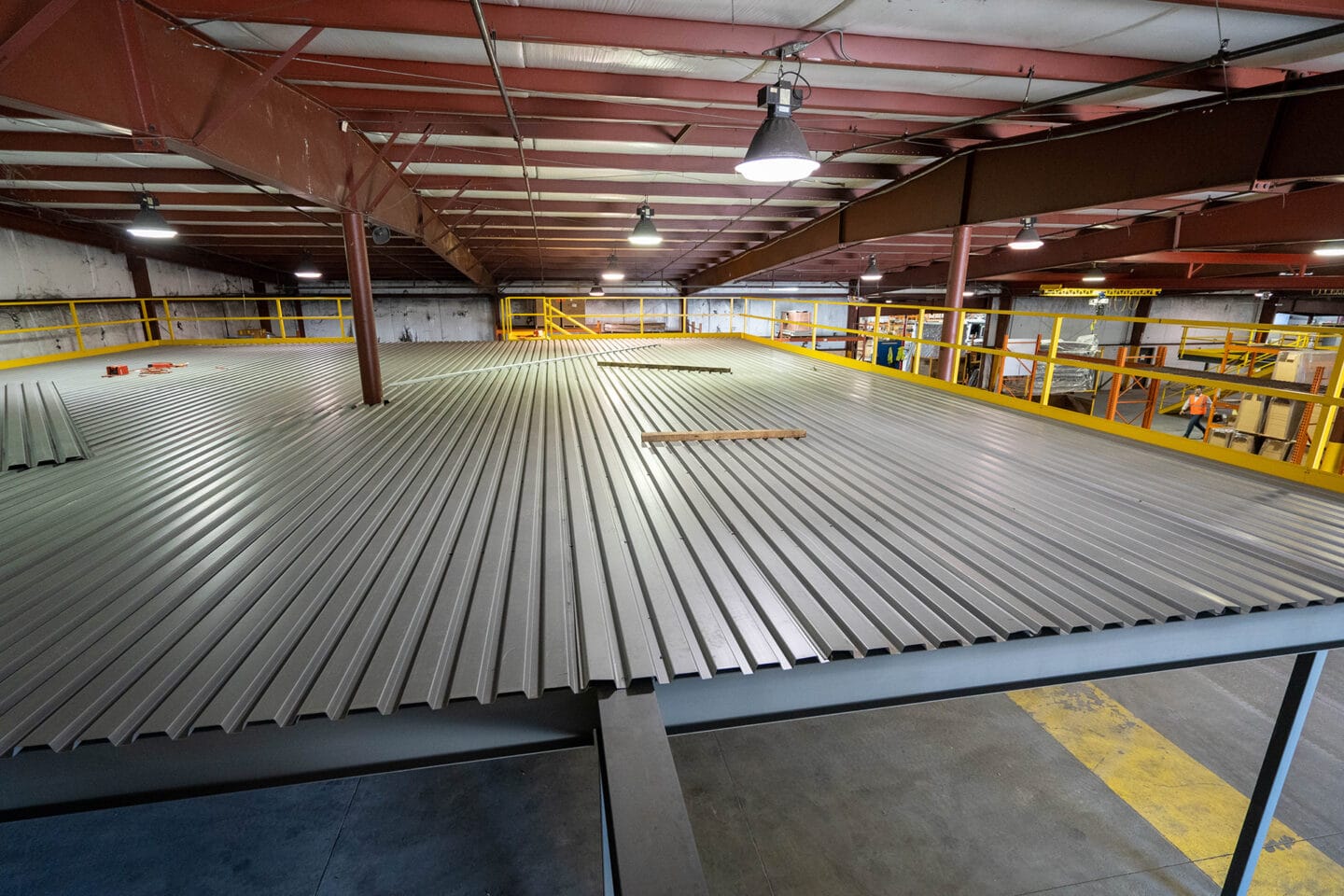

Structural panel made of quality g-90 galvanized steel, which together with concrete allows the construction of slabs in a shorter period of time, with a smaller volume of concrete and reduction in the use of lifters.
It is used in all types of construction.
