Product Details
PV4 is a very popular profile metal roofing sheet in Chile, Peru etc countries. PV4 roofing sheet roll forming machine is designed to produce this profile in batch automatically. Which have easy to install, easy to operate, low failure rate and long service advantages.
Profile drawing for reference:

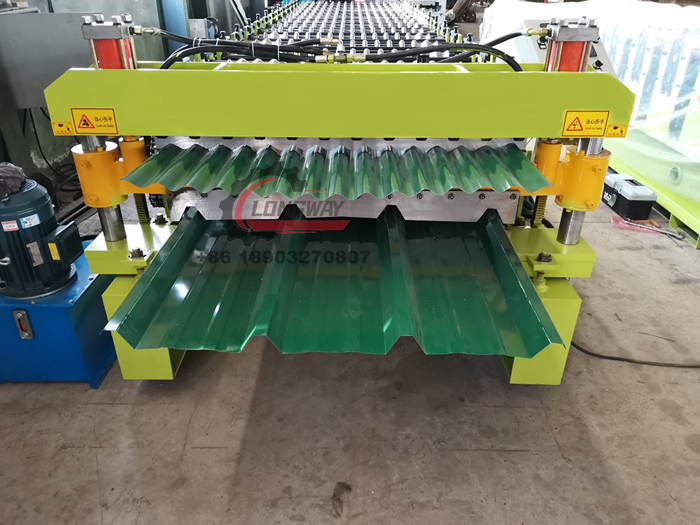

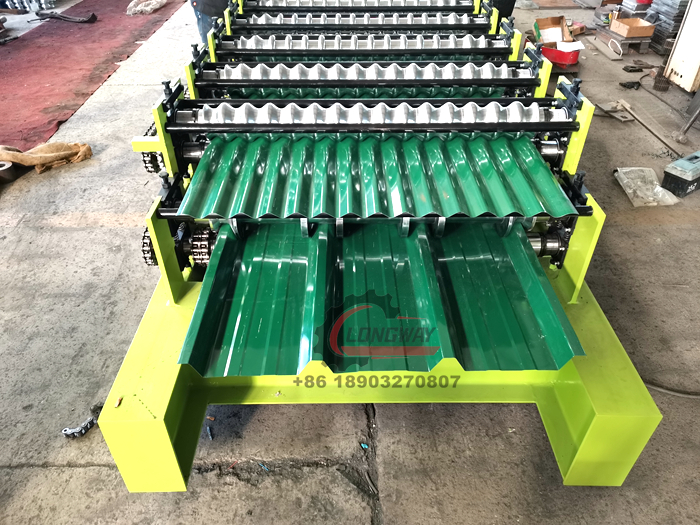

Double layer roof sheet roll forming machine can produce two profile roof sheets on one machine,this machine is hot sale to Chile,which up layer can produce corrugated panel,and down layer for produce PV4 panel. These two profile drawings are very famous in Chile,it is almost the standard profiles .
Technical Farameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table
Raw Material |
Coil Type |
PPGI,PPGL,GI |
Width |
1200/1220 |
|
Thickness range |
29-22 Gauge (0.3-0.6mm) |
|
Power Requirement
|
Voltage |
380v/3ph/50hz(Customized) |
Main Motor power |
5.5kw |
|
Cutter power |
4kw |
|
Forming speed |
15-20m/min |
|
Machine Frame |
350mm H Beam Structure |
|
Thickness of structure |
18 mm Welded Steel Middle Support Plate |
|
Forming shaft |
75mm solid shaft with heat treatment |
|
Material Of Rollers |
High Grade 45# Forged Steel |
|
Forming stations |
18-22 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision |
|
Transmission Way |
Chain drive 1 inch (Double Chain) |
|
Type of cutting |
Hydraulic Pillar type and length-set cutting |
|
Control system |
PLC Delta and Inverter Delta |
|
Screen |
Touch screen |
|
Dimension(Approx) |
8.8m×1.5m×1.2m |
|
Total weight (Approx) |
7.6T |

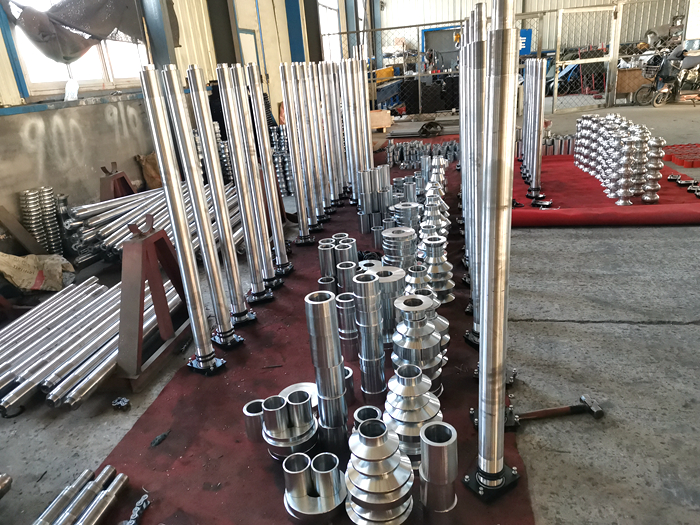

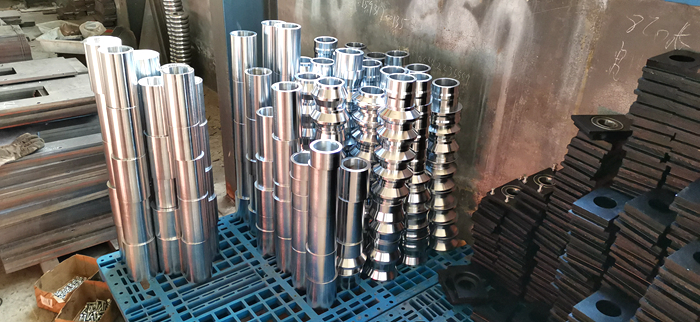

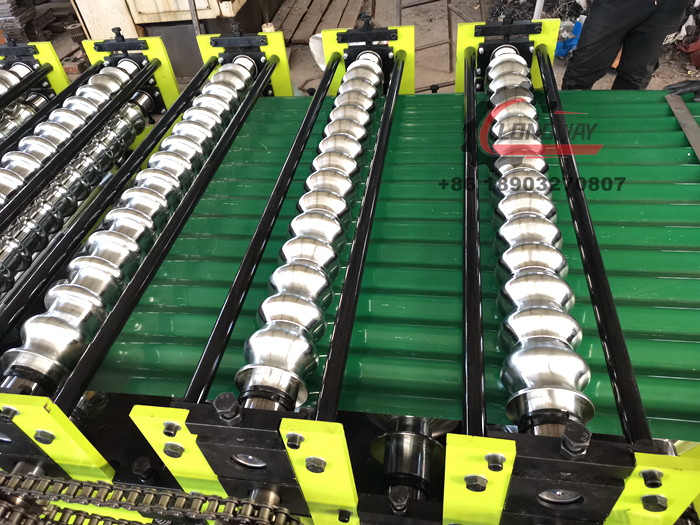

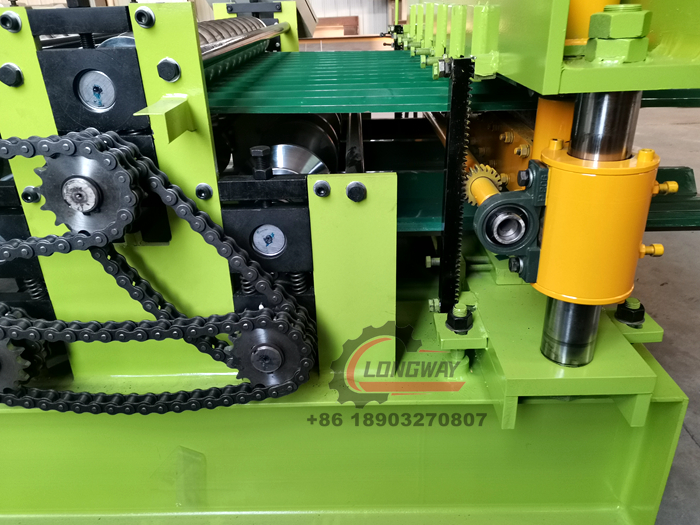

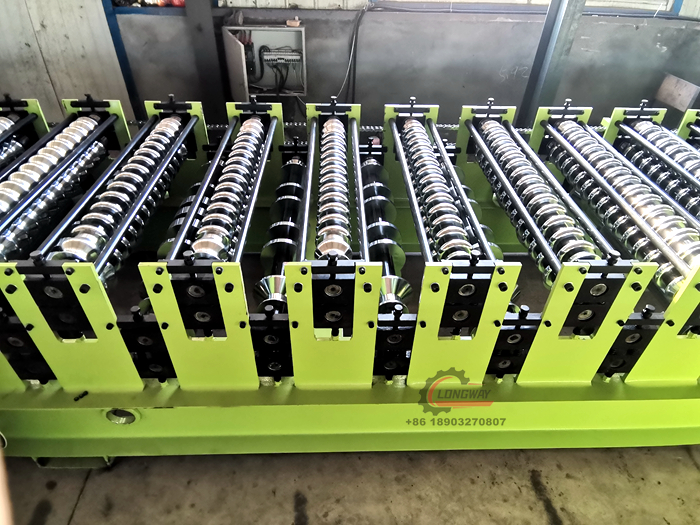

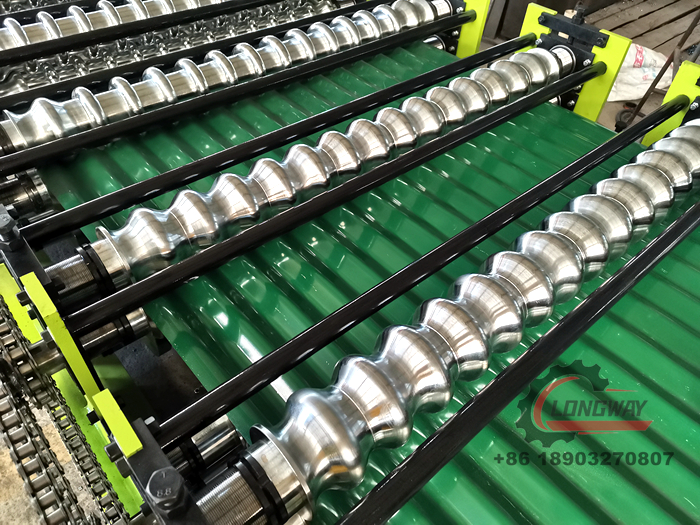

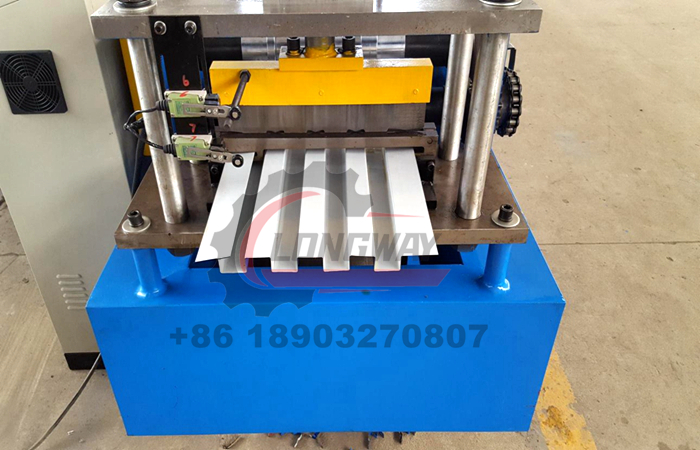

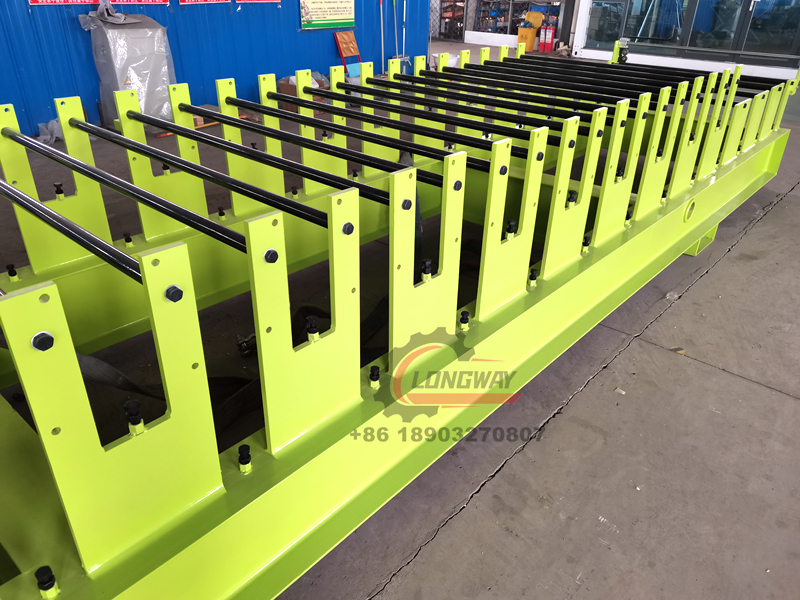

Machine Detailed Pic
Machine Detailed Pictures
Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
Applications
The advantage of Tr4 metal sheets includes beautiful, classica, appearance and grace taste. t is widely used in village, hotel,exhibition, vacation village, family construction and outdoor decorating.
