Product Details
750 Metal Wall Panel Roll Forming Machine Steel Roof Sheeting Making Machine is one most popular type of roll forming machines. It makes different shape of color steel roof sheet, which is used for buildings, factory, supermarket ect. For this machine, it suit coil width is 1000mm, thickness range is from 0.25mm to 0.8mm. We adopt guide pin type to make machine frame strong. Usually it can run with the max speed to 15m/min, PLC with touch screen operation make the machine simple and easy for usage.

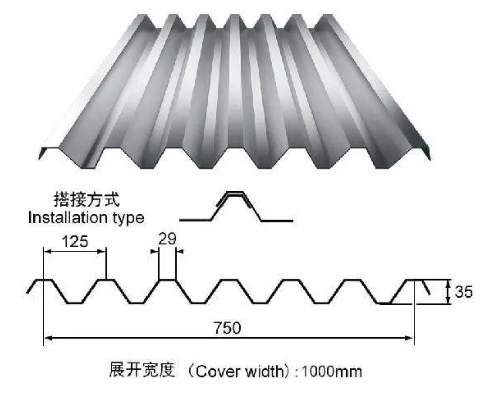

Below is the cladding wall sheets finished by our 750 Cladding Wall Panel machine , customer give good feedback .
We can also design in different sizes .
Technical Farameters
Working Process

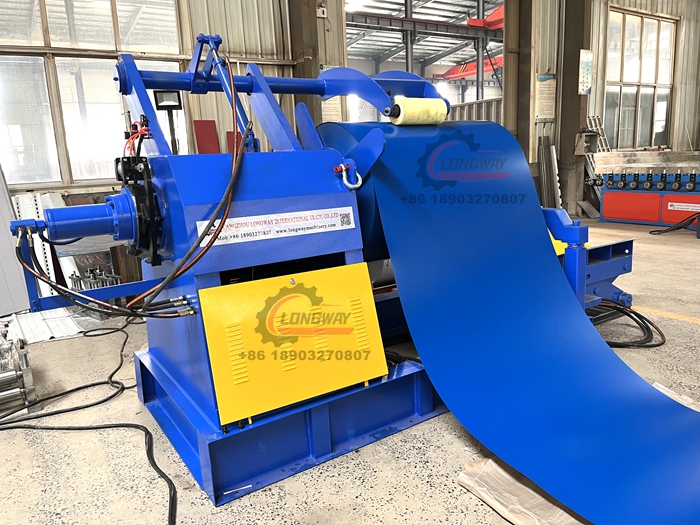

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table
Raw Material |
Coil Type |
PPGI,PPGL,GI |
Width |
1000mm |
|
Thickness range |
29-22 Gauge (0.3-0.6mm) |
|
Power Requirement
|
Voltage |
380v/3ph/50hz(Customized) |
Main Motor power |
5.5+5.5kw |
|
Cutter power |
4kw |
|
Forming speed |
15-20m/min |
|
Machine Frame |
350mm H Beam Structure |
|
Thickness of structure |
18 mm Welded Steel Middle Support Plate |
|
Forming shaft |
75mm solid shaft with heat treatment |
|
Material Of Rollers |
High Grade 45# Forged Steel |
|
Forming stations |

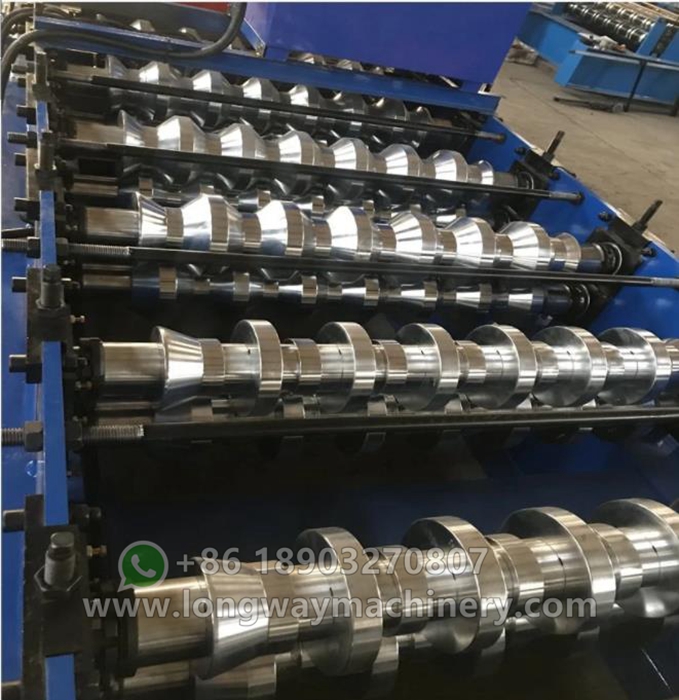

18 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision |
|
Transmission Way |
Chain drive 1 inch (Double Chain) |
|

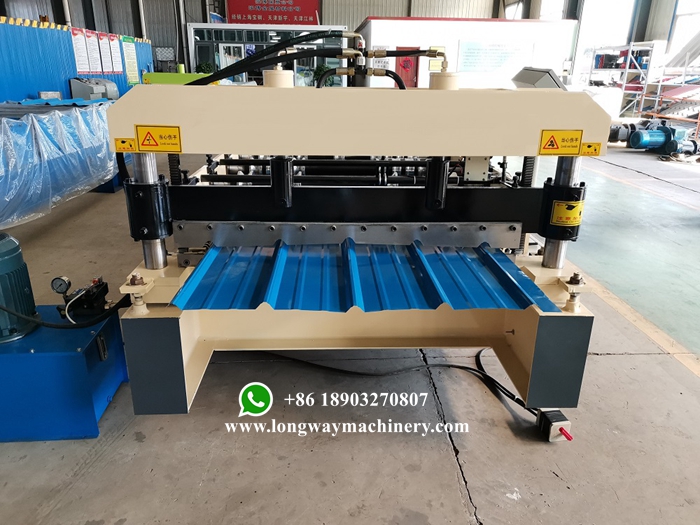

Type of cutting |

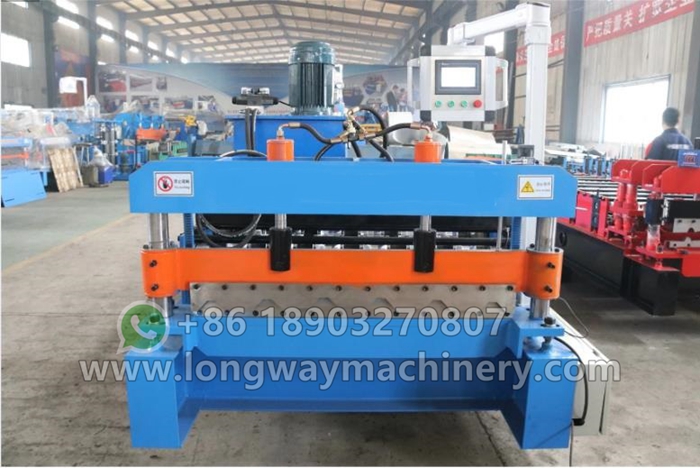

Hydraulic Pillar type and length-set cutting |
|
Control system |
PLC Delta and Inverter Delta |
|
Screen |
Touch screen |
|
Dimension(Approx) |
8.5m×1.5m×1.2m |
|
Total weight (Approx) |
4.6T |

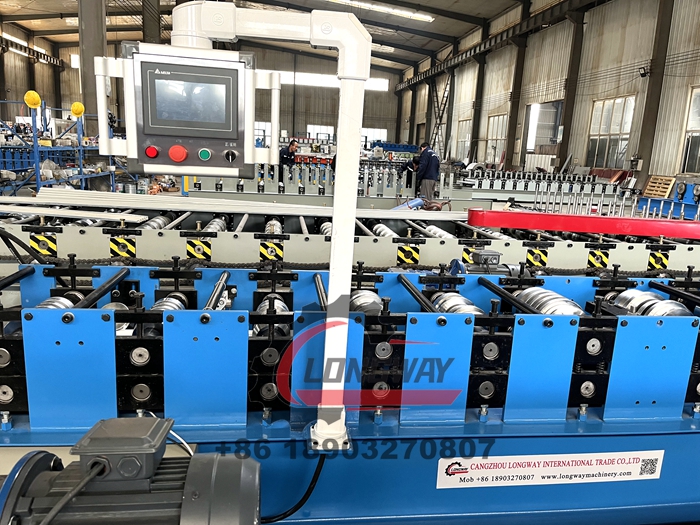

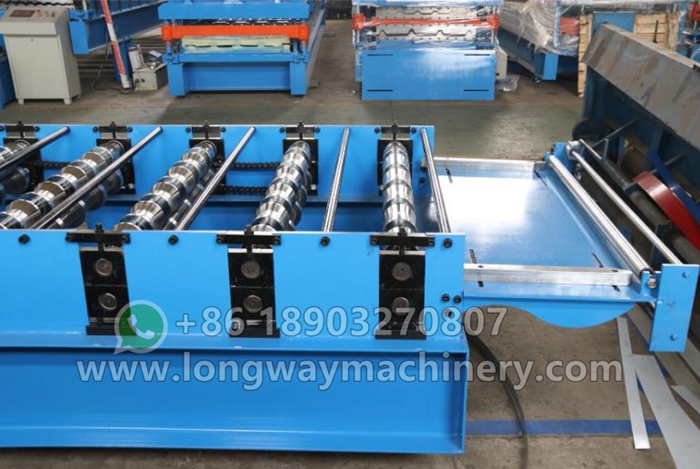

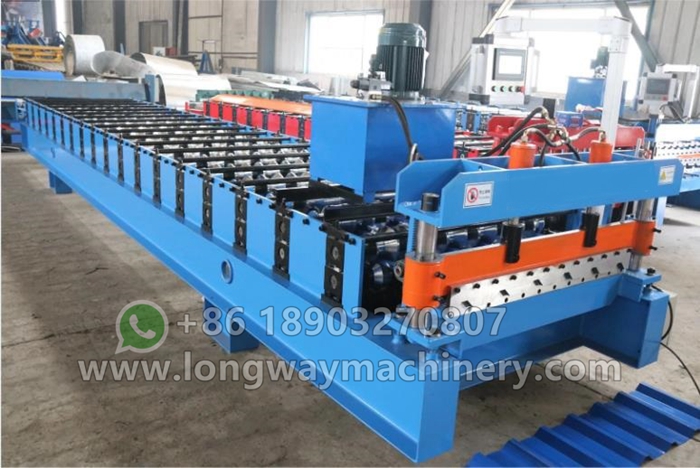

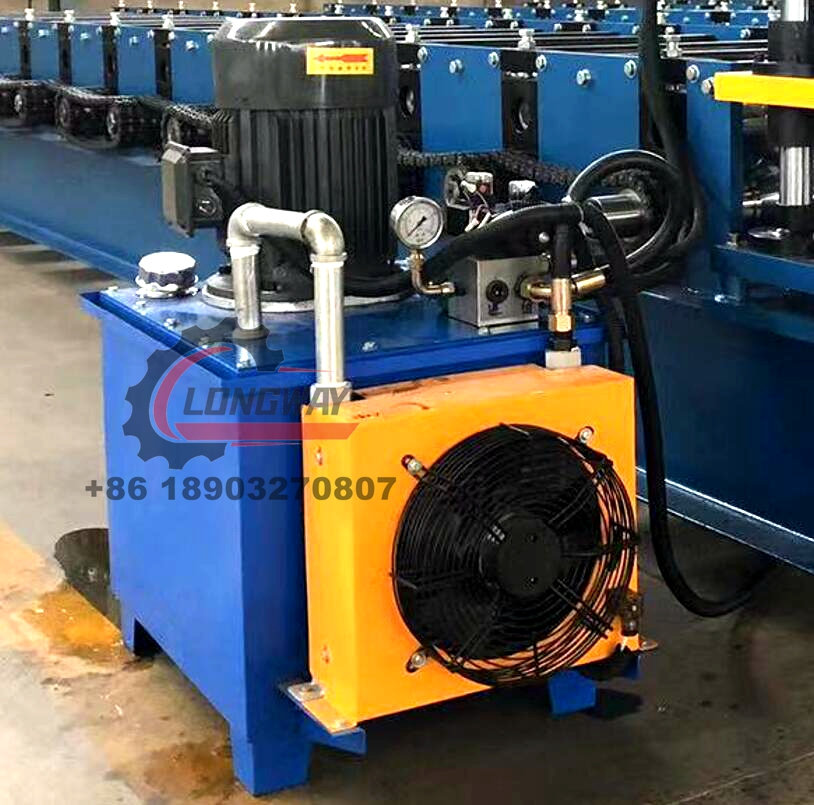

Machine Detailed Pictures
Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
Applications
The advantage of Tr4 metal sheets includes beautiful, classica, appearance and grace taste. t is widely used in village, hotel,exhibition, vacation village, family construction and outdoor decorating.

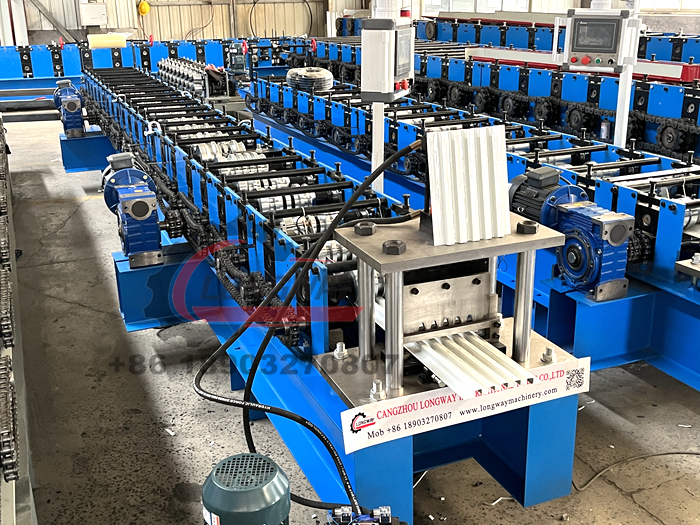

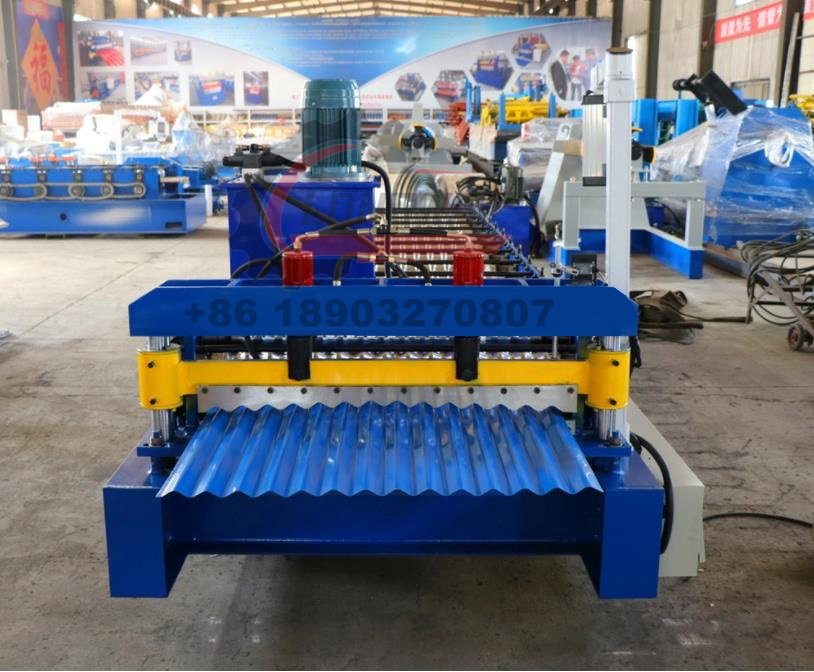

Related Machines
LONGWAY valuable customer
-
Chile
-
lran
-
Philippine
-
South Africa
Package and Delivery
1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
