Garage door rolling shutter machine

customized shutter design acceptable Punch holes Related door rail available




CONTACT NOW DOWNLOAD PDF
Details
Tags

Product Details


A roller shutter door is a door constructed from many individual steel or aluminium horizontal slats and operated by rolling the slats around a barrel directly up or down with the assistance of either a spring or an electric motor (or both) and guides either side to hold the curtain secure in place.

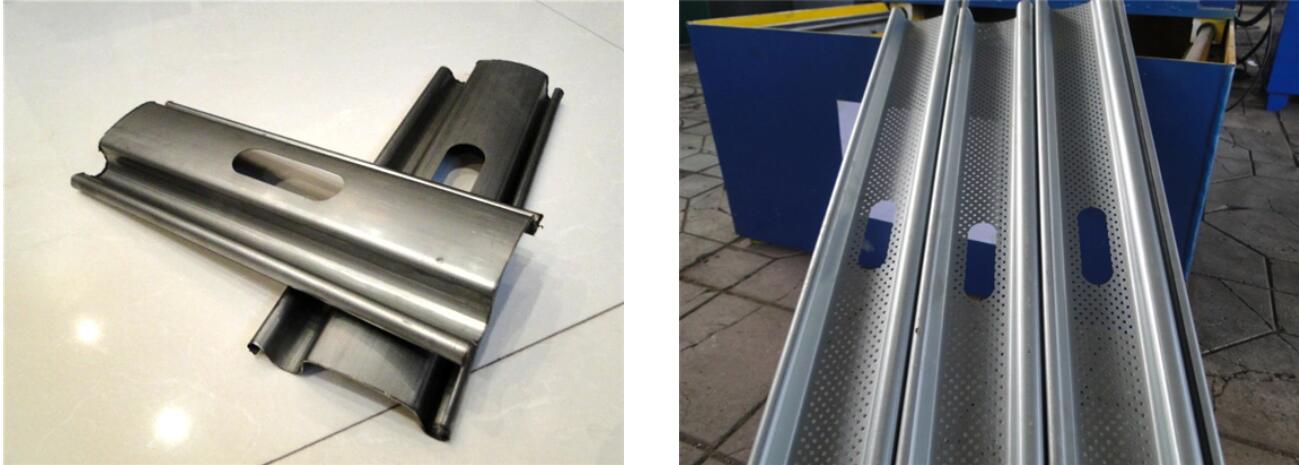

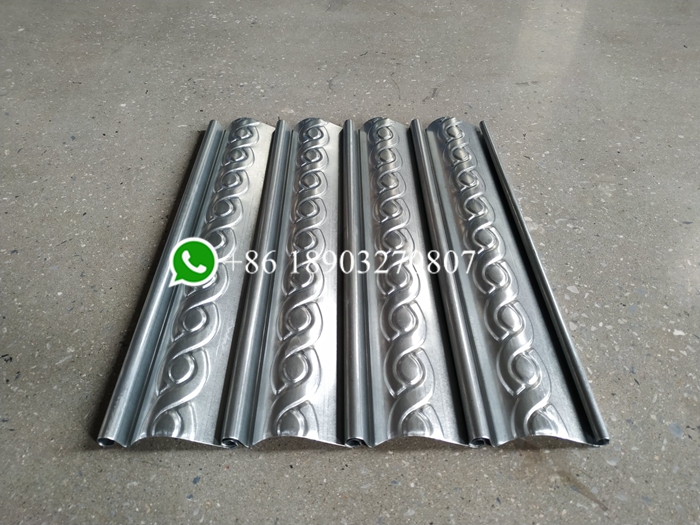

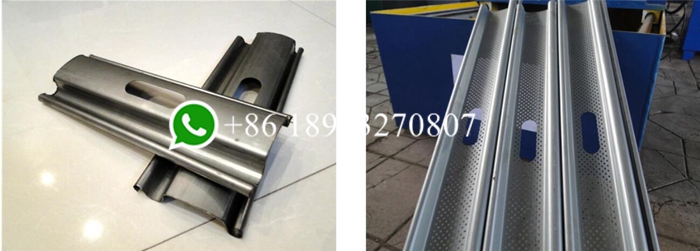

Due to different area and function application,the shutter door shape and punching holes shape different,so this metal shutter door roll forming machine can be customized.Here some hot sale drawing profile of shutters for your reference.

Technical Farameters

Processing Flow

Uncoiling---feeding the material---roll forming---saw cutting---product collect
Series
Details
Parameter
Comment
Material
Raw material
Steel
Customer confirmed
Material thickness
0.4-1.2 mm
Decoiler
Structure
Manual passive type
The standard one to match the production line
Single head type
Loading capacity
1.5 Tons
Coil inner diameter
450-550 mm










Roll forming machine
Guiding device
Placed on the machine by seller

Rolling shaft material
45# STEEL

Shaft diameter
50 mm

Roller material
GB-Cr12

Rolling station
12 stations

Work speed
20 m/min

Machine structure
Vertical memorial arch frame

Machine basic frame
Steel plate welded

Bearing
Roller bearing
Famous brand of Harbin
Work power
4 kw

Transmission
By gear
With cover
Safety cover
available

Appearance
Good appearance with no burrs in steel body nor traces of rust or defects in painting.
Good electrical and hydraulic cable organization Car painting make the machine more glossy
We confirm each detail can match the standard, ensure the machine is 100% new!

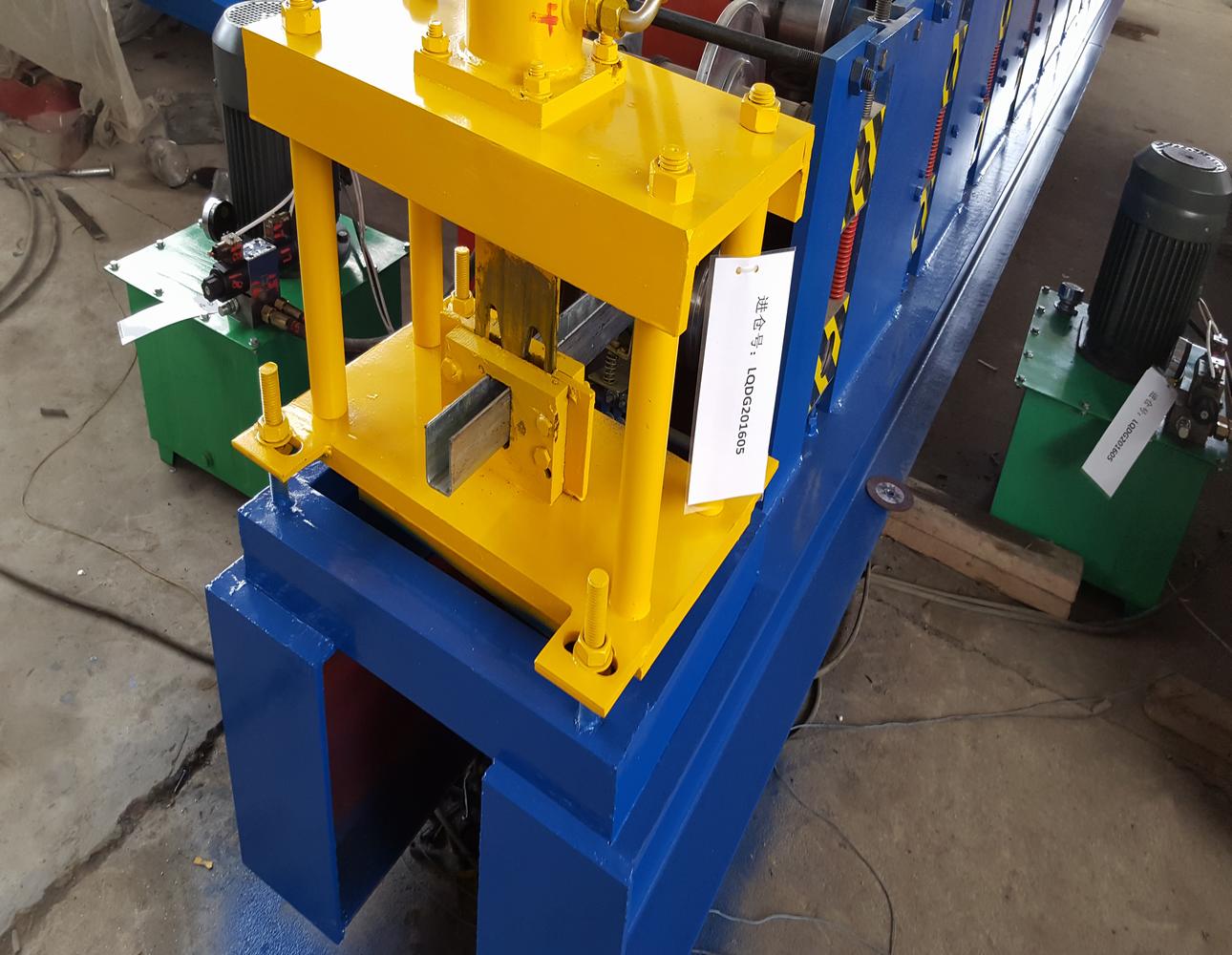

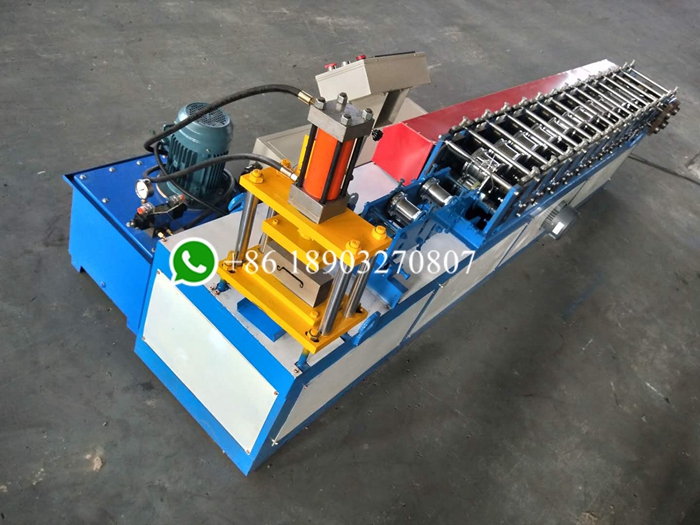

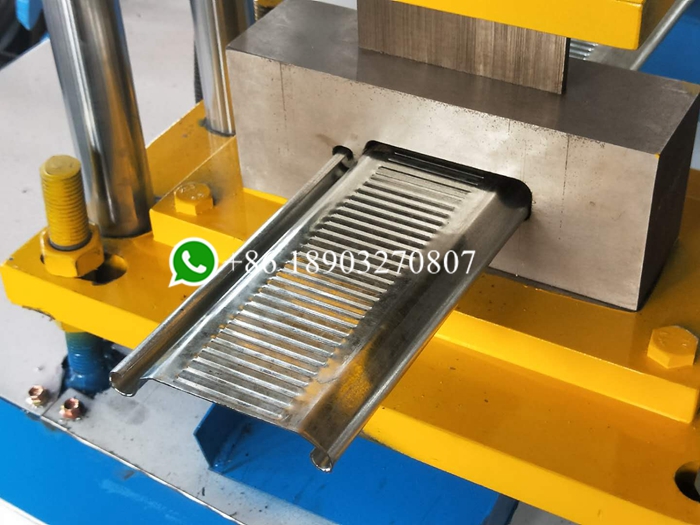

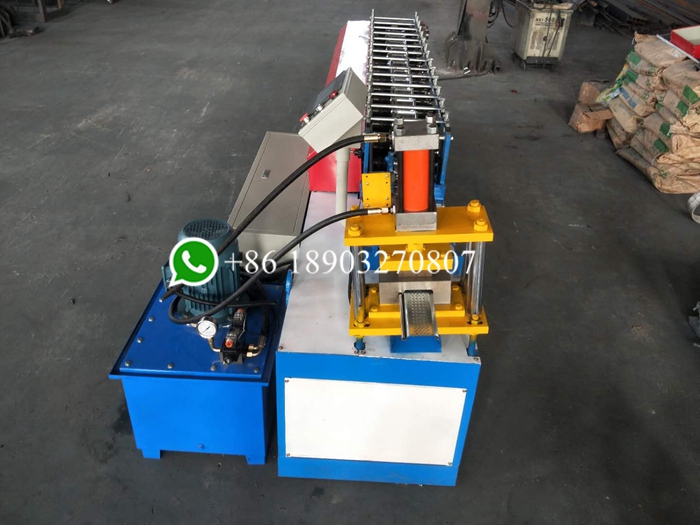

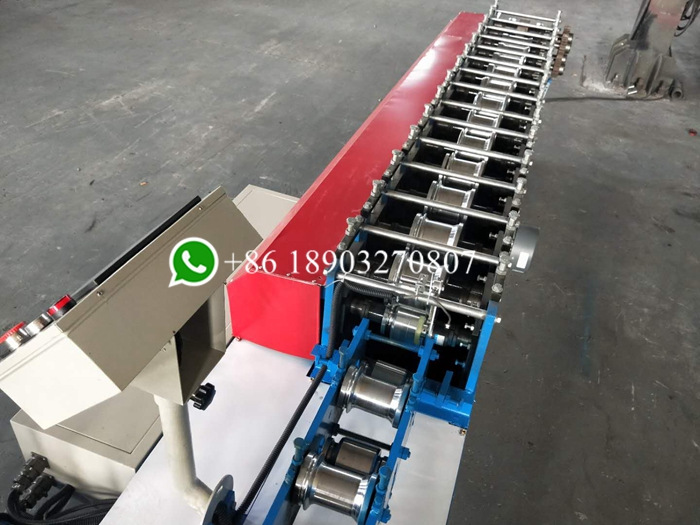

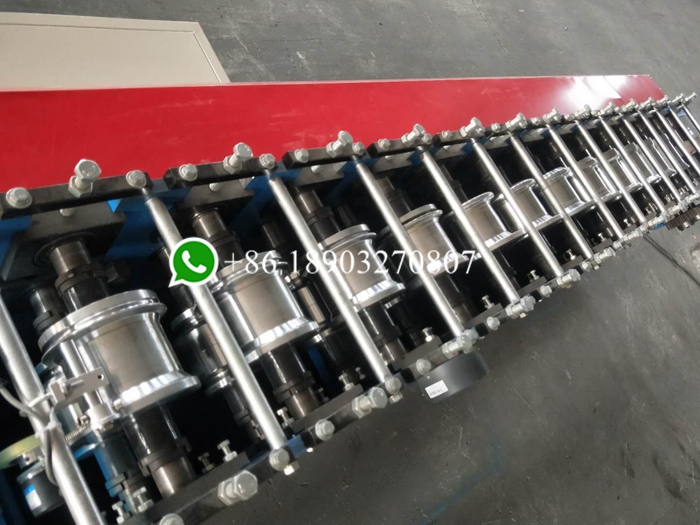

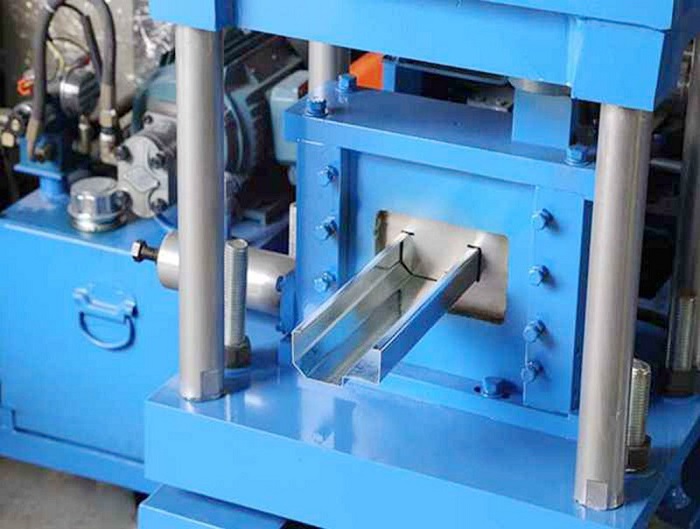

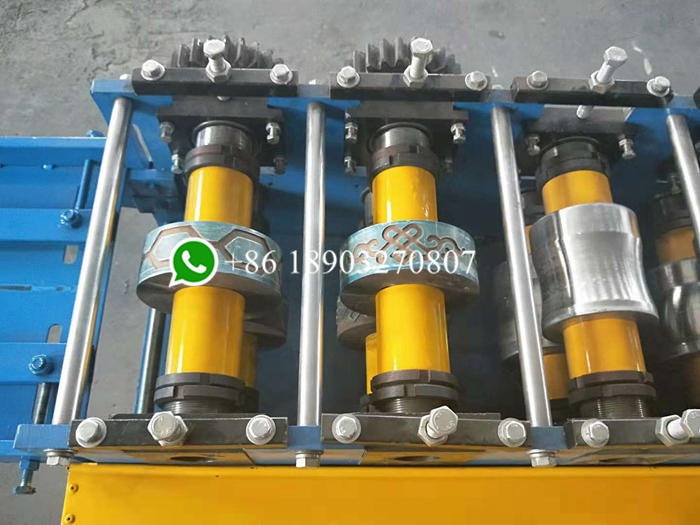

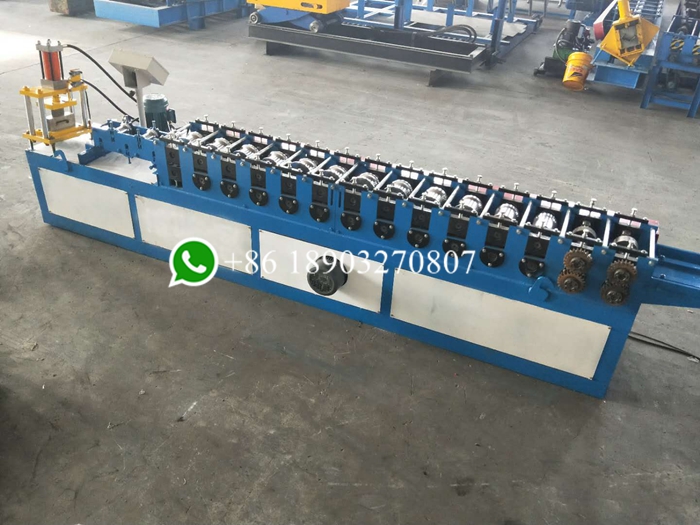

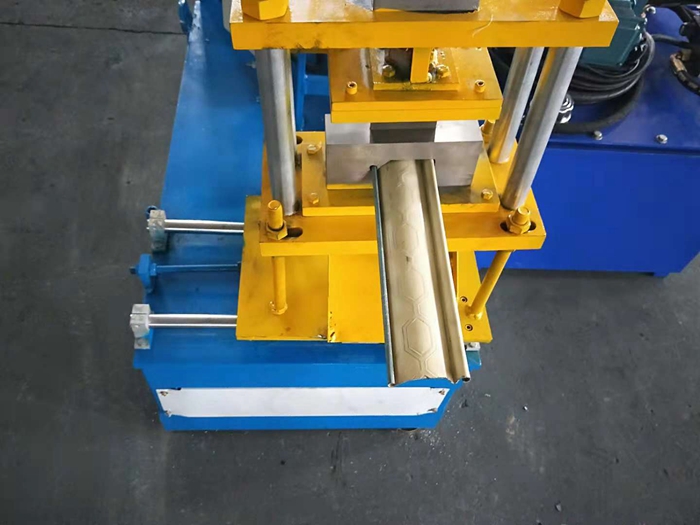

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine

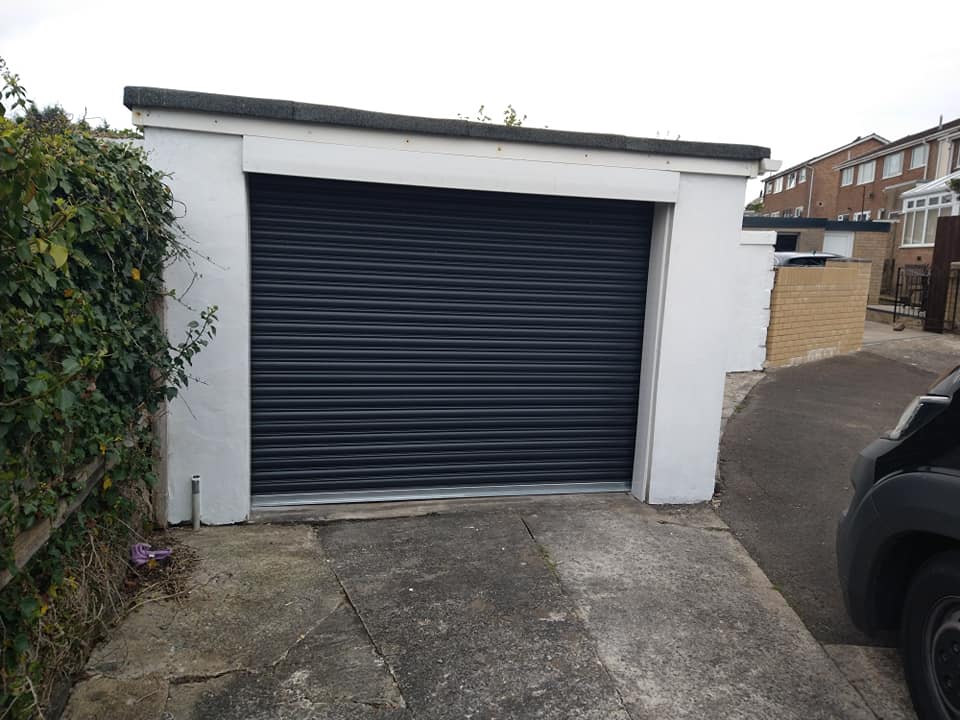

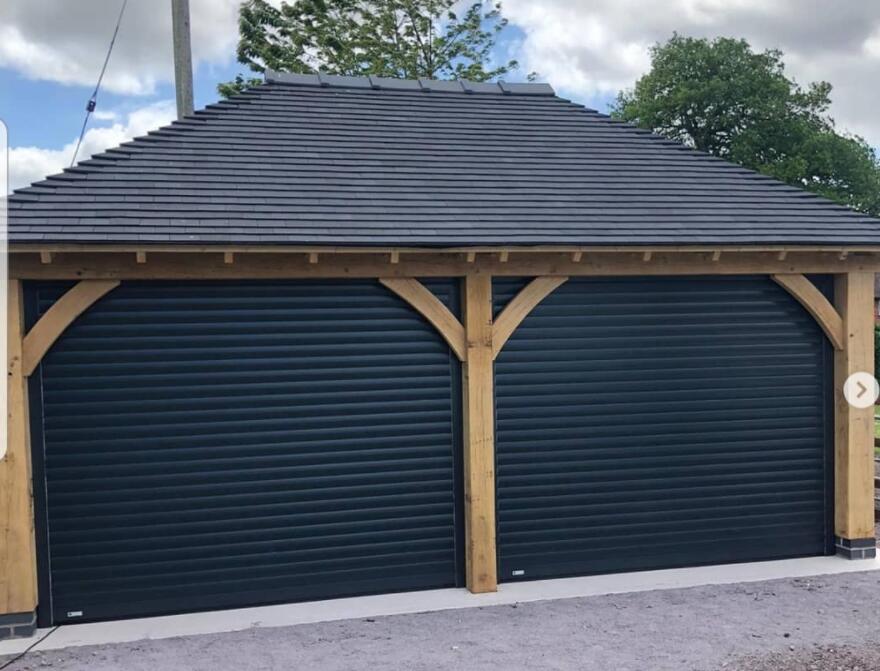

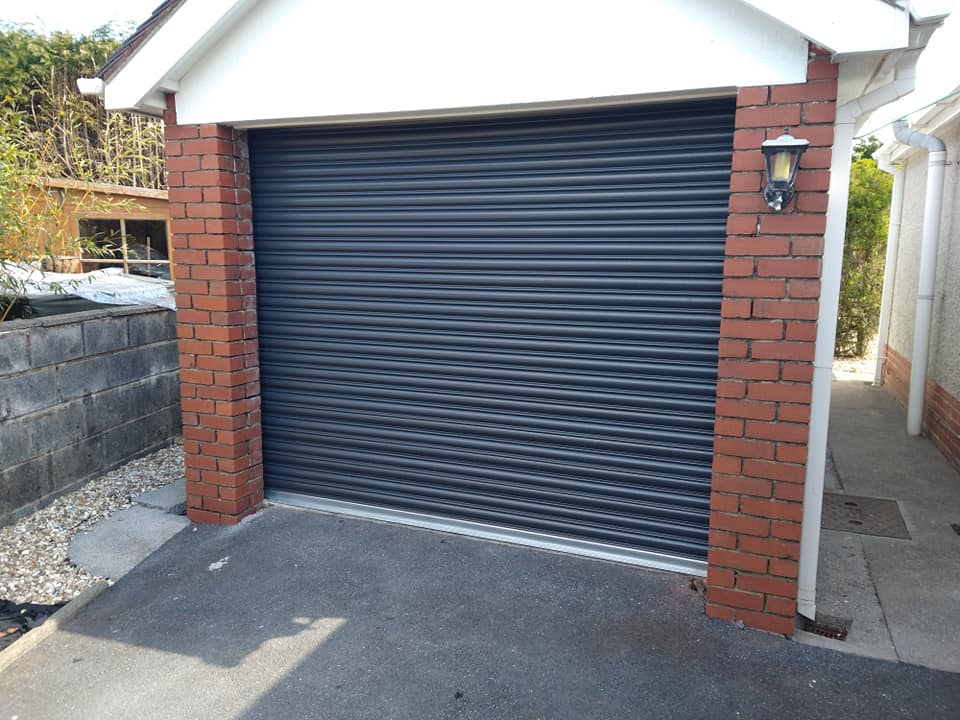

Applications

  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine
  • Garage door rolling shutter door forming machine

A rolling shutter is a type of image capture in cameras that records the frame line by line on an image sensor instead of capturing the entire frame all at once. The rolling shutter sensor scans from the top of the image to the bottom, so the top of the frame is recorded slightly earlier than the bottom.

Related Machines

LONGWAY valuable customer

  • Chile

    Chile

  • lran

    lran

  • Philippine

    Philippine

  • South Africa

    South Africa

Package and Delivery

  • metal roofing machine
  • metal roofing machine
  • metal roofing machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
