Drywall Steel L Angle Bar forming machine

Drywall Steel L Angle Bar forming machine can produce many sizes of products cross tee dry wall stud and track angle , 25X25, 30X30 with punching holes .

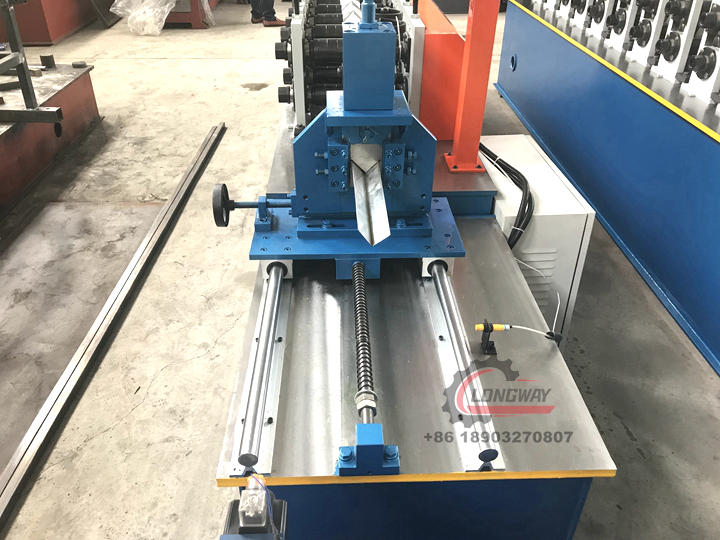

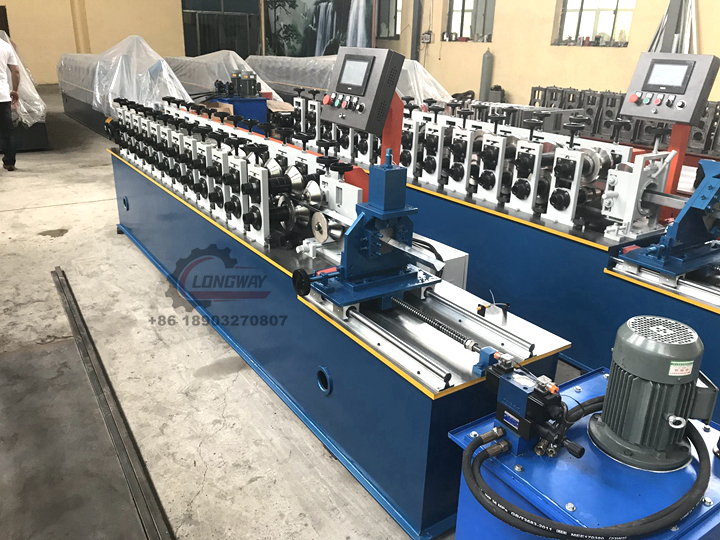

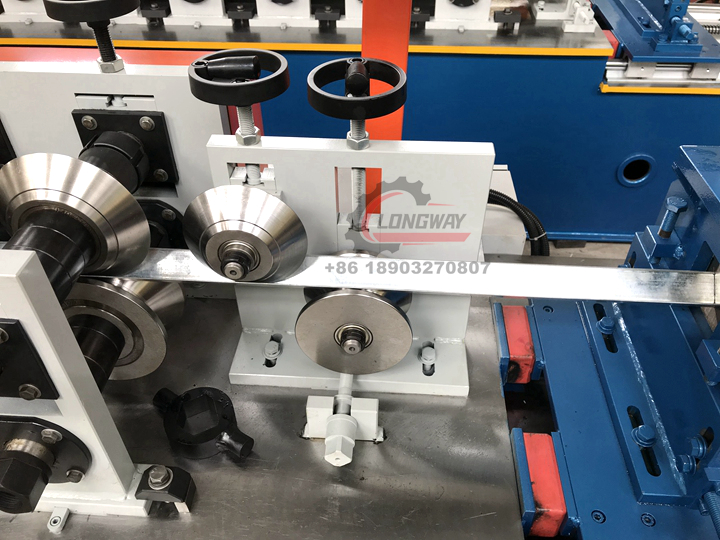

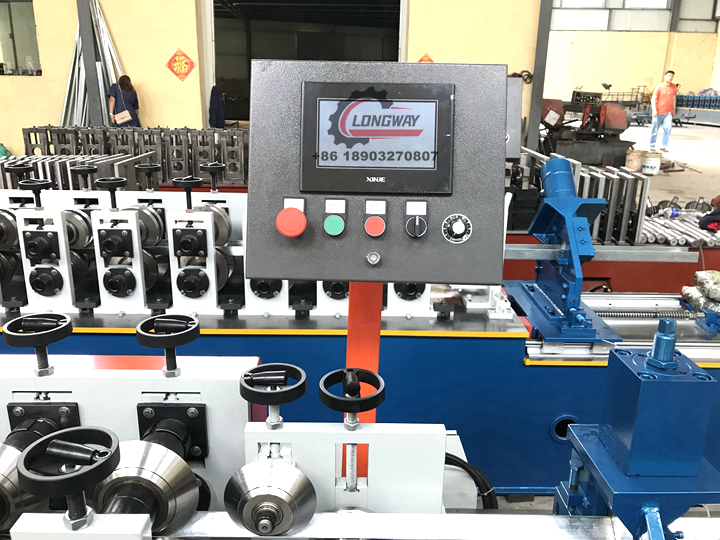

The line mainly consists of decoiler, strighthen, roll forming system, punching equipment ,cutting equipment , hydraulic station ,PLC controlling system and support table.

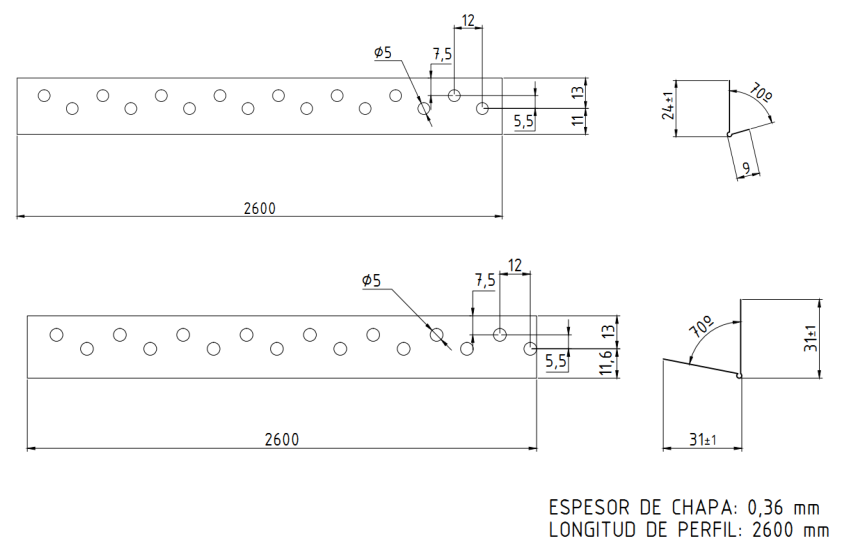

Here are some drawing profiles for your reference:

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Servo Fly Cutting →Products Receiving

Series	Details	Parameter	Comment
Material	Raw material	Steel	Customer confirmed
	Material thickness	0.4-0.6 mm
Decoiler	Structure	Manual passive type	The standard one to match the production line
		Single head type
	Loading capacity	1.5 Tons
	Coil inner diameter	450-550 mm

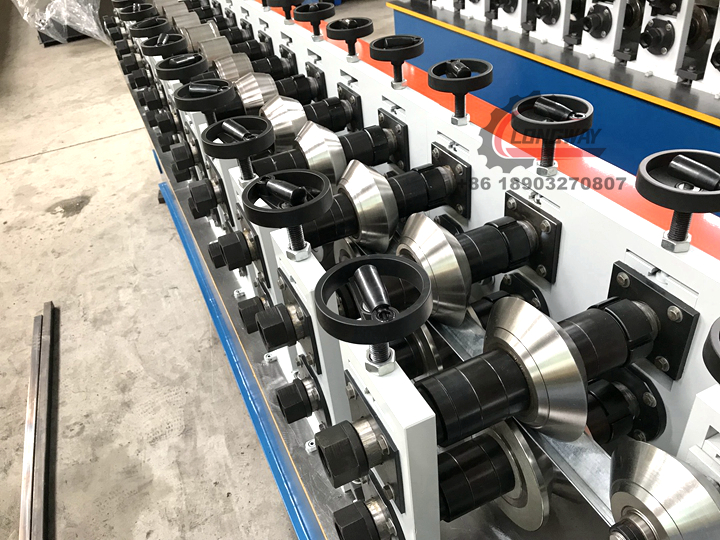

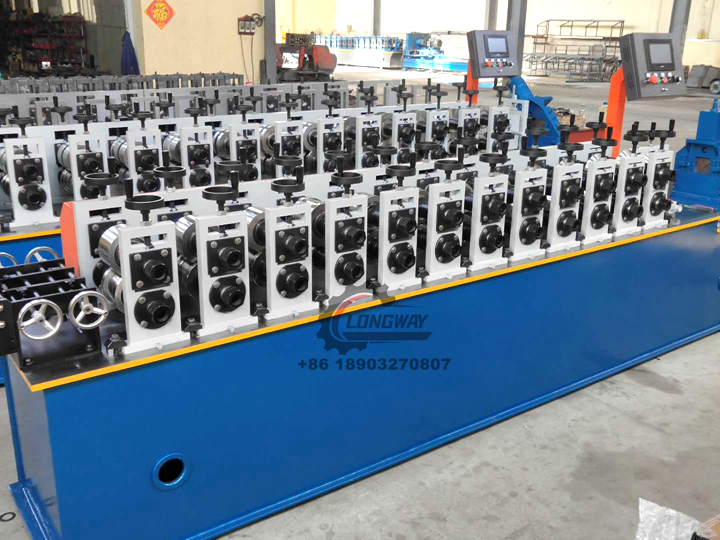

Roll forming machine	Guiding device	Placed on the machine by seller
	Rolling shaft material	45# STEEL
	Shaft diameter	50 mm
	Roller material	GB-Cr12
	Rolling station	12 stations
	Work speed	40 m/min
	Machine structure	Vertical memorial arch frame
	Machine basic frame	Steel plate welded
	Bearing	Roller bearing	Famous brand of Harbin
	Work power	4 kw
	Transmission	By gear	With cover
	Safety cover	available
	Appearance	Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy	We confirm each detail can match the standard, ensure the machine is 100% new!

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

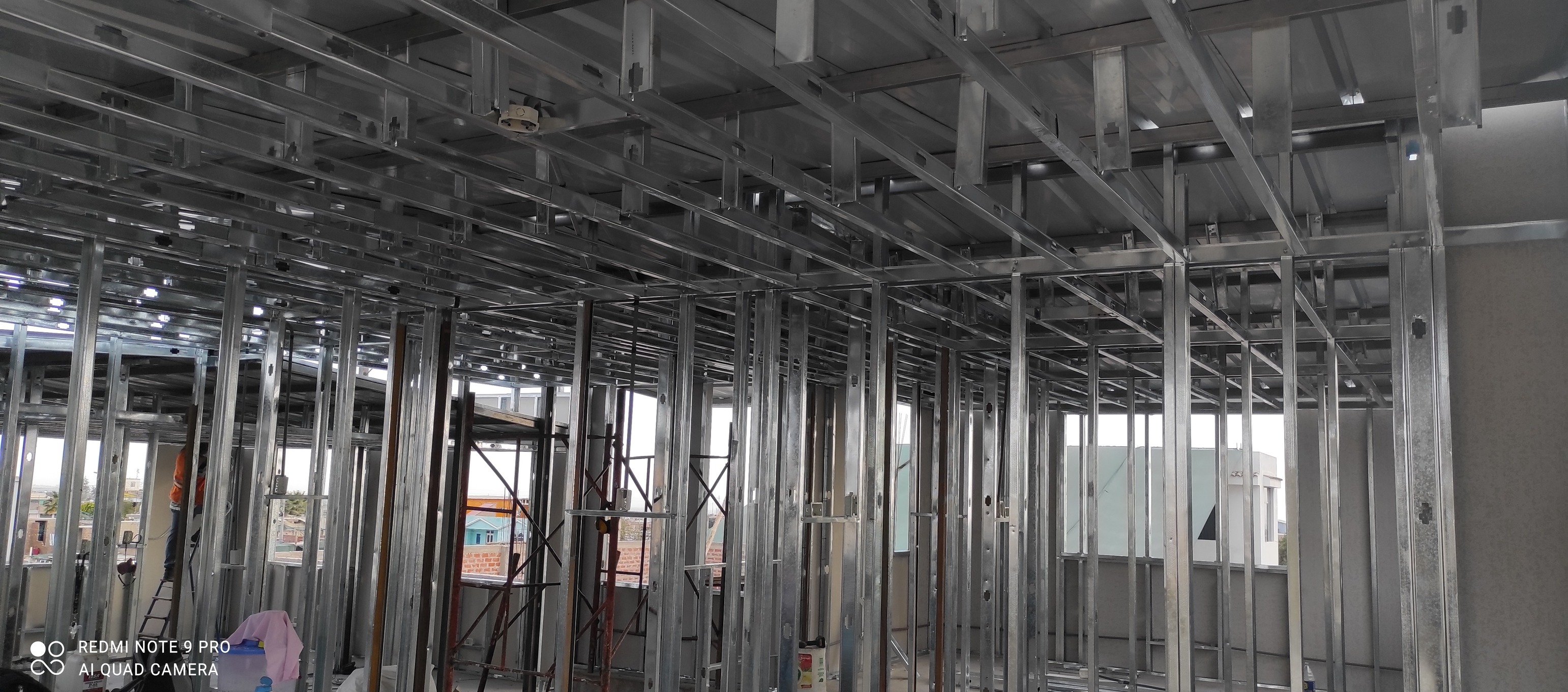

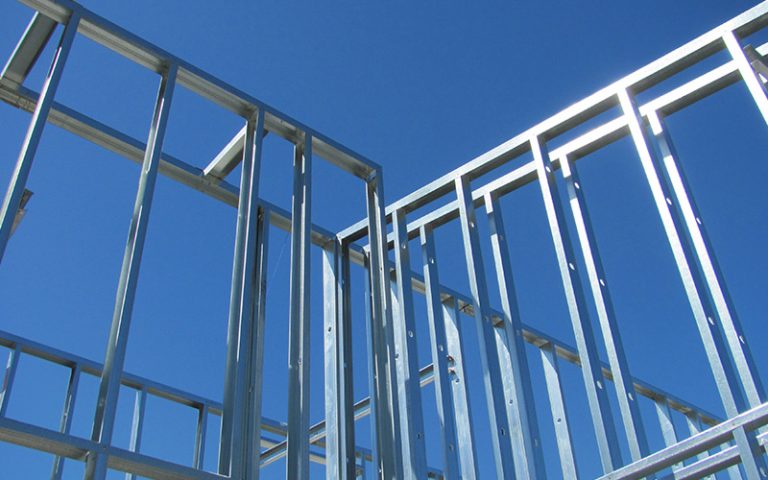

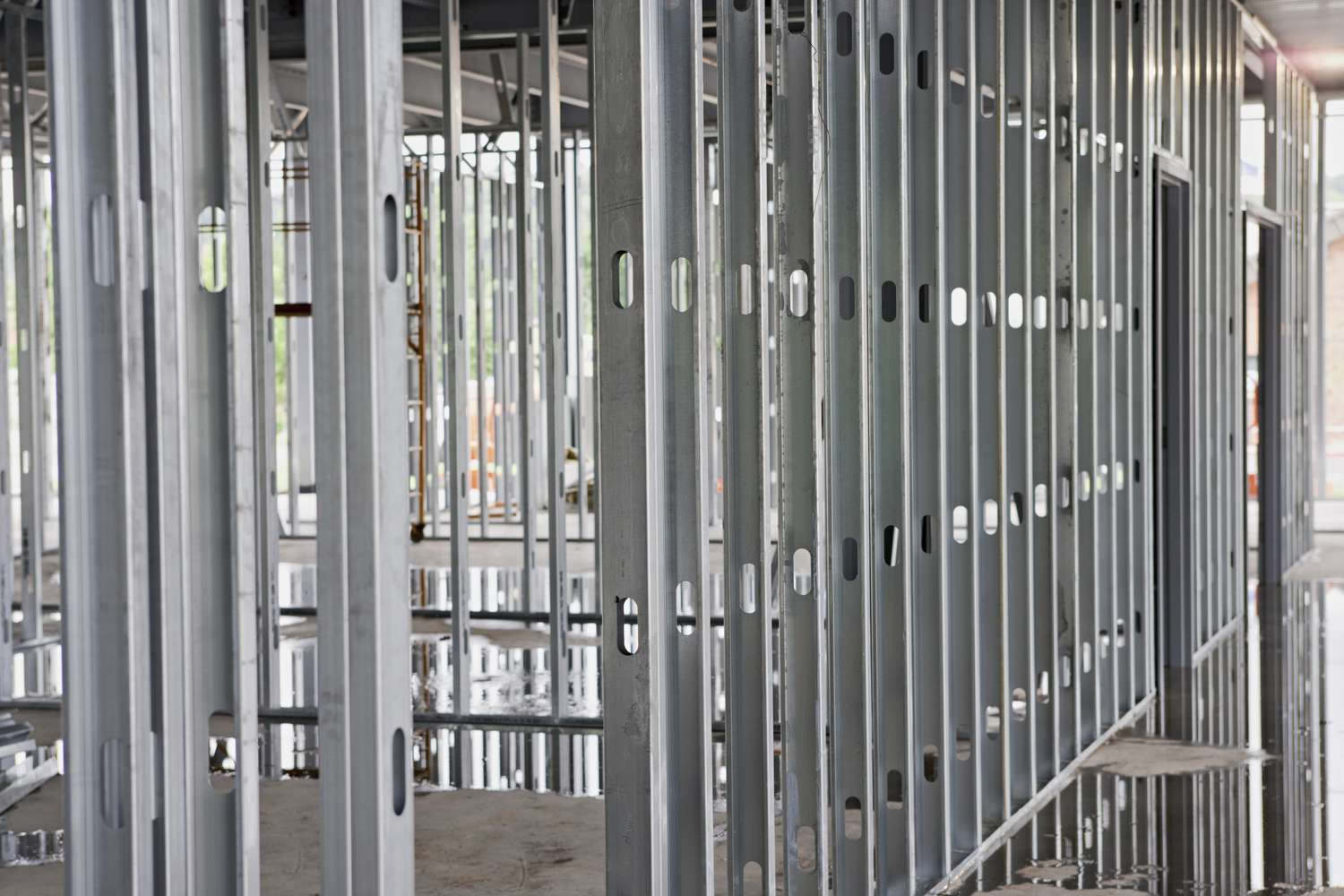

Non-composite conditions are common in all structures. When the gypsum board stops at the ceiling level, but the stud continues to the deck, it is a non-composite condition. Wall framing with Deflection Track, Resilient Channel (RC) or Sound Clips is a non-composite design since the screws attaching the gypsum board are not directly attached to the framing or top track. While there may be advantages to contacting Technical Services or a Design Professional, many conditions can be covered by limiting heights tables shown in this cataloge.
