Product Details
Design Idea：
Higher speed 0-30 m/min: Main motor uses Servo motor to improve the speed.
speed will be higher,Twice as fast as normal design mode.
Protect cover: design the machine cover to protect the machine body and it's also safe for the worker.
Calamima Micro Ondulada corrugated roof sheet machine
small corrugated metal profiles are durable yet weightless. Highly popular for building the roof and side. Corrugated Metal Panels have more recently gained tremendous popularity as modern contemporary roofing and siding.

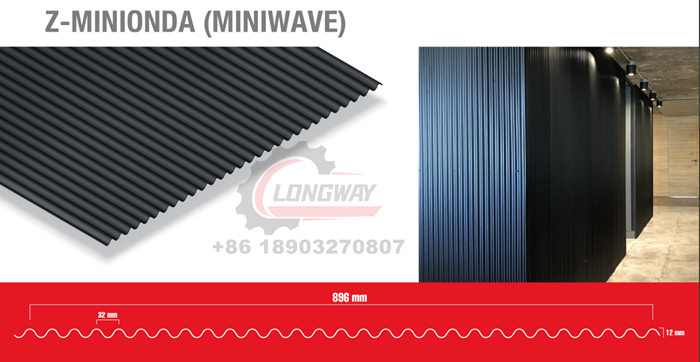

Profile drawing for reference

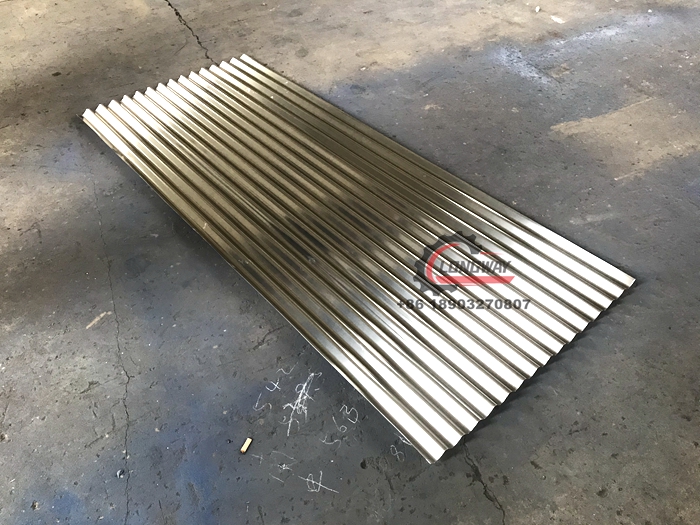

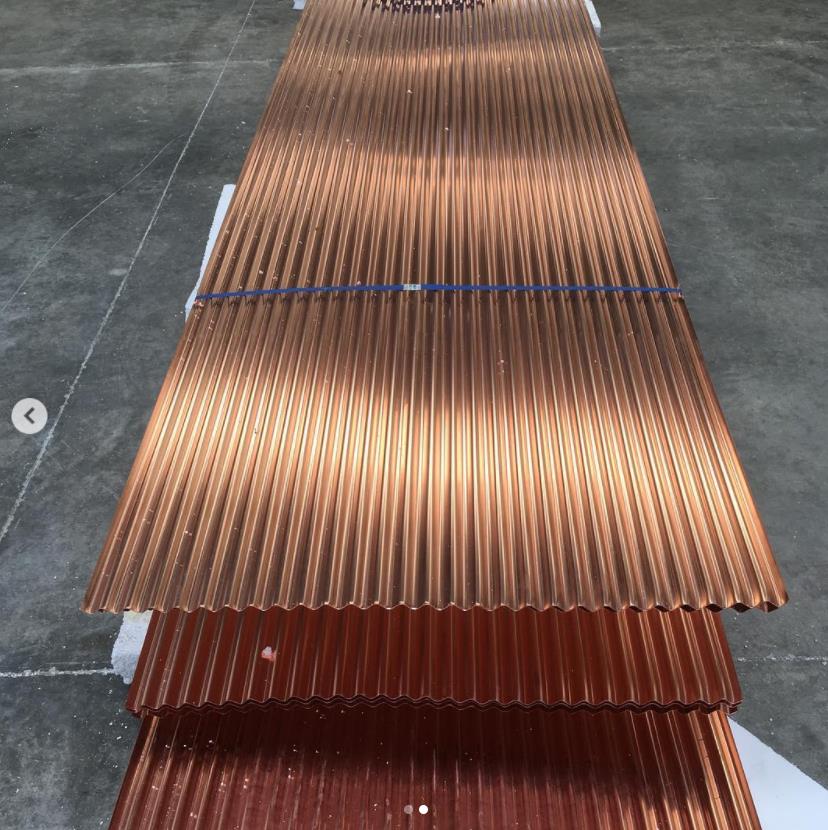

This Micro Ondulada profiles is mainly produce mini corrugated profiles , for height 8mm and 10mm , similar profiles are popular used in European and American market .
Technical Farameters
Working Process
Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table
|
Raw Material |
Coil Type |
PPGI,PPGL,GI |
|
Width |
1000/1200/1220mm |
|
|
Thickness range |
29-22 Gauge (0.3-0.6mm) |
|
|
Power Requirement
|
Voltage |
380v/3ph/50hz(Customized) |
|
Main Motor power |
5.5kw+5.5kw |
|
|
Cutter power |
4kw |
|
|
Forming speed |
15-20m/min |
|
|
Machine Frame |
350mm H Beam Structure |
|
|
Thickness of structure |
18 mm Welded Steel Middle Support Plate |
|
|
Forming shaft |
75mm solid shaft with heat treatment |
|
|
Material Of Rollers |
High Grade 45# Forged Steel |
|
|
Forming stations |
20-26 rows Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision |
|
|
Transmission Way |
Chain drive 1 inch (Double Chain) |
|
|
Type of cutting |
Hydraulic Pillar type and length-set cutting |
|
|
Control system |
PLC Delta and Inverter Delta |
|
|
Screen |
Touch screen |
|
|
Dimension(Approx) |
9.8m×1.5m×1.2m |
|
|
Total weight (Approx) |
8.6T |
|

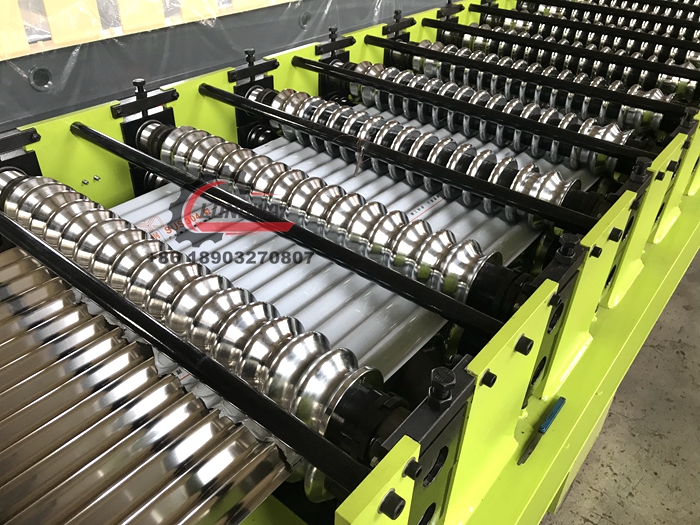

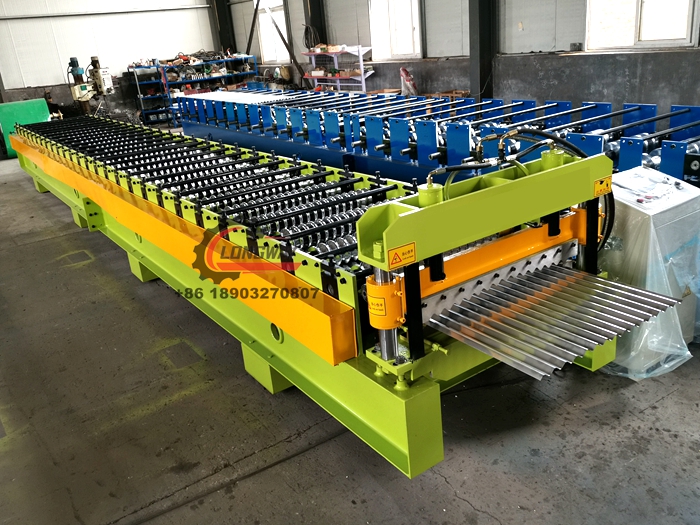

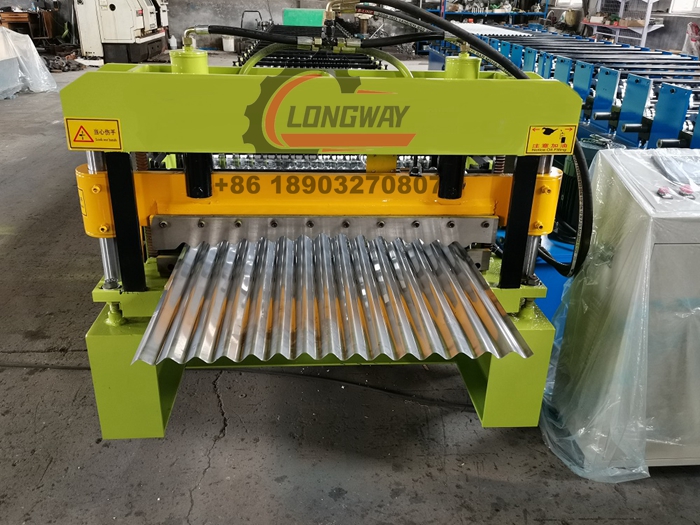

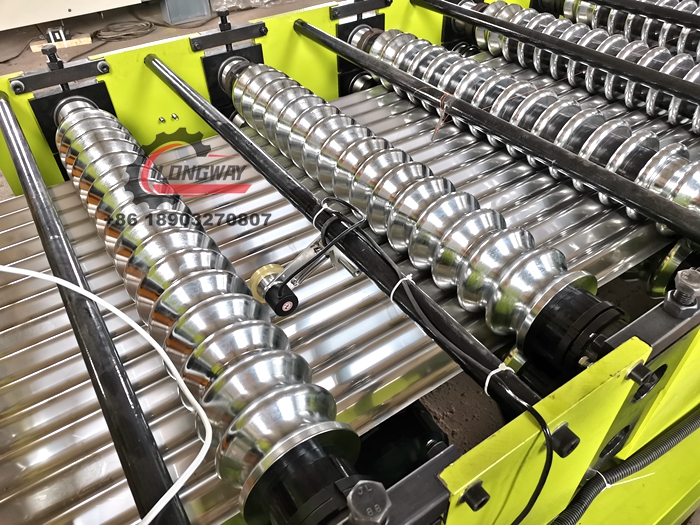

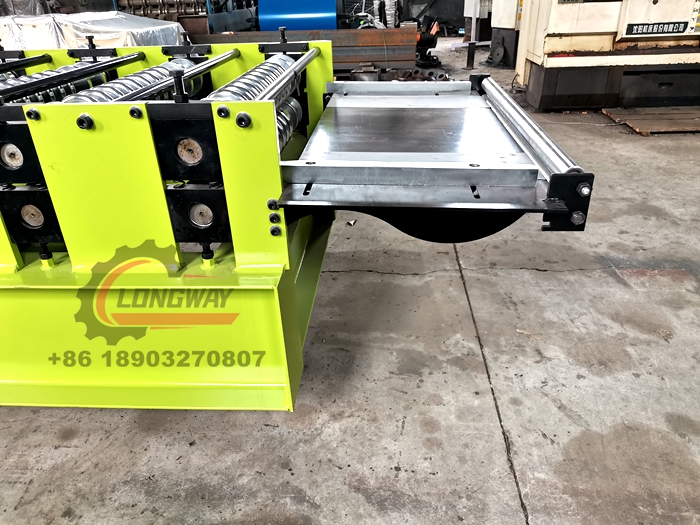

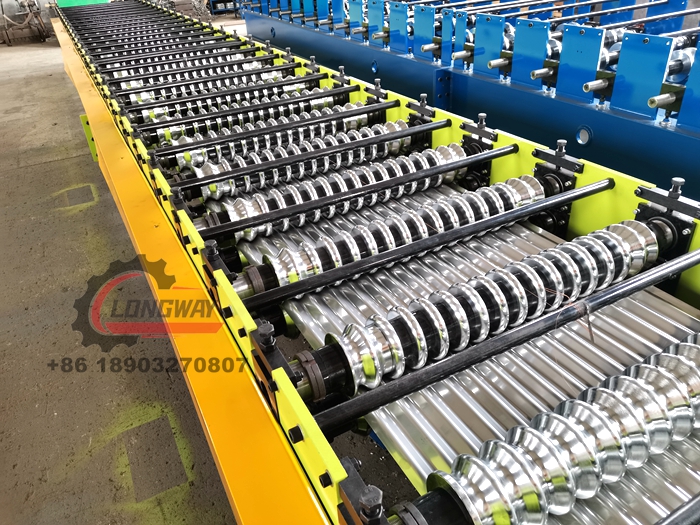

Machine Detailed Pictures
Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
Applications
Corrugated sheets are connected by overlapping the sheets, and then securing them in place with exposed fasteners . It's widely used for roofing, siding.decking, and flooring.
