Corrugated Steel Roofing Sheet Making Machine is mainly used to make corrugated profile panels. As one of the mature corrugated roof sheet making machine manufacturers in China, We offer high-end corrugated sheet bending machines with consistently high quality and different specification choices are also available.

18 Corrugated Steel Roofing Sheet Making Machine

Profile drawing for reference:

this type corrugated roof sheet very hot sale in all market. It can work for different coil width and thickness .
Welcome to contact us for more details . If you need different sizes , please just provide us the profile .

Technical Farameters

Working Process

Uncoiling → Feeding material into machine →Roll forming → Hydraulic cutting →Products receiving table



Raw Material

Coil Type

PPGI,PPGL,GI

Width

1000/1200/1220mm

Thickness range

29-22 Gauge (0.3-0.6mm)



Power Requirement



Voltage

380v/3ph/50hz(Customized)

Main Motor power

5.5kw

Cutter power

4kw

Forming speed

15-20m/min

Machine Frame

350mm H Beam Structure

Thickness of structure

18 mm Welded Steel Middle Support Plate

Forming shaft

75mm solid shaft with heat treatment

Material Of Rollers

High Grade 45# Forged Steel

Forming stations

14-18 rows

Rolling Type: Separate rolling design concept, It can release Internal stress from the fheets, Then the sheet will be in good shape and high precision

Transmission Way

Chain drive 1 inch (Double Chain)

Type of cutting

Hydraulic Pillar type and length-set cutting

Control system

PLC Delta and Inverter Delta

Screen

Touch screen

Dimension(Approx)

8.8m×1.5m×1.2m

Total weight (Approx)

5.6T

Machine Detailed Pictures

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers

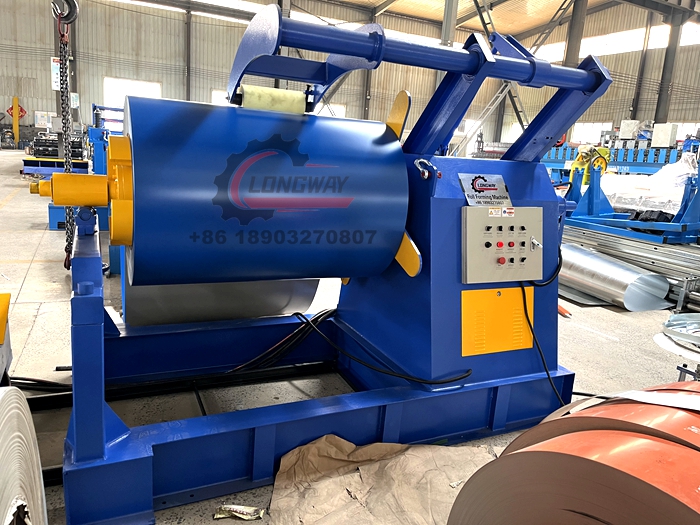

  • coil stand

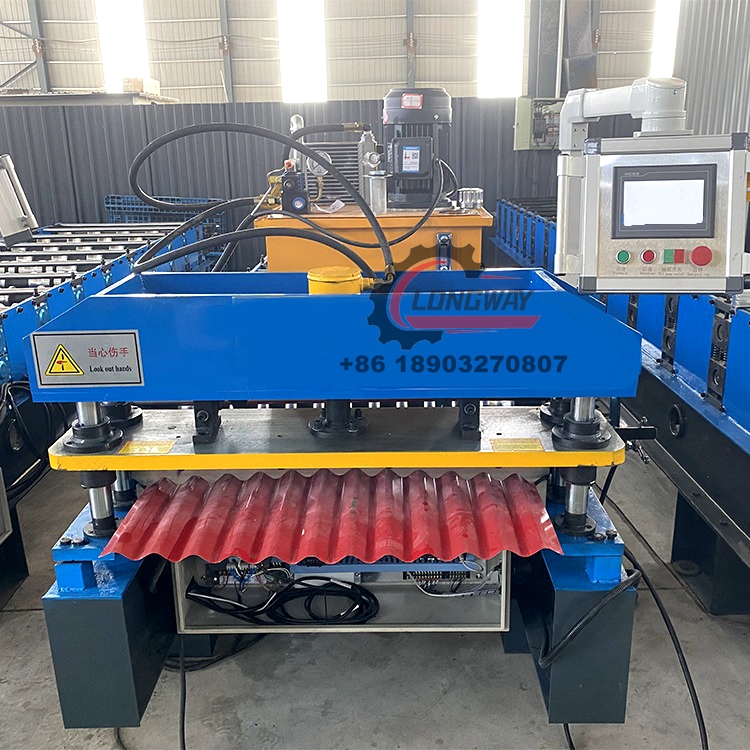

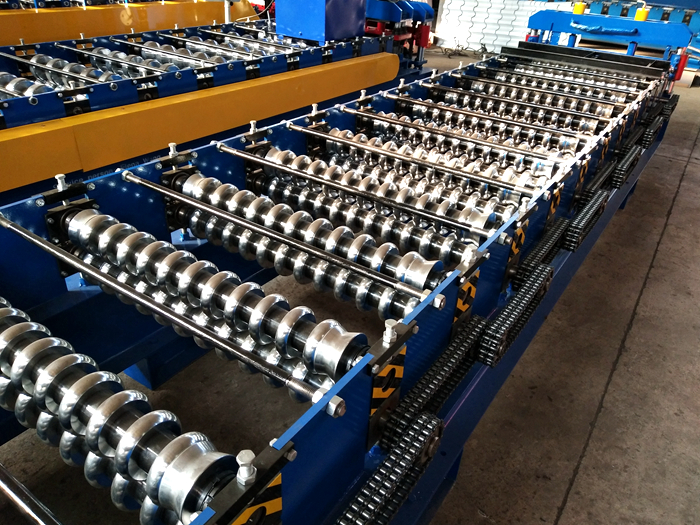

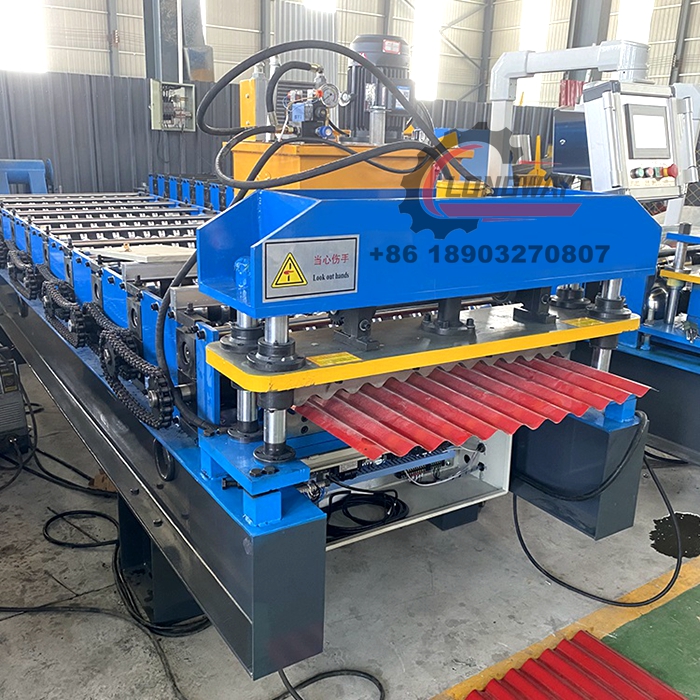

  • 18 Corrugated Steel Roofing Sheet Making Machine
  • 18 Corrugated Steel Roofing Sheet Making Machine
  • 18 Corrugated Steel Roofing Sheet Making Machine
  • 18 Corrugated Steel Roofing Sheet Making Machine
  • auto stacker

Applications

  • cut to length machine
  • cut to length machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

Corrugated metal profiles are durable yet weightless. Highly popular for building the roof and side. Corrugated Metal Panels have more recently gained tremendous popularity as modern contemporary roofing and siding.

Related Machines

LONGWAY valuable customer

  • Chile

    Chile

  • lran

    lran

  • Philippine

    Philippine

  • South Africa

    South Africa

Package and Delivery

  • metal roofing machine
  • metal roofing machine
  • metal roofing machine
  • cut to length machine
  • cut to length machine
  • metal roofing machine

1 .Spraying anti-corrosive oil on rollers to prevent rollers oxidation during shipping
2.Packaging isolation film whole machine to prevent machine oxidation during shipping
3.Reasonable space planning to reduce transportation costs for customers
4.Fixed well to prevent machine damage during transit period
