Metal sheet punching production line is designed to make the metal sheet, ALUMINIUM sheet punching and other material punching either from decoiler to recoiler or from decoiler to cut to length or only sheet punching machine. Meanwhile it also could be worked with the rolling forming machine. For example, some kind of profile needed to be punched and then do the rolling forming. So as to the punching line, it has many types combination. Here I will show you some types by some drawing profile for your reference:

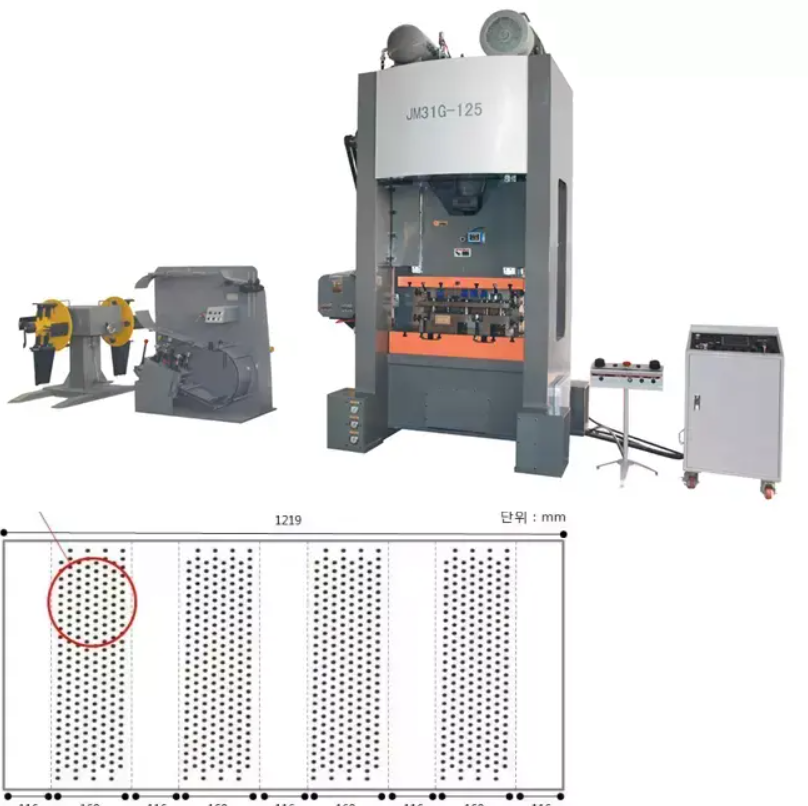

Or punching could be like this:



Farametrat teknikë

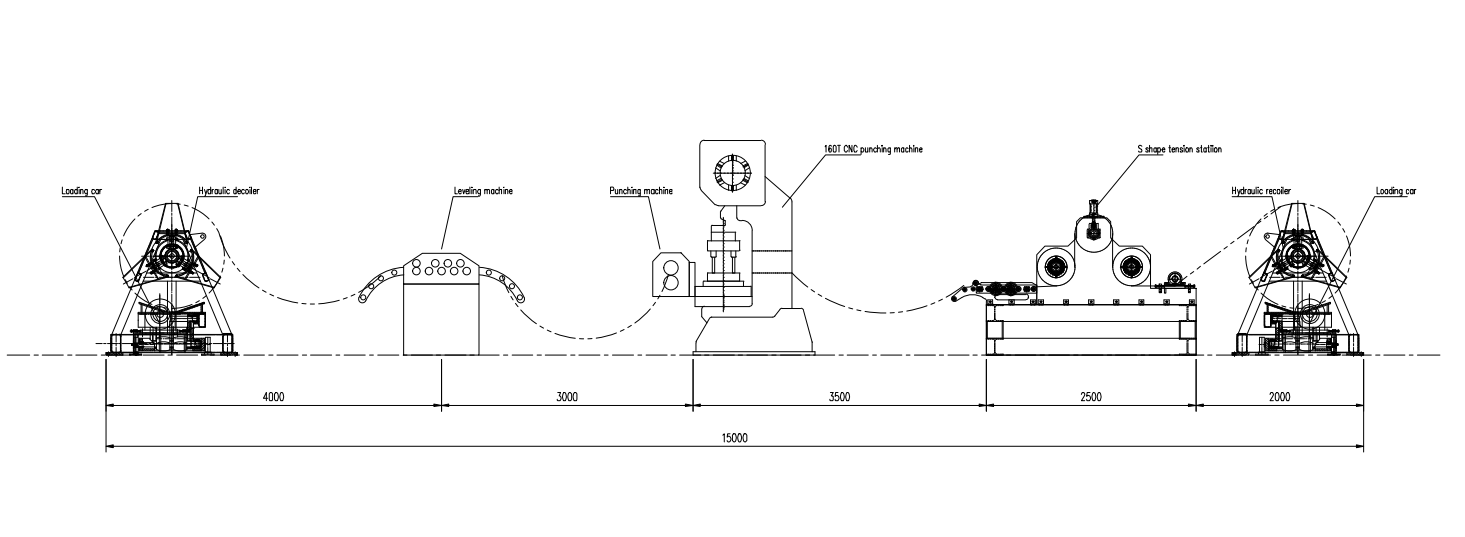

Metal sheet punching production line working flow:

Hydraulic decoiler -- Servo feeder -- Punching -- Damping device S rollers -- Recoiler (or could be cut to length)--> or main rolling forming machines Actually all elements are optional, like you can choose manual decoiler or electrical decoiler or hydraulic decoiler. As to the punching machine, you can choose to use the high speed punching or the normal speed punching machine and then the cost will be totally different.



Punching Machine Parameters

1.Supported      Material

PPGI,GI,AI

Thickness:0.3-2.0mm  Width:1000mm/1250mm(customized)

2.Decoiler

Hydraulic automatic decoiler

Manual decoiler(will give you as free)

3.Main Punching machine

Pressure

200 Ton

 Diameter of shaft

80mm solid shaft

Materiali i rrotullave

45# steel, hard chrome plated on the surface

Machine body frame

çeliku 400 H

Drive

Gearbox transmission

Dimension(L*W*H)

15000*1800*1600(customize)

Pesha

18T

4.Cutter

Automatic

If you need tor cut to length

5.Power

Fuqia motorike

30 KW

Fuqia e sistemit hidraulik

7.5KW

6.Voltage

380V 50Hz 3Phase

Customize

7.Control system

Electric Box

Customized(famous brand)

Language

English(Support multiple languages)

PLC

Automatic production of the whole machine. Can set batch, length, quantity, etc.

8.Forming Speed

30-40m/min

If you need to do the rolling forming

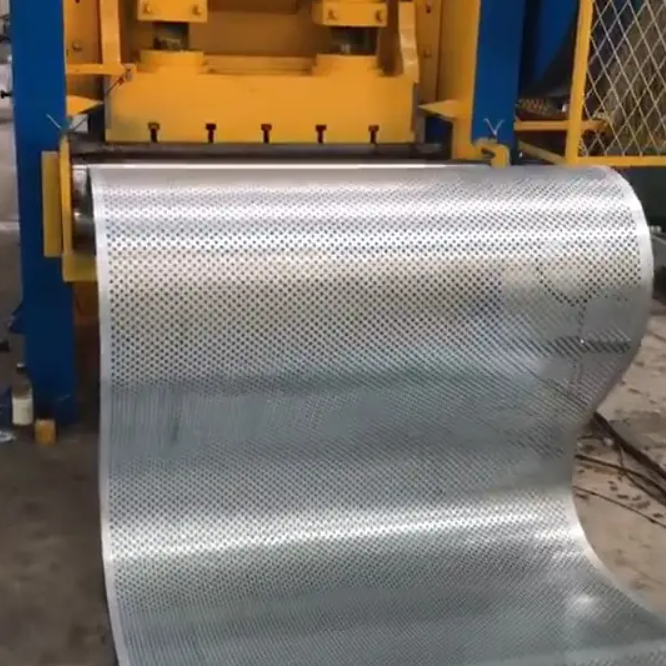

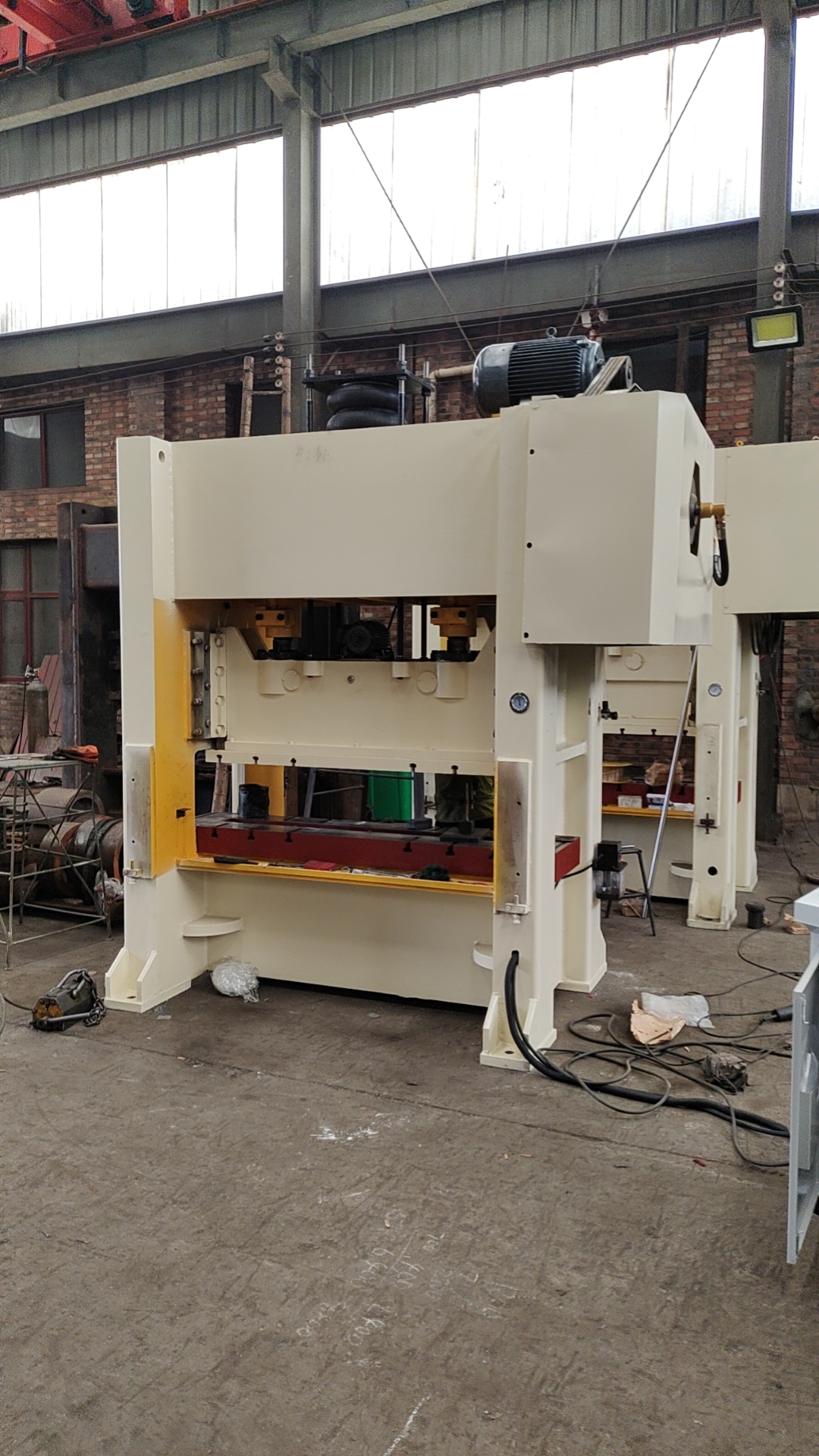

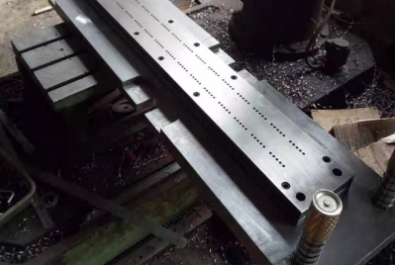

Fotografitë e detajuara të makinës

Çdo komponent mund të projektohet sipas kërkesës me porosi. Makina për formimin e rrotullave Longway ofron OEM/ODM për të gjithë klientët

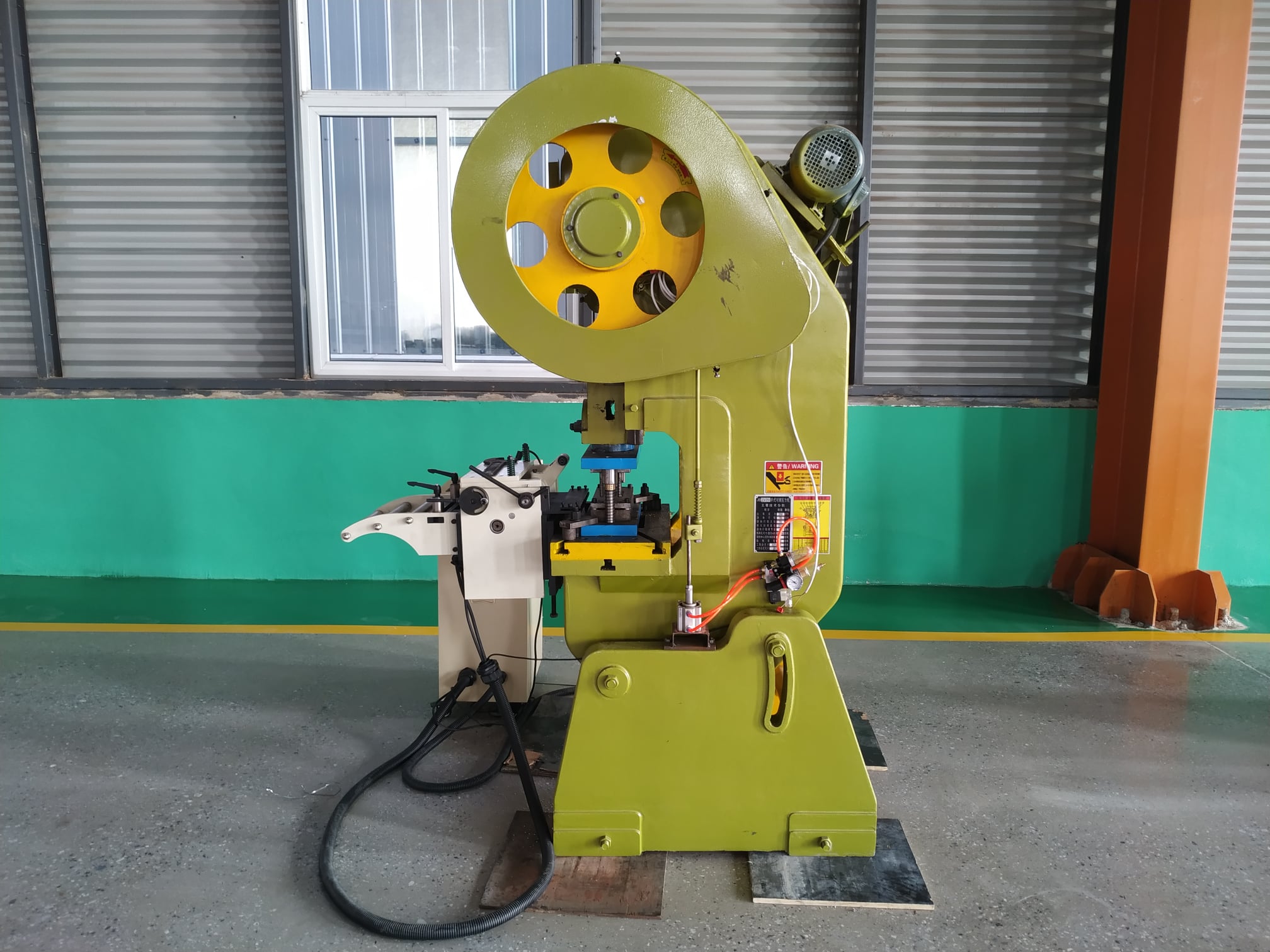

  • 40Ton Punch machine
  • cb01fce00cb6c75d5f072e68fad6f72
  • 图片1
  • Ha3a57d724cdf42828faa27d7a4a6b4bc9
  • 微信截图_20230910161732
  • 微信截图_20230910161919

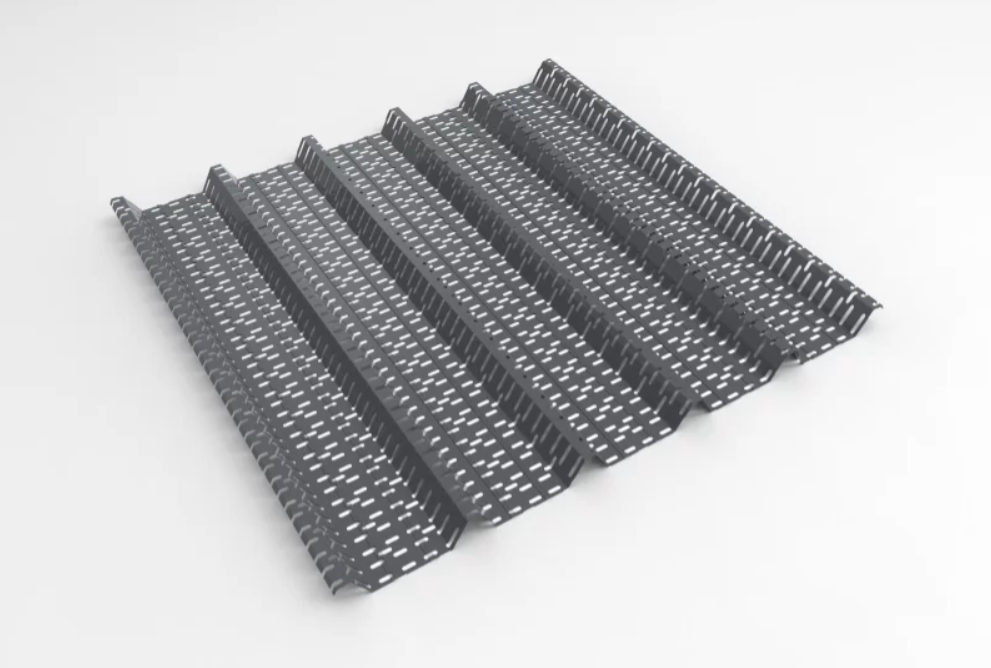

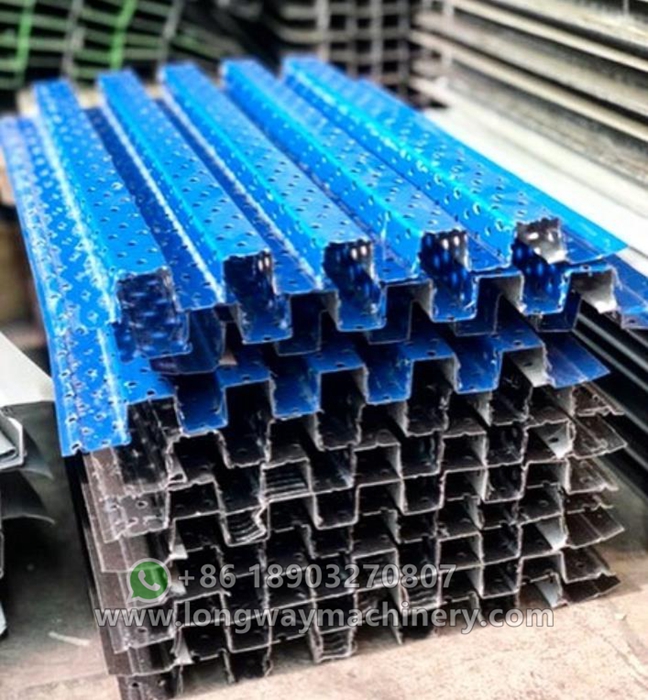

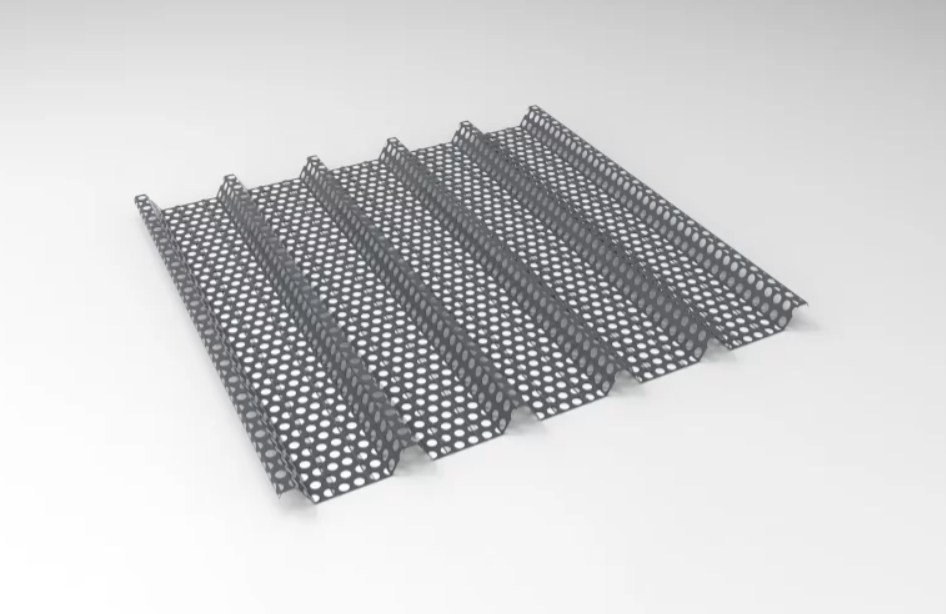

Aplikacionet

  • 1
  • 3

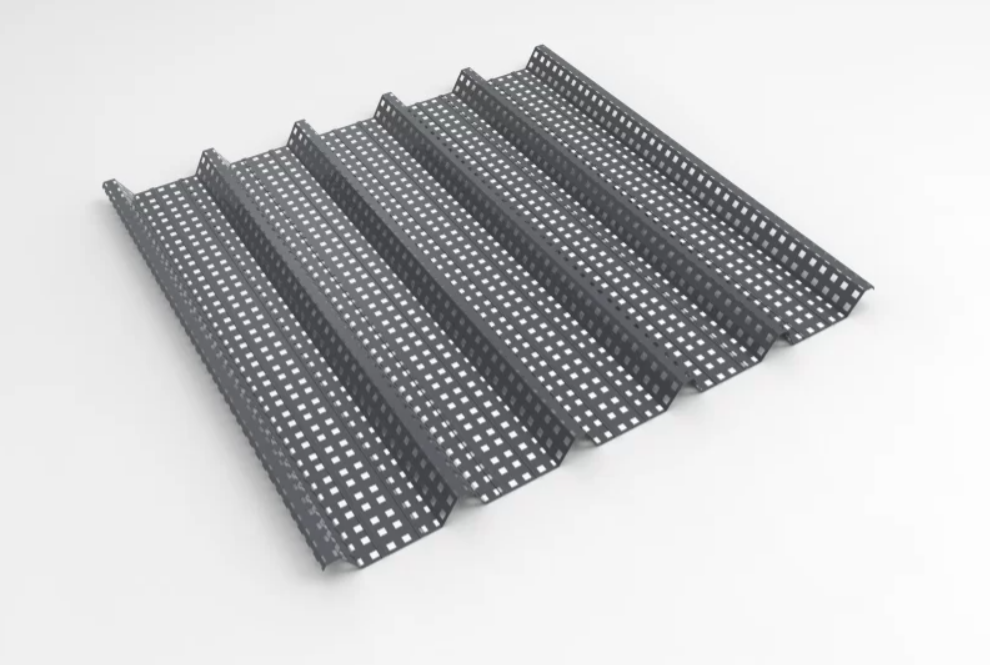

  • 4
  • 微信截图_20220410145317
  • 微信截图_20220410150642

Avantazhi i fletëve metalike Tr4 përfshin bukurinë, klasiken, pamjen dhe shijen e hirit. t përdoret gjerësisht në fshat, hotel, ekspozitë, fshat pushimesh, ndërtim familjar dhe dekorim të jashtëm.
